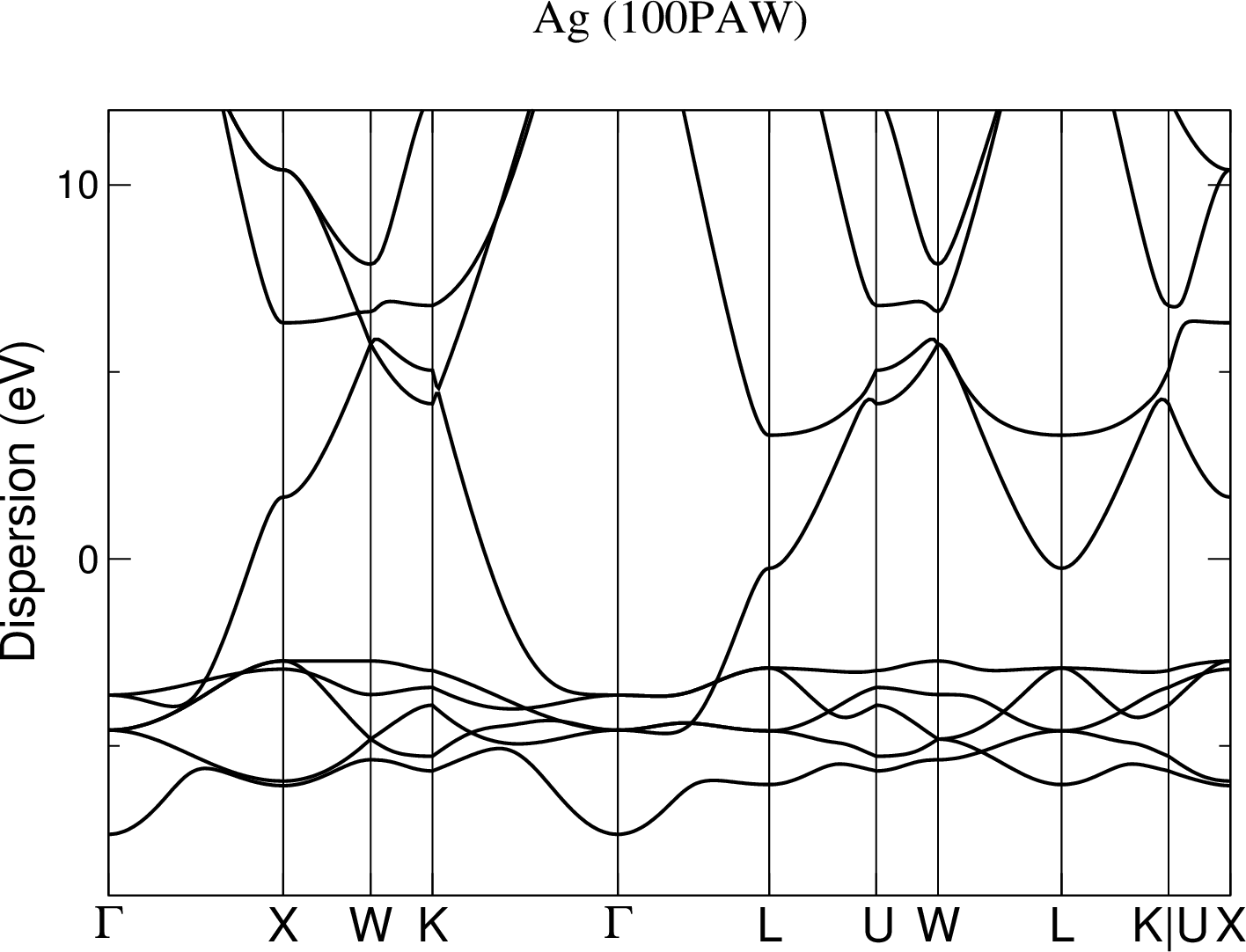

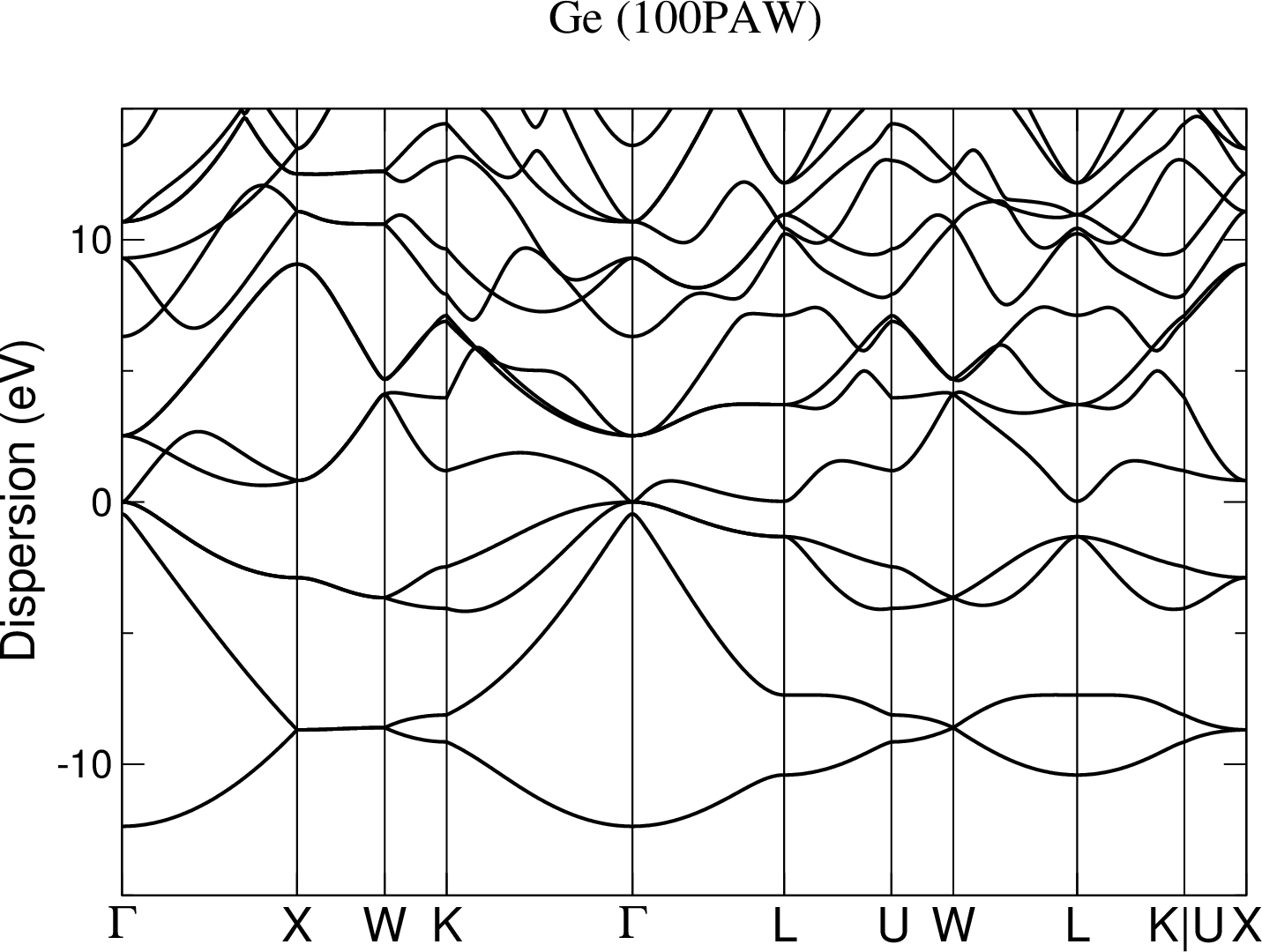

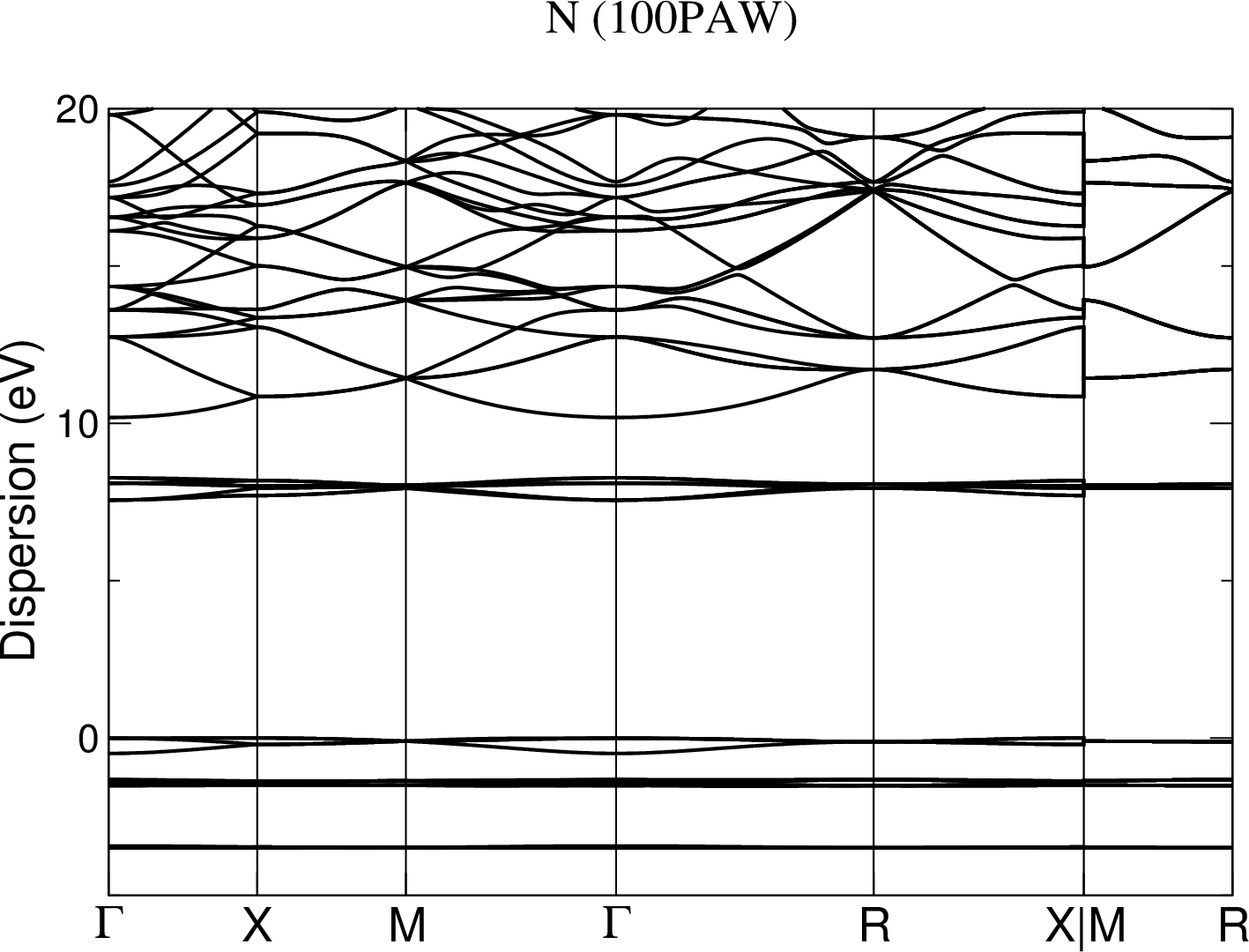

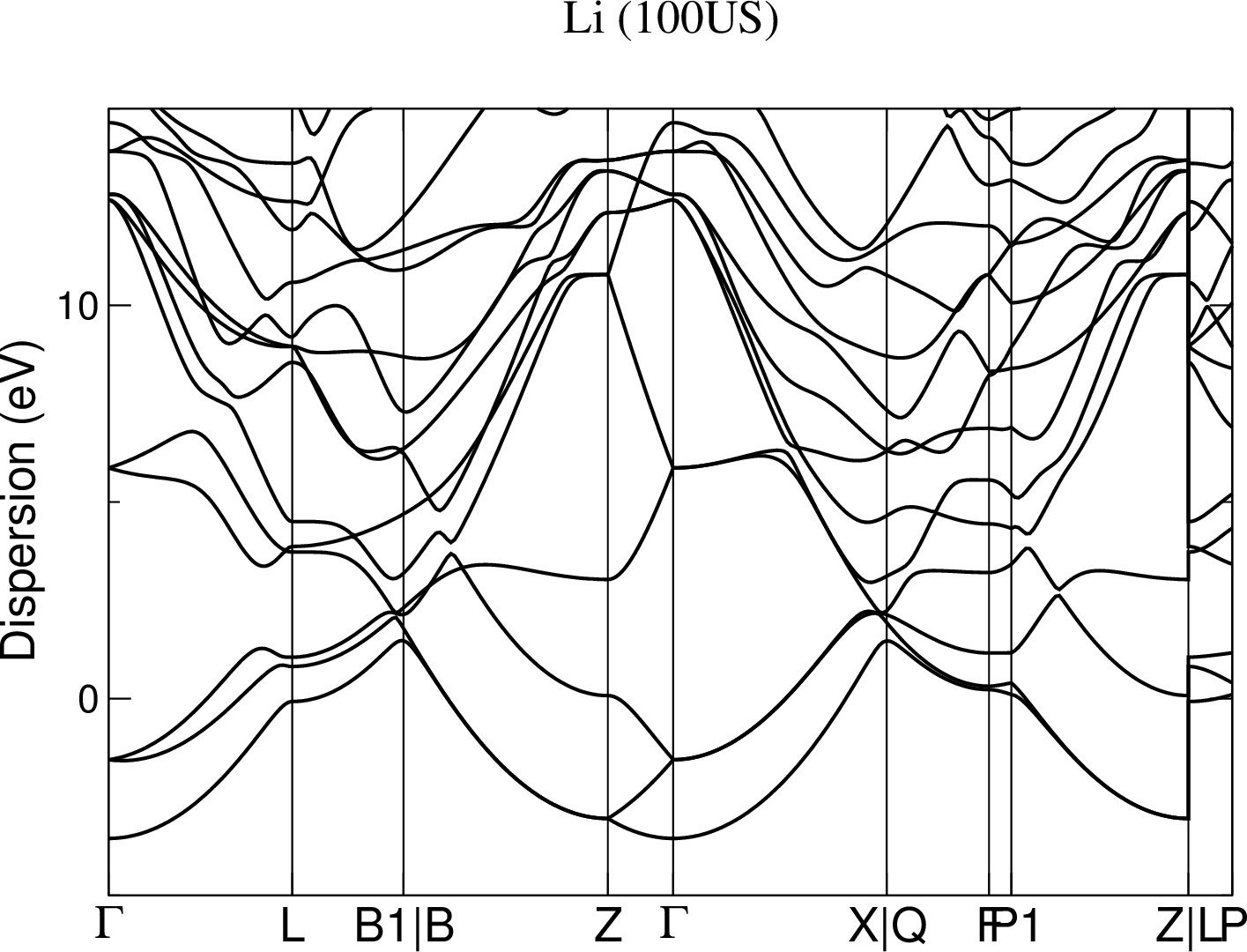

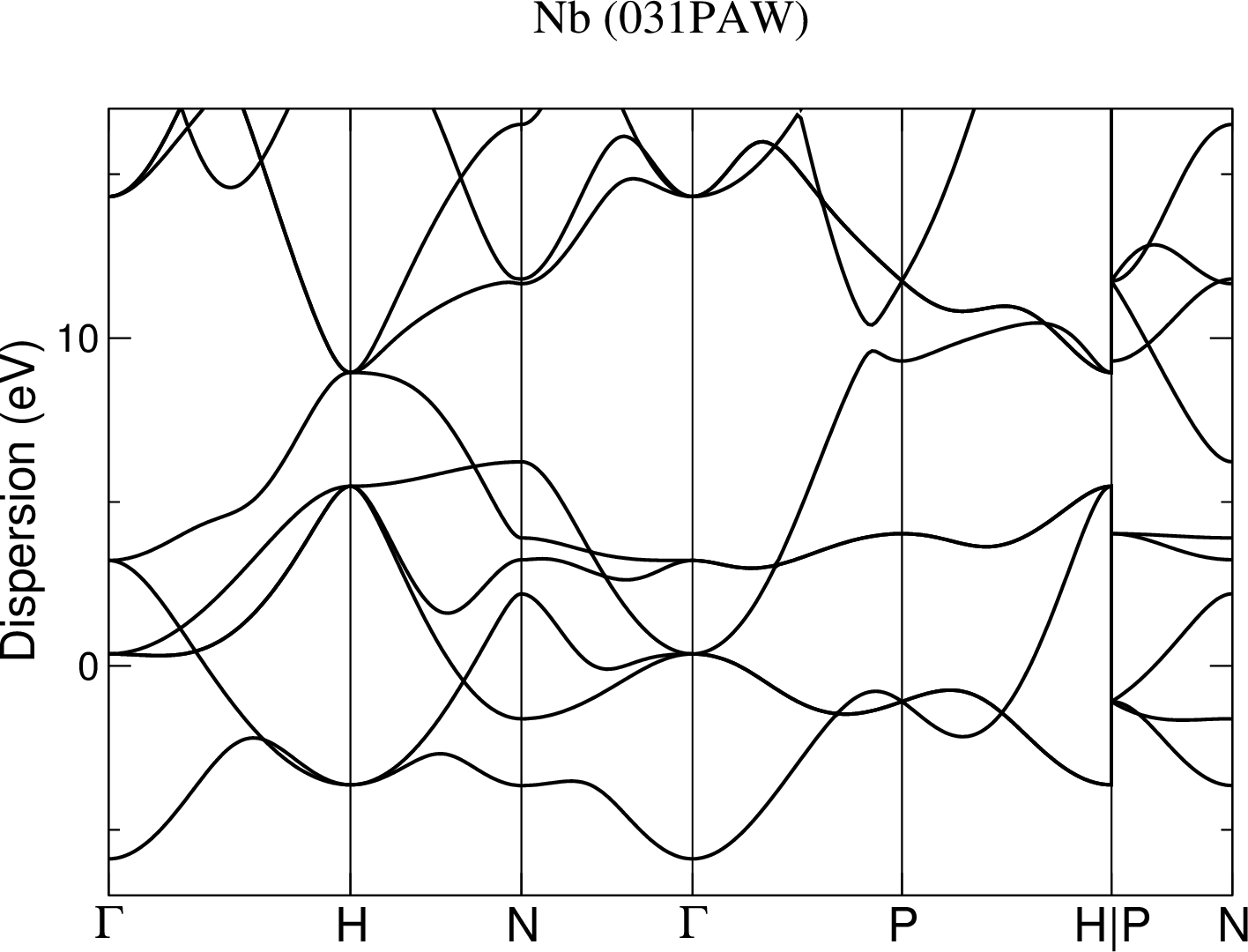

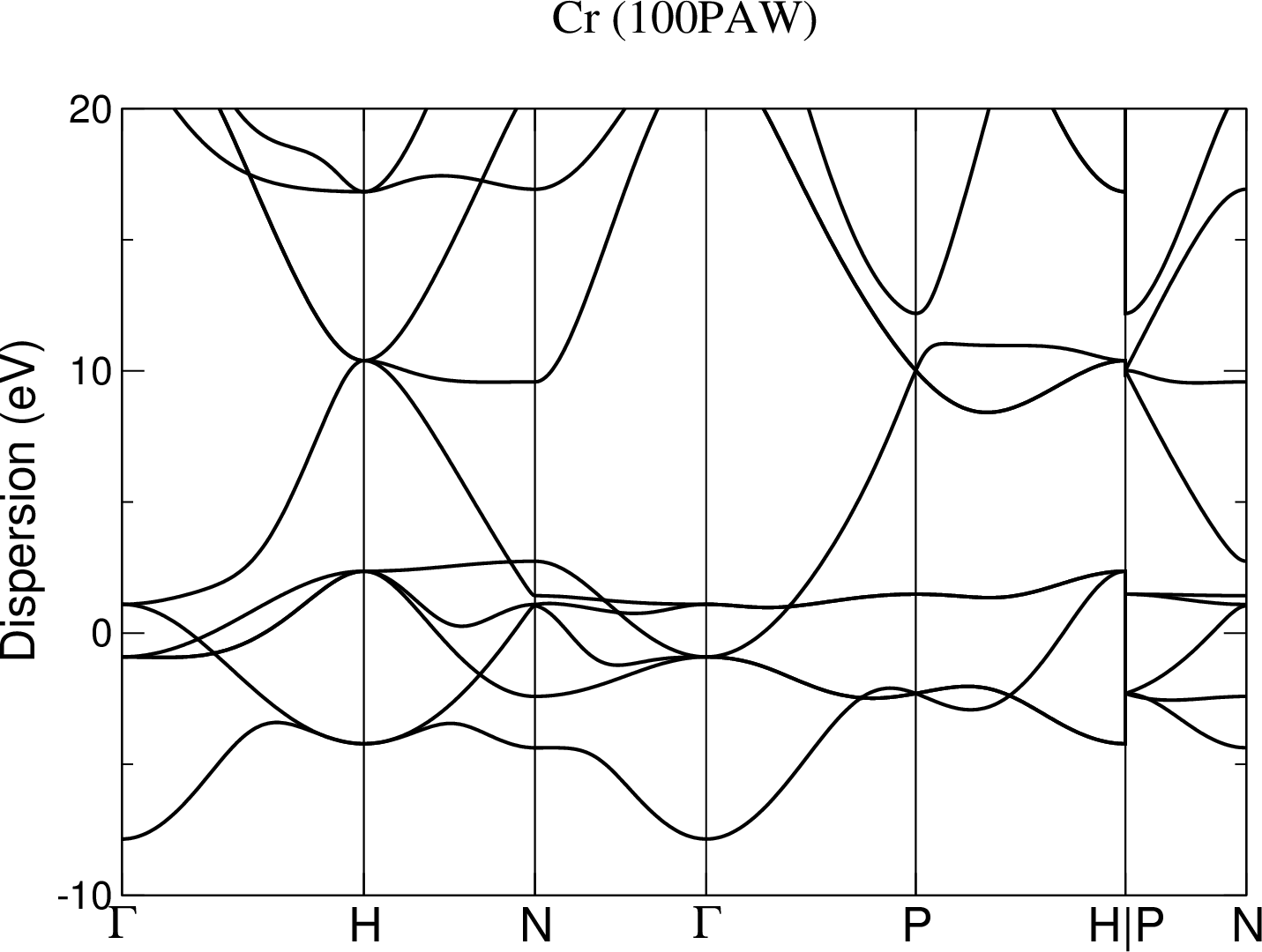

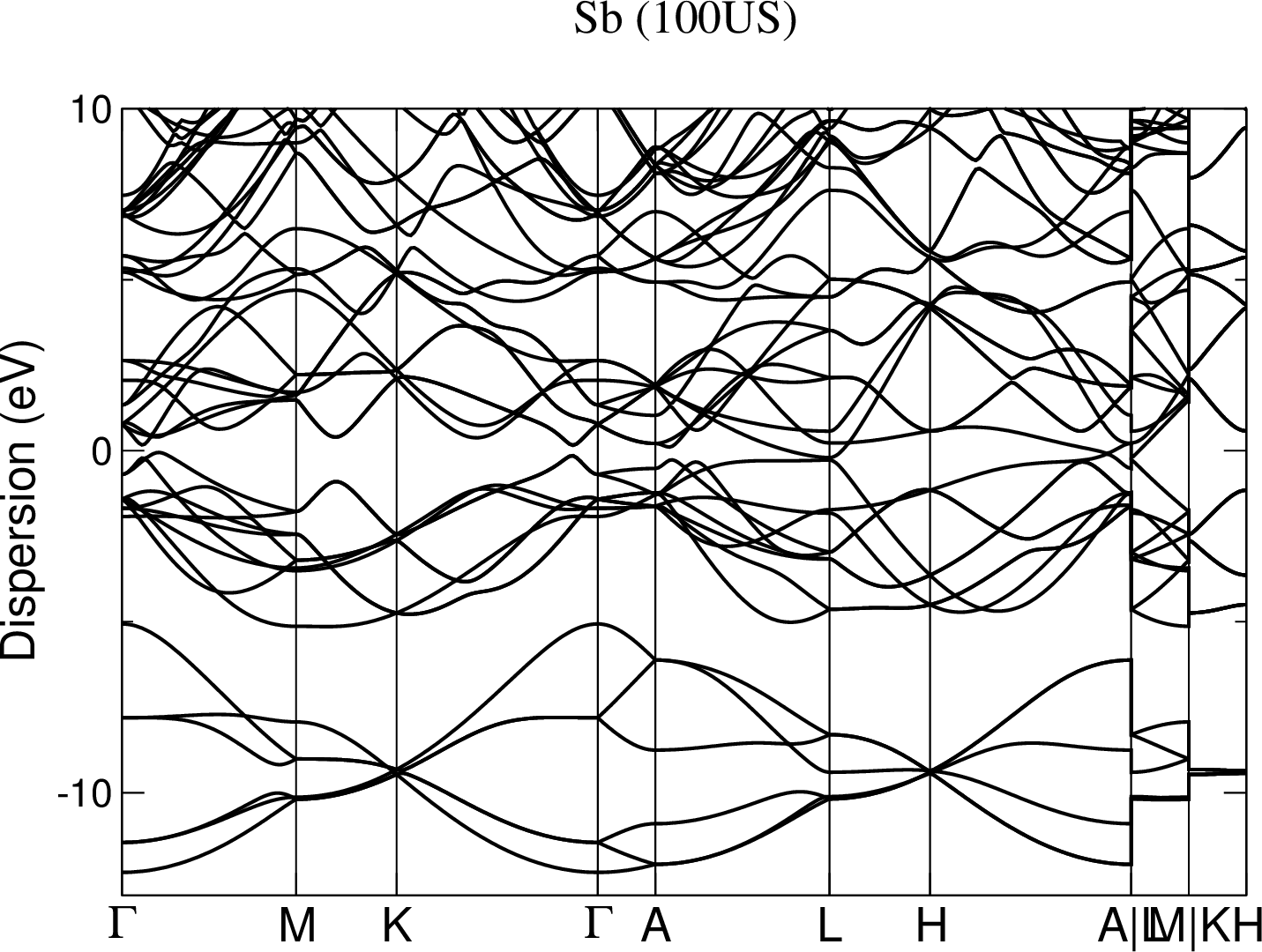

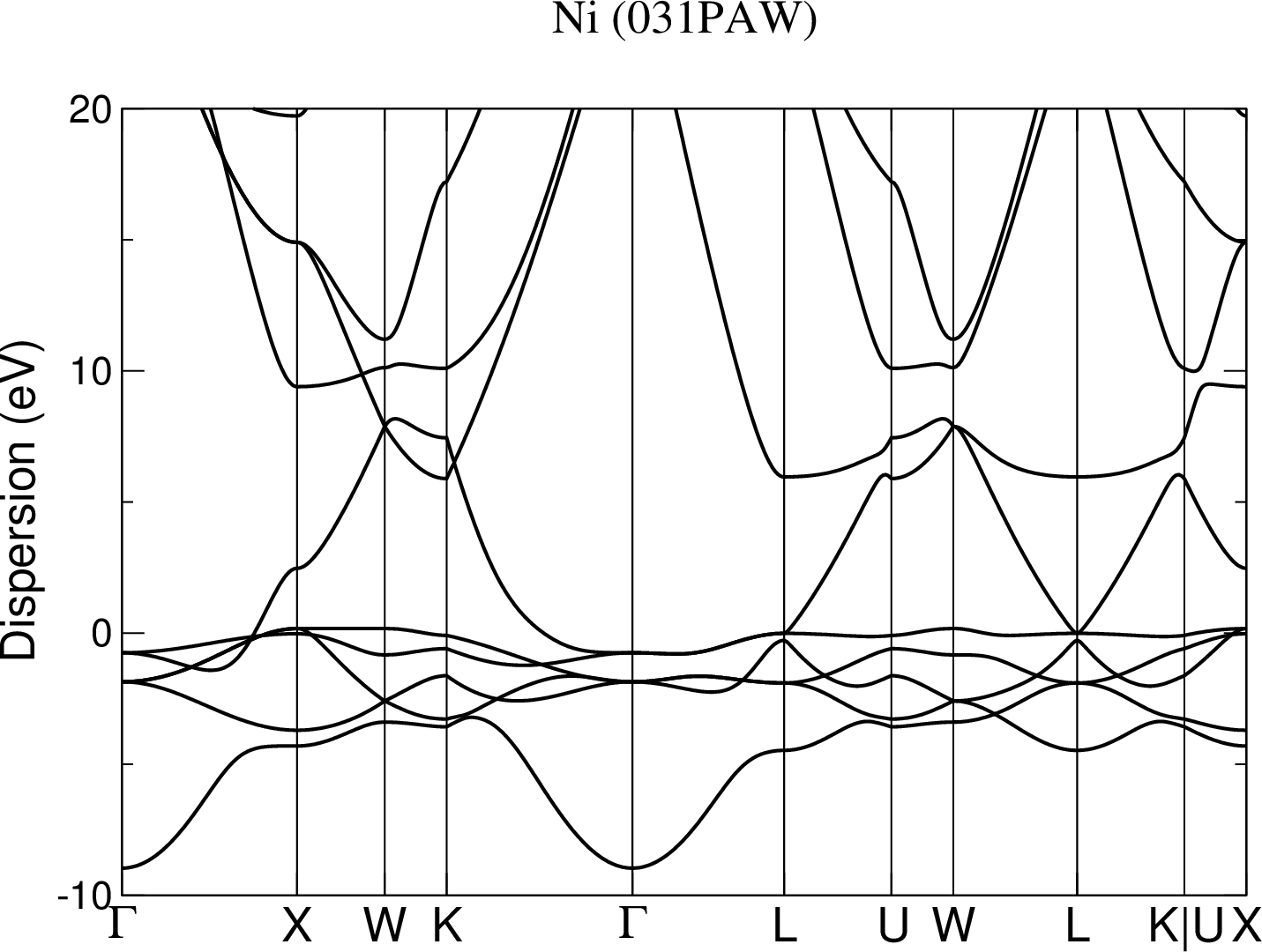

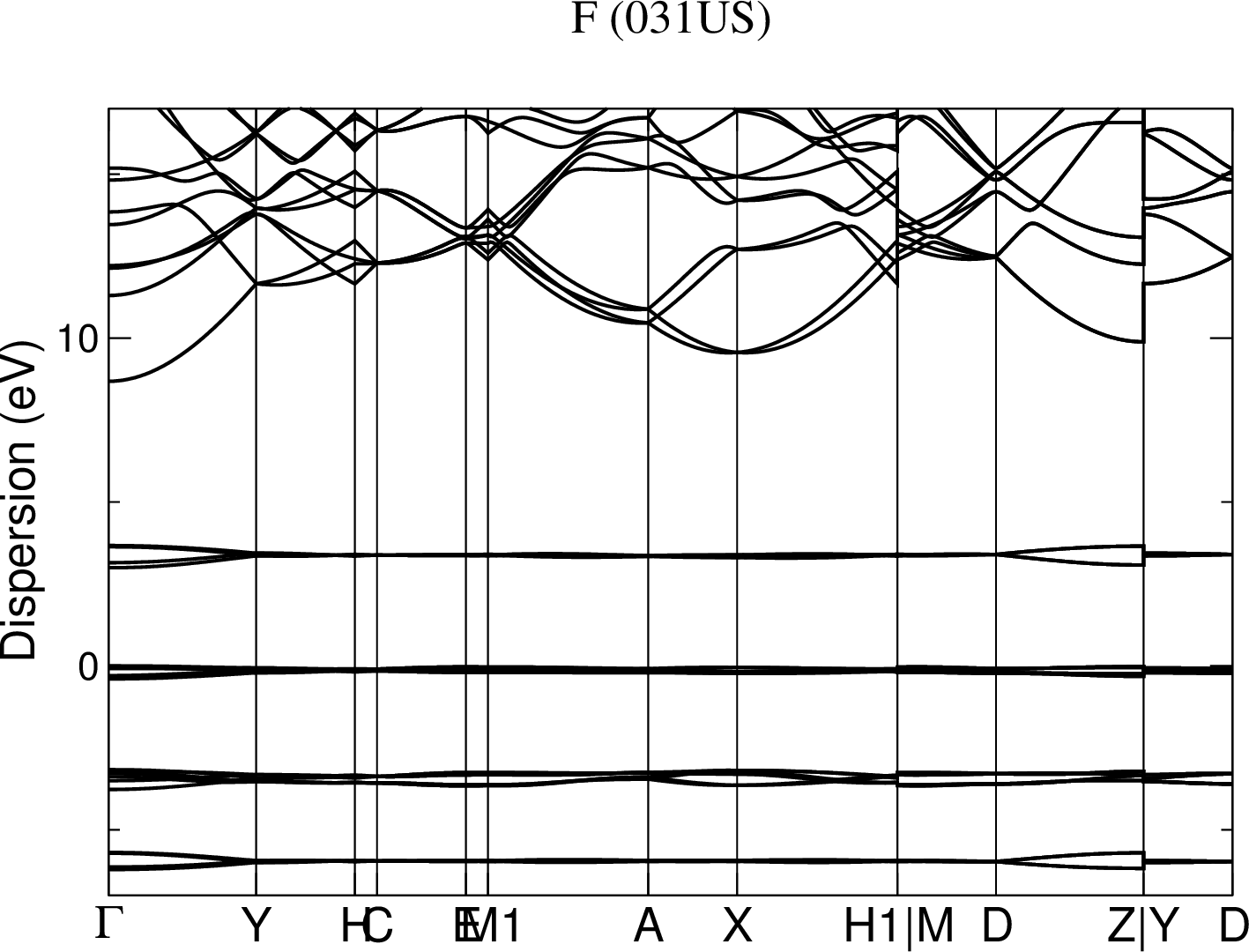

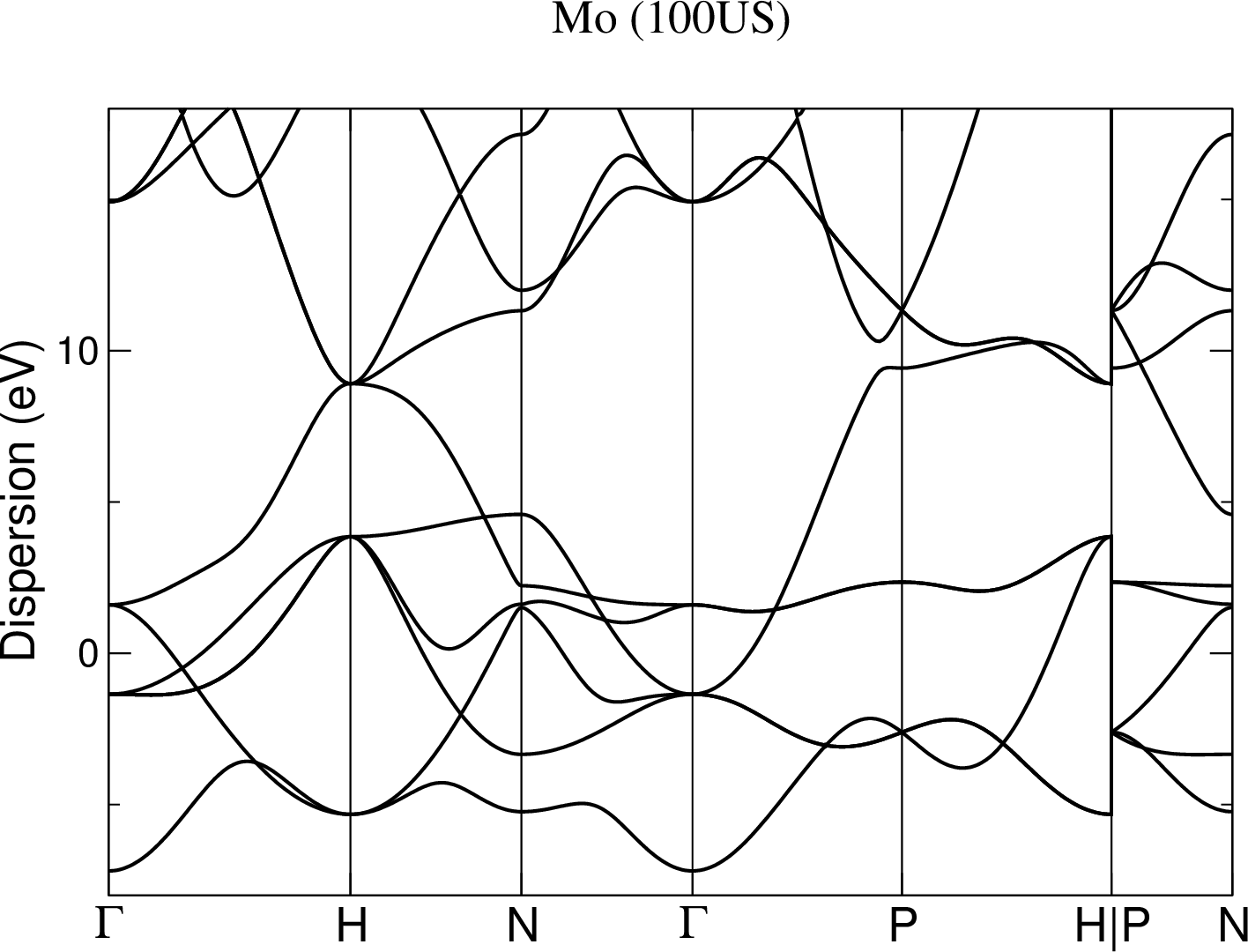

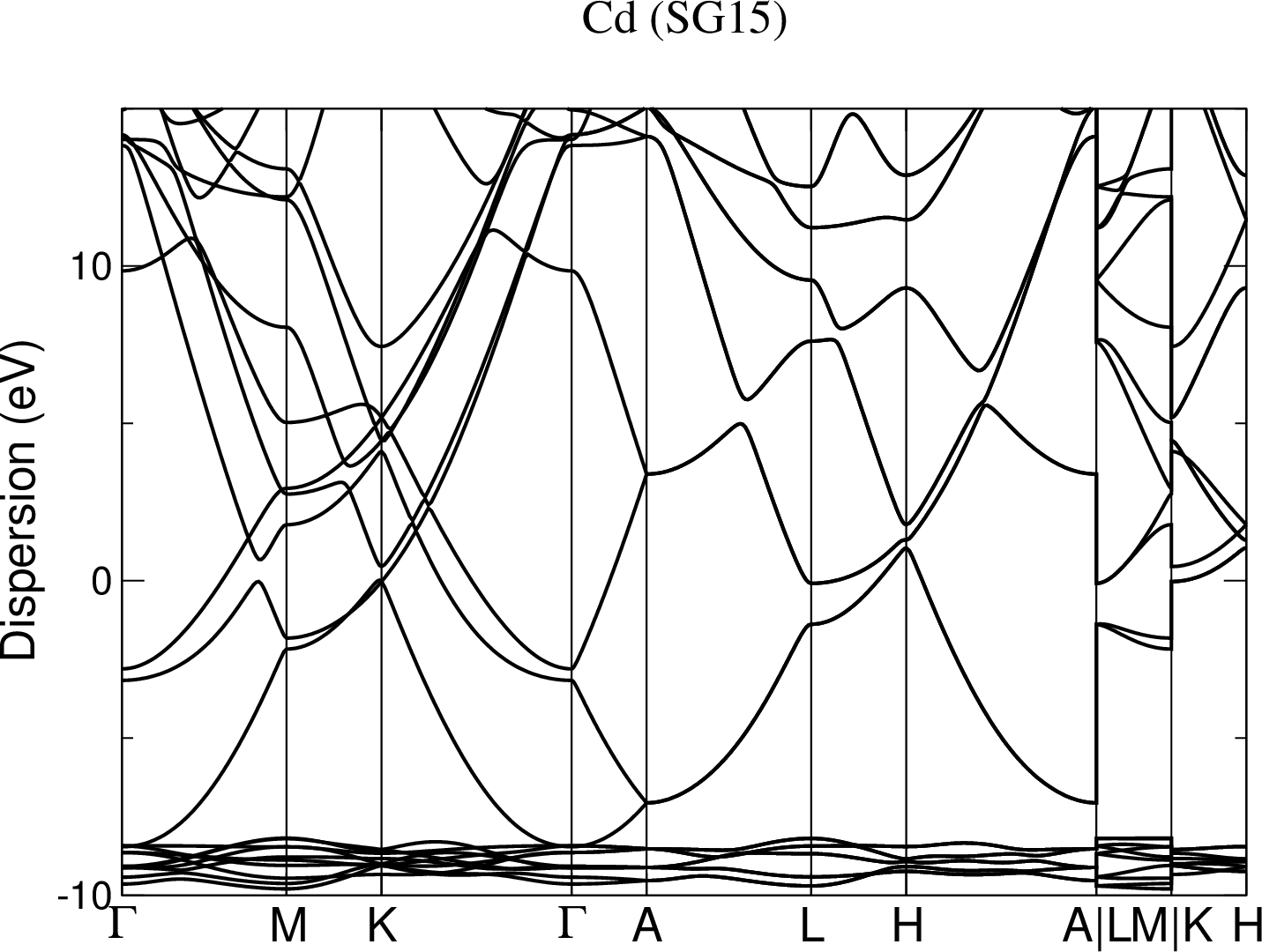

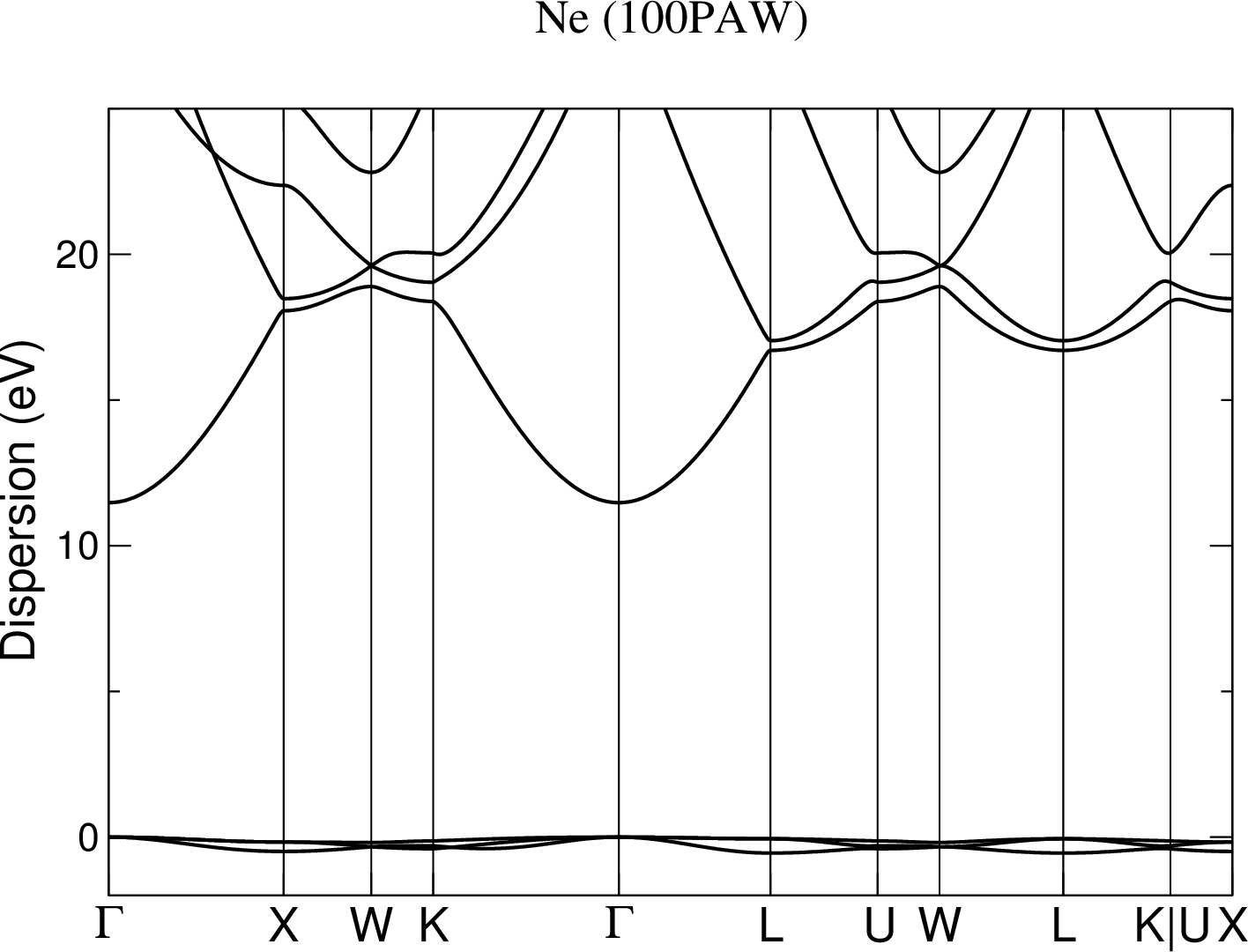

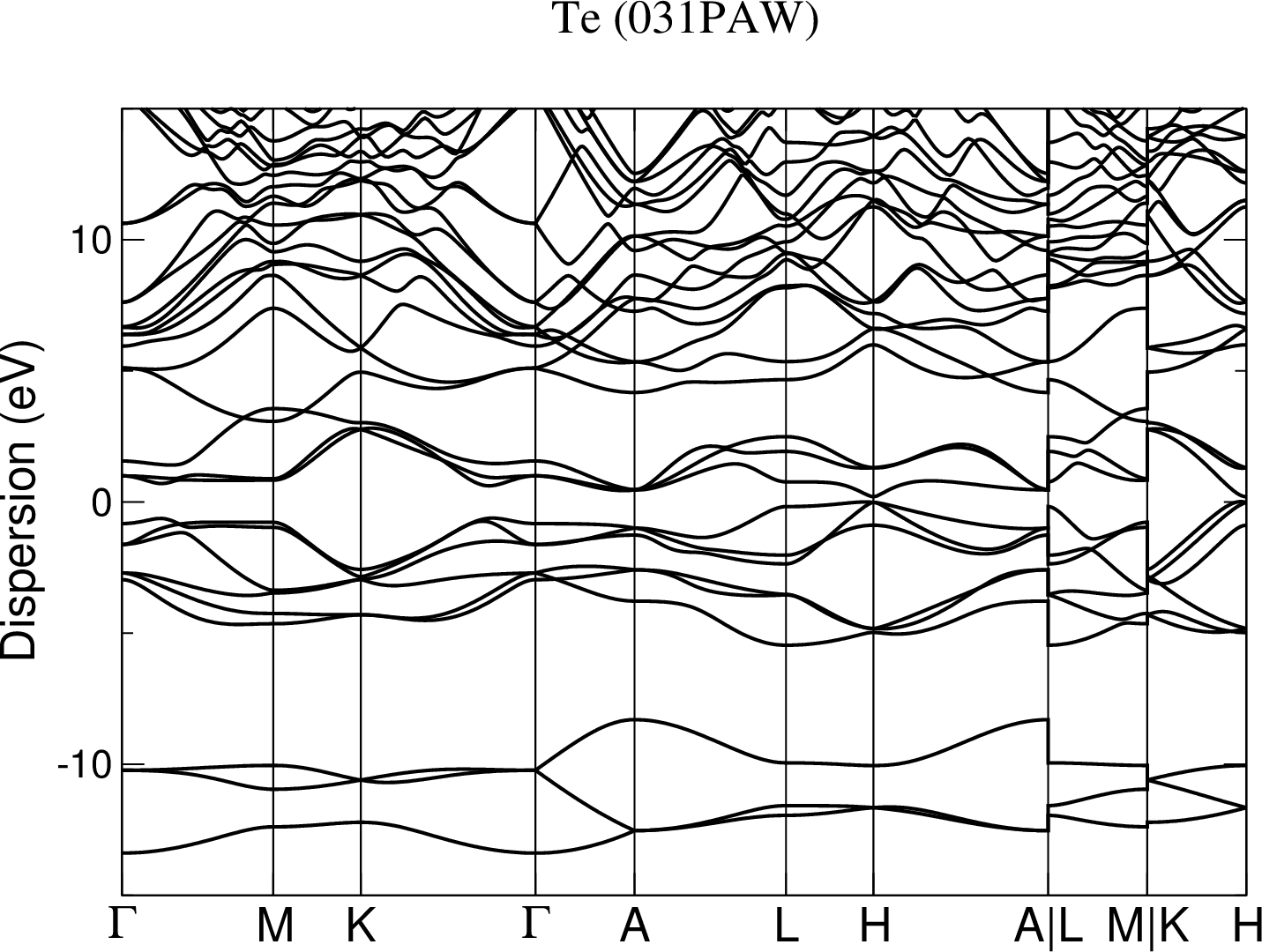

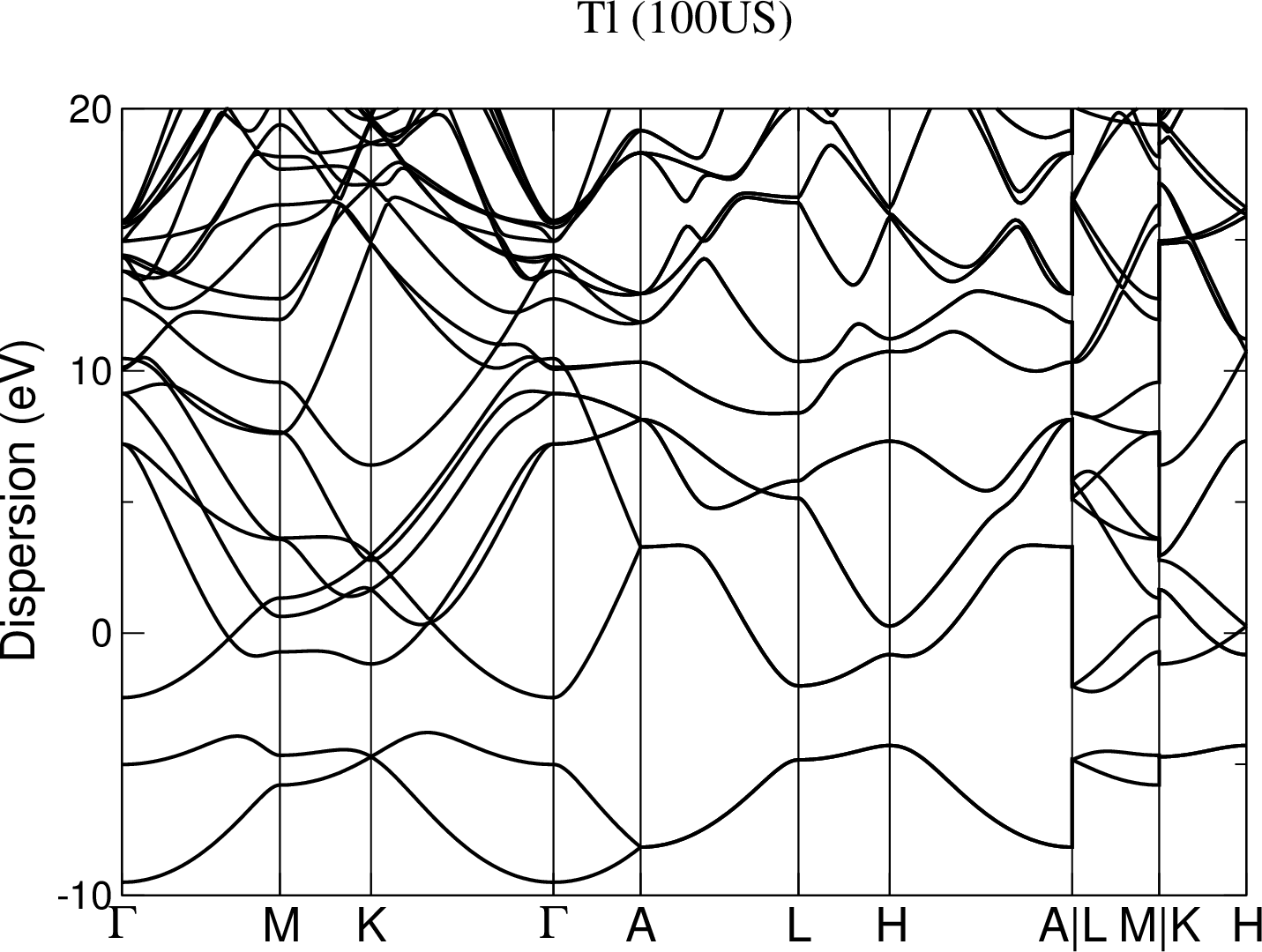

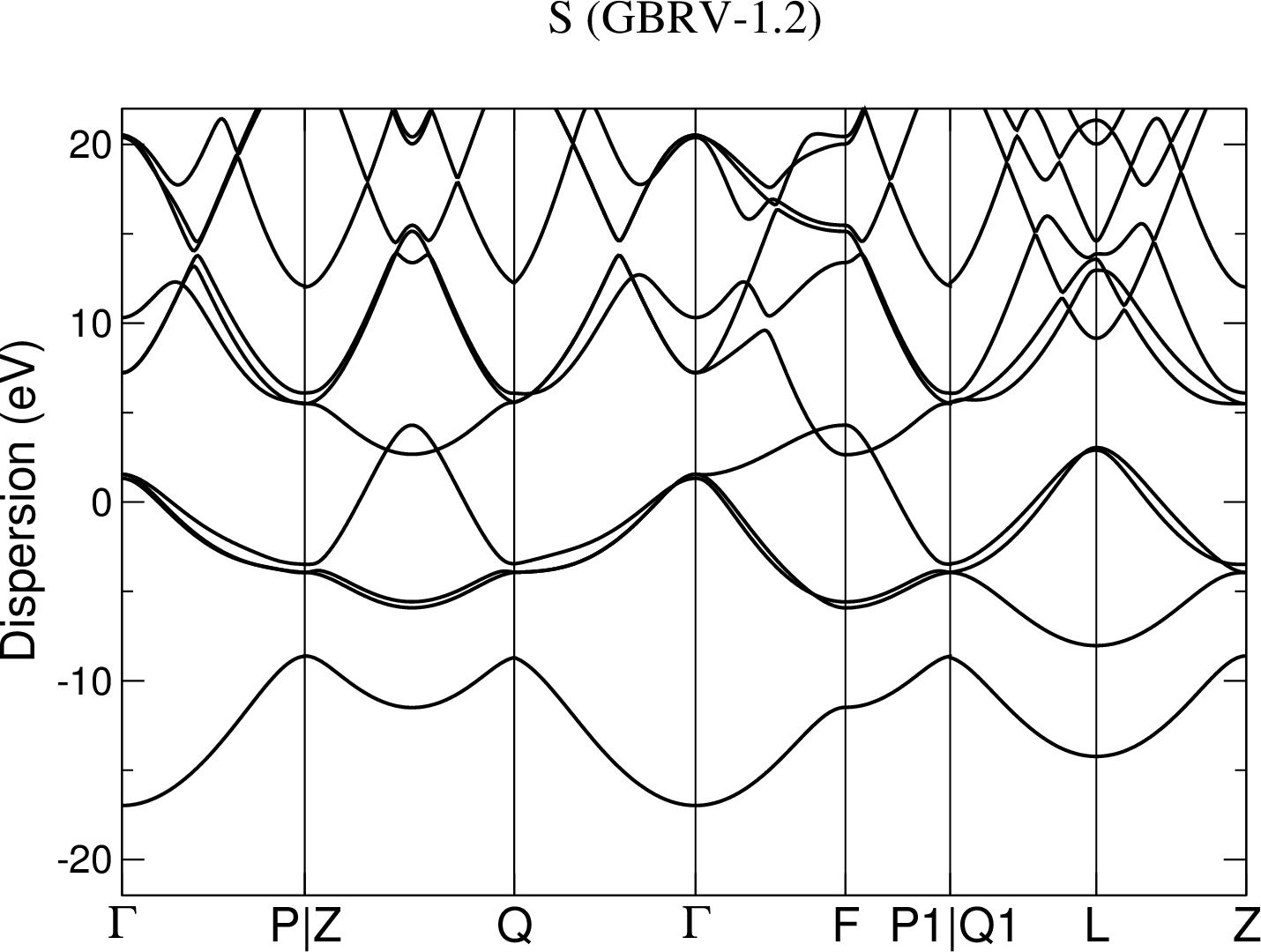

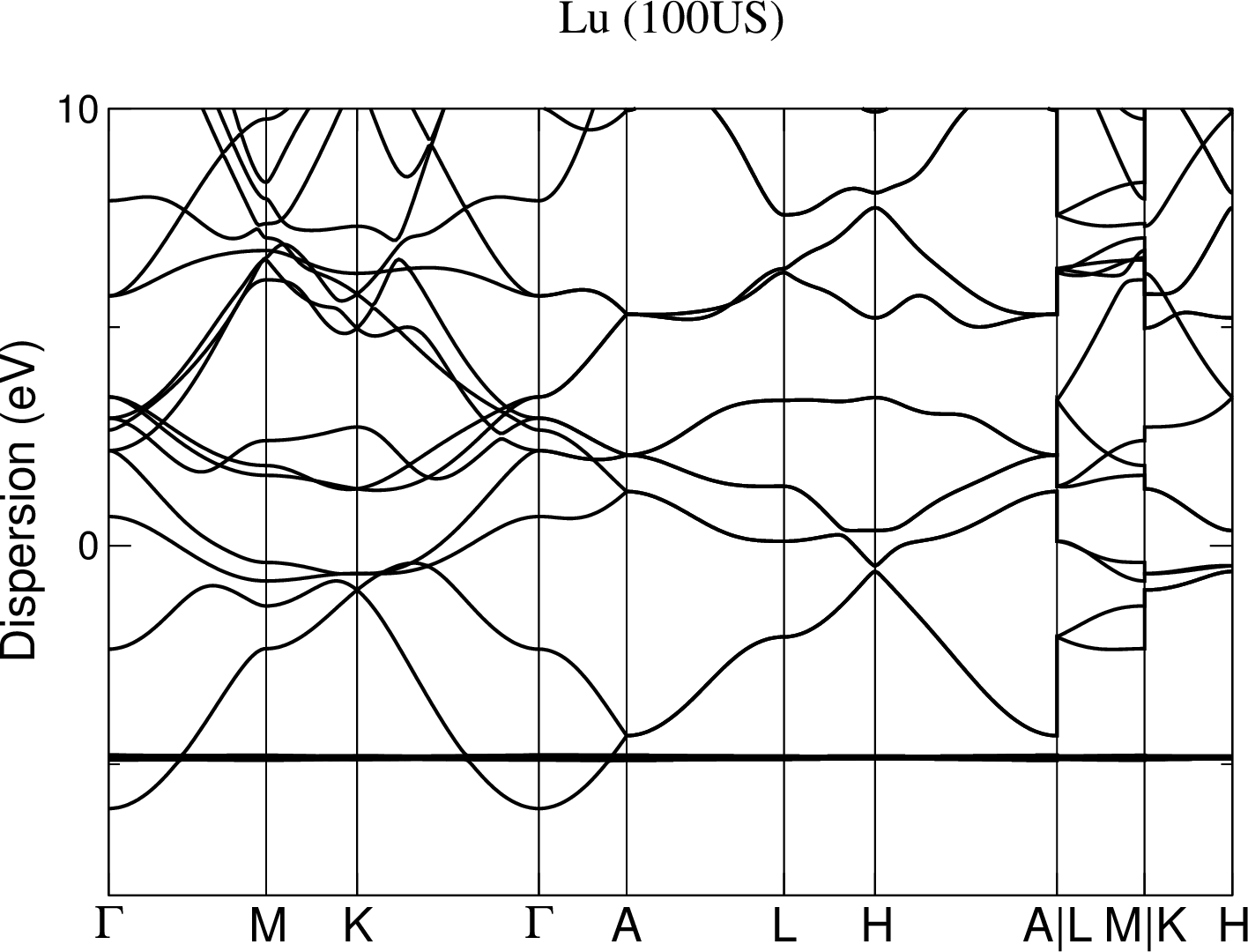

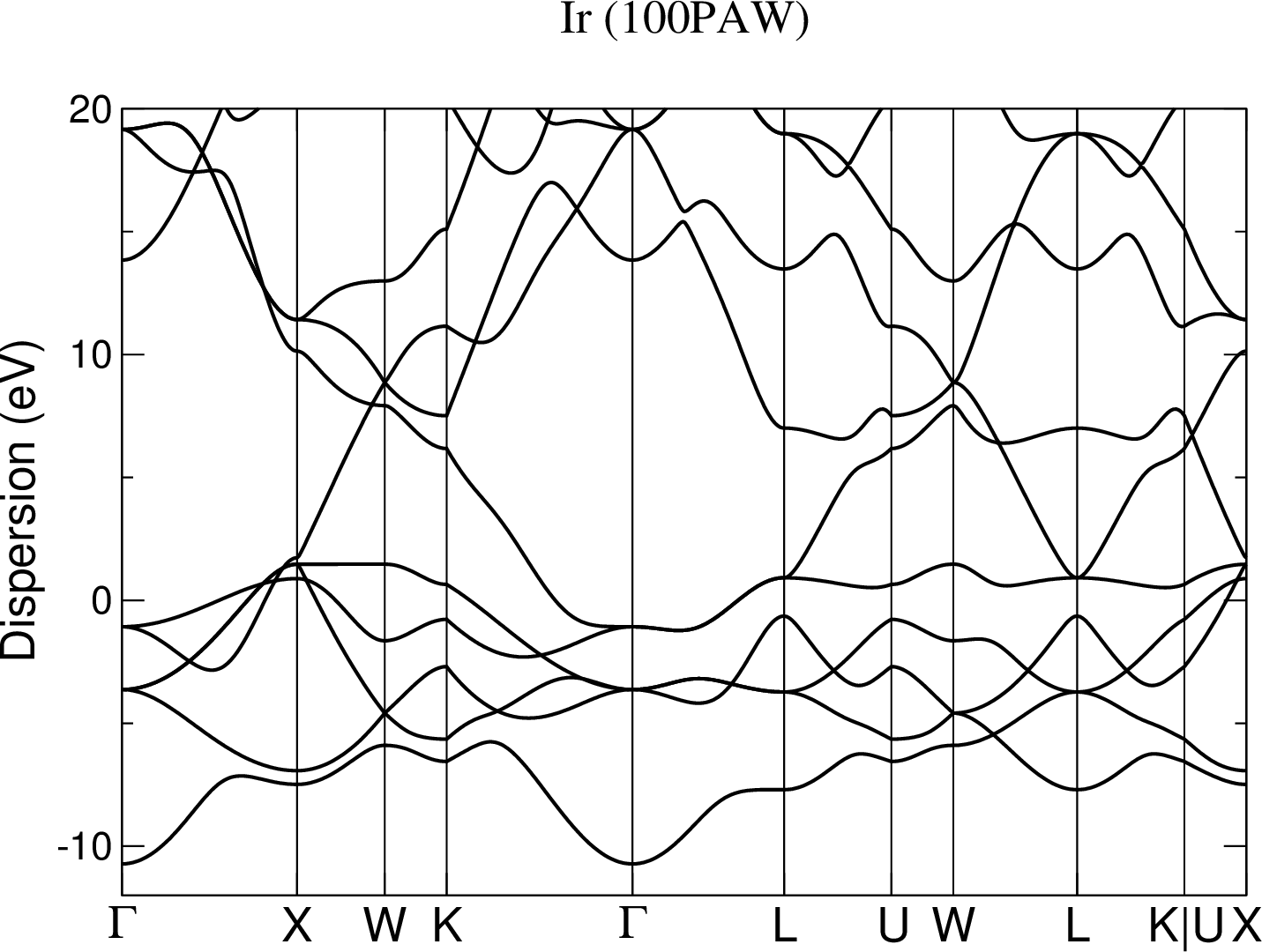

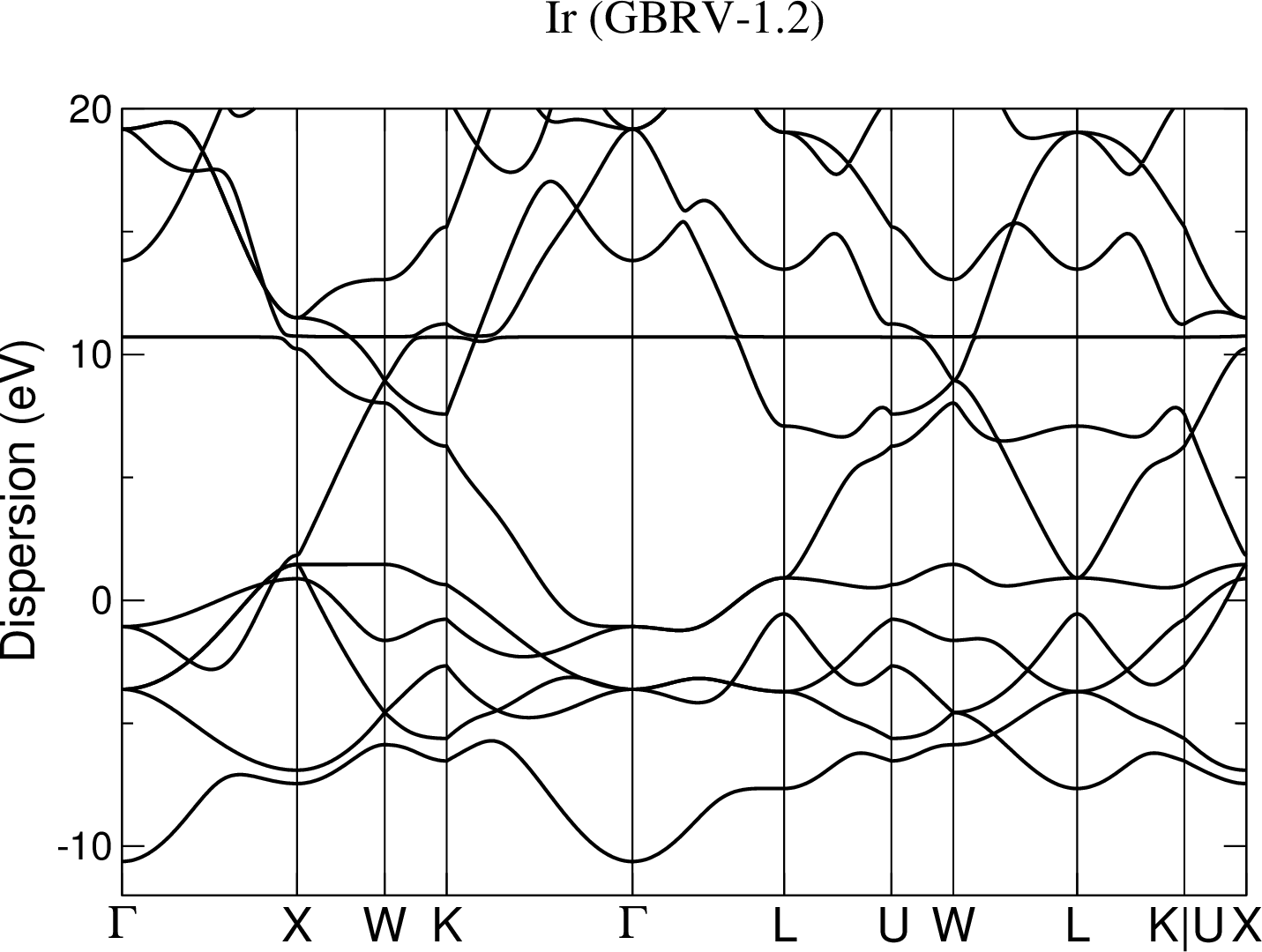

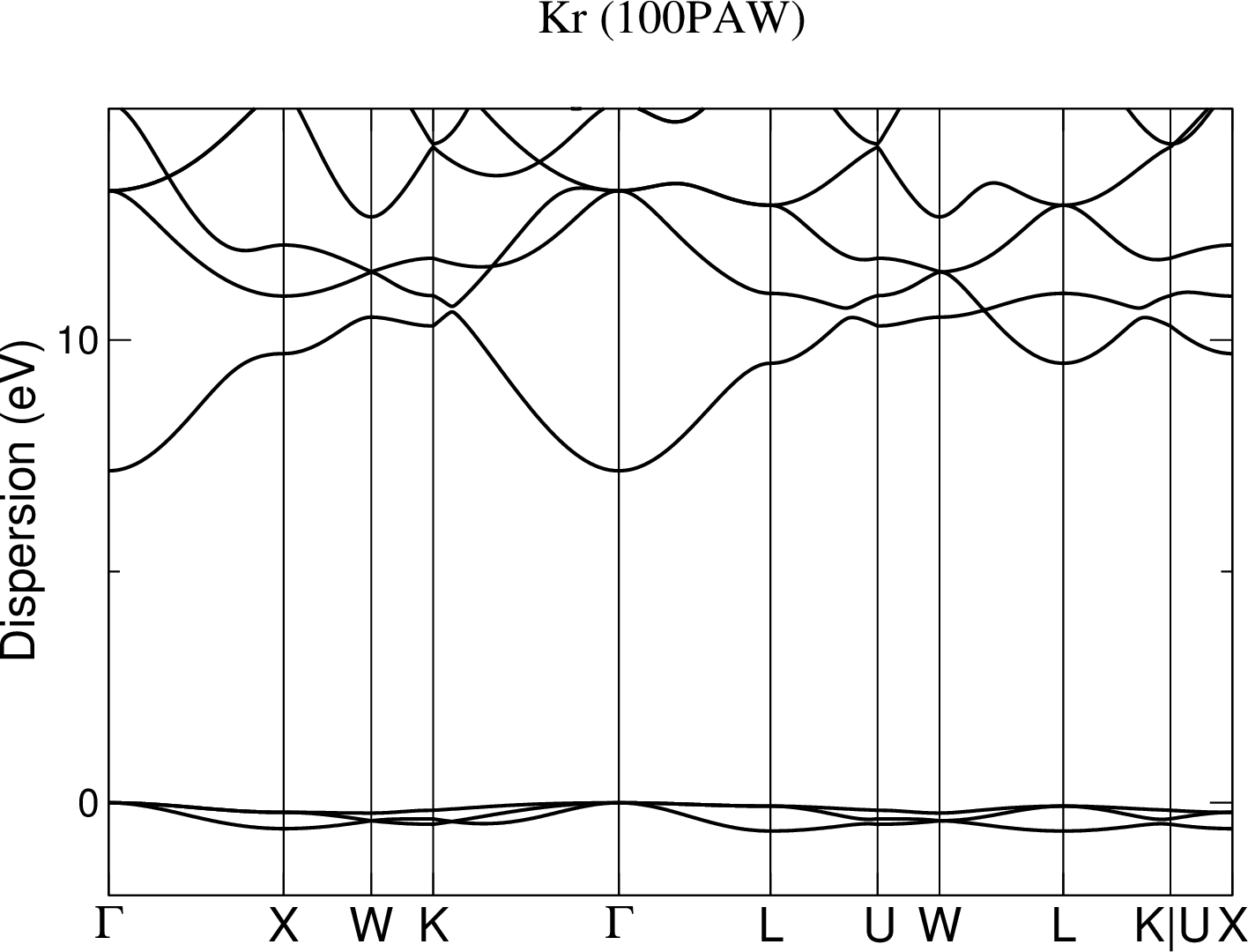

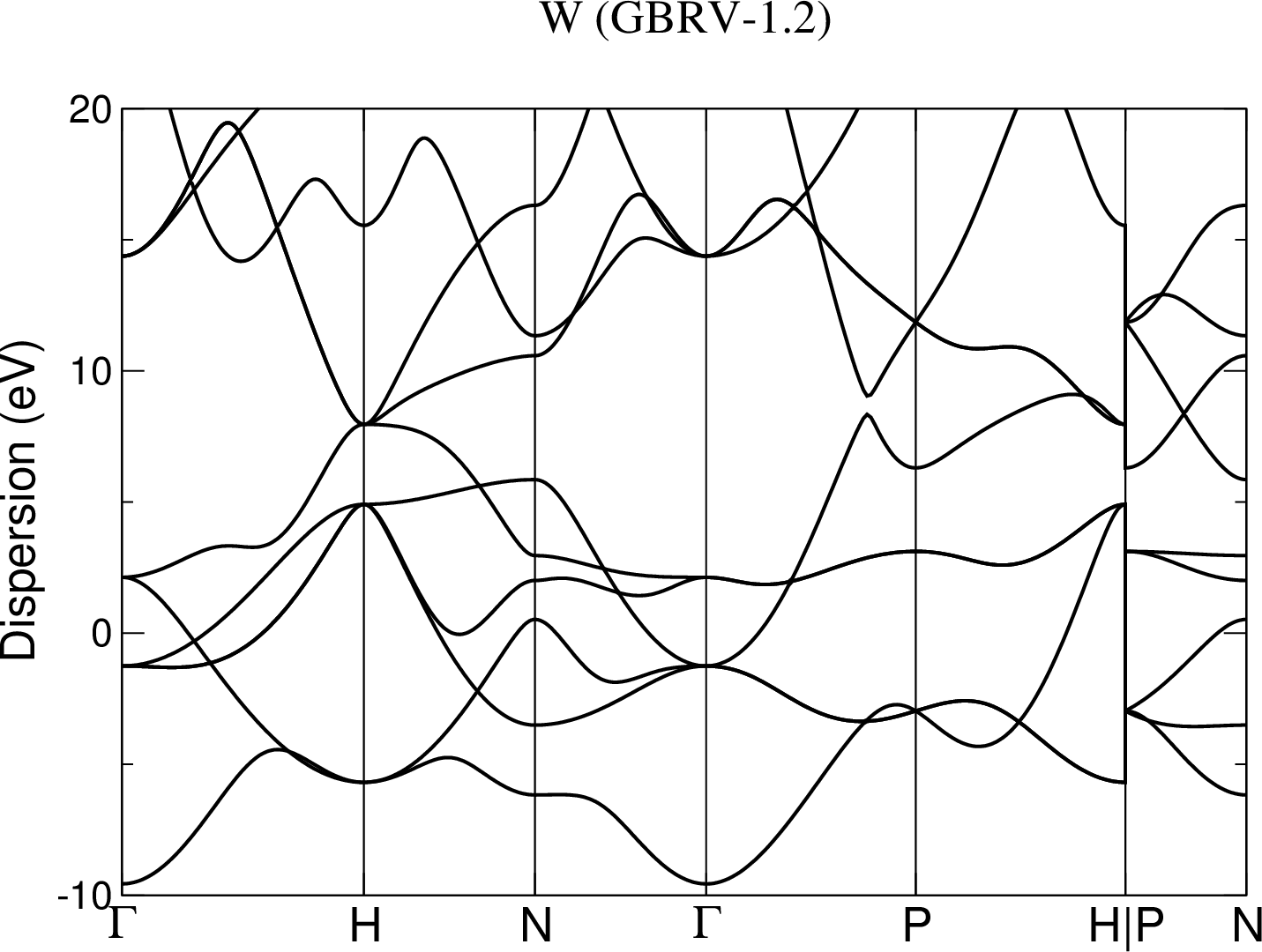

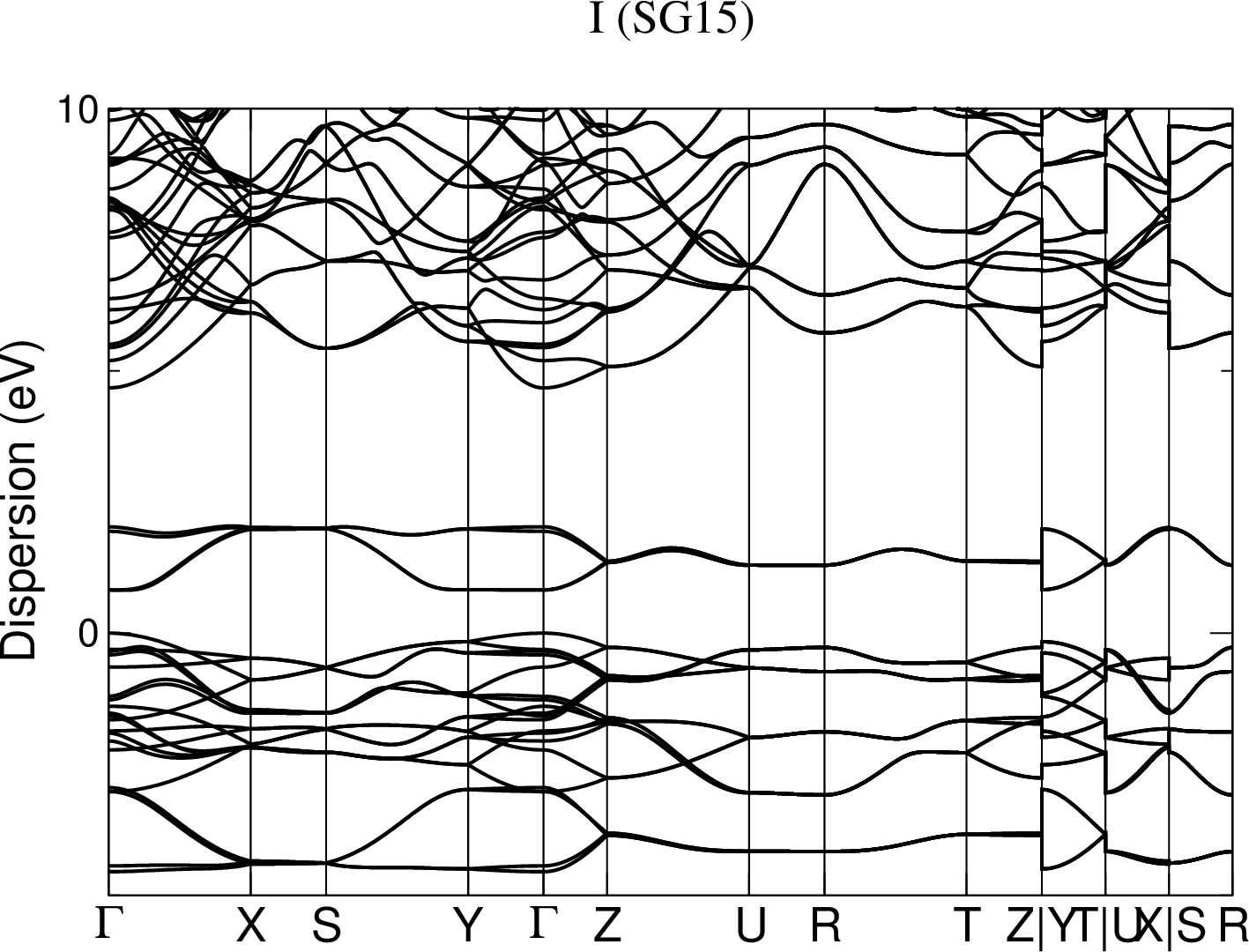

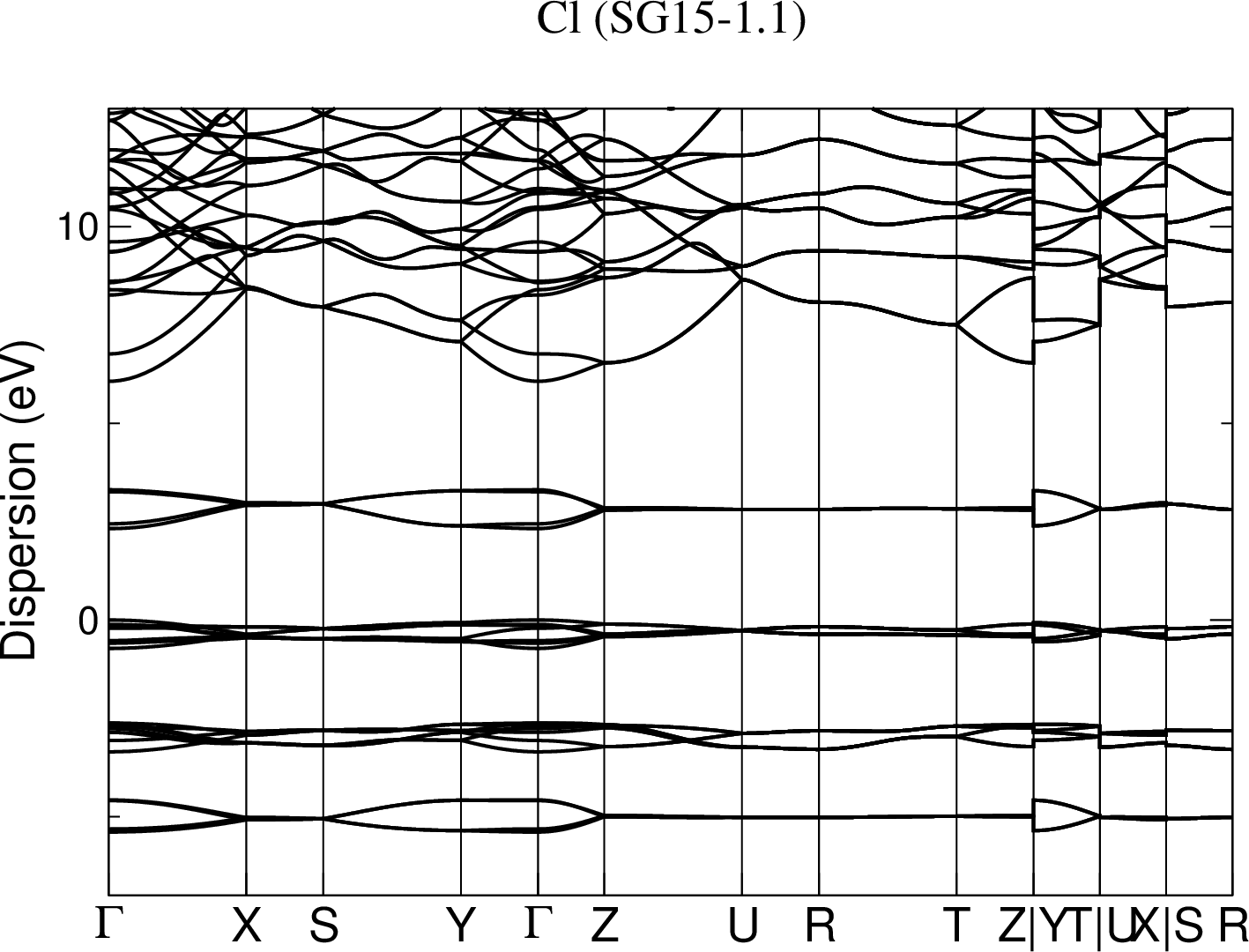

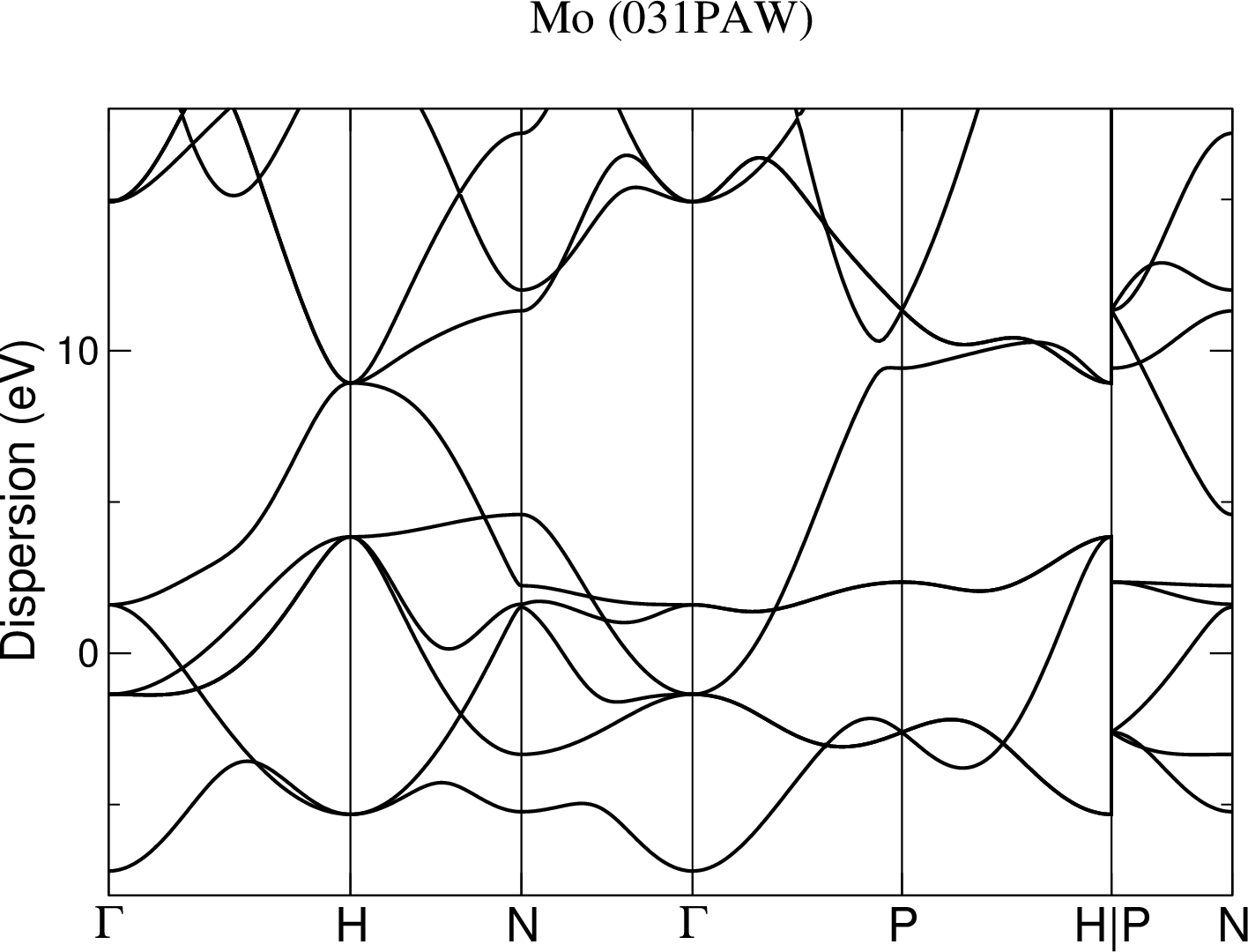

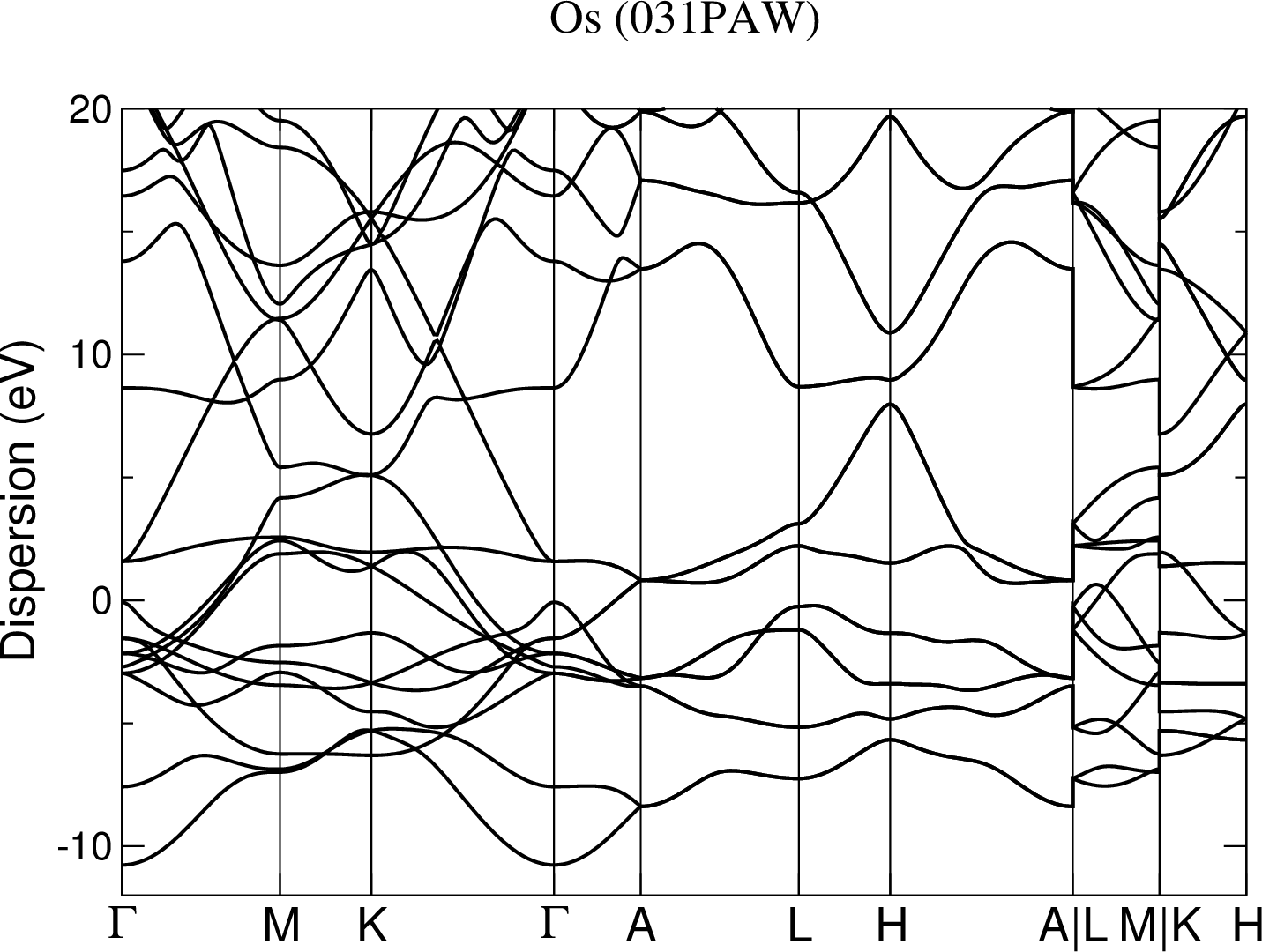

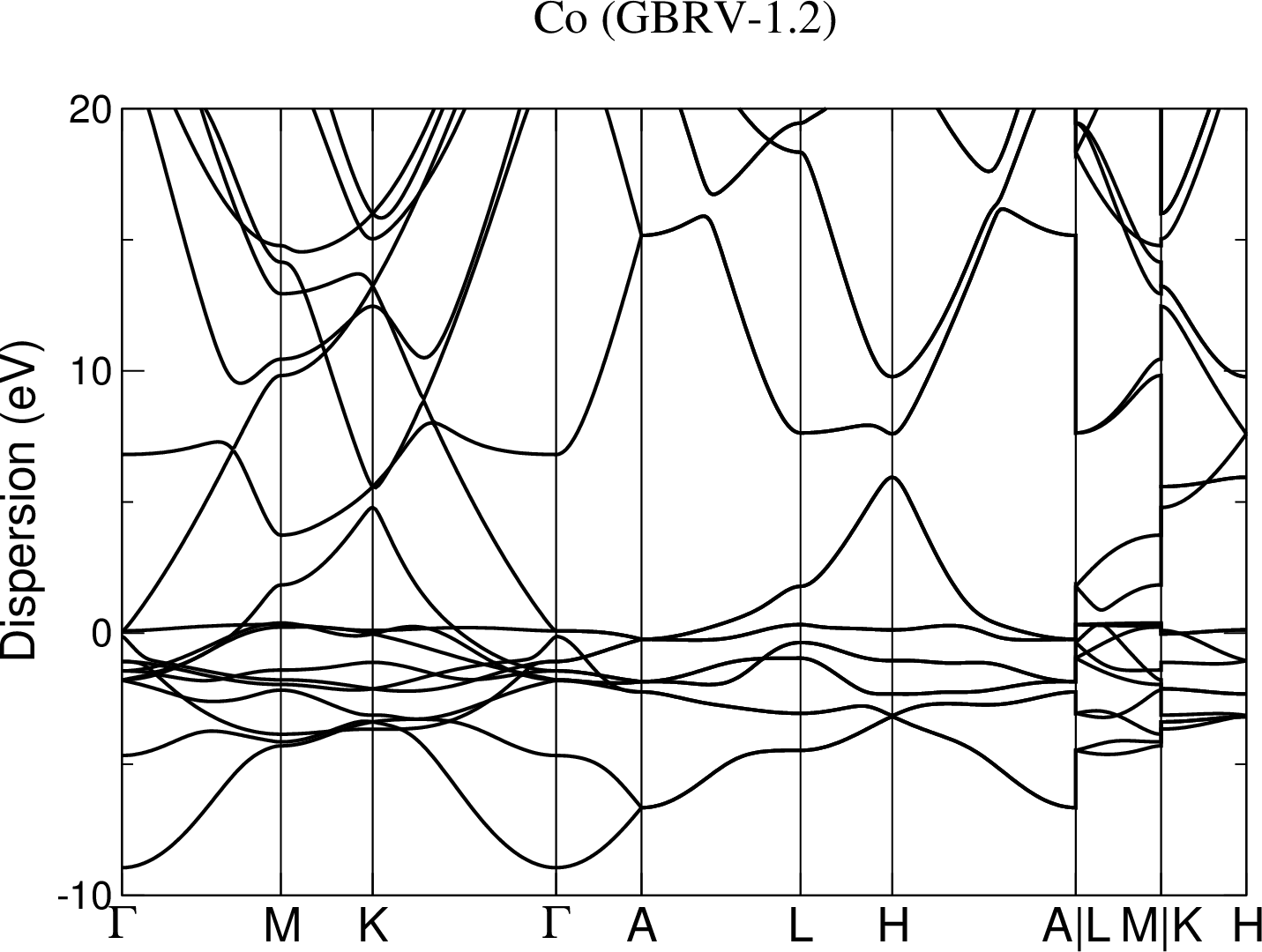

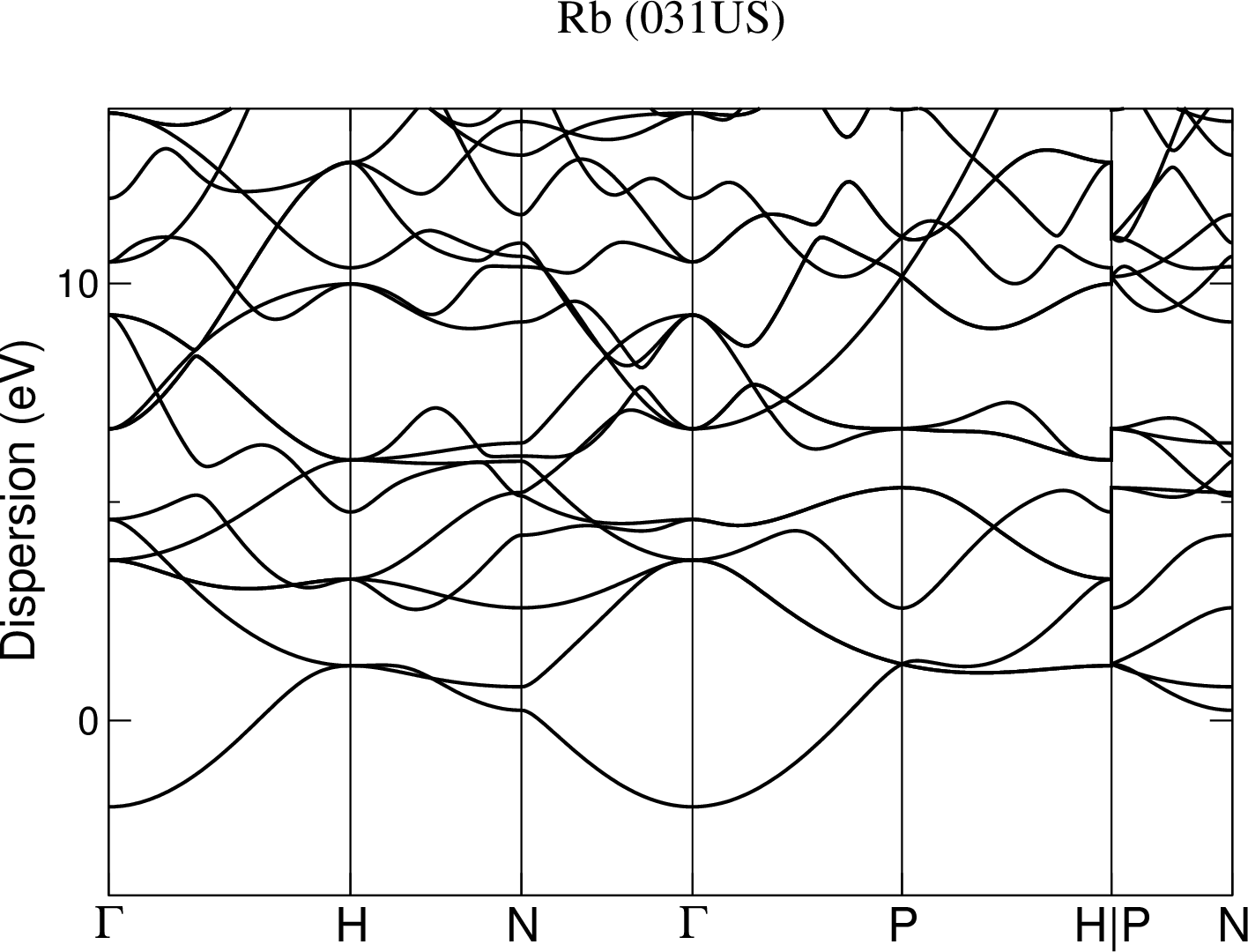

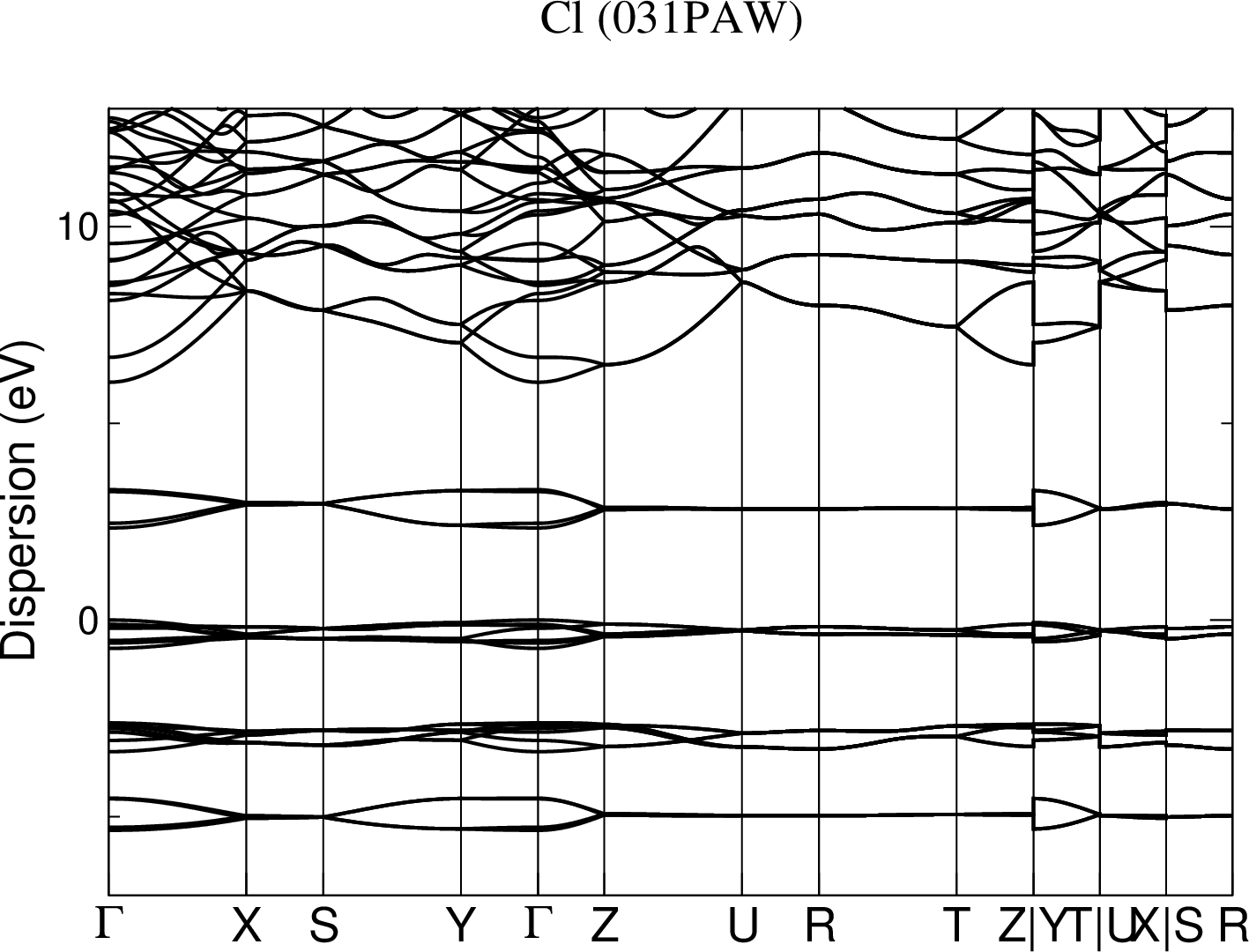

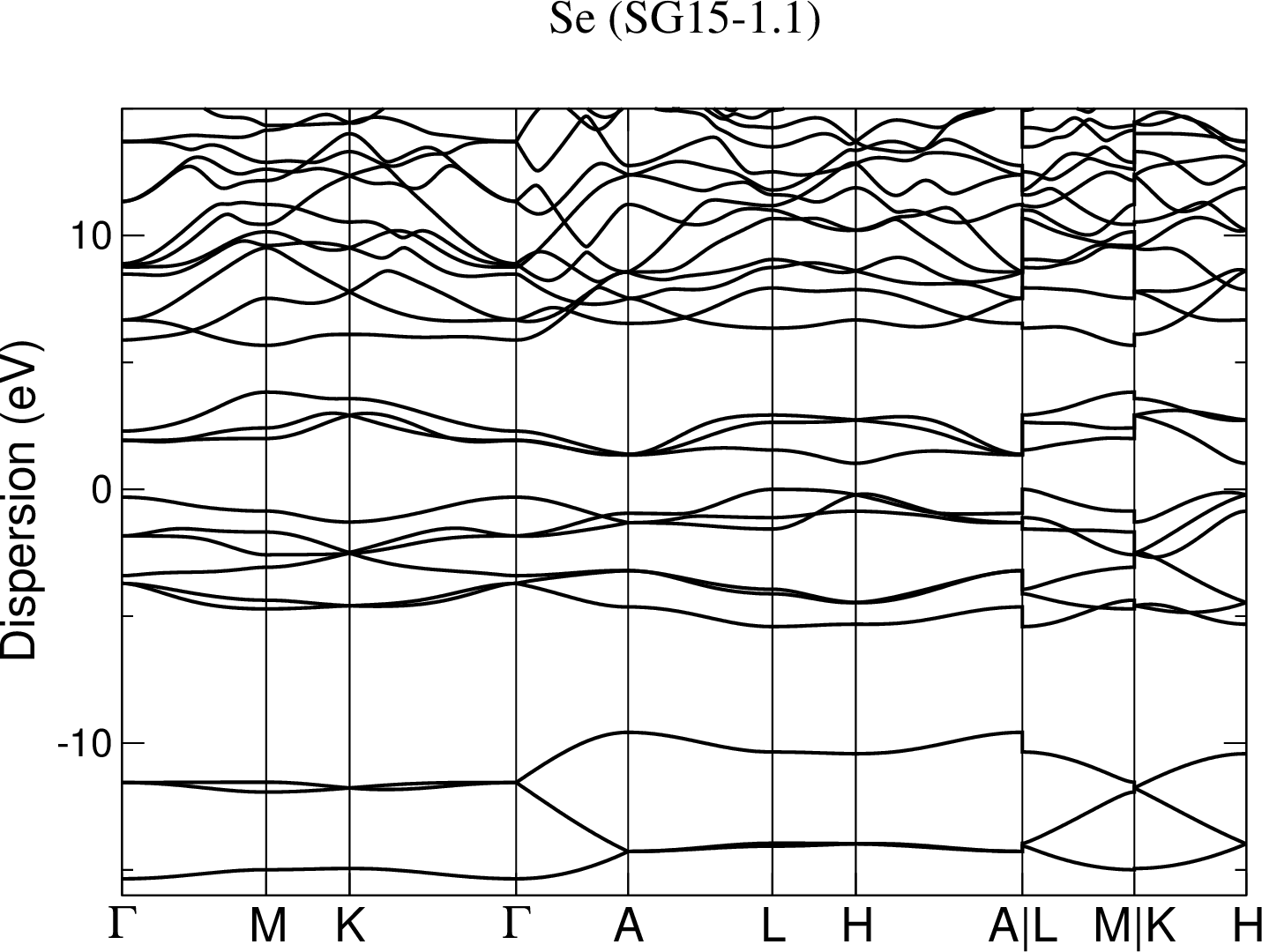

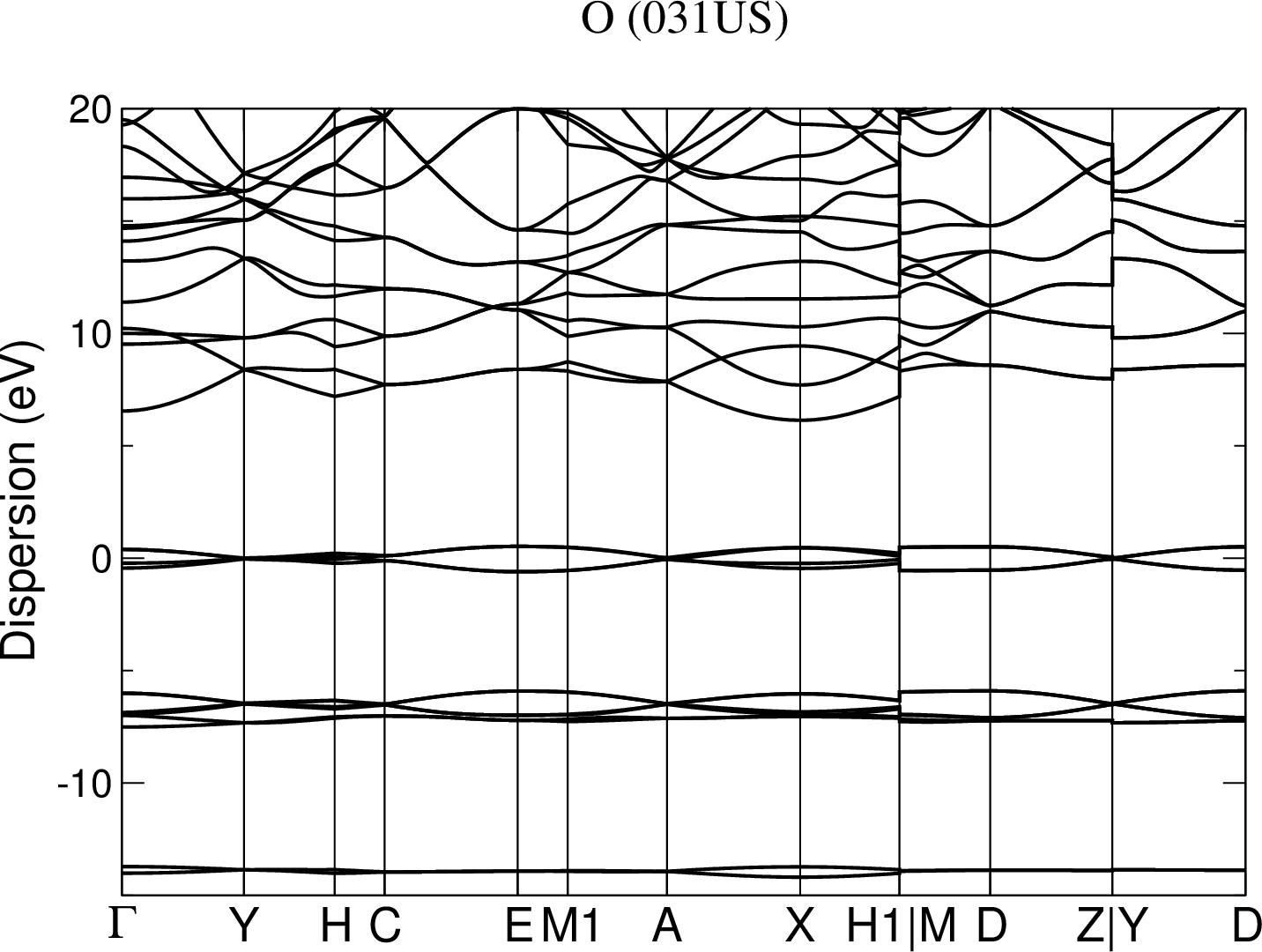

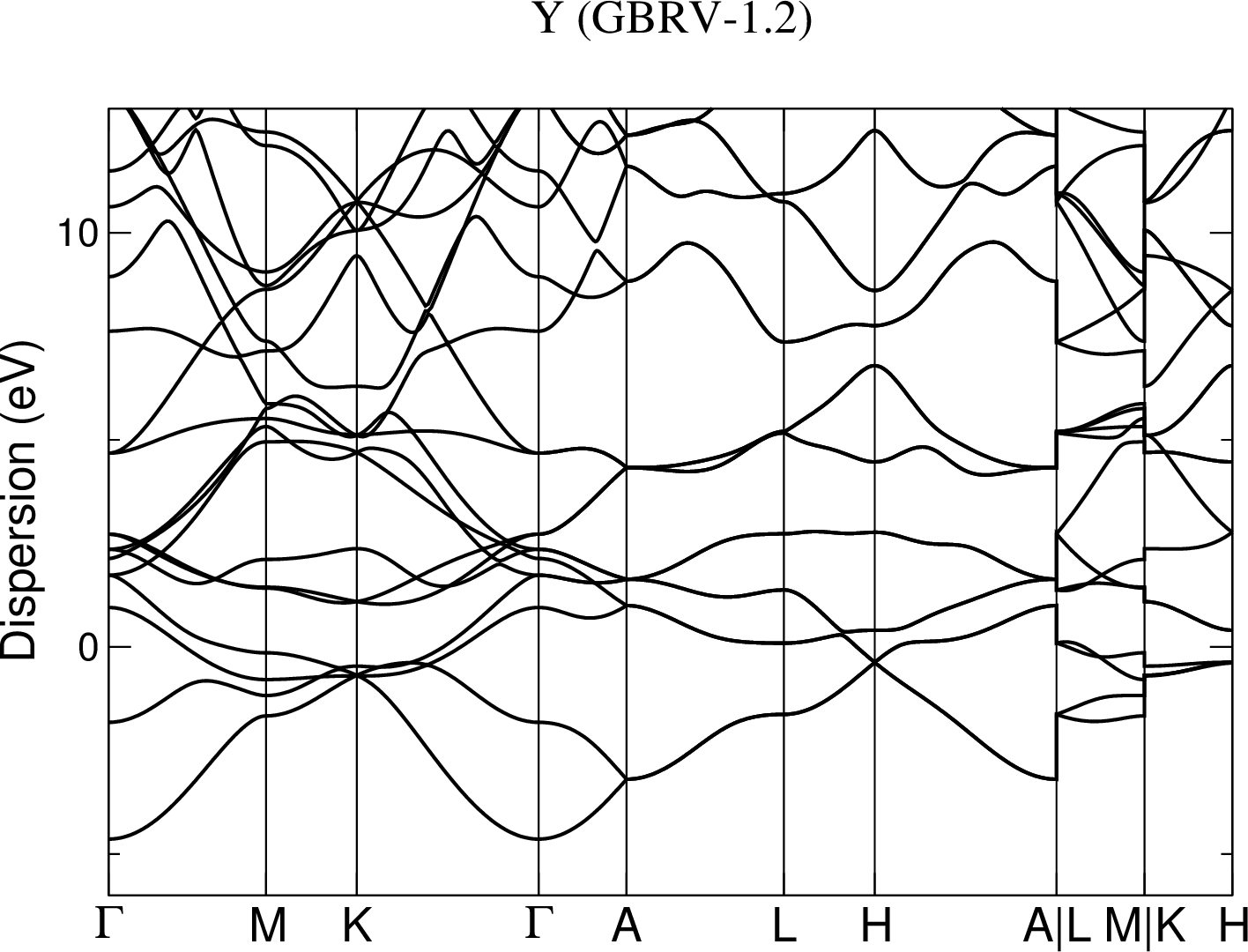

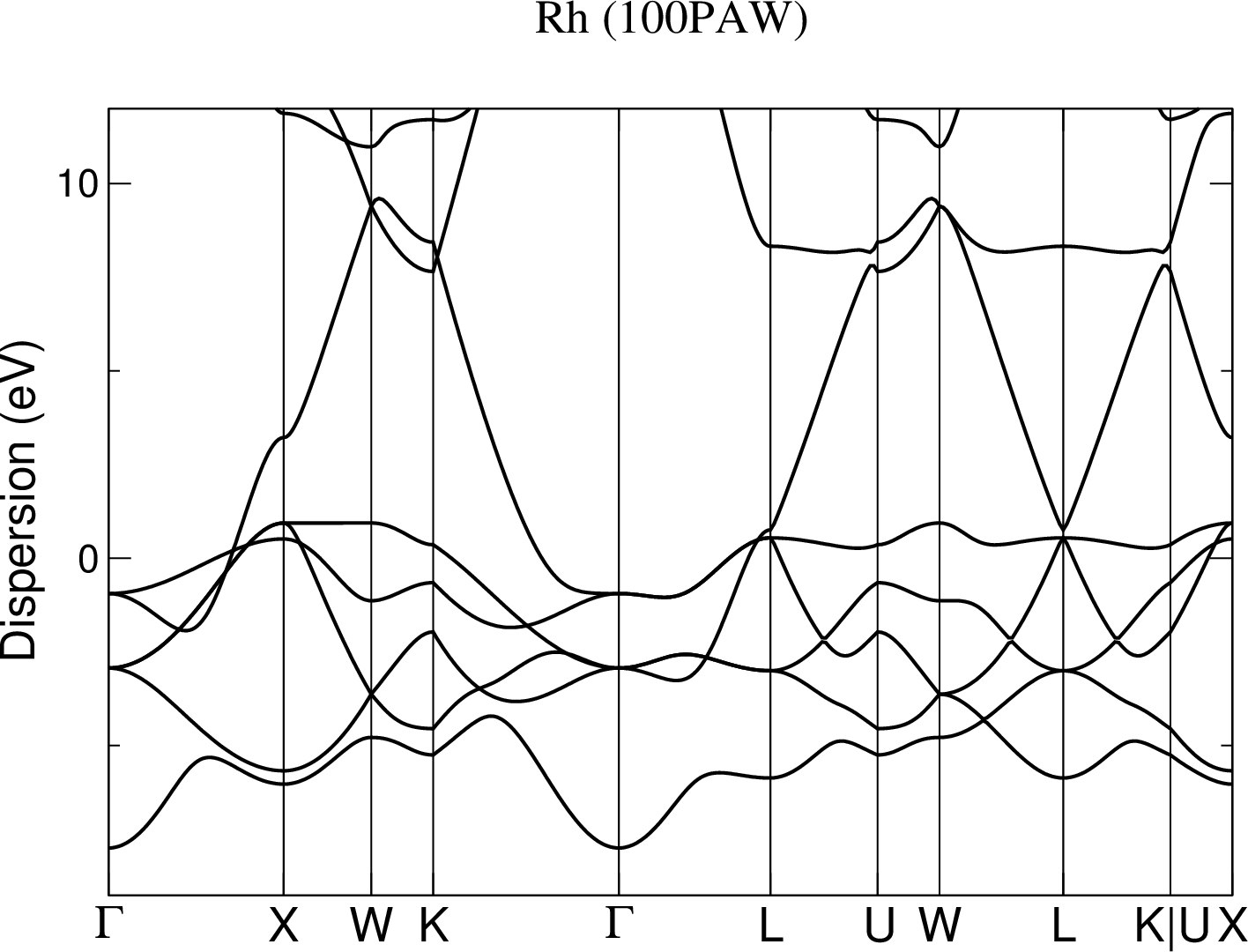

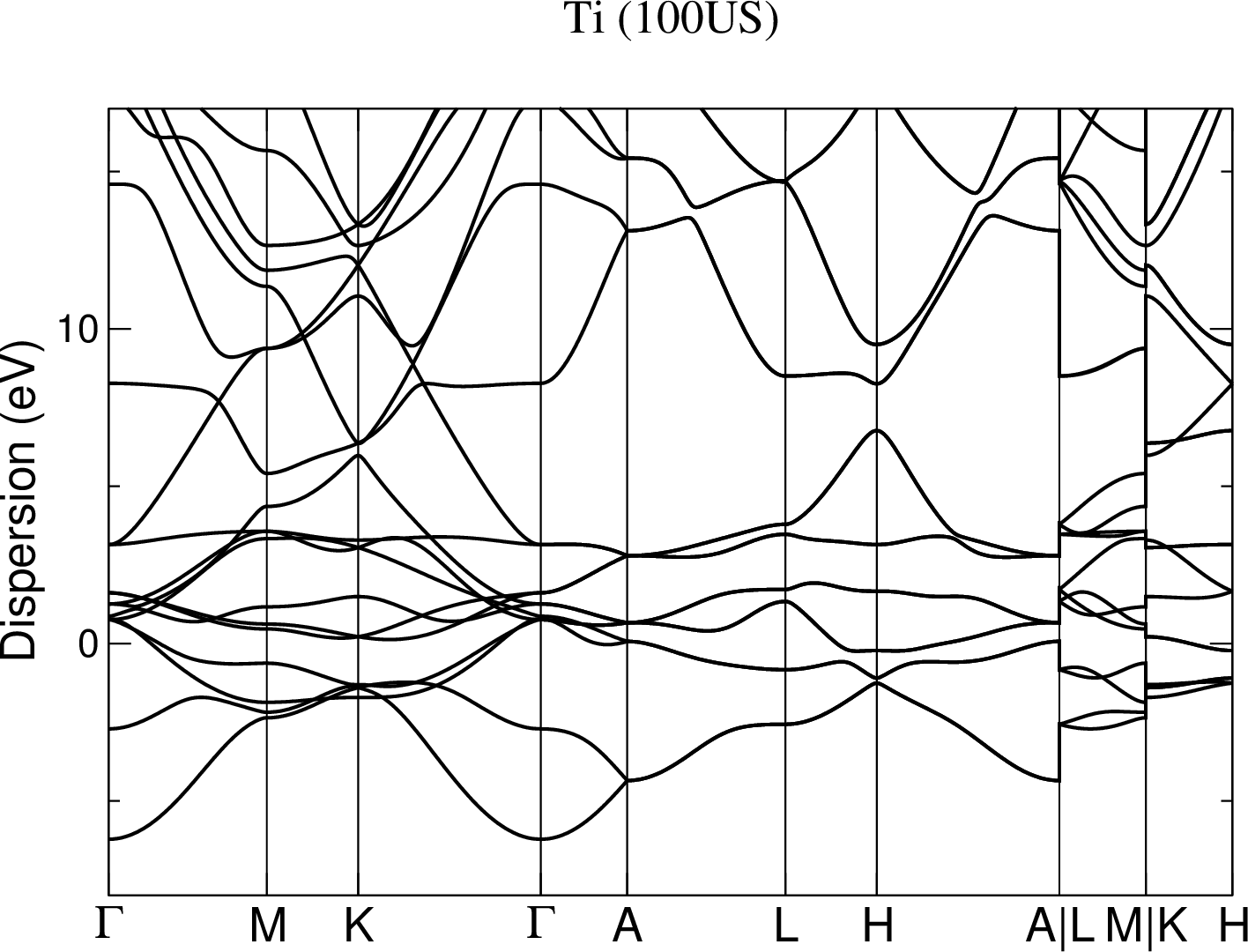

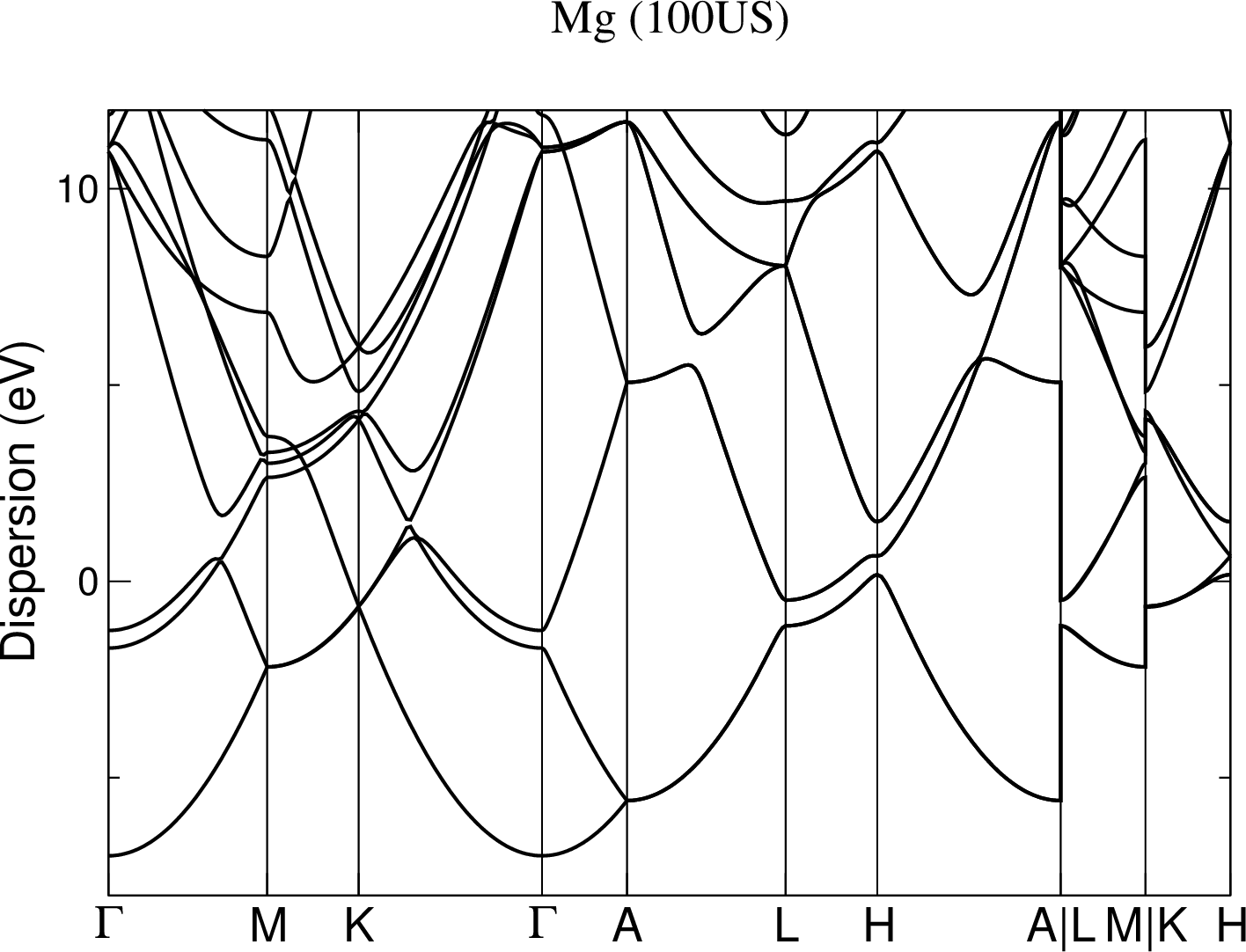

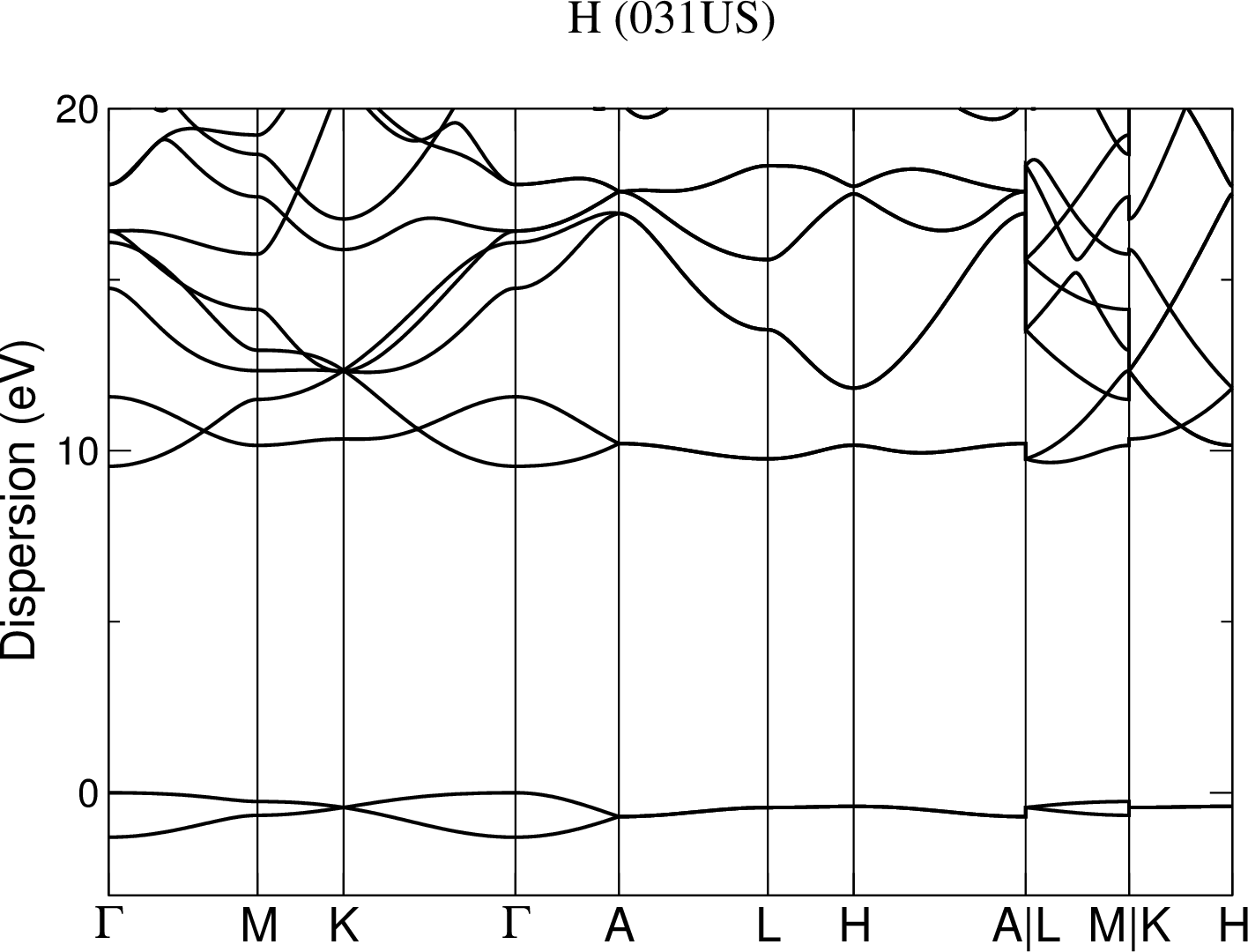

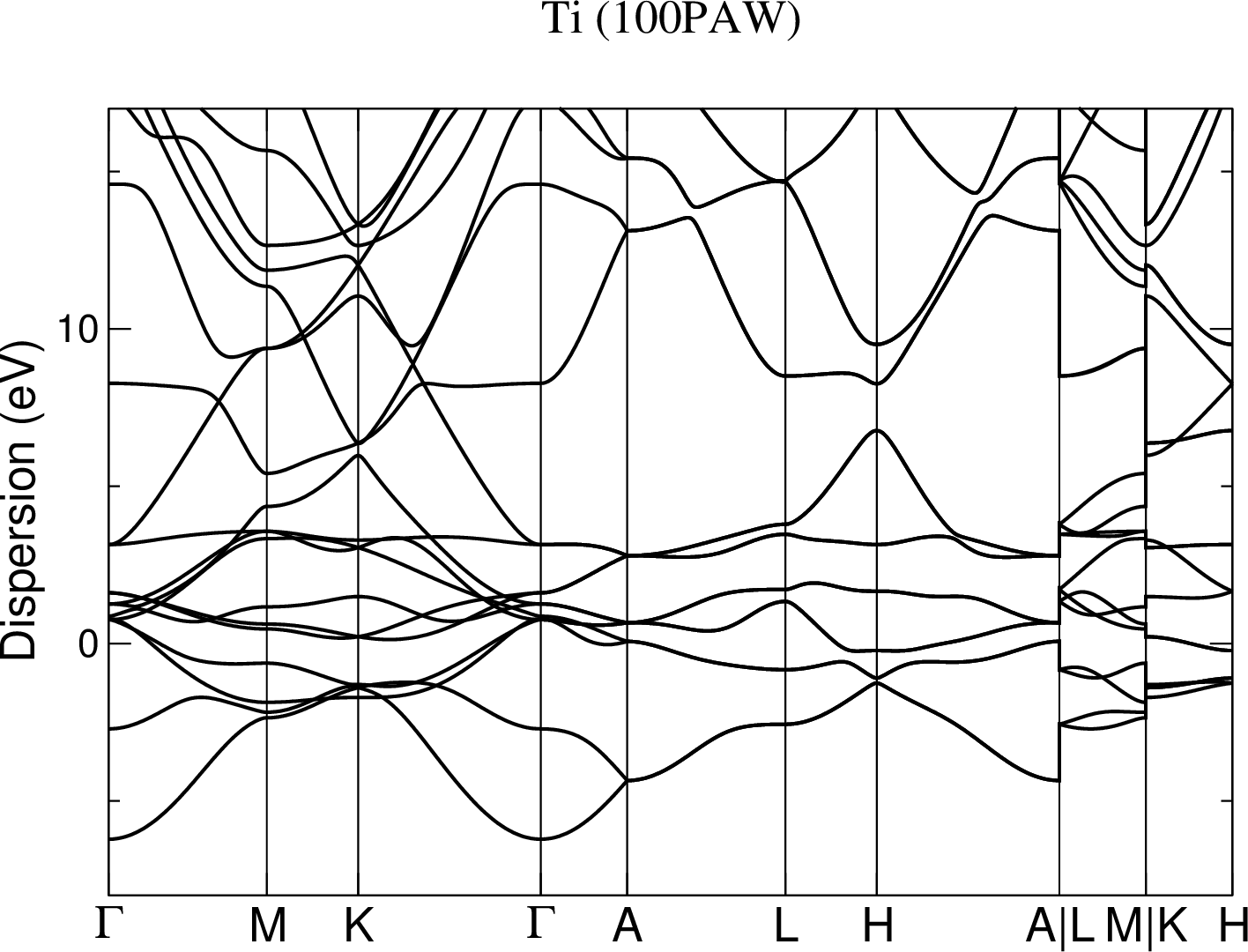

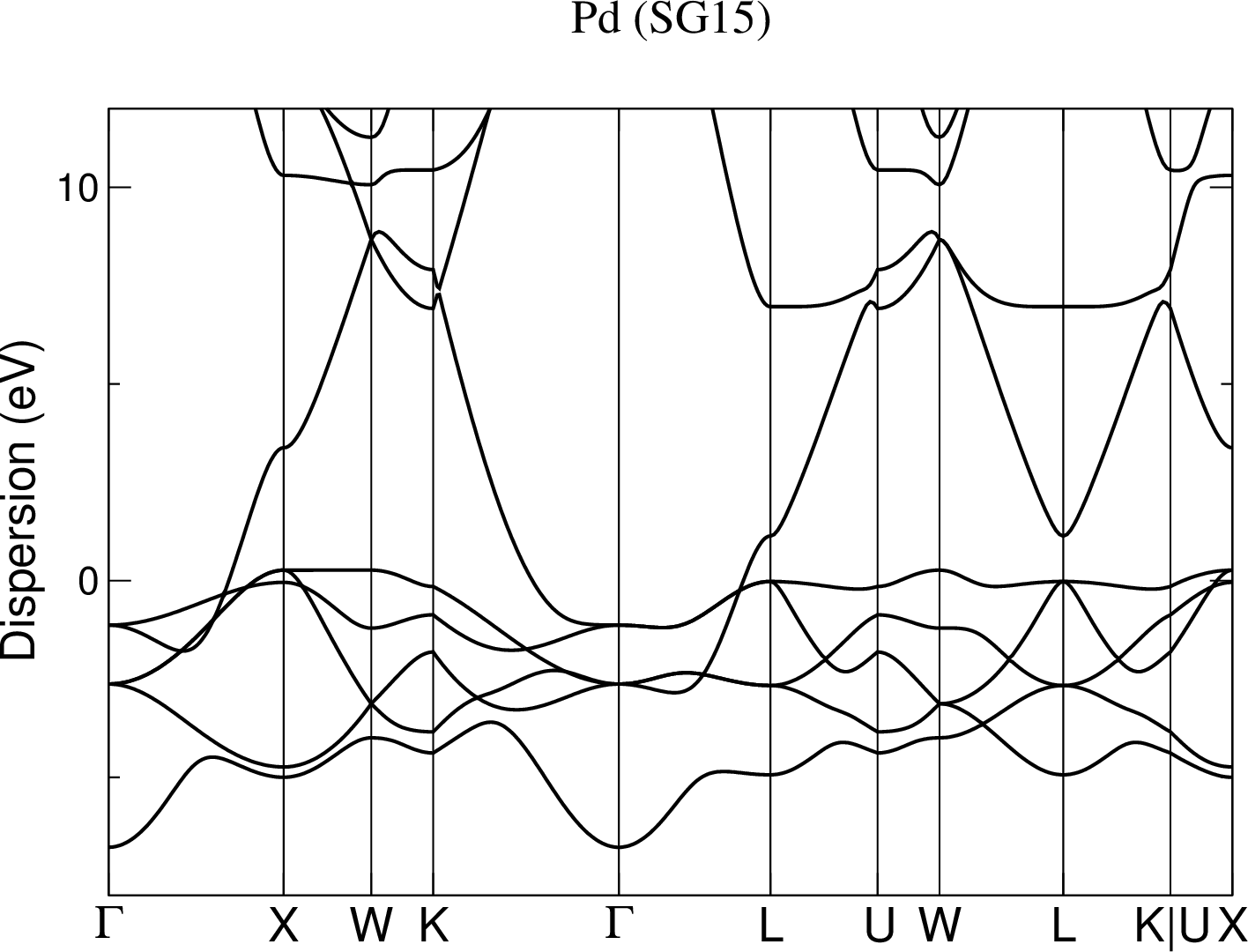

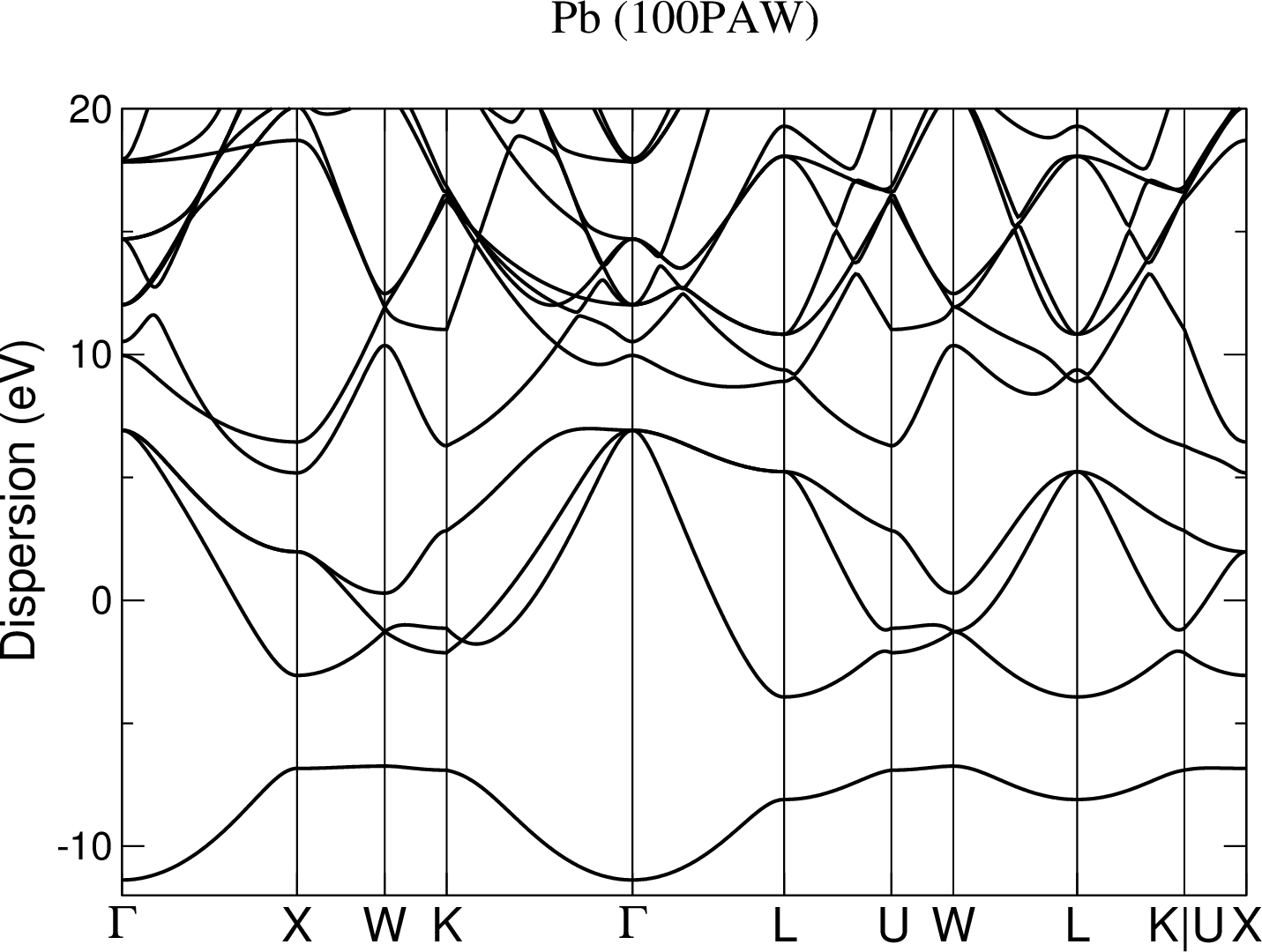

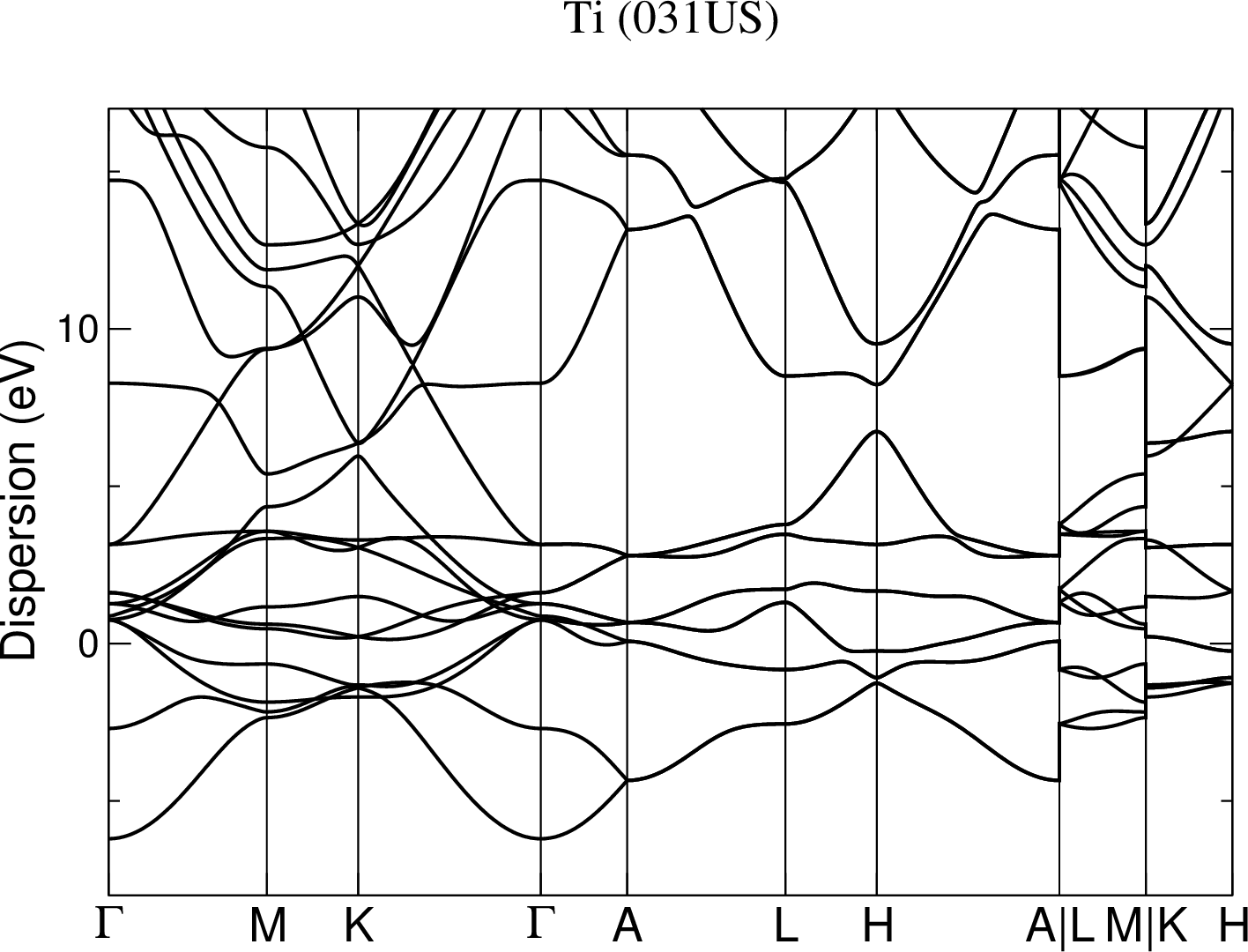

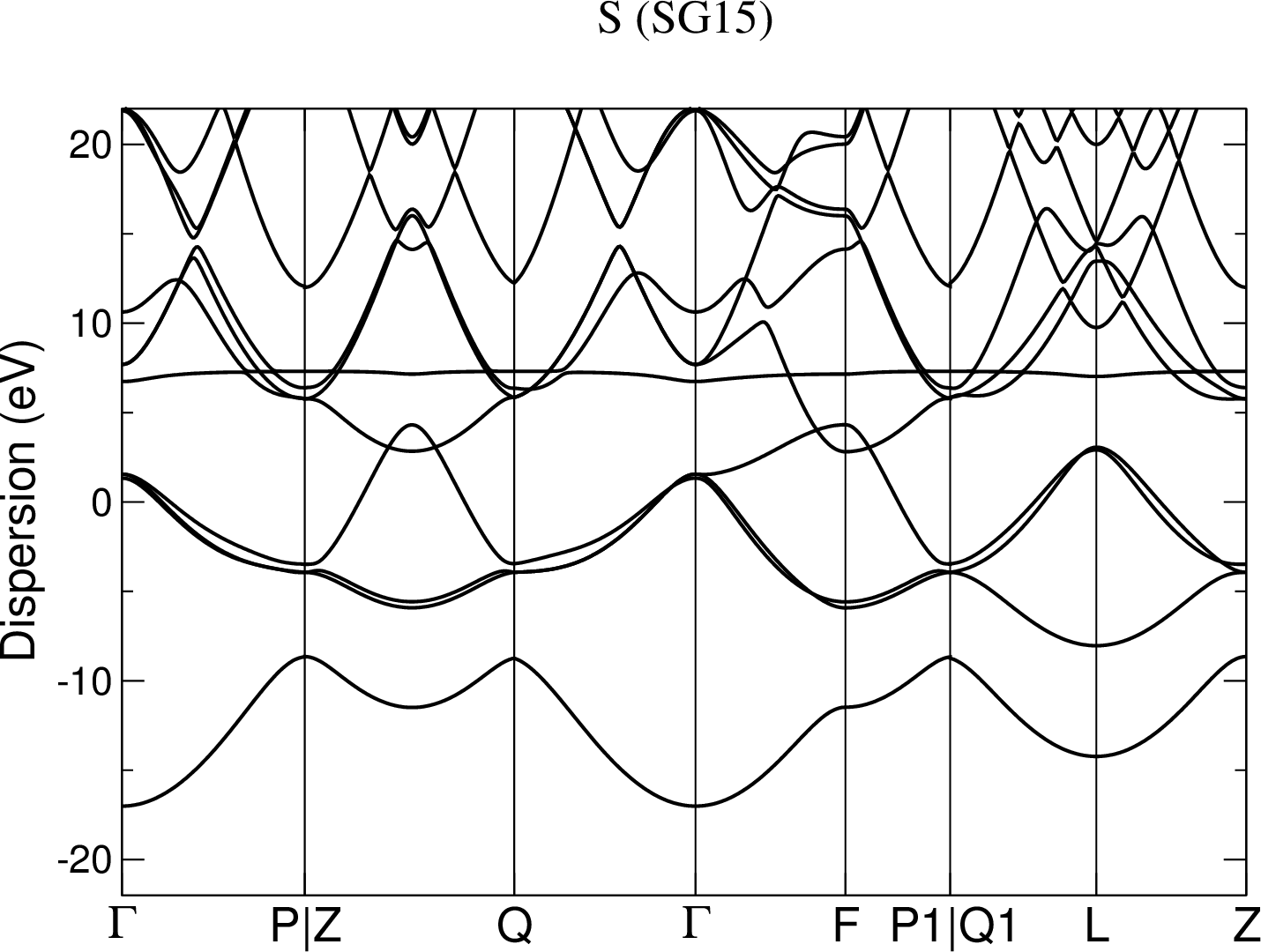

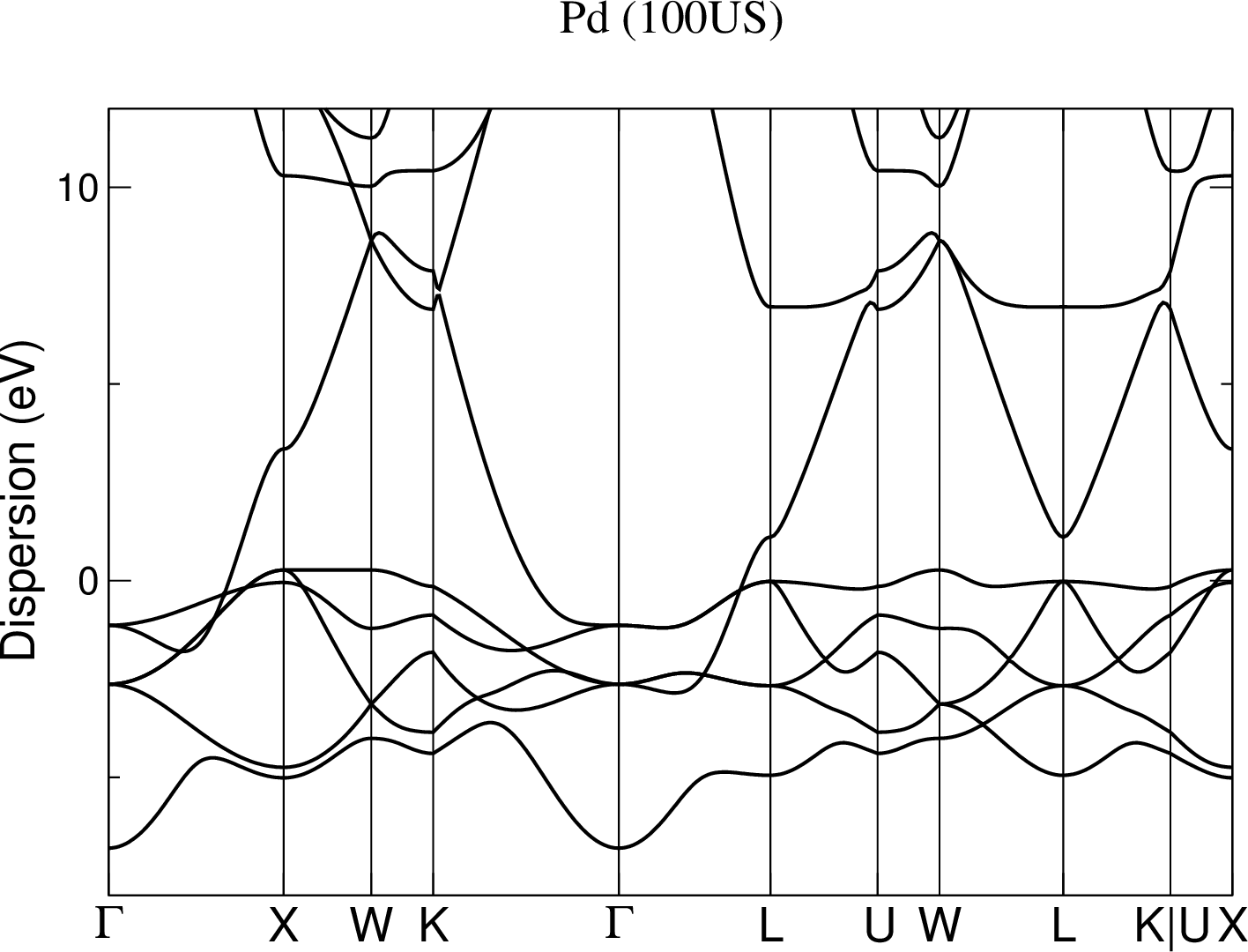

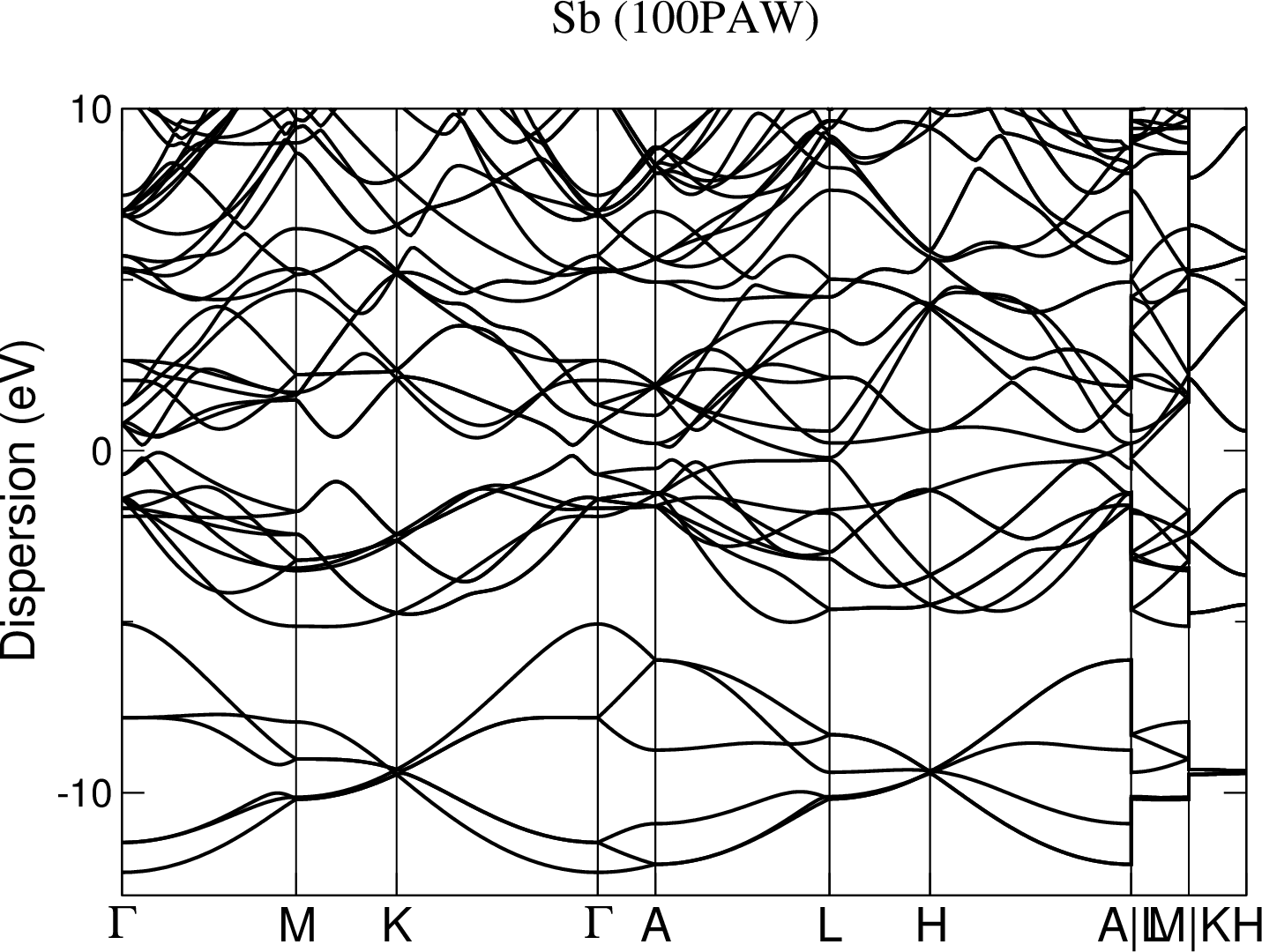

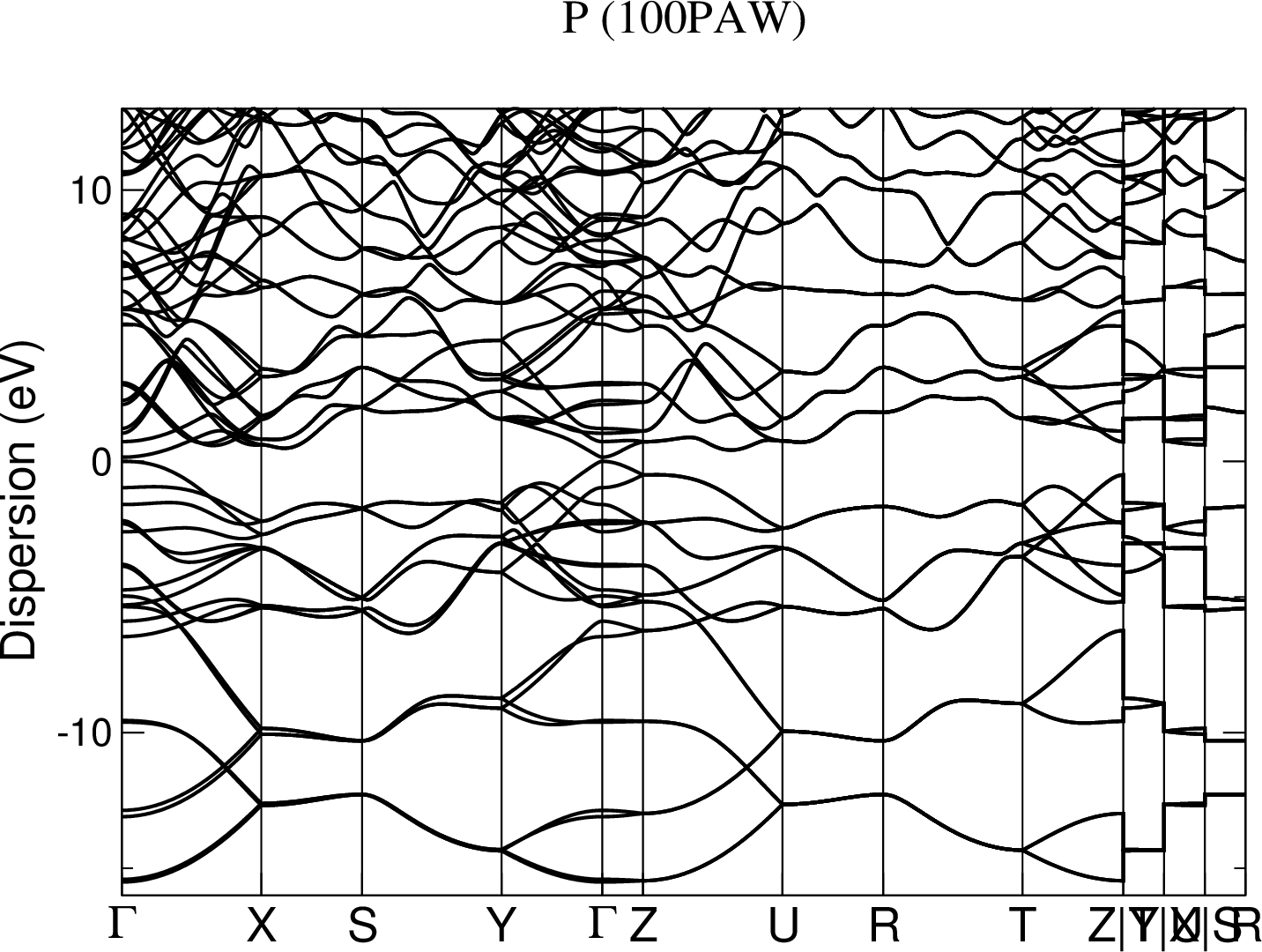

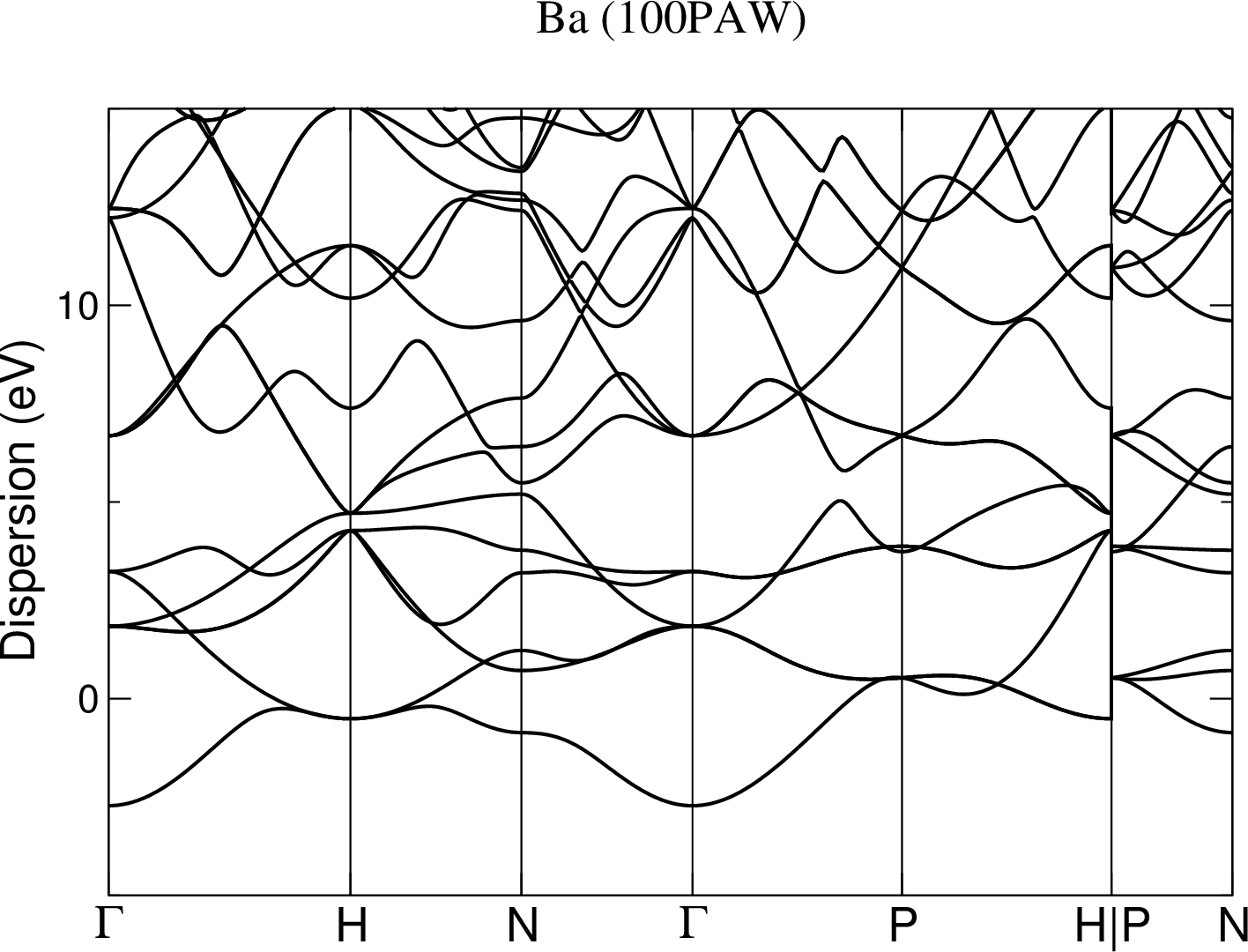

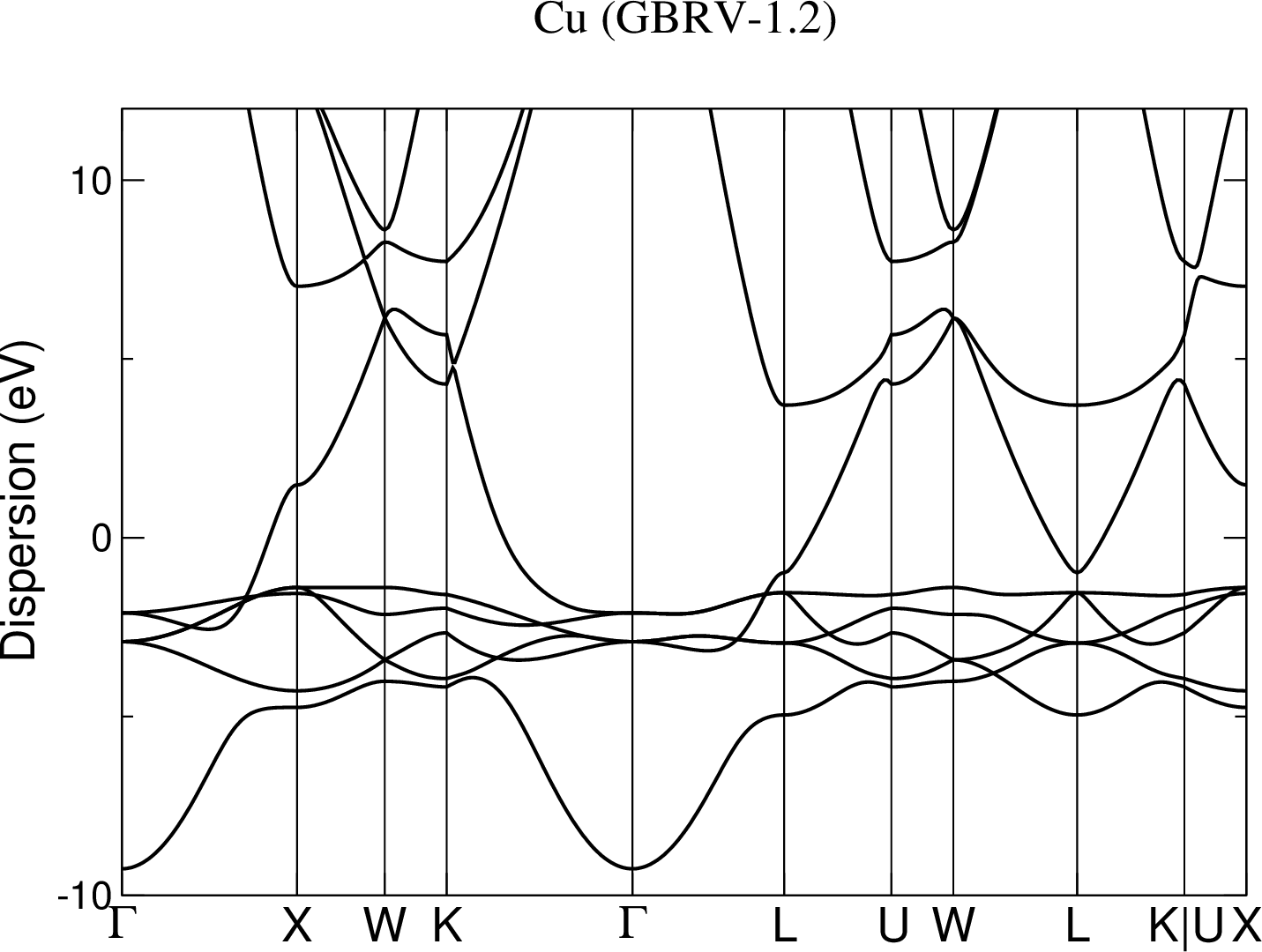

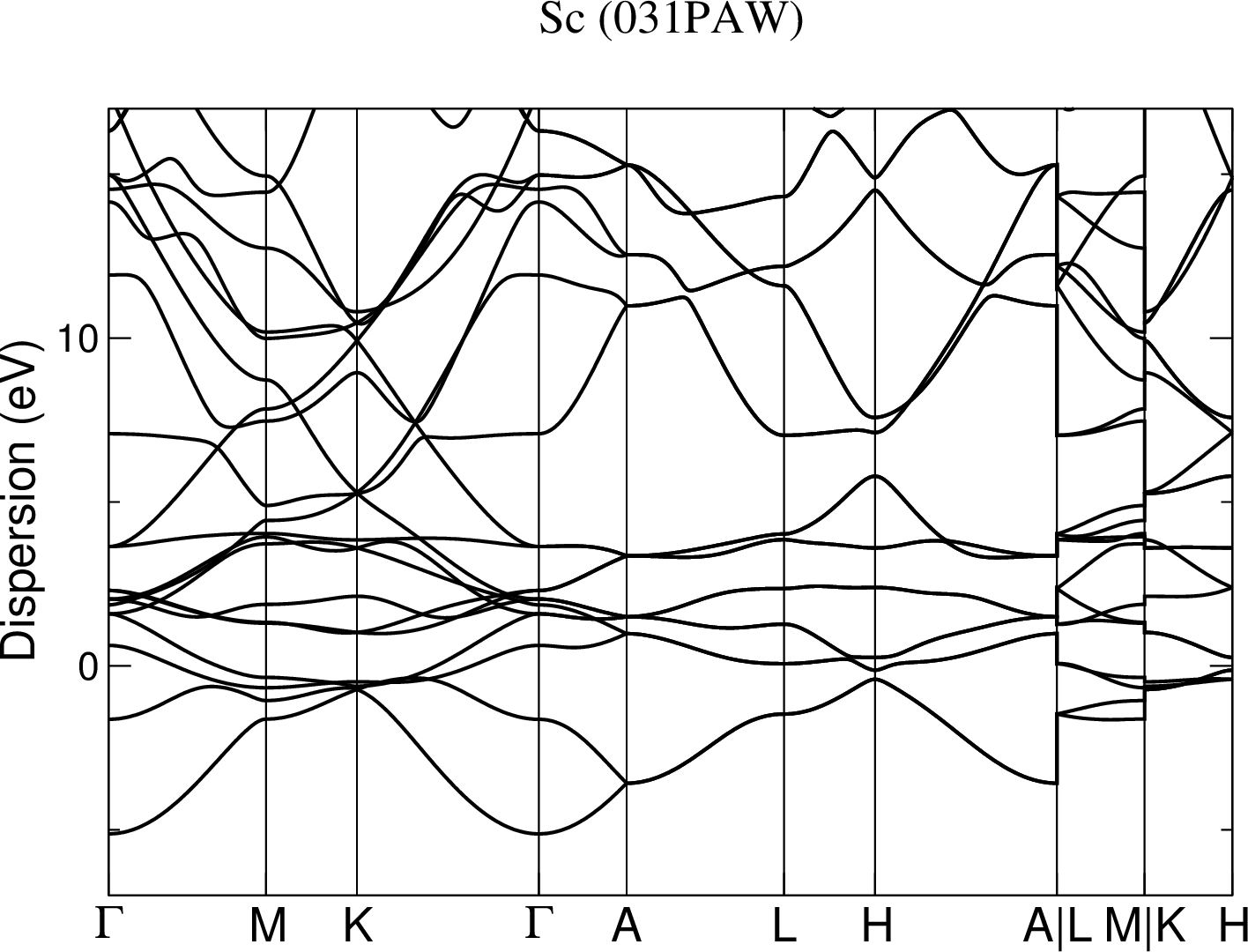

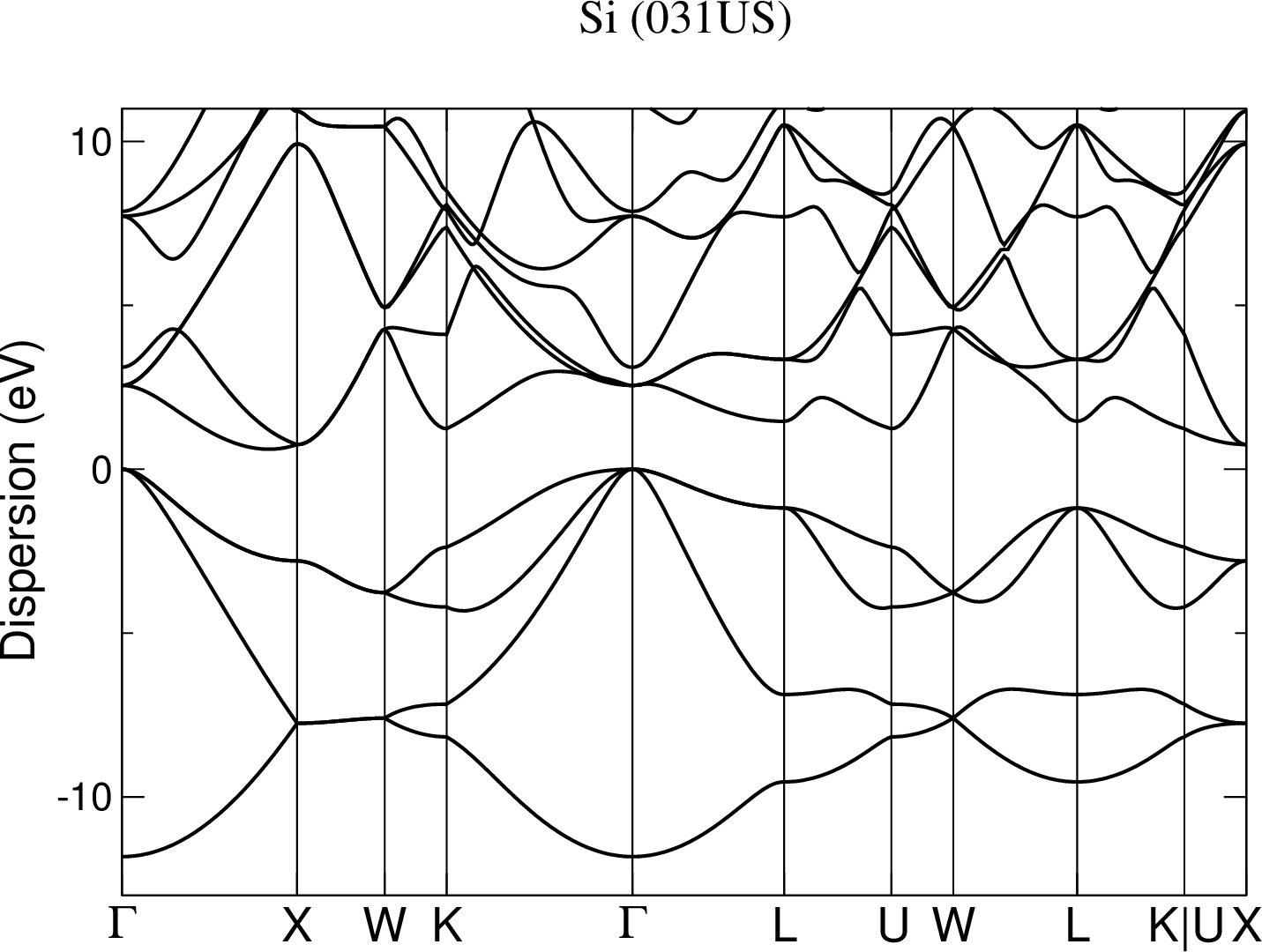

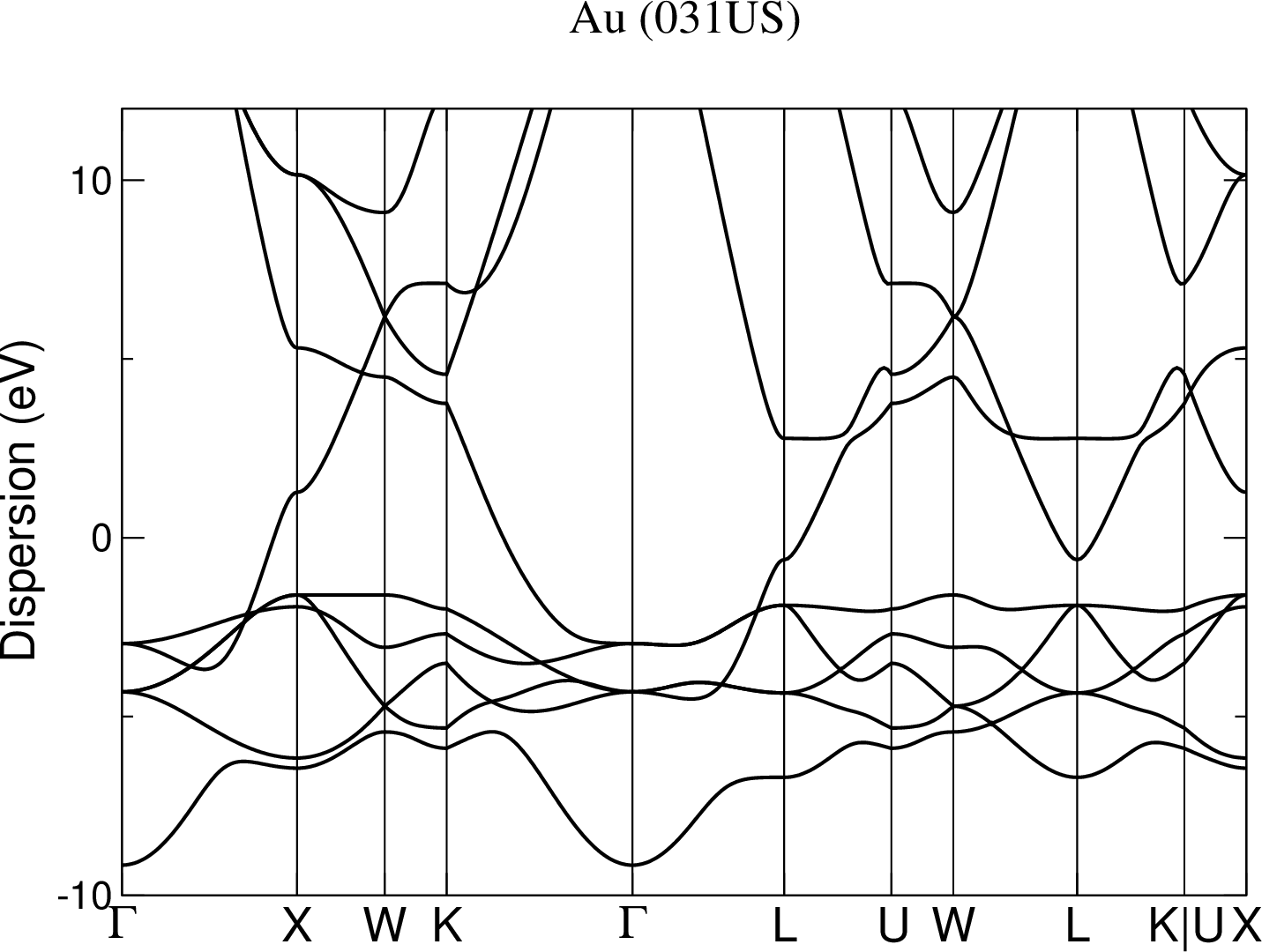

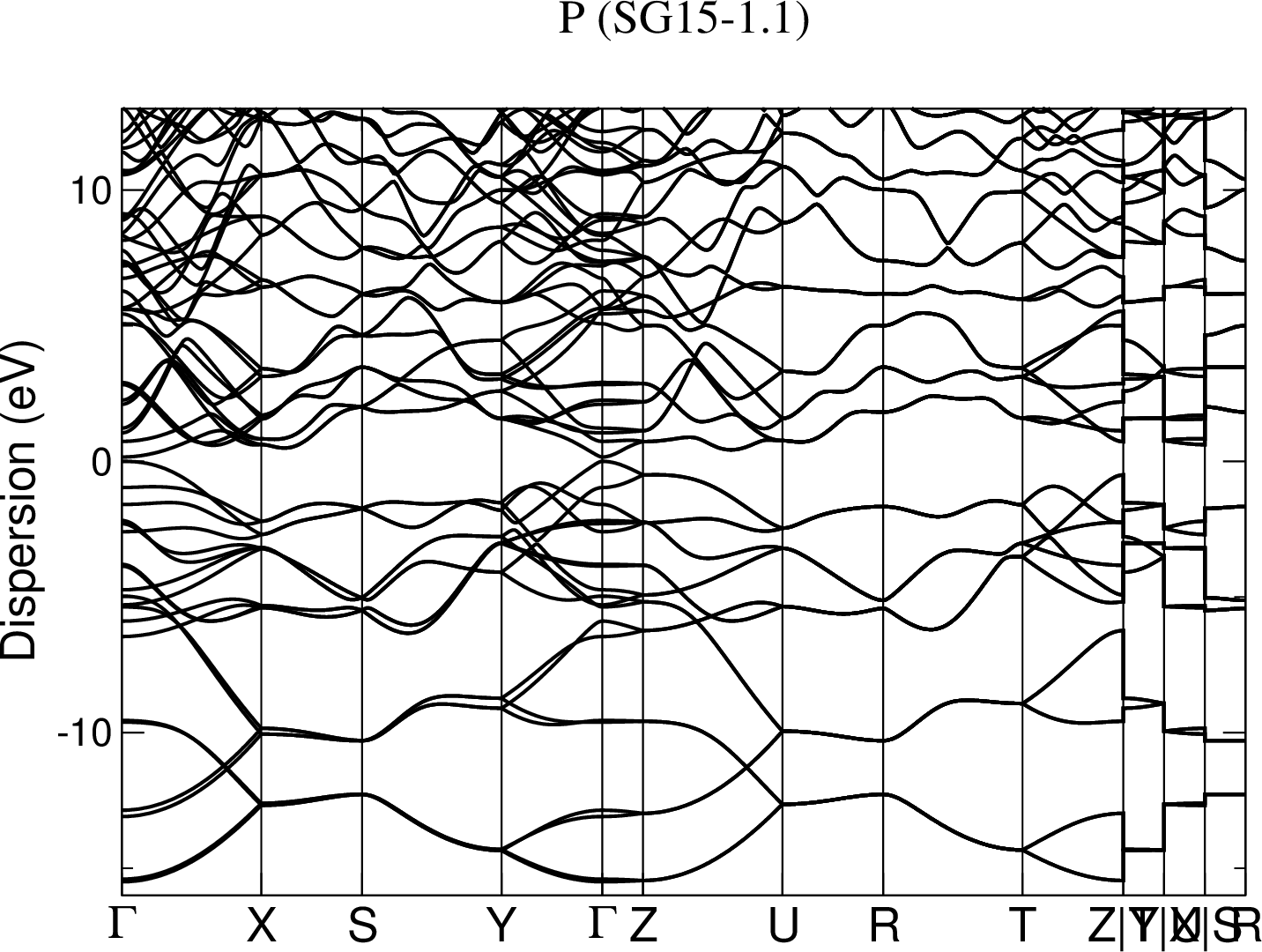

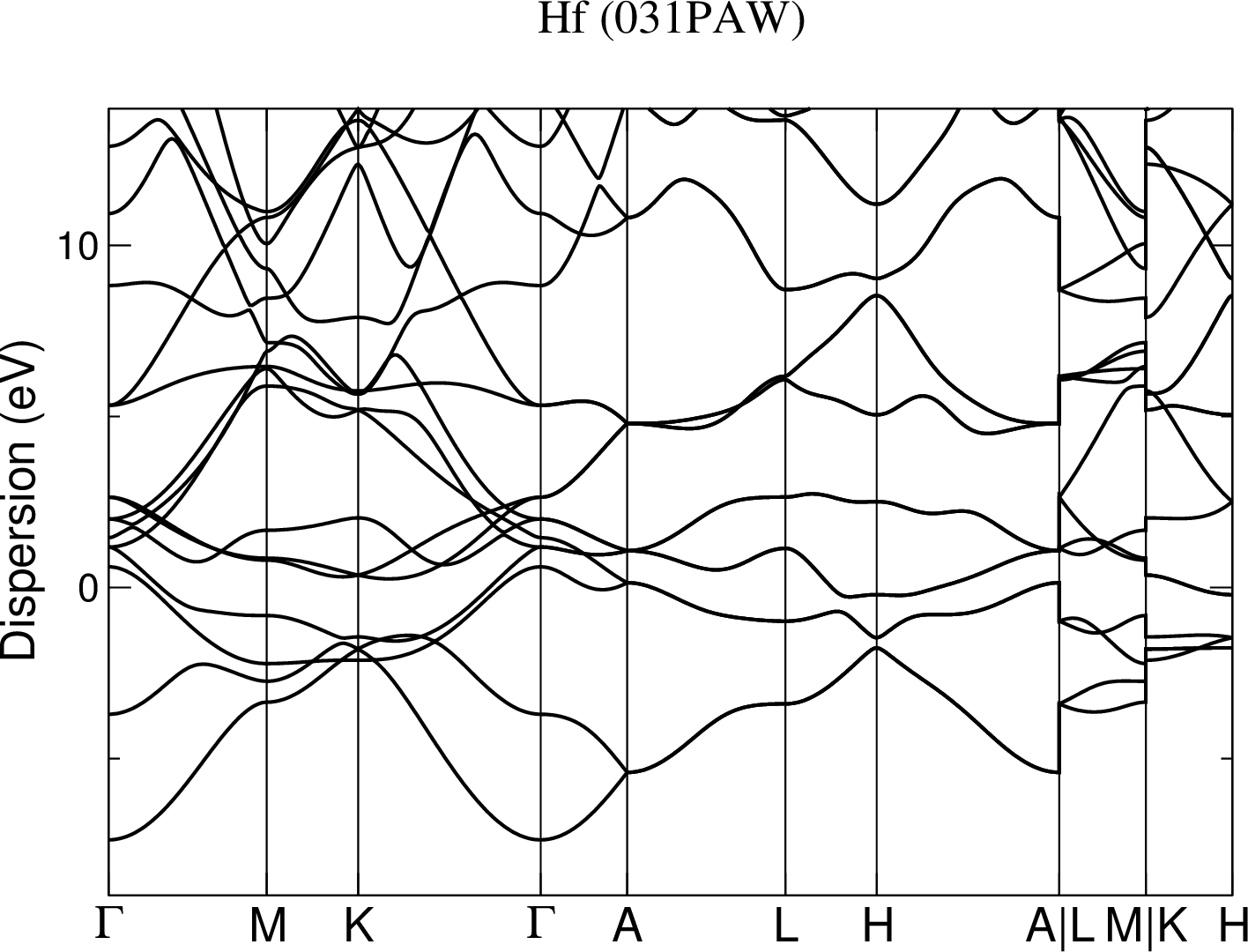

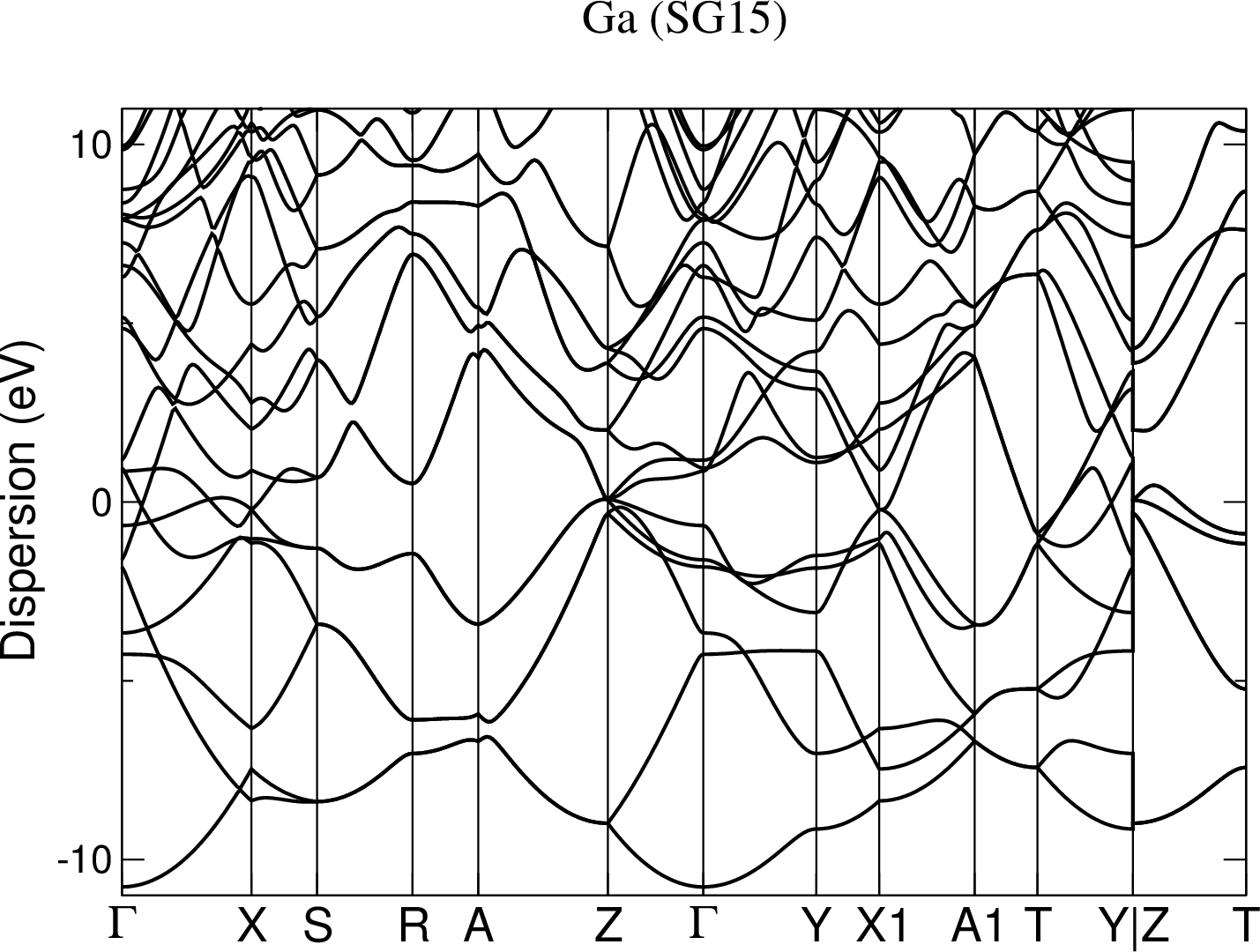

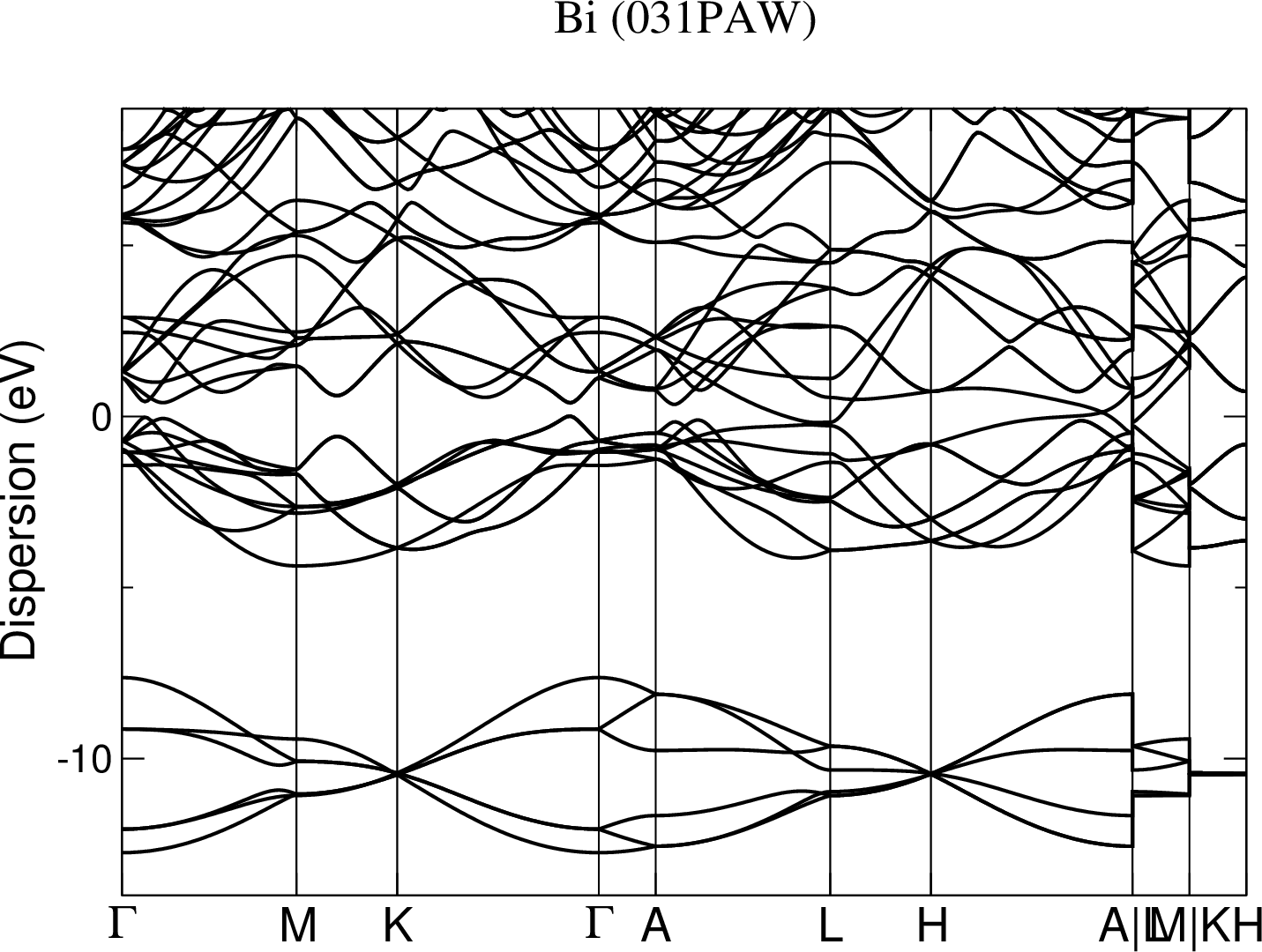

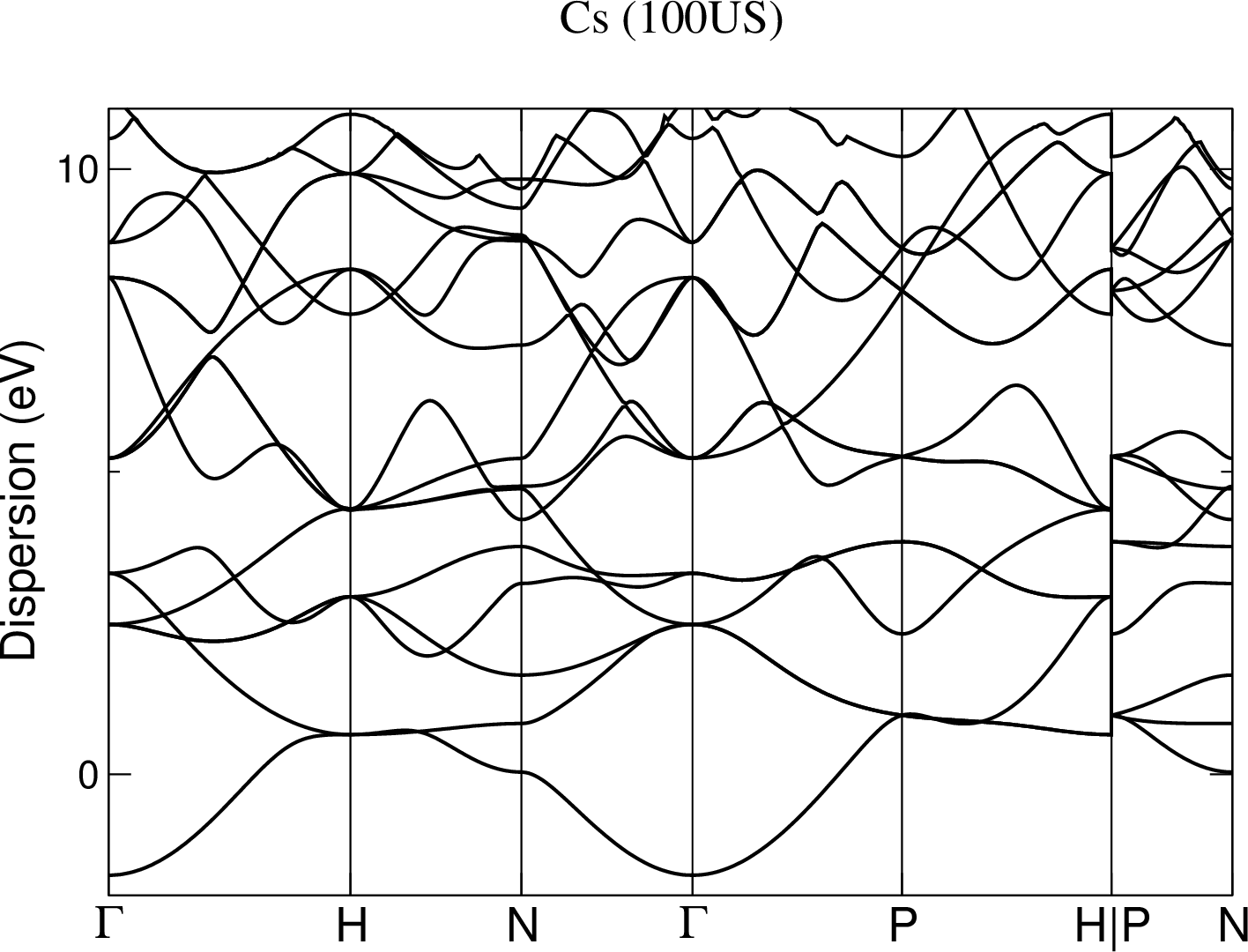

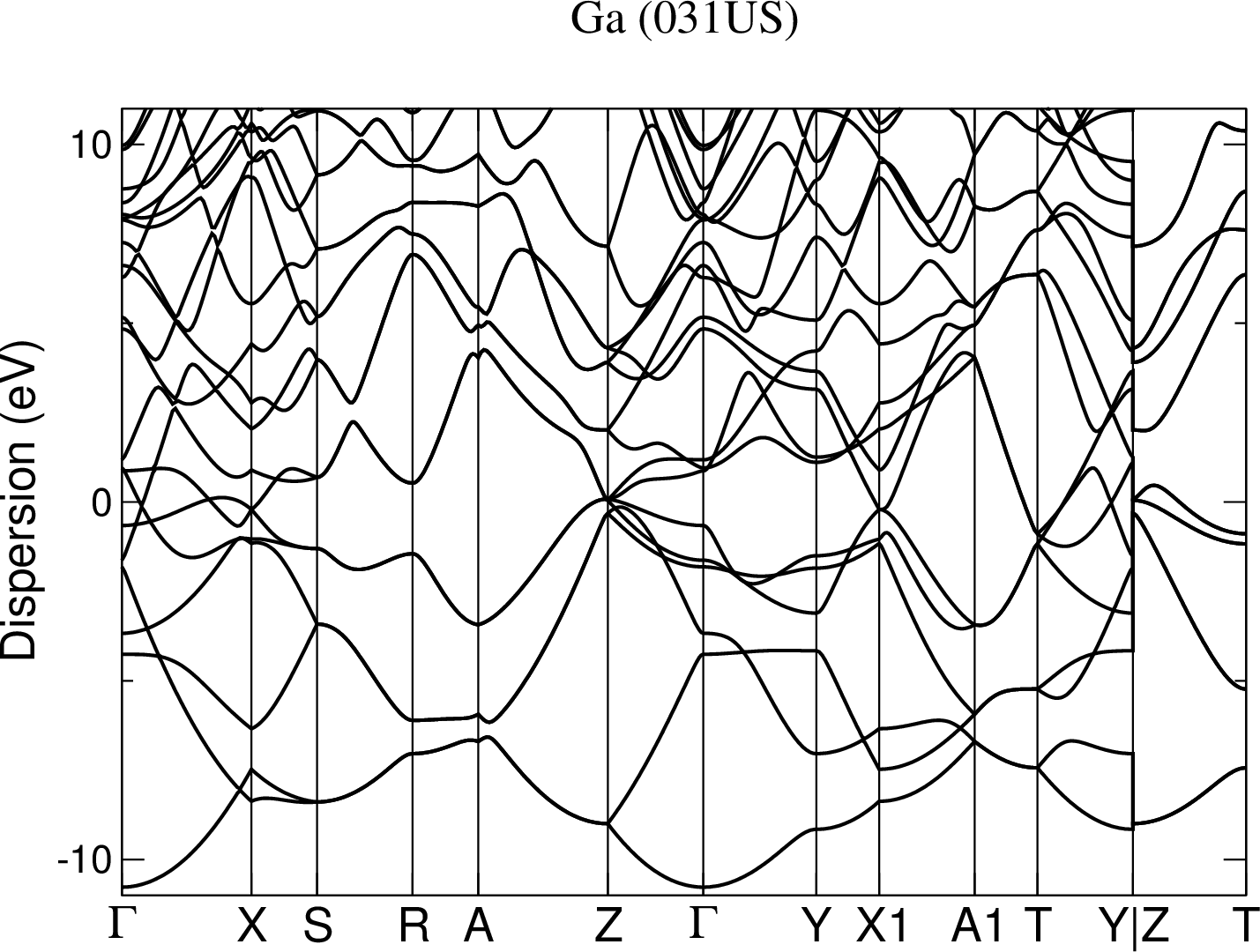

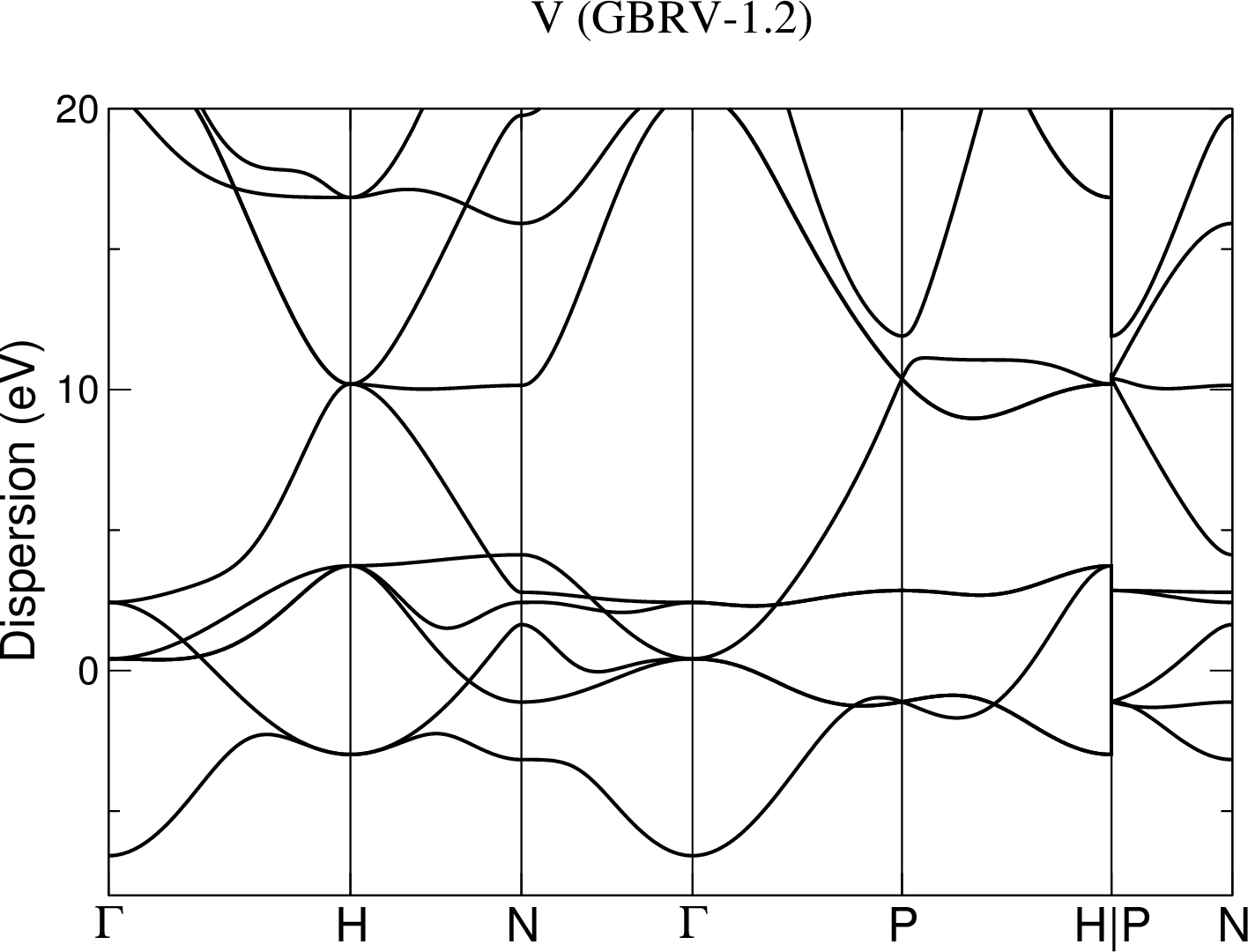

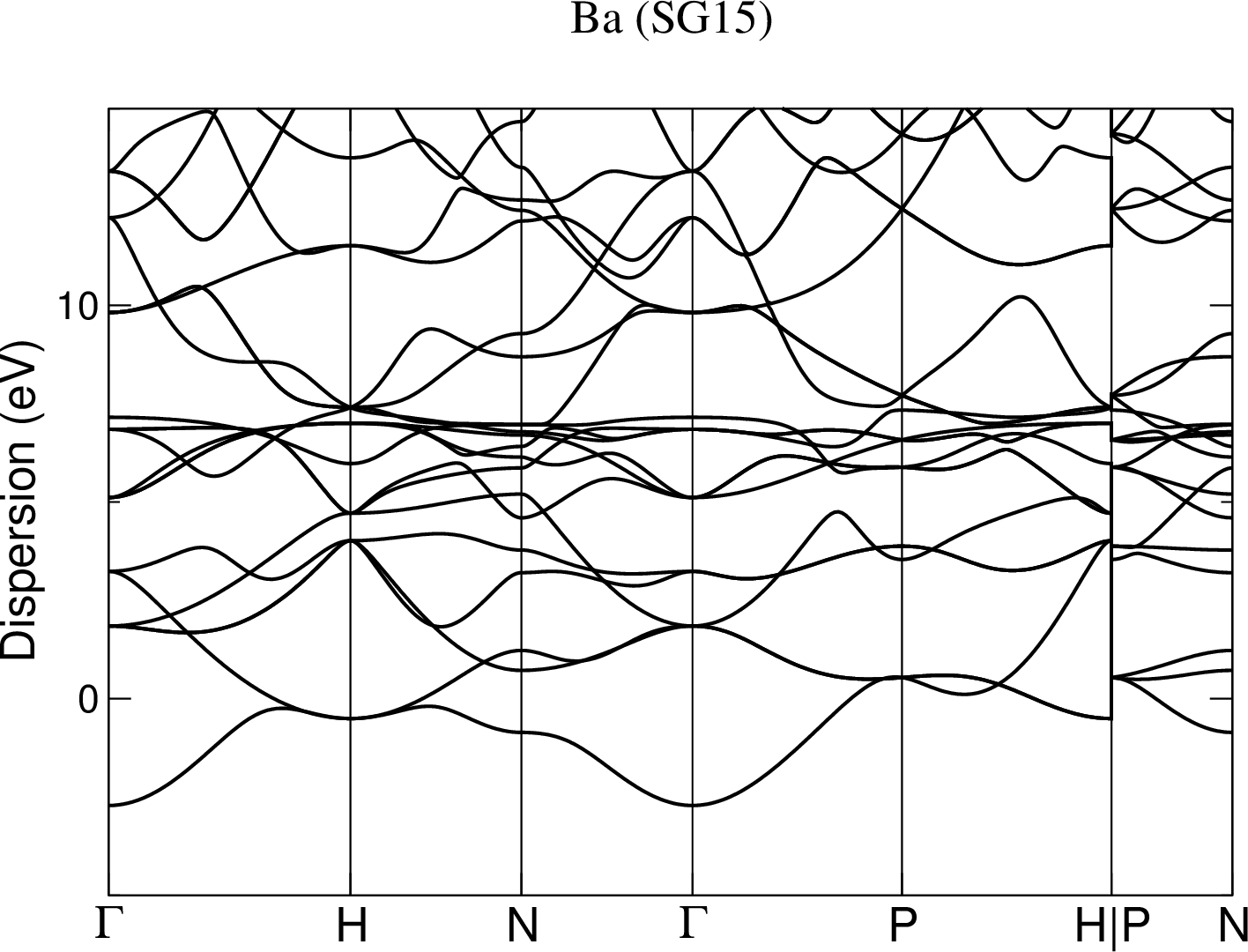

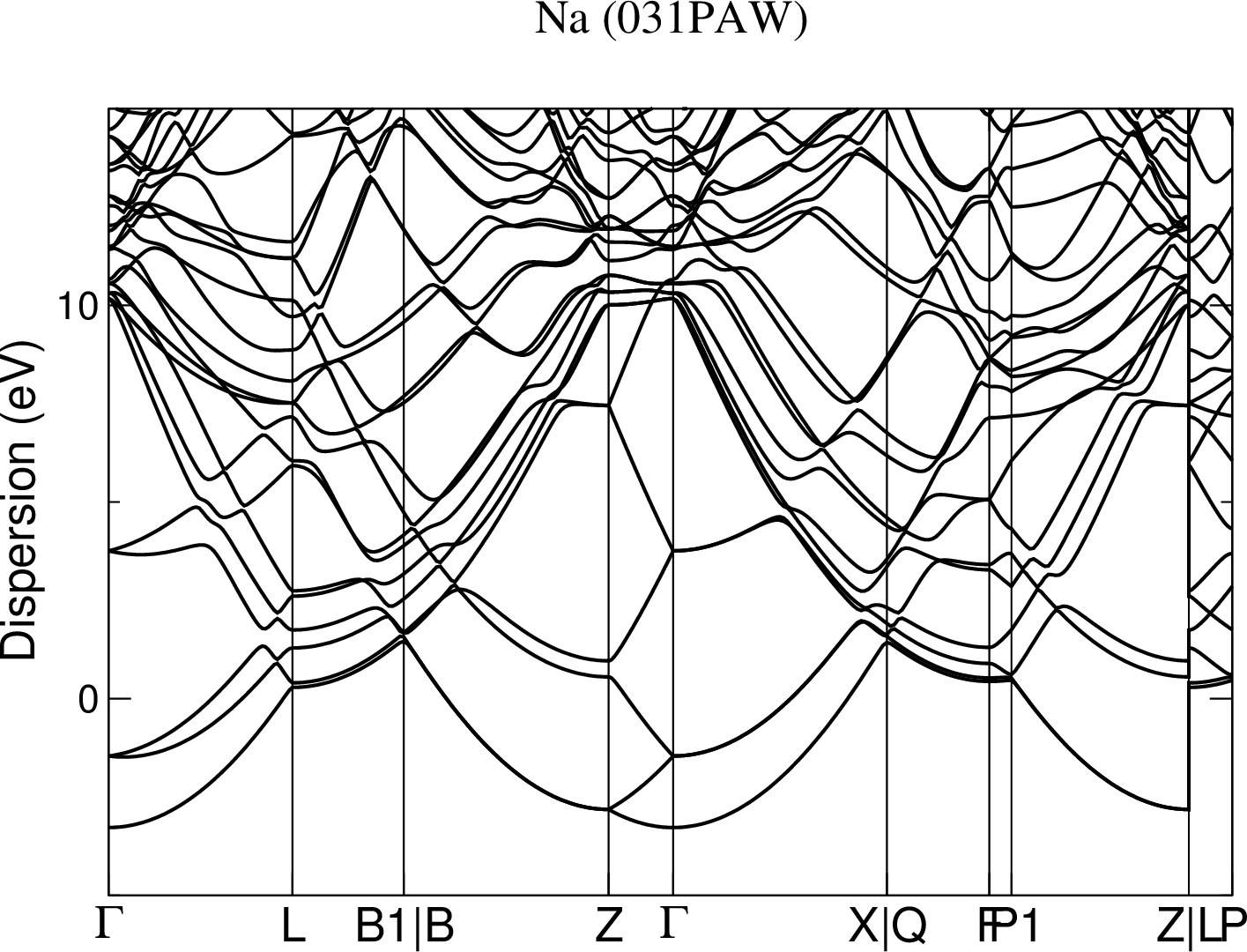

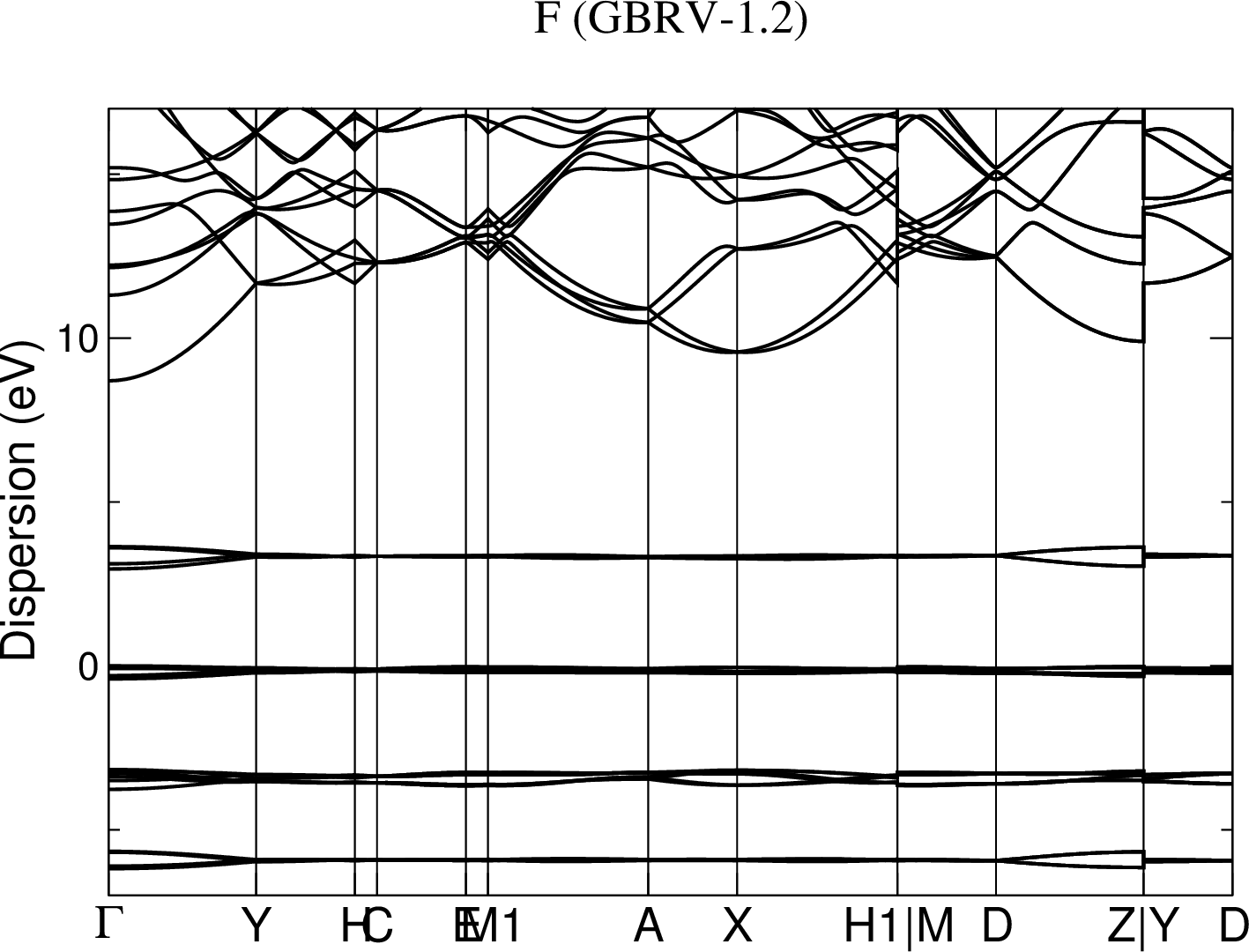

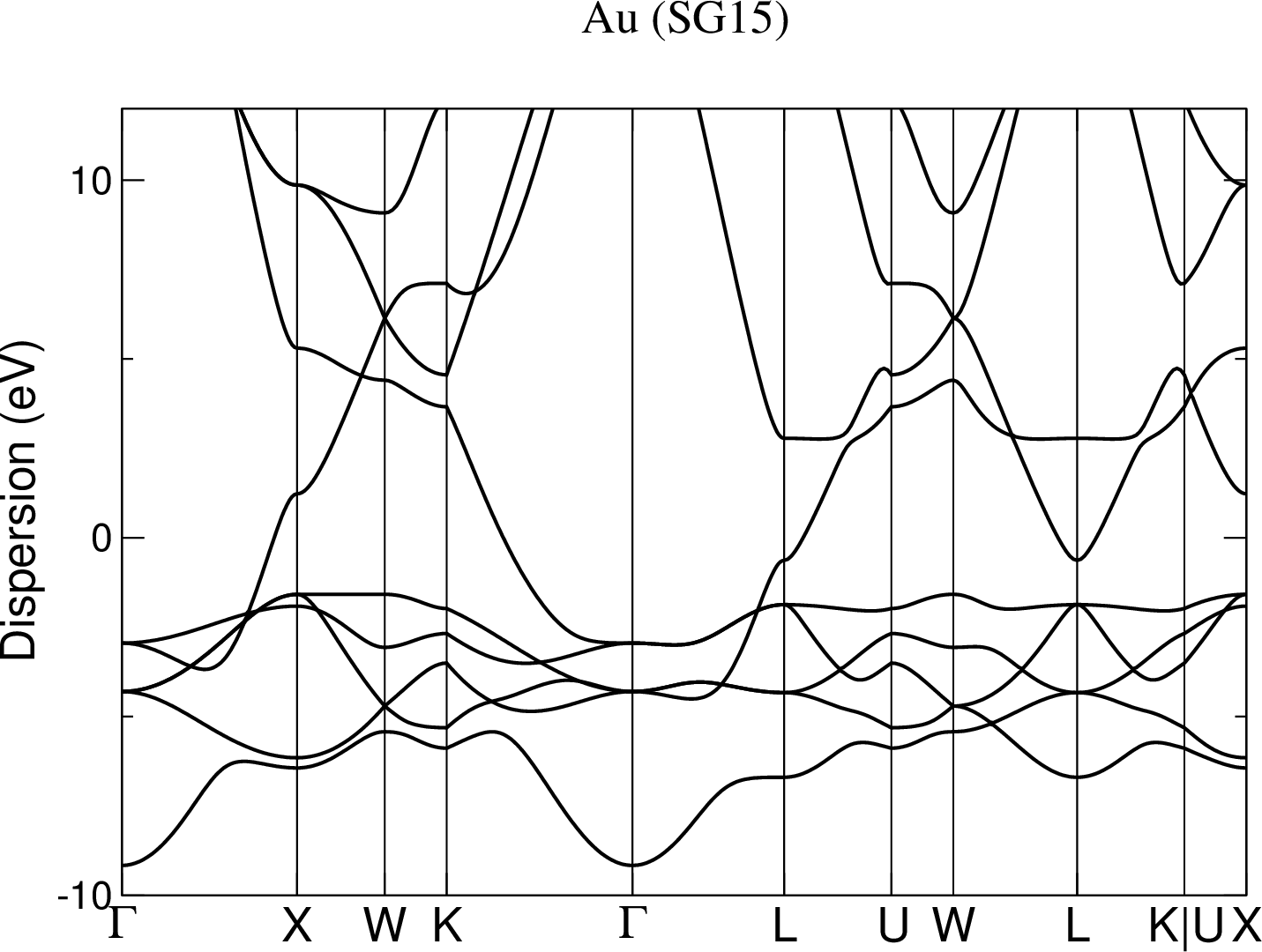

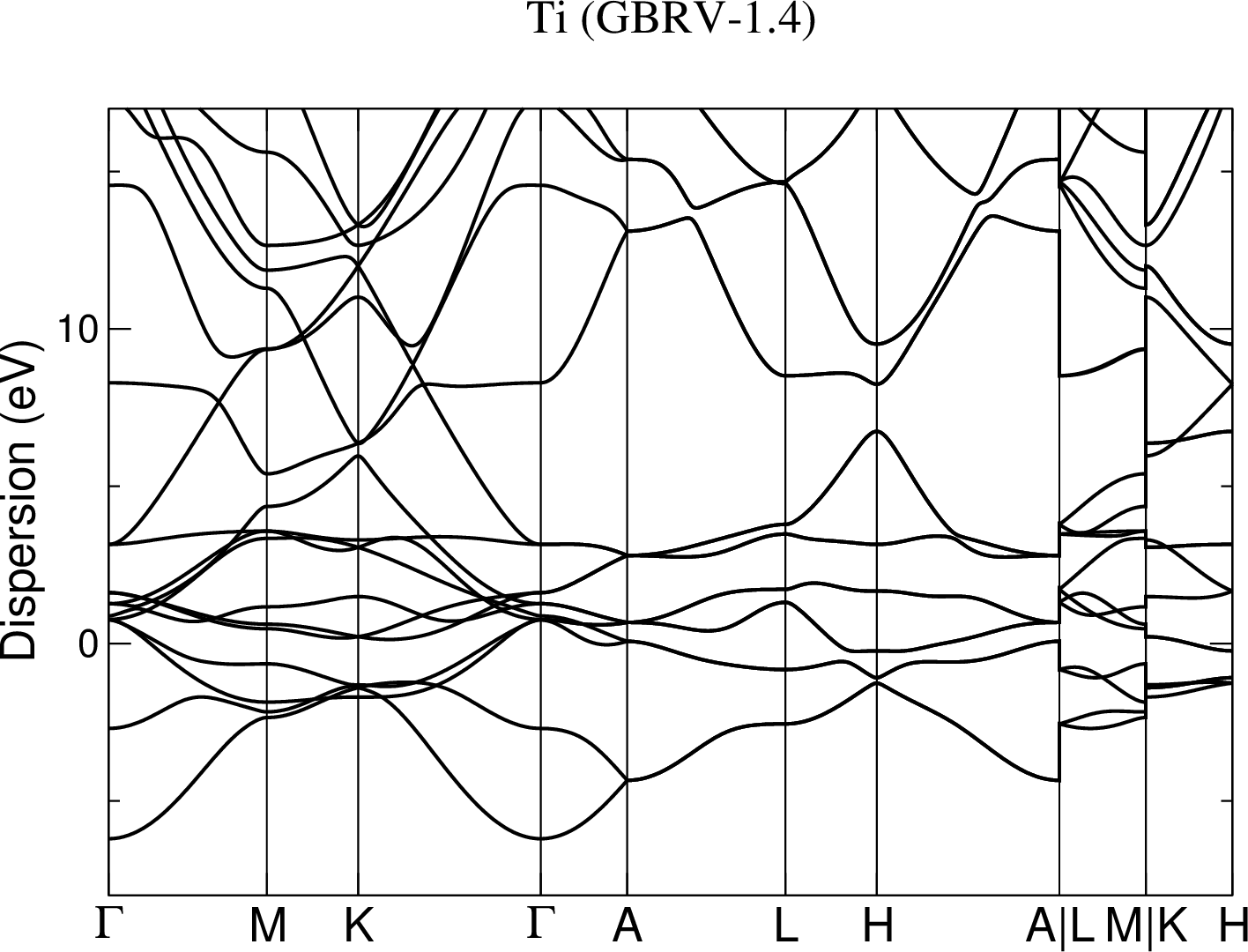

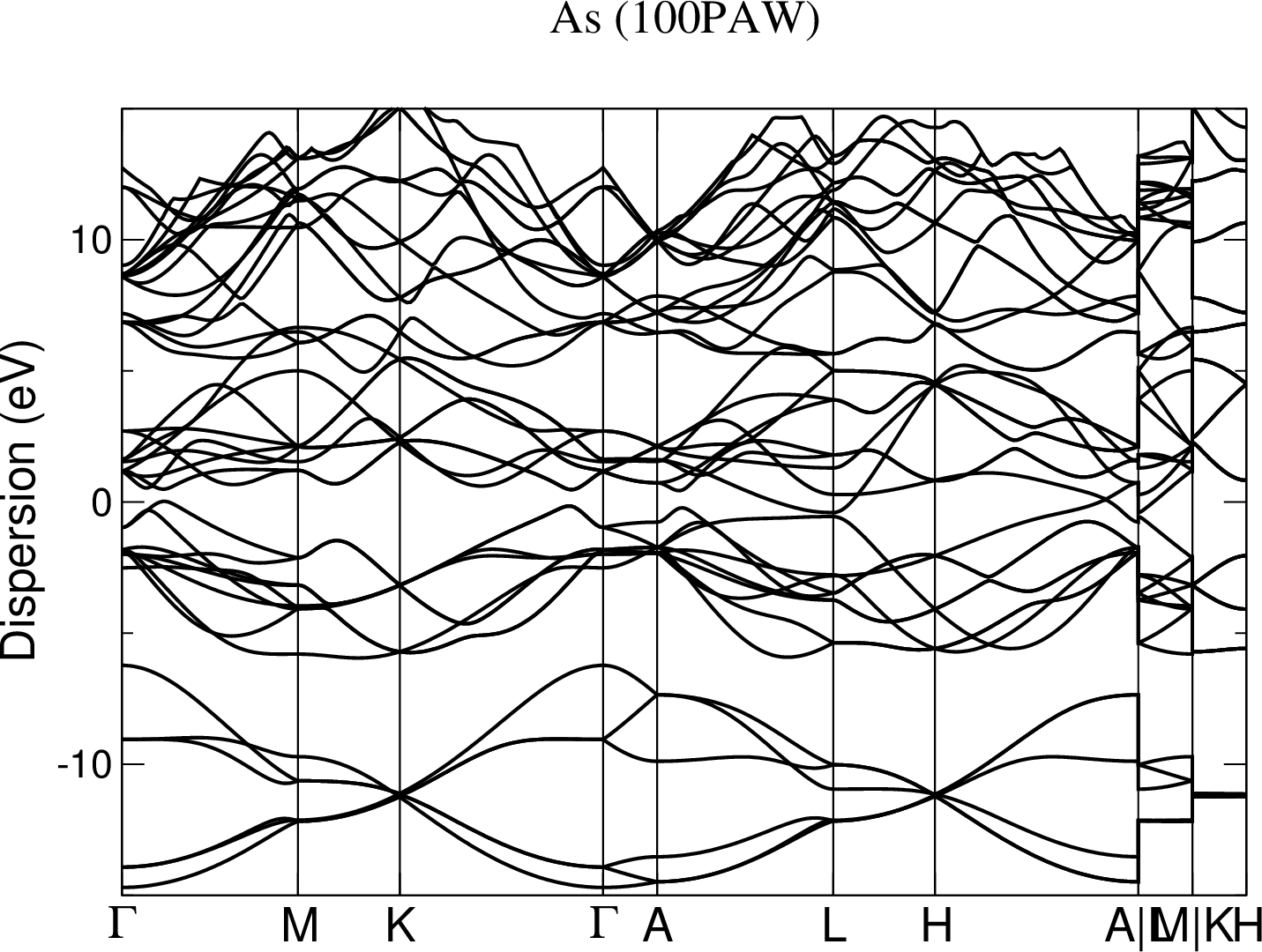

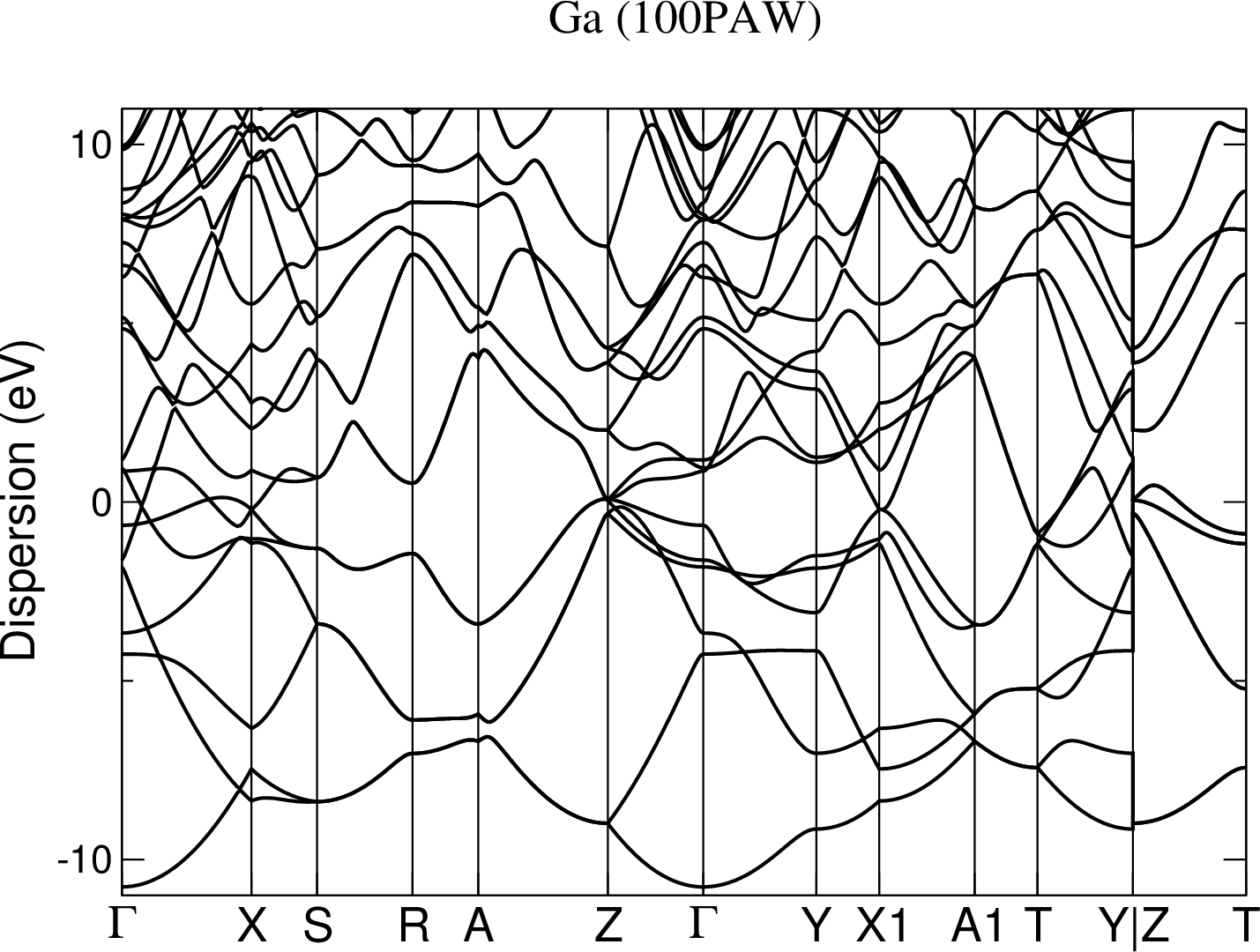

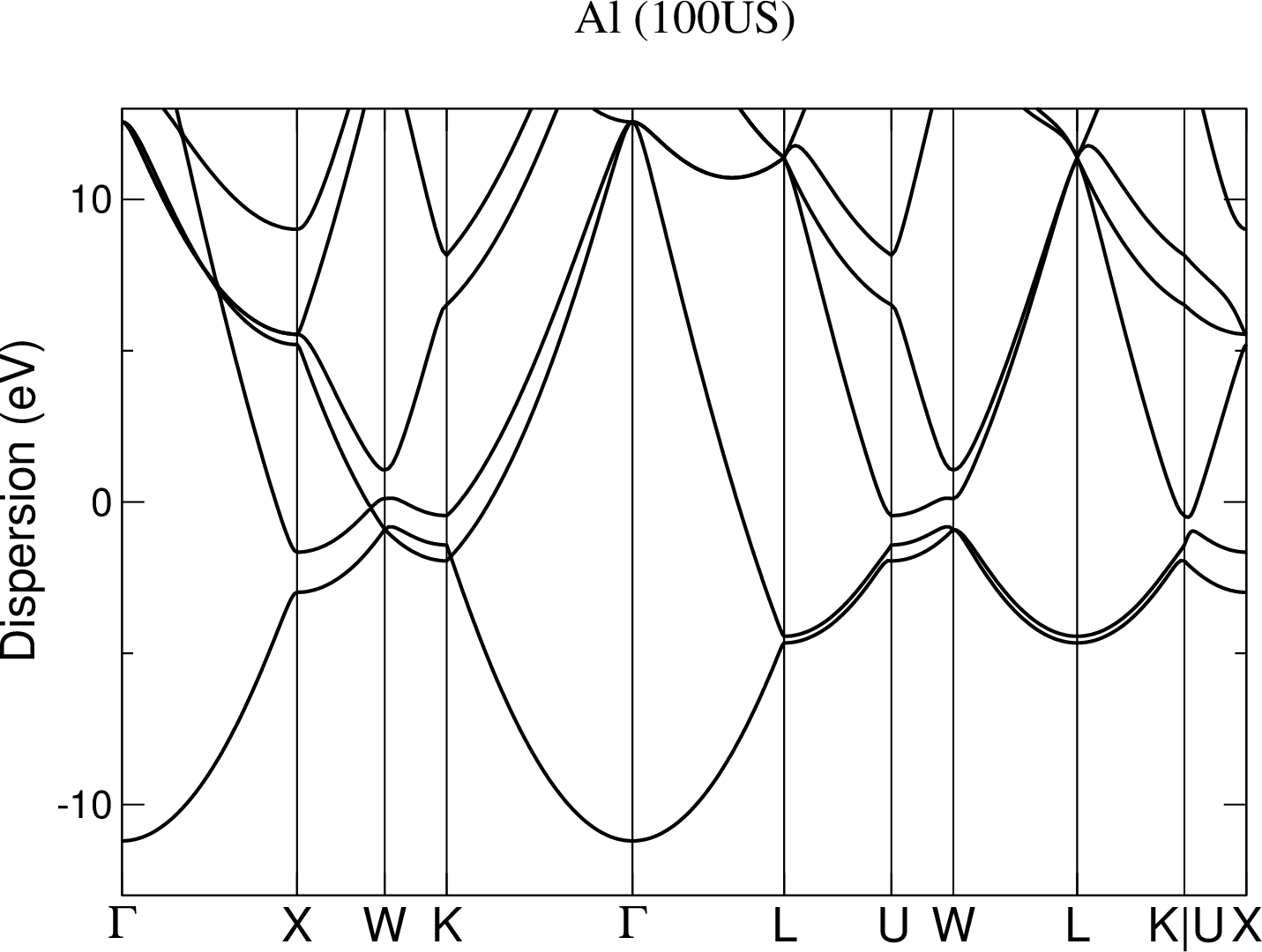

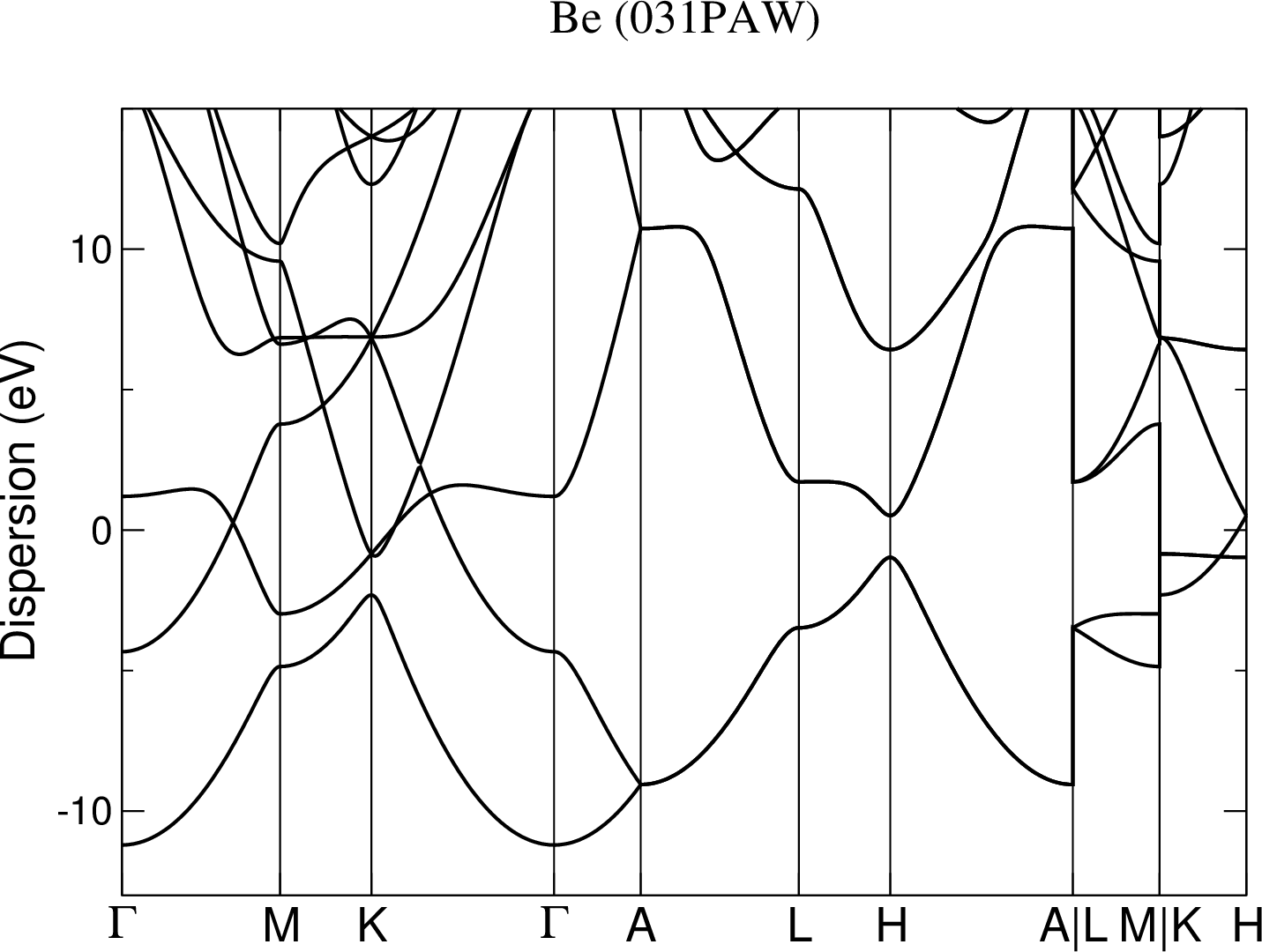

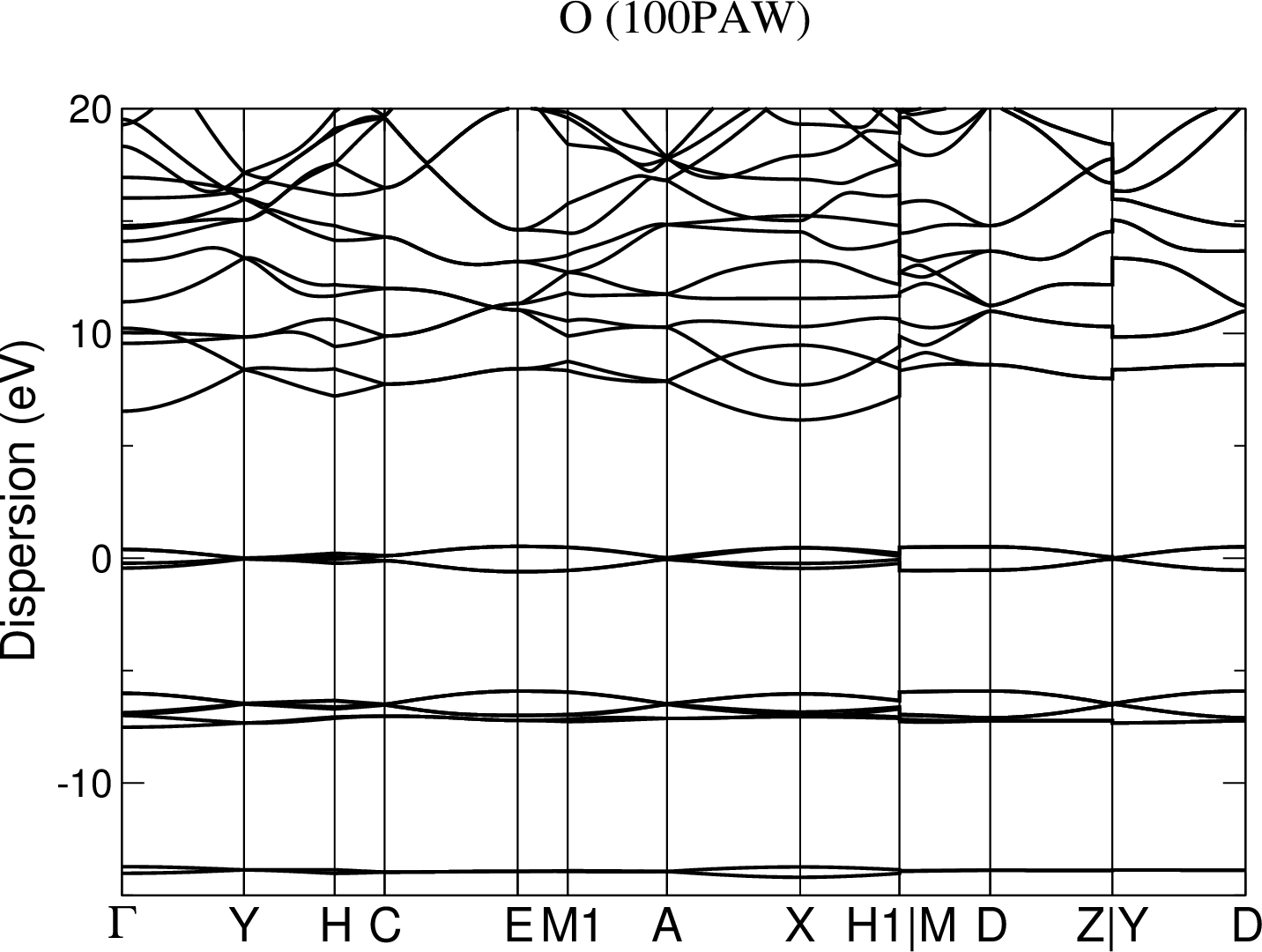

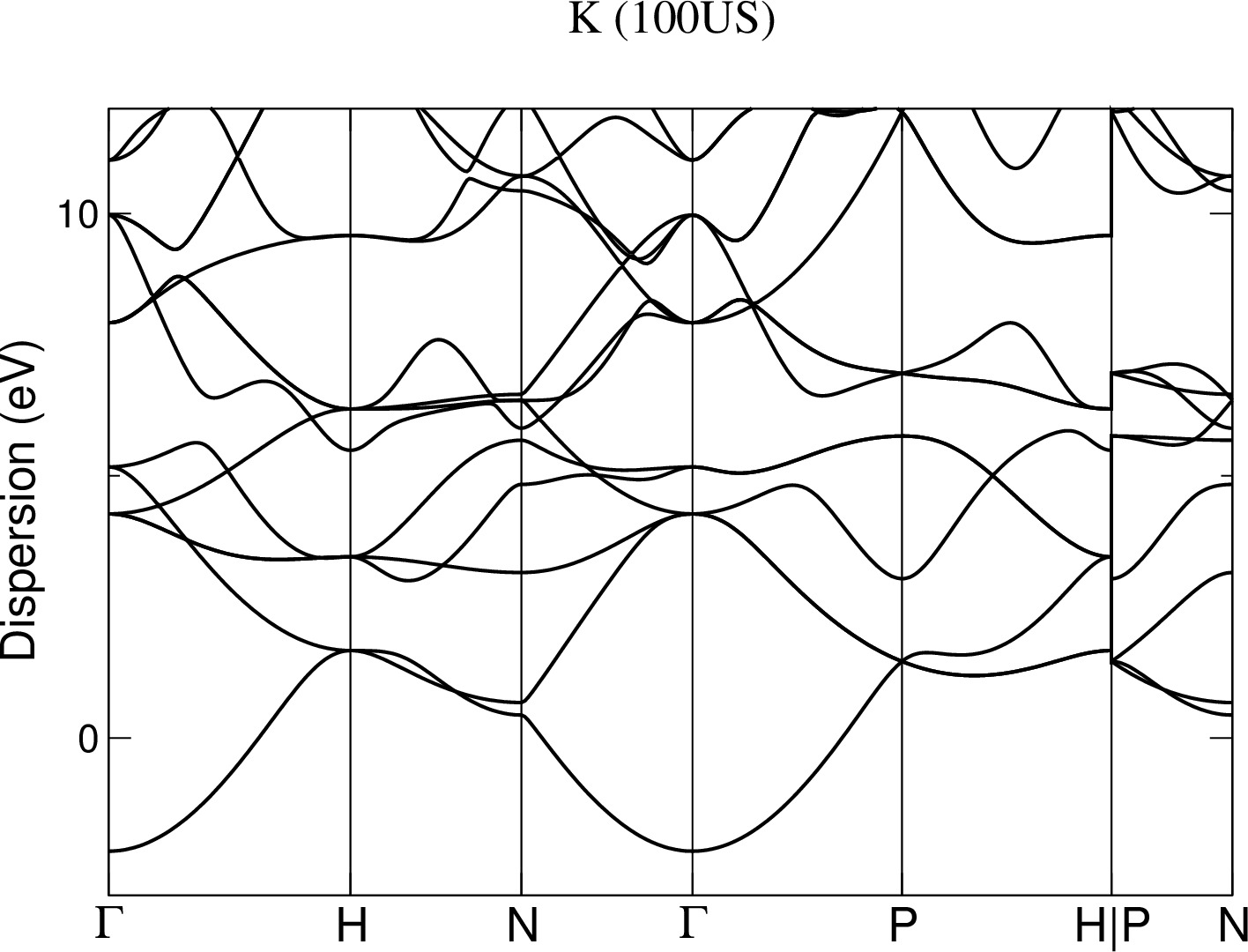

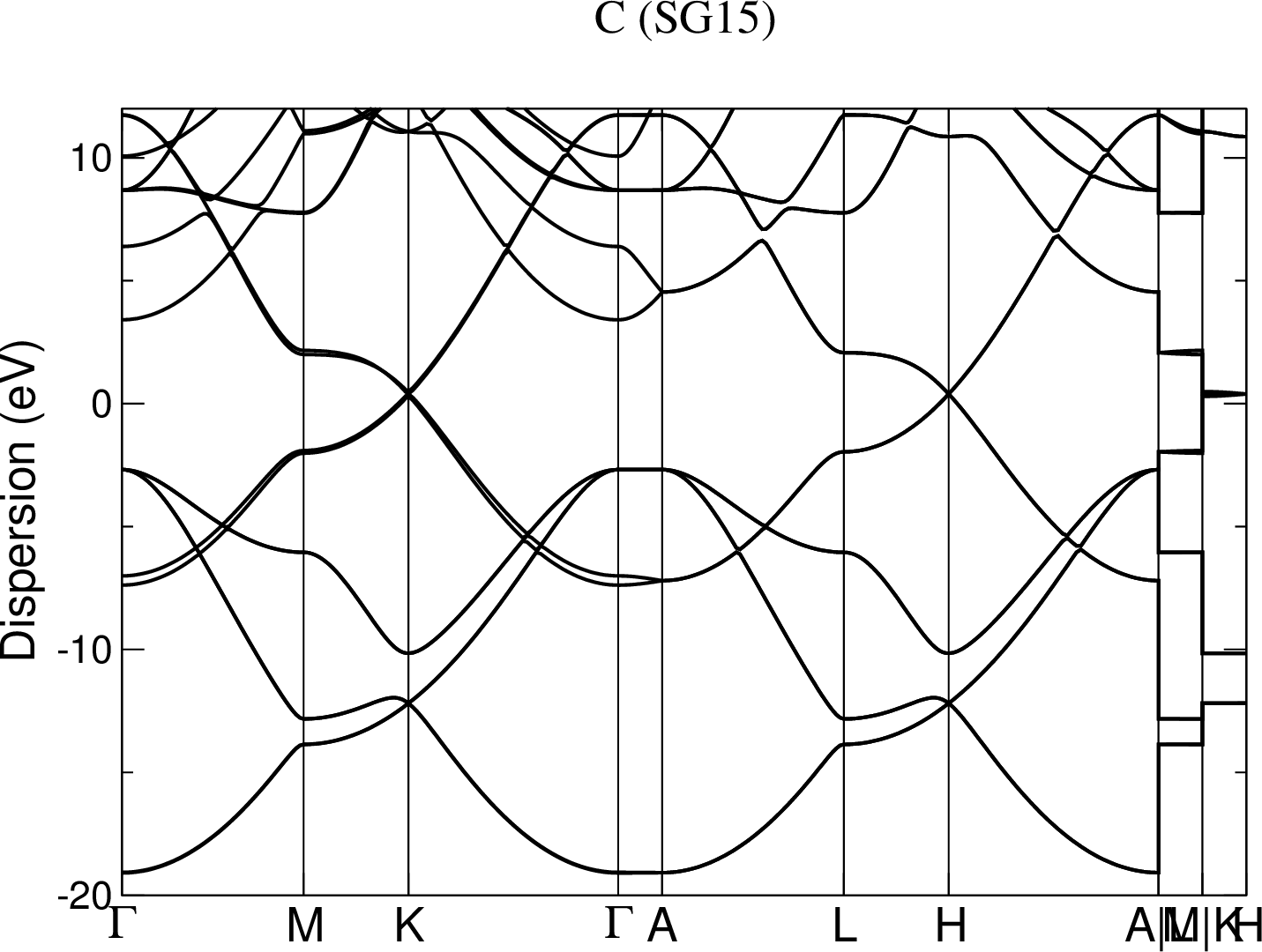

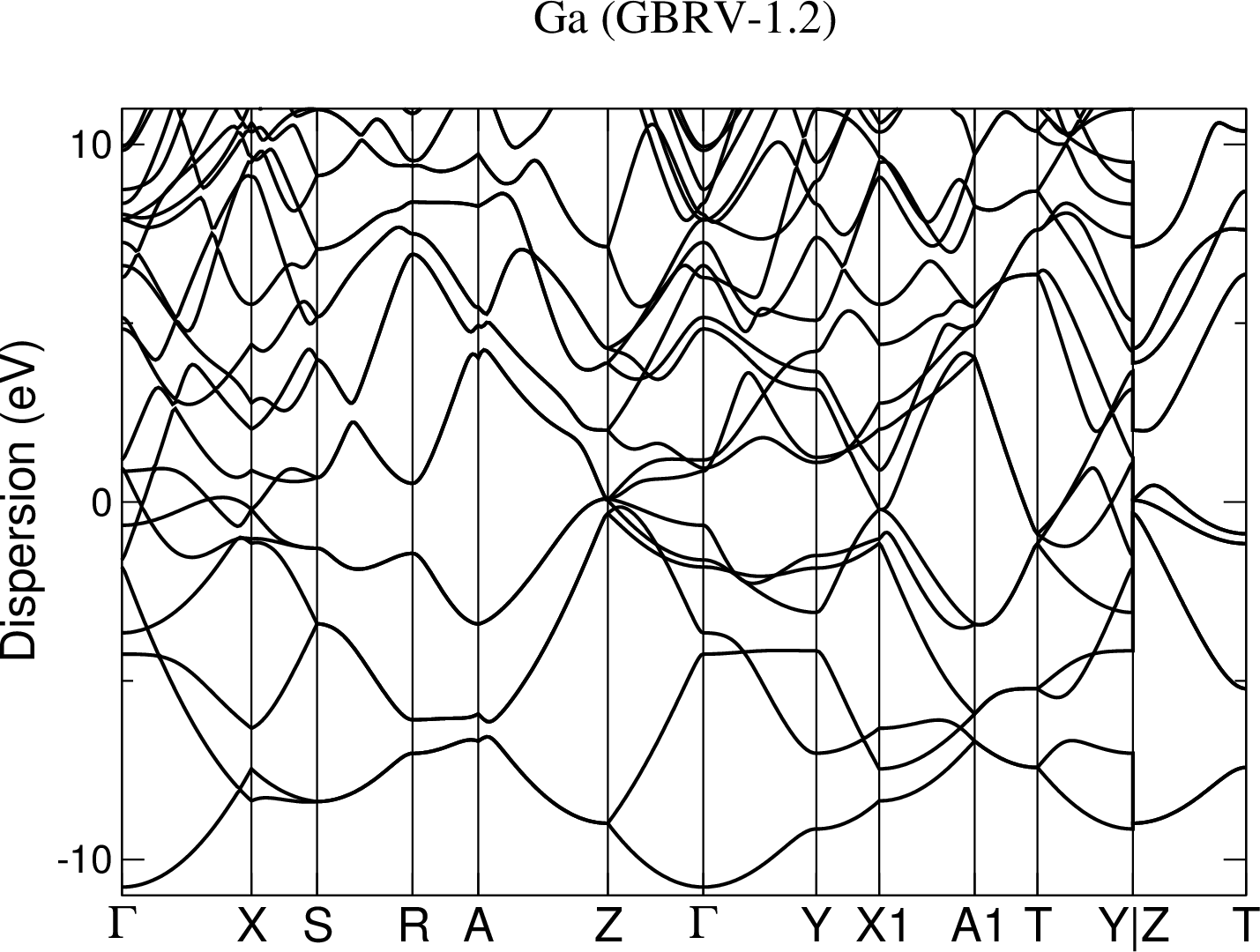

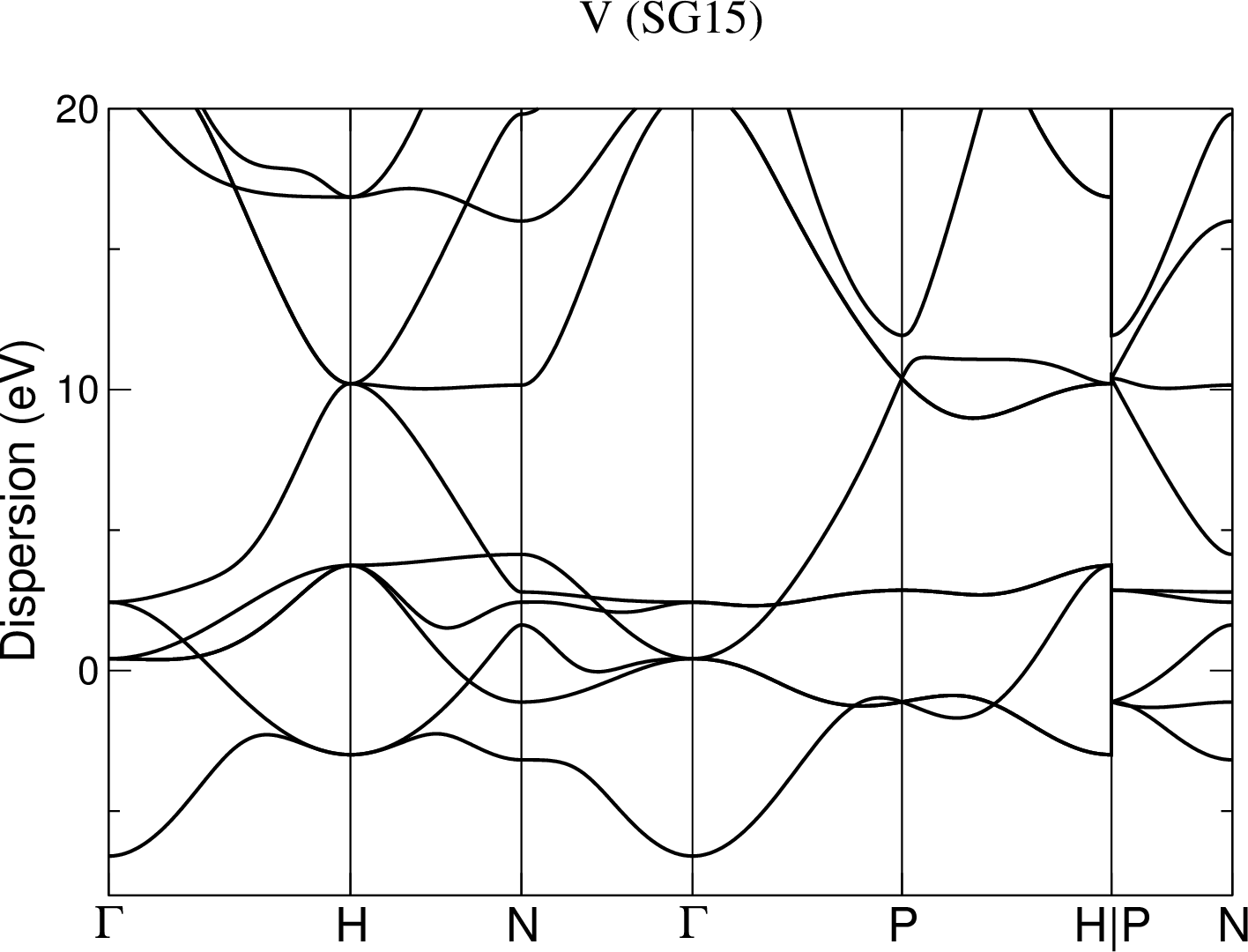

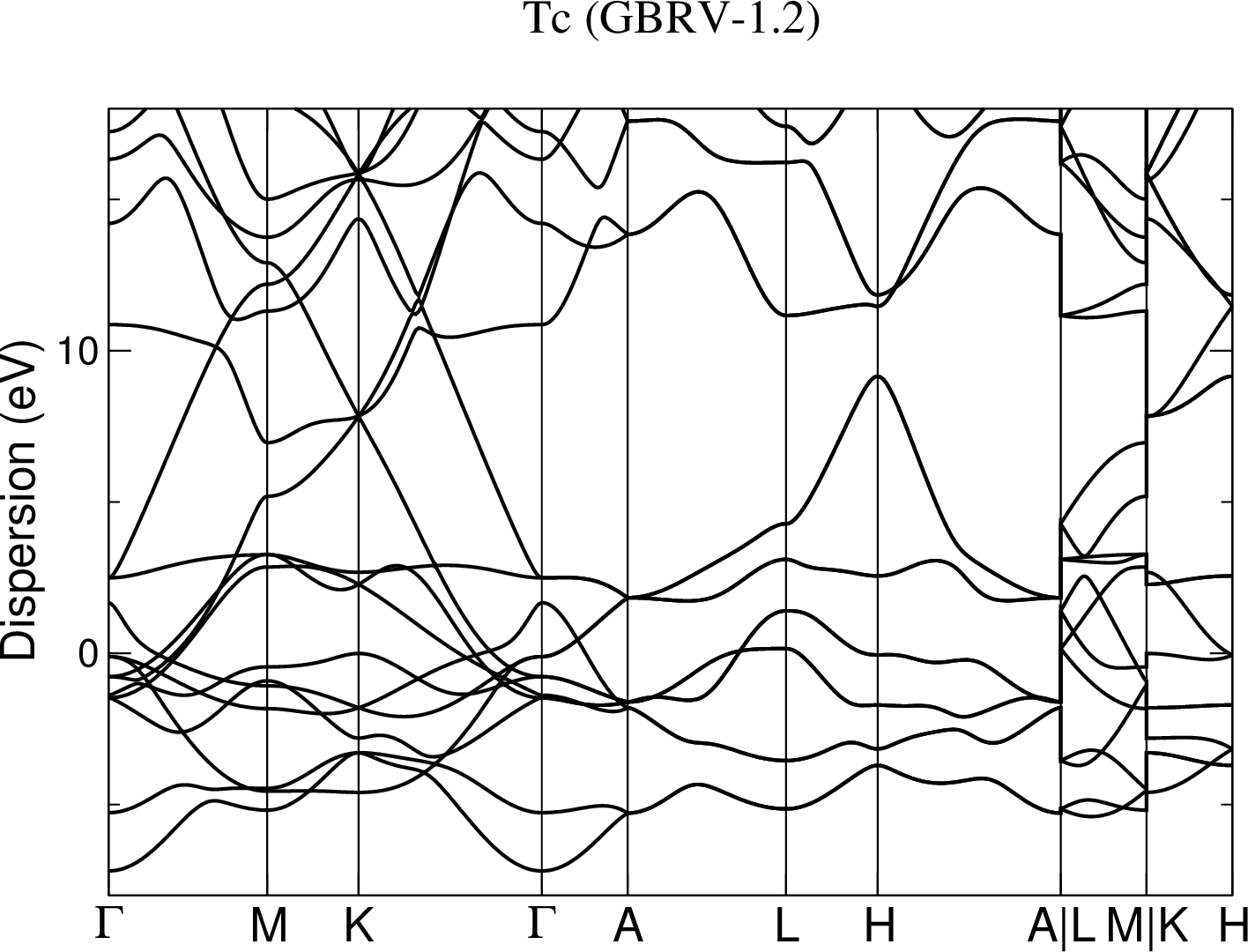

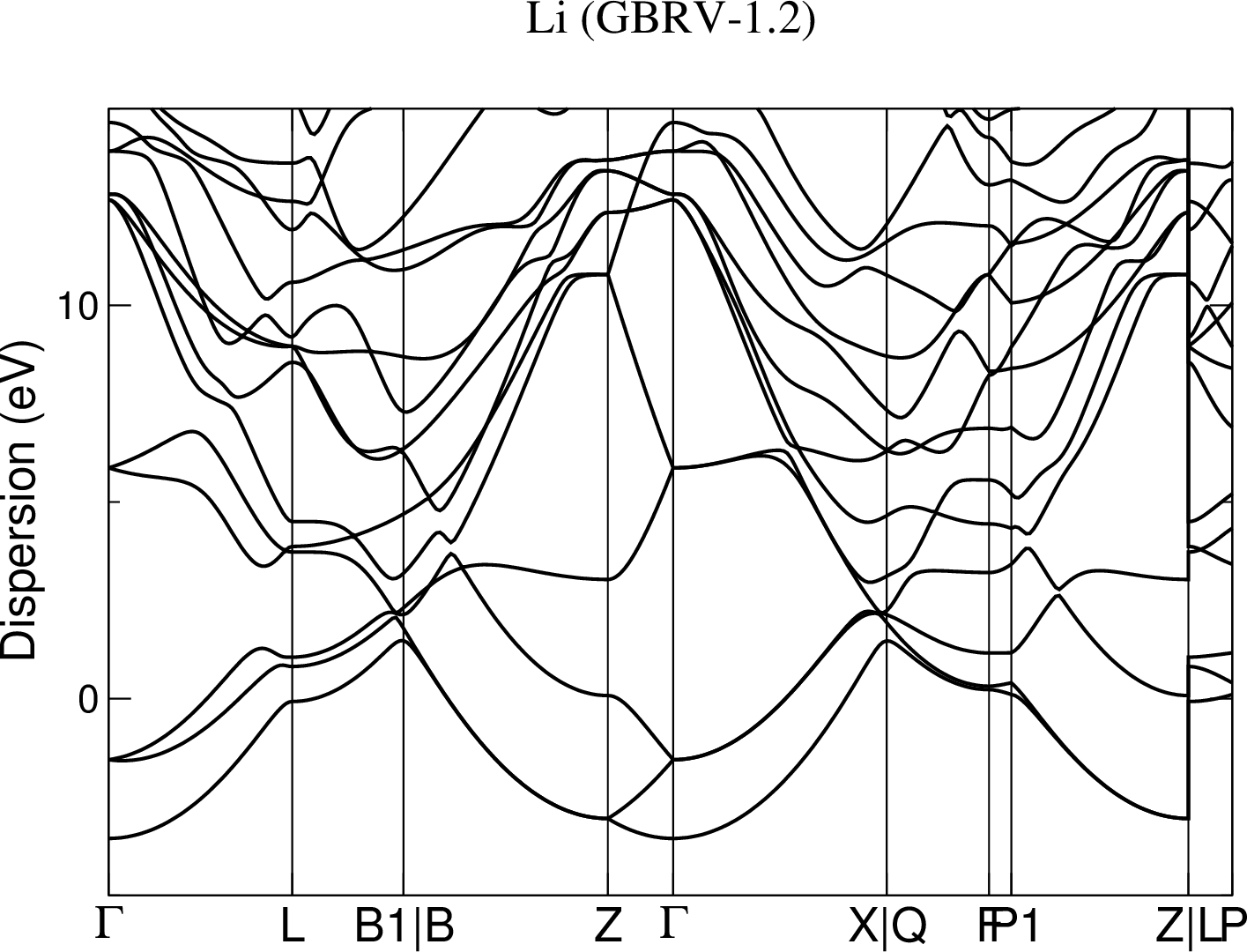

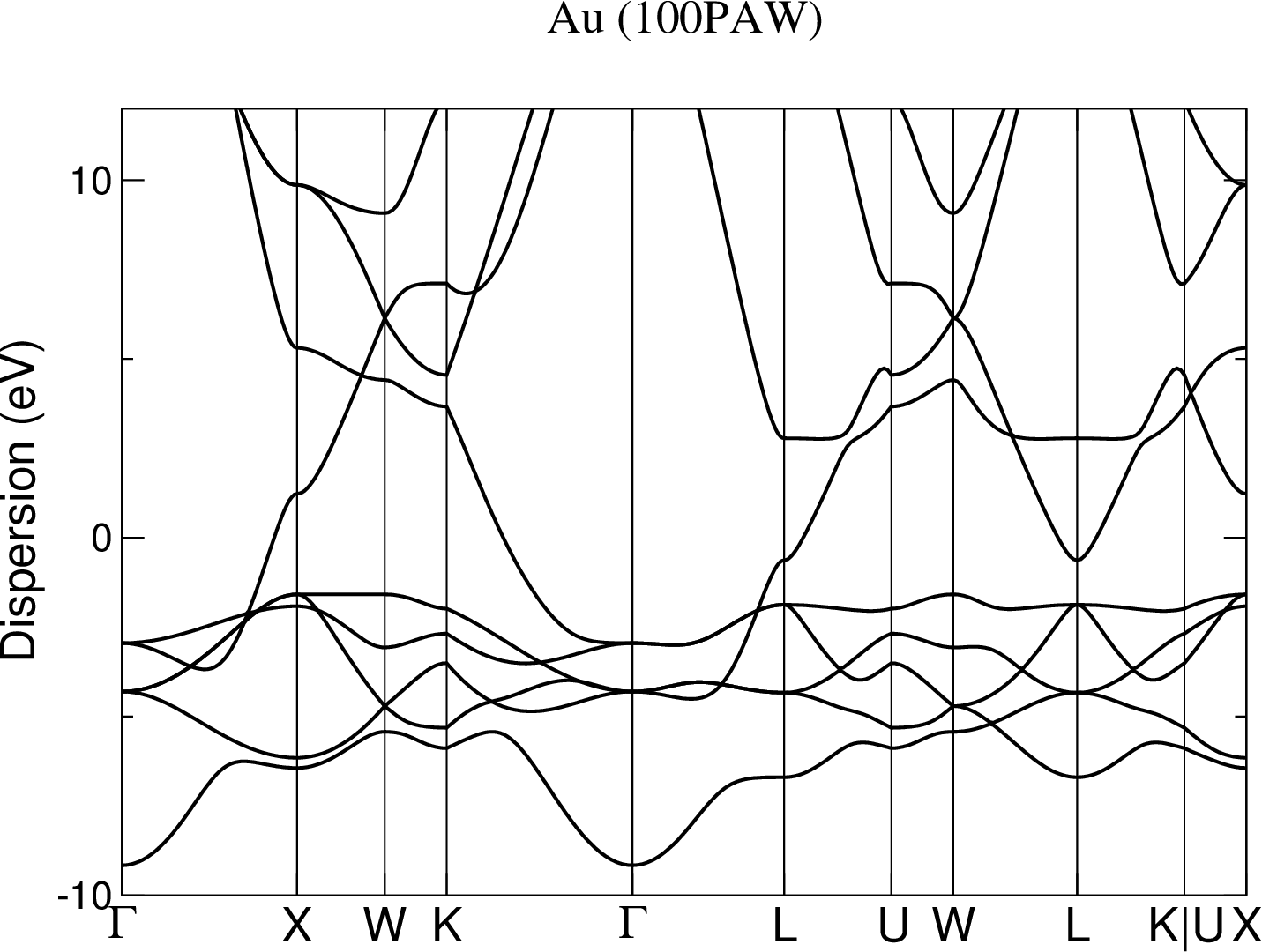

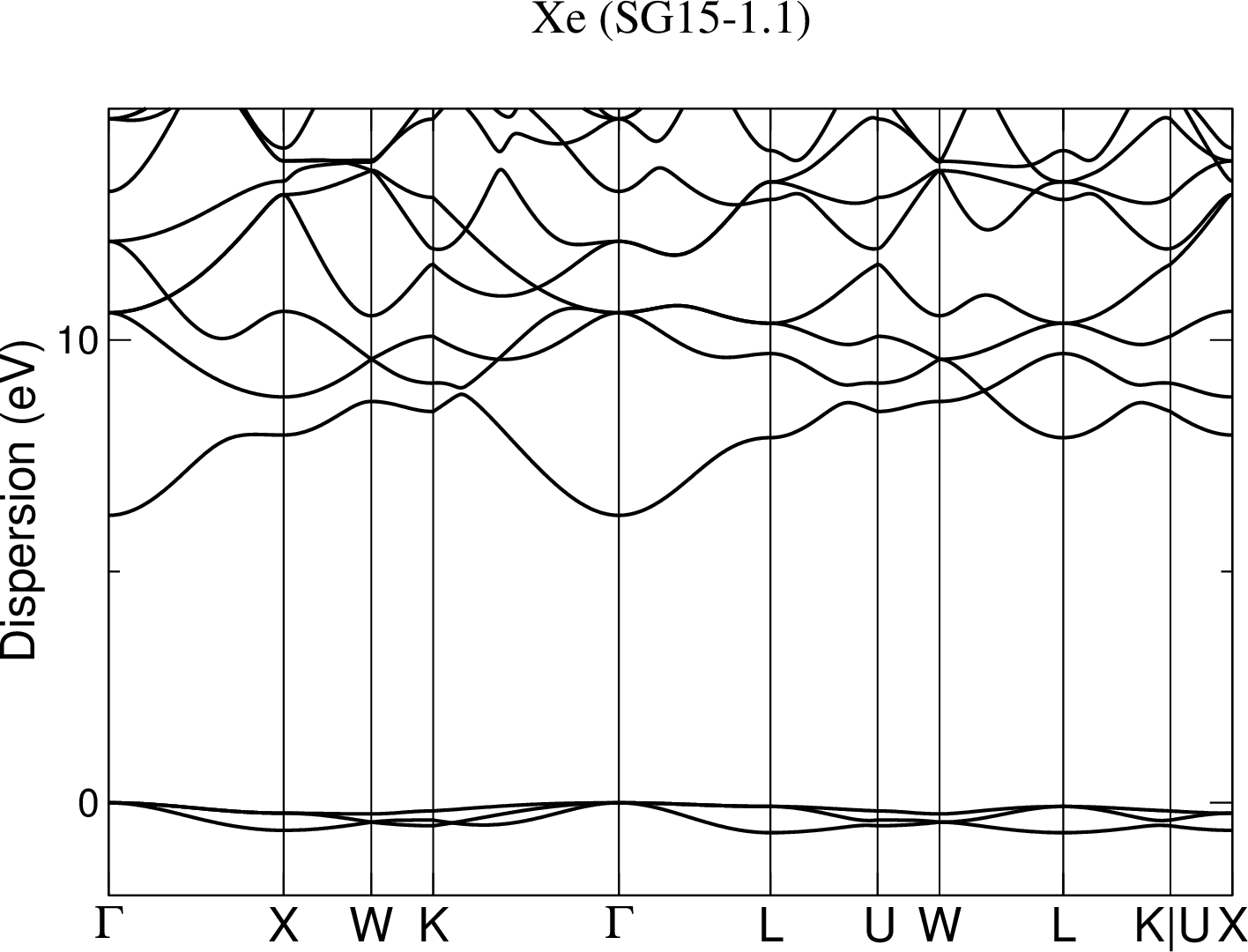

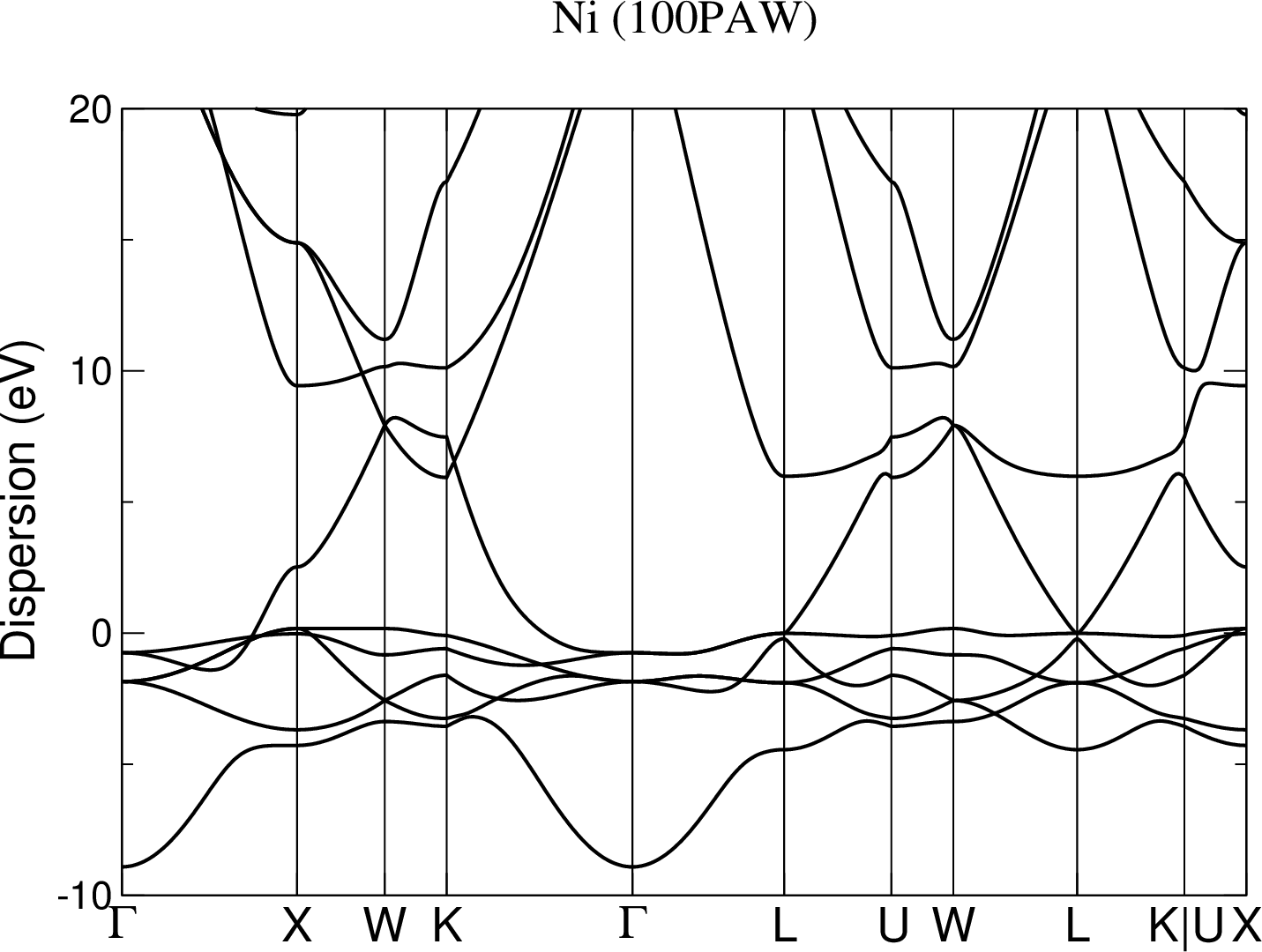

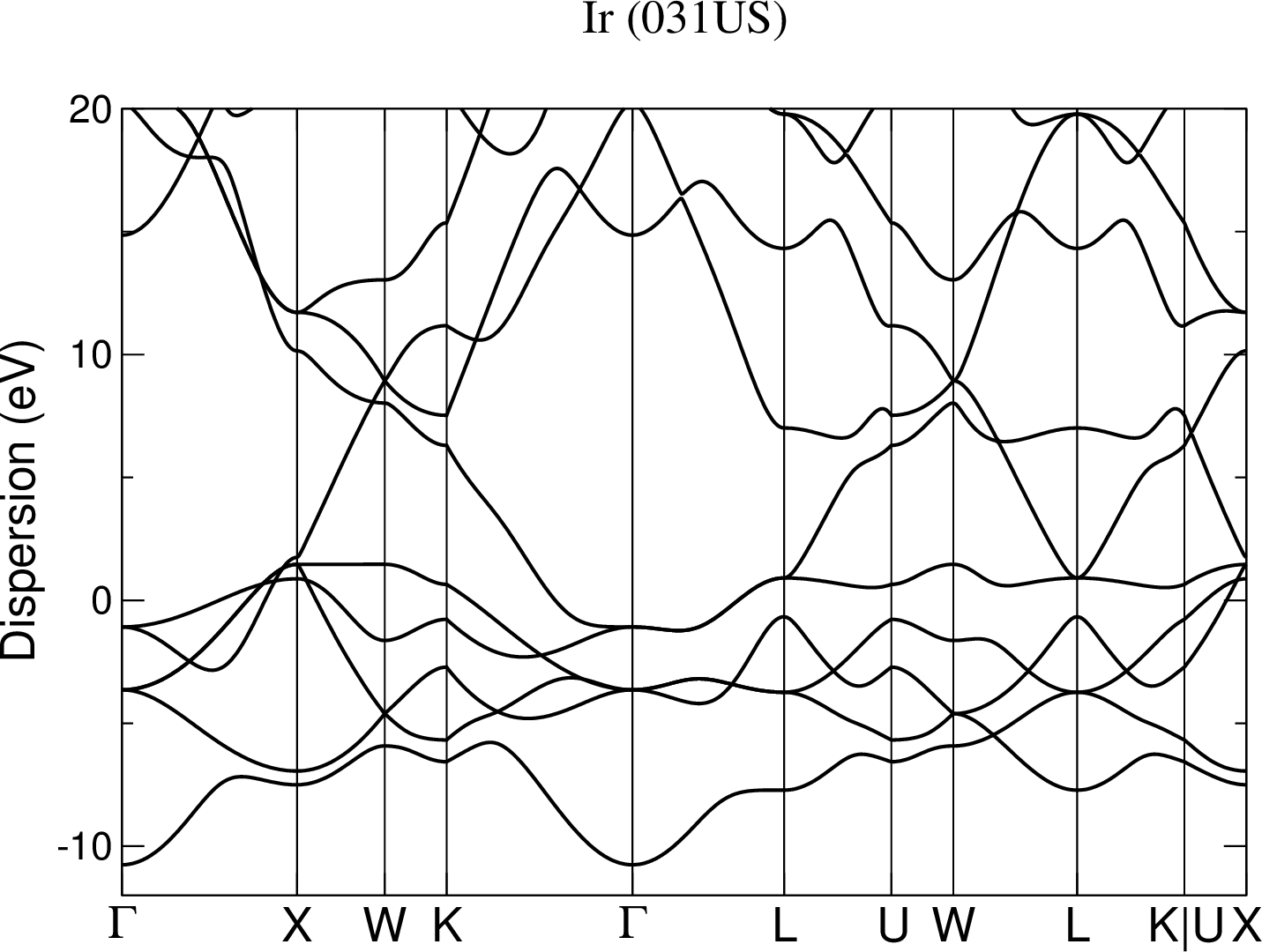

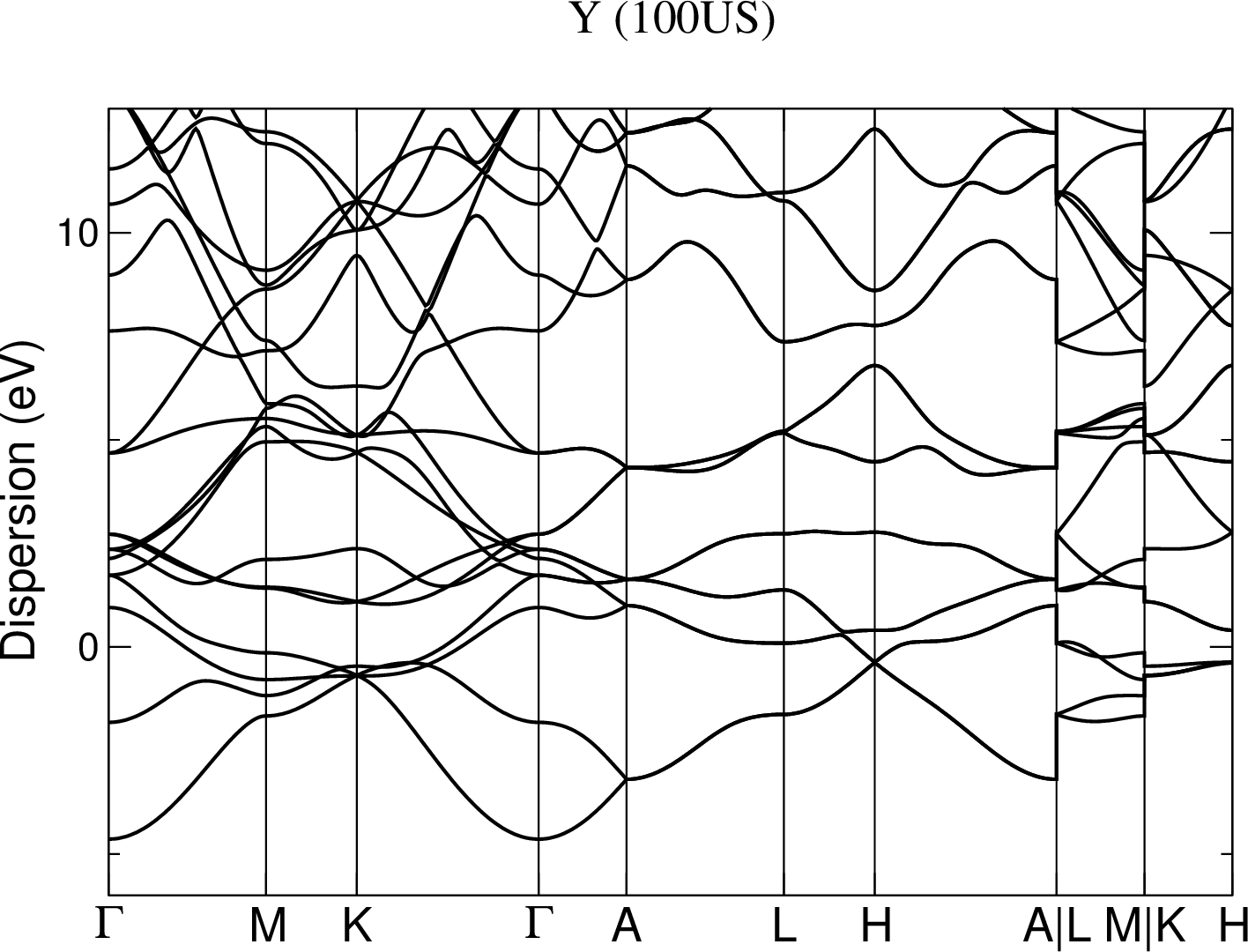

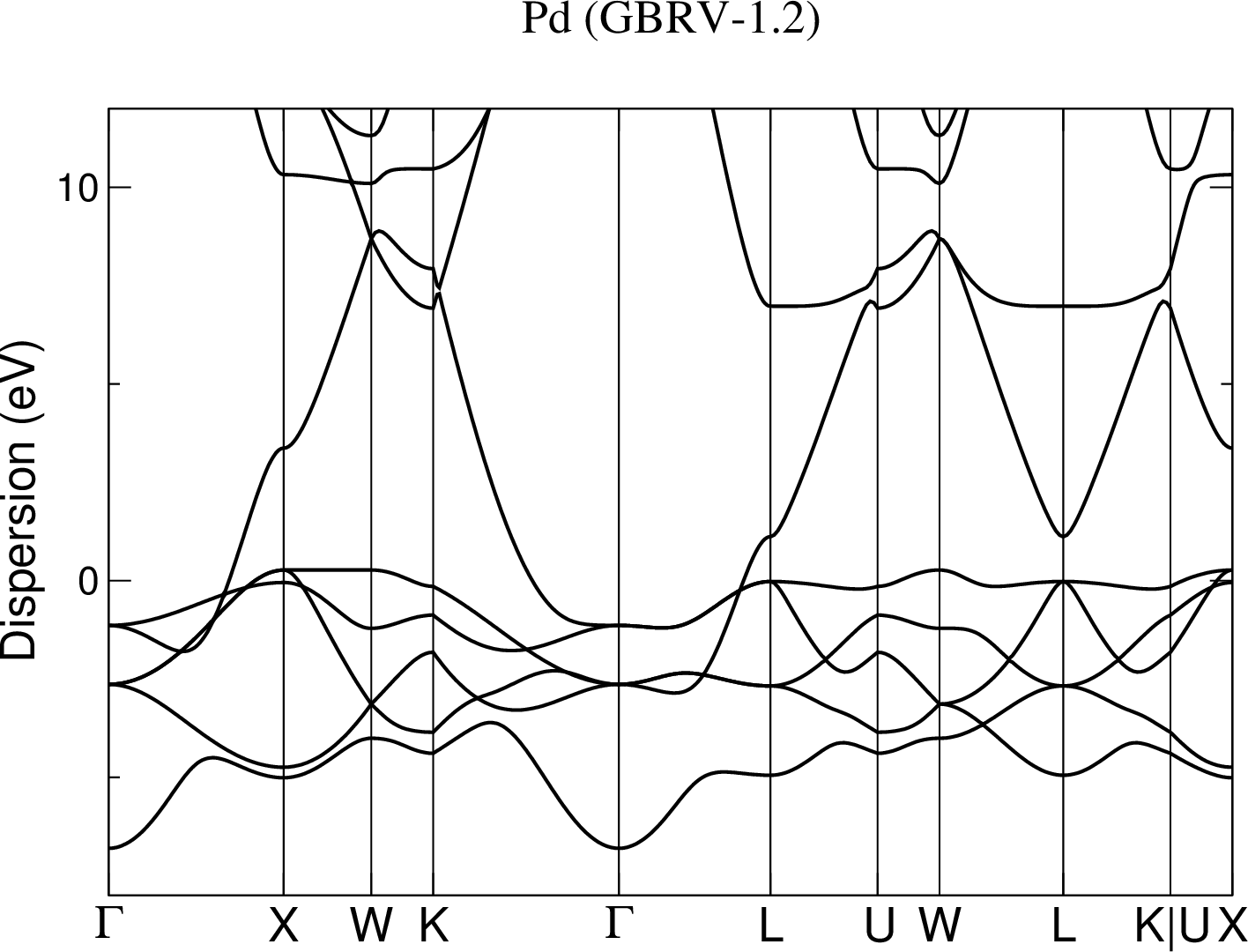

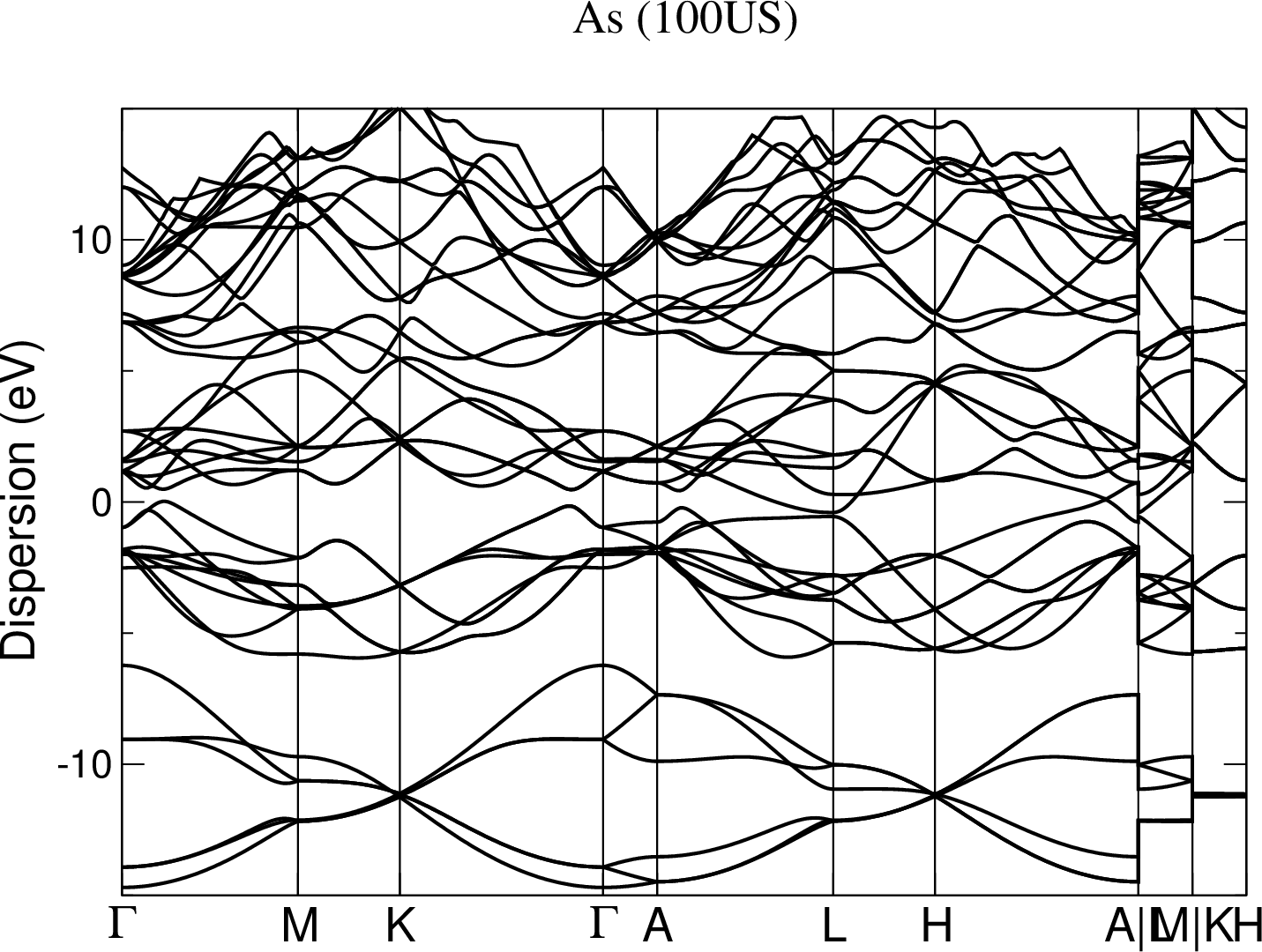

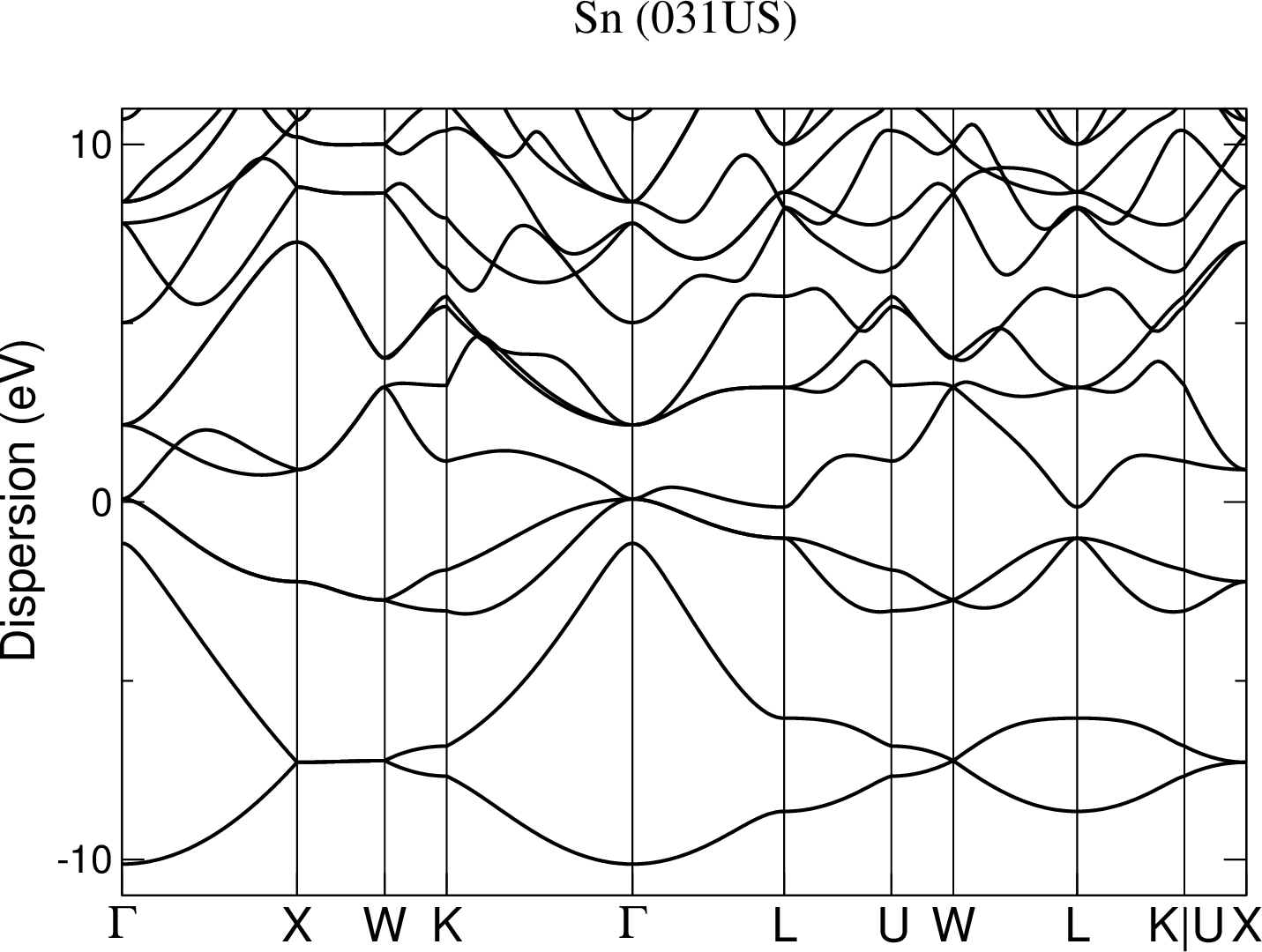

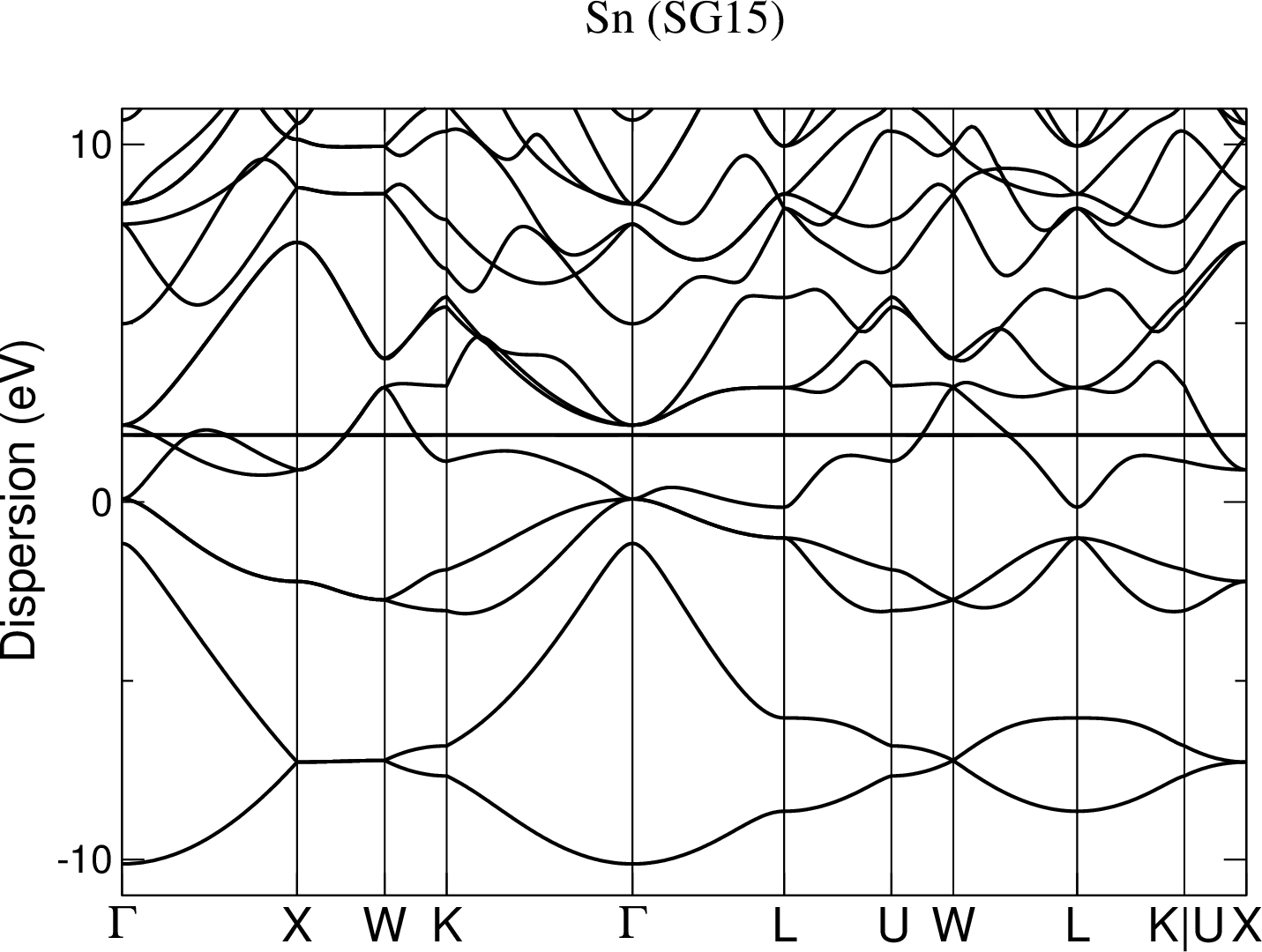

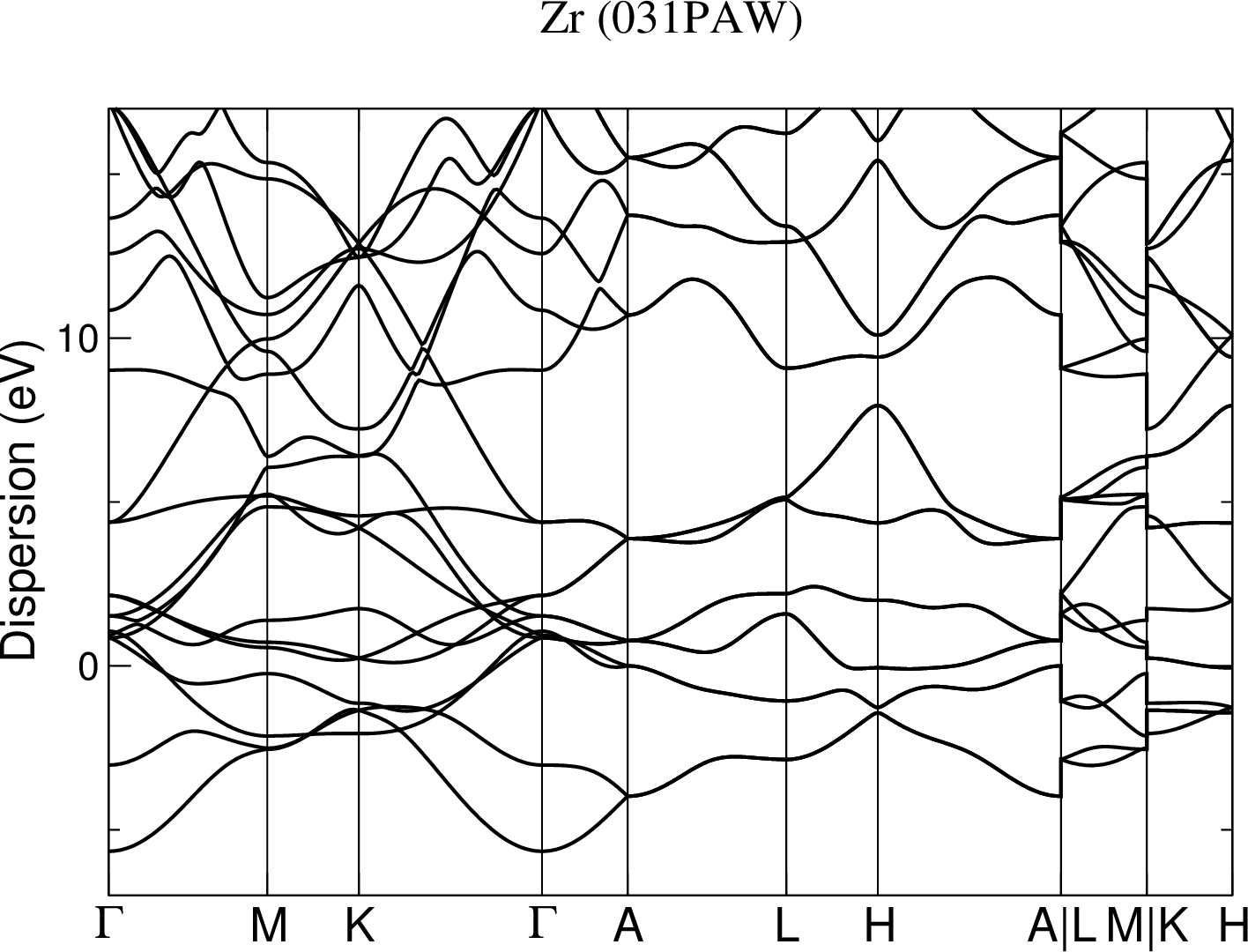

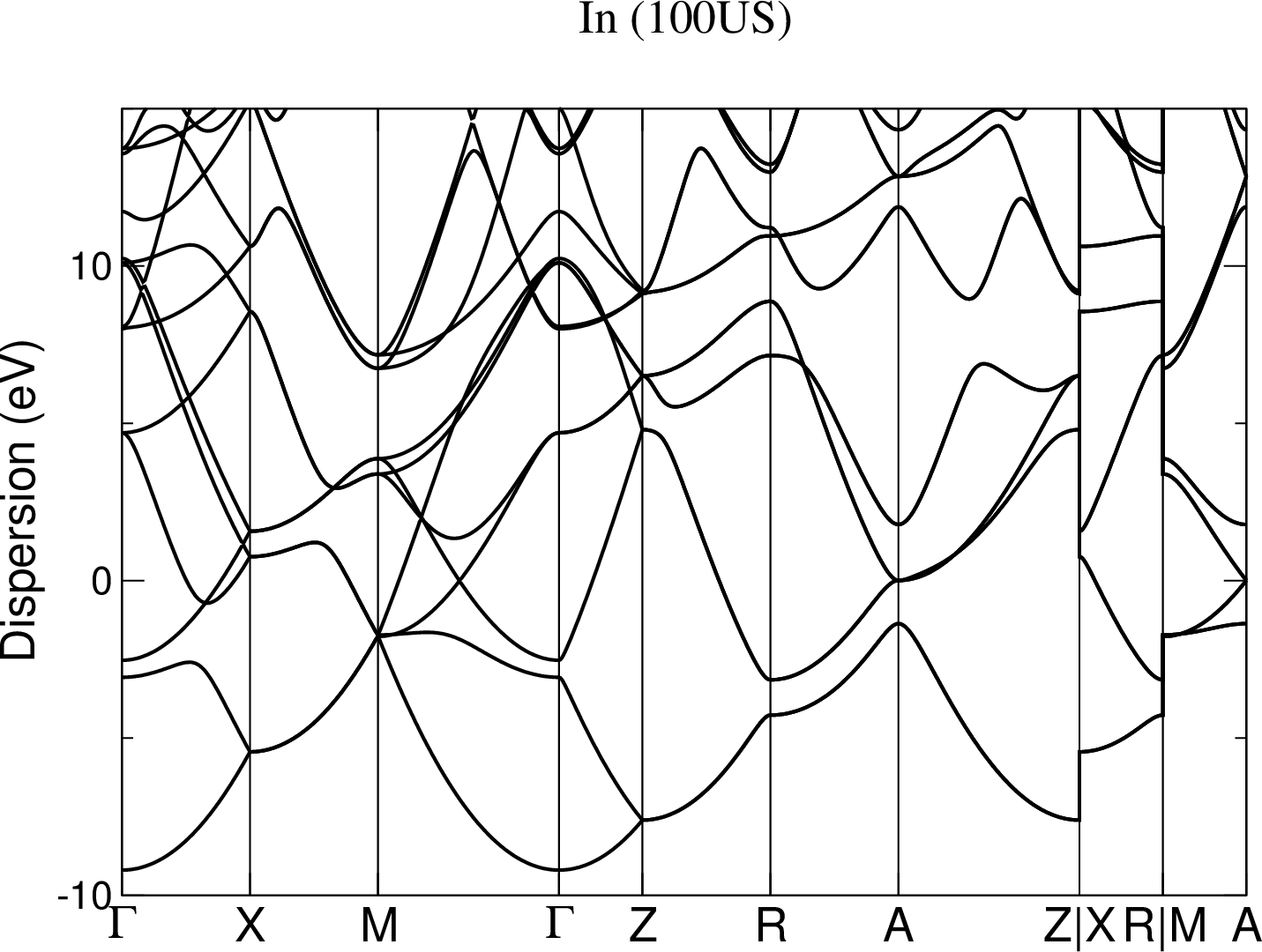

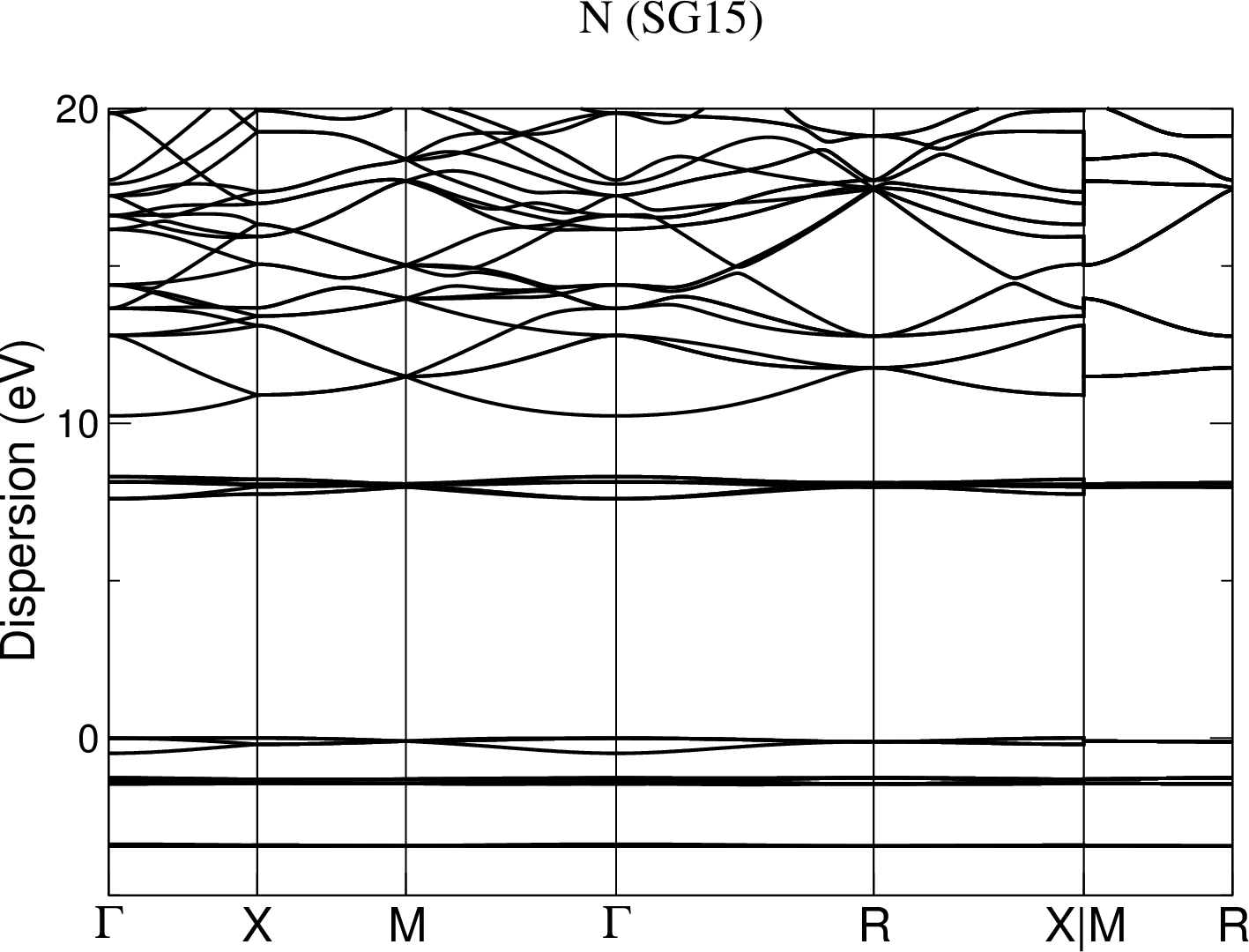

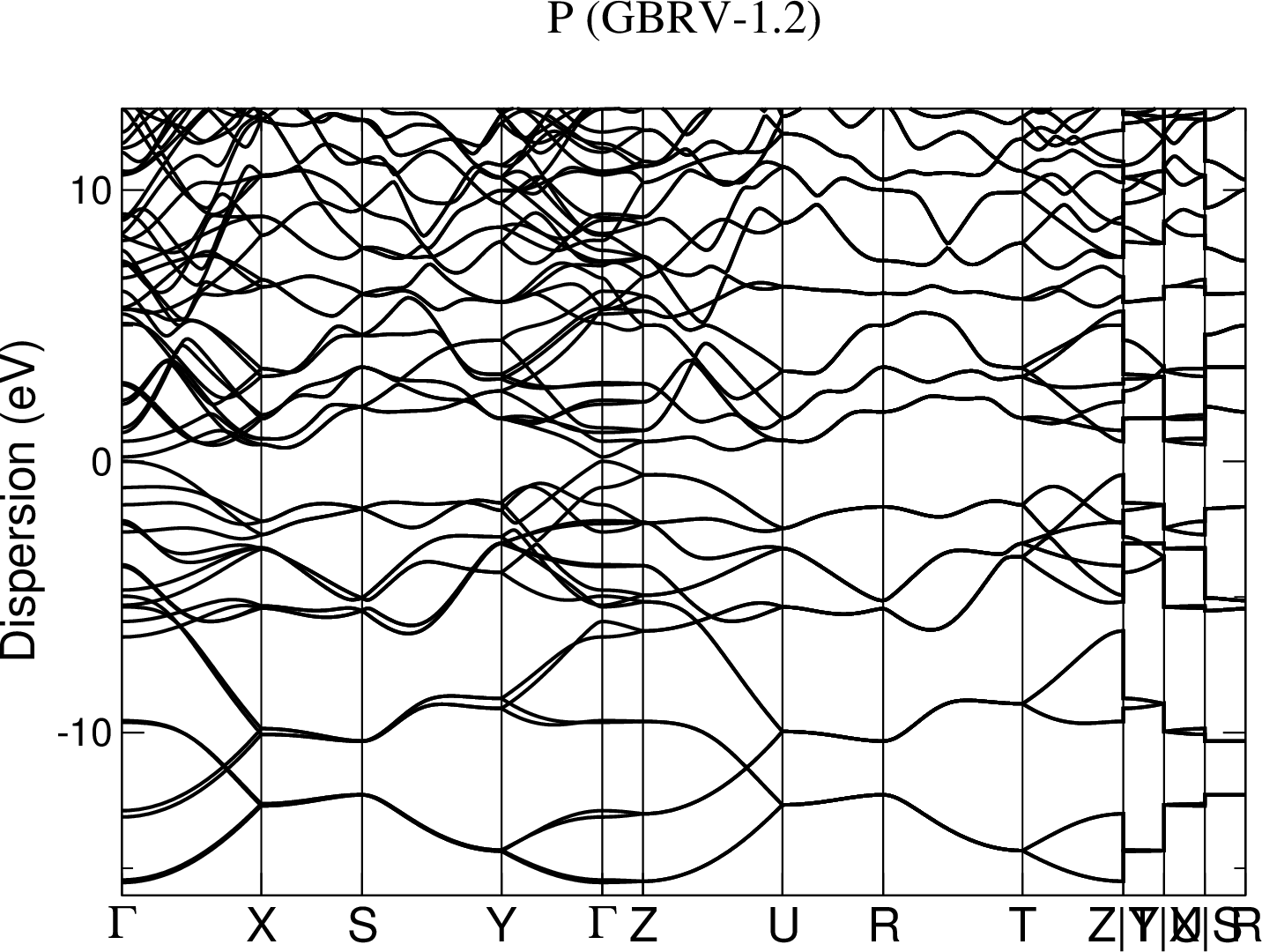

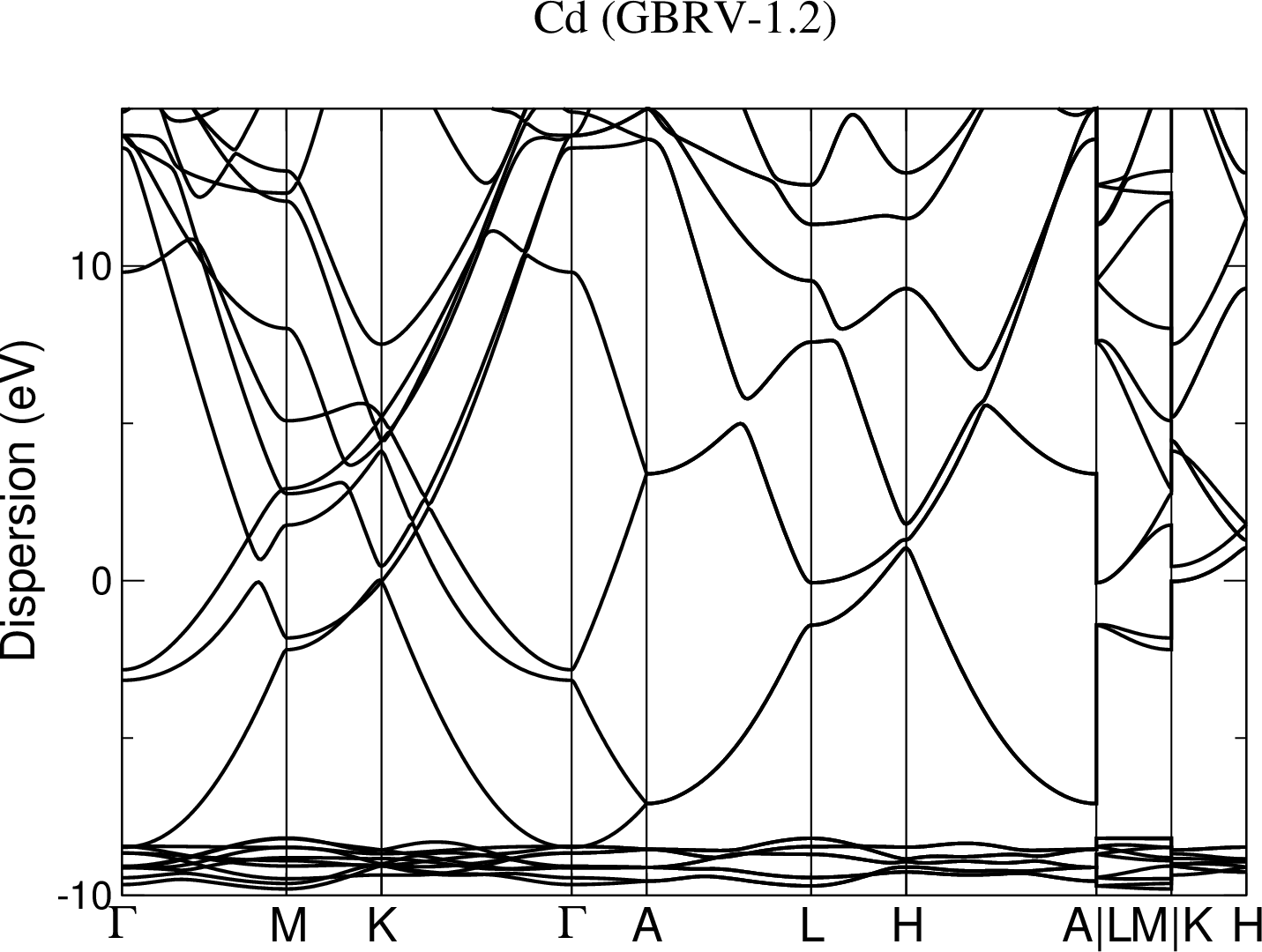

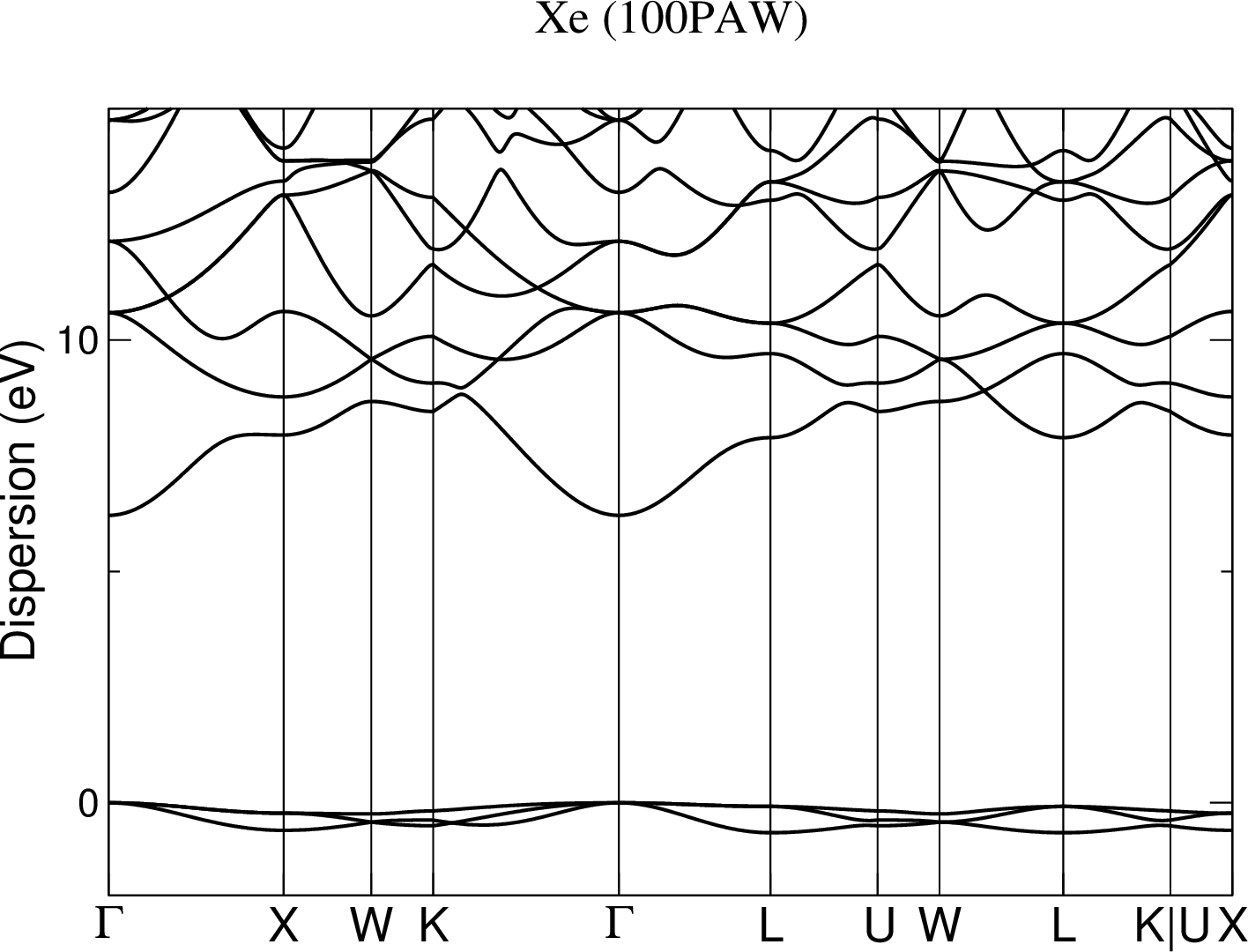

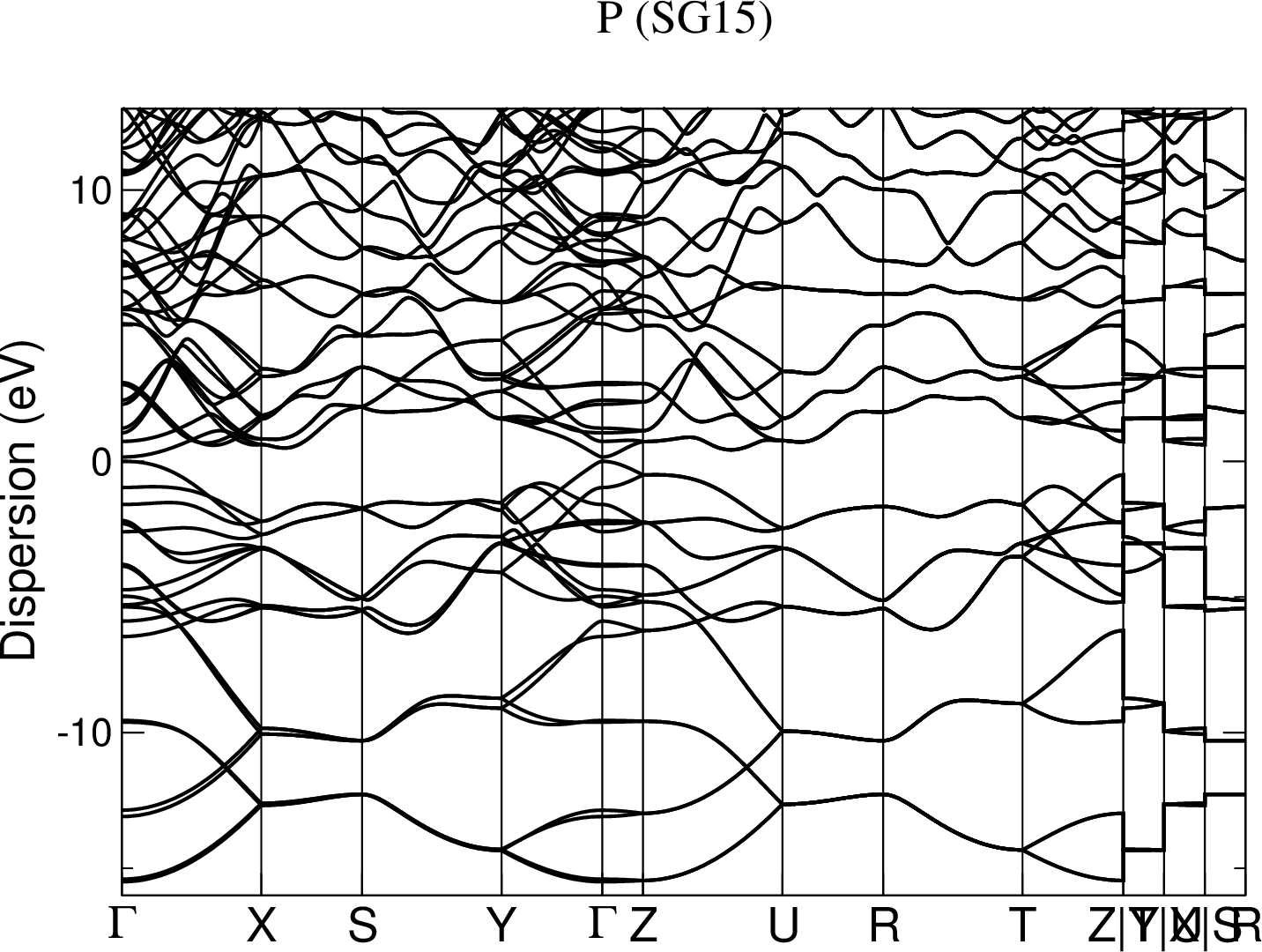

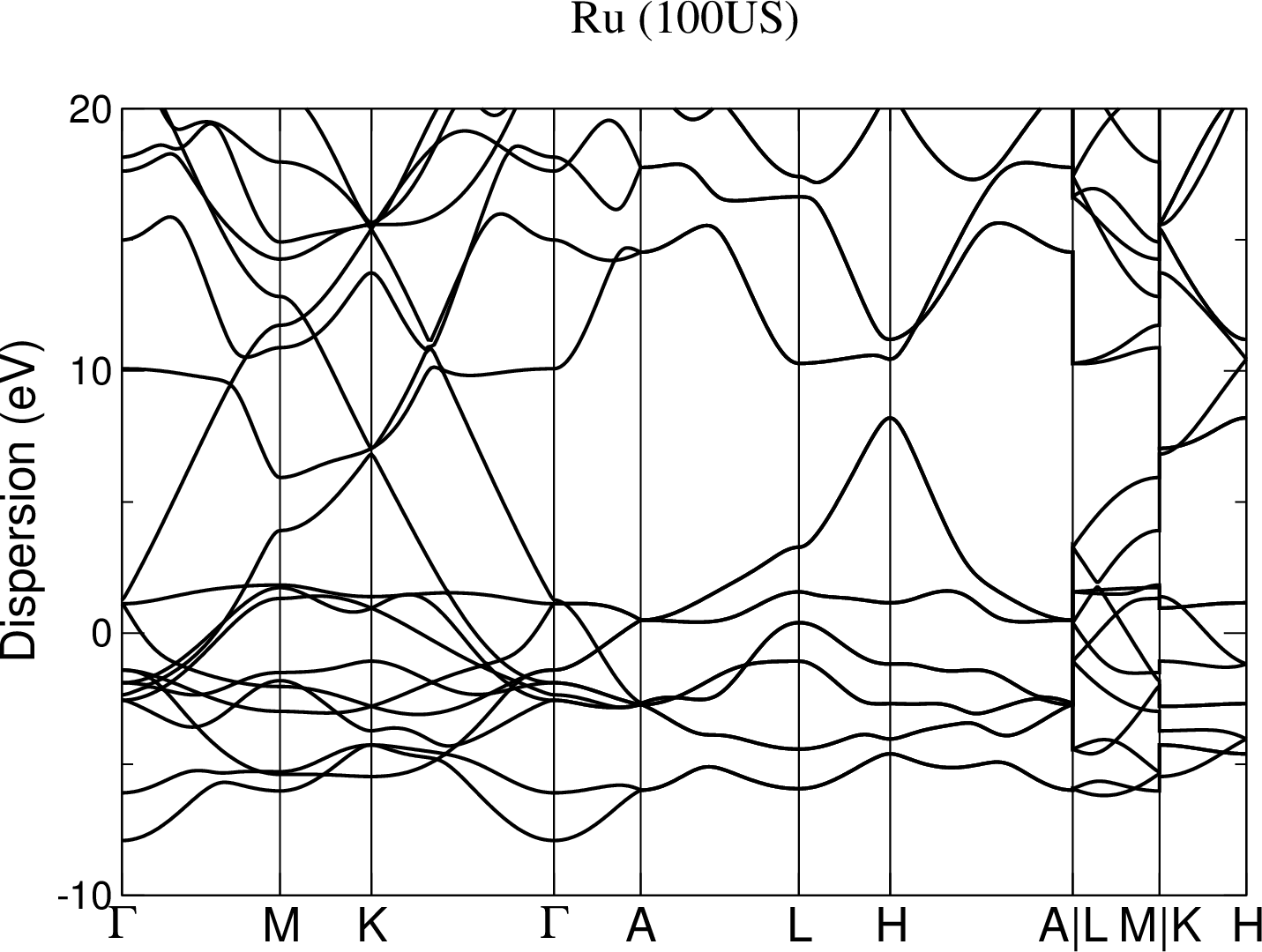

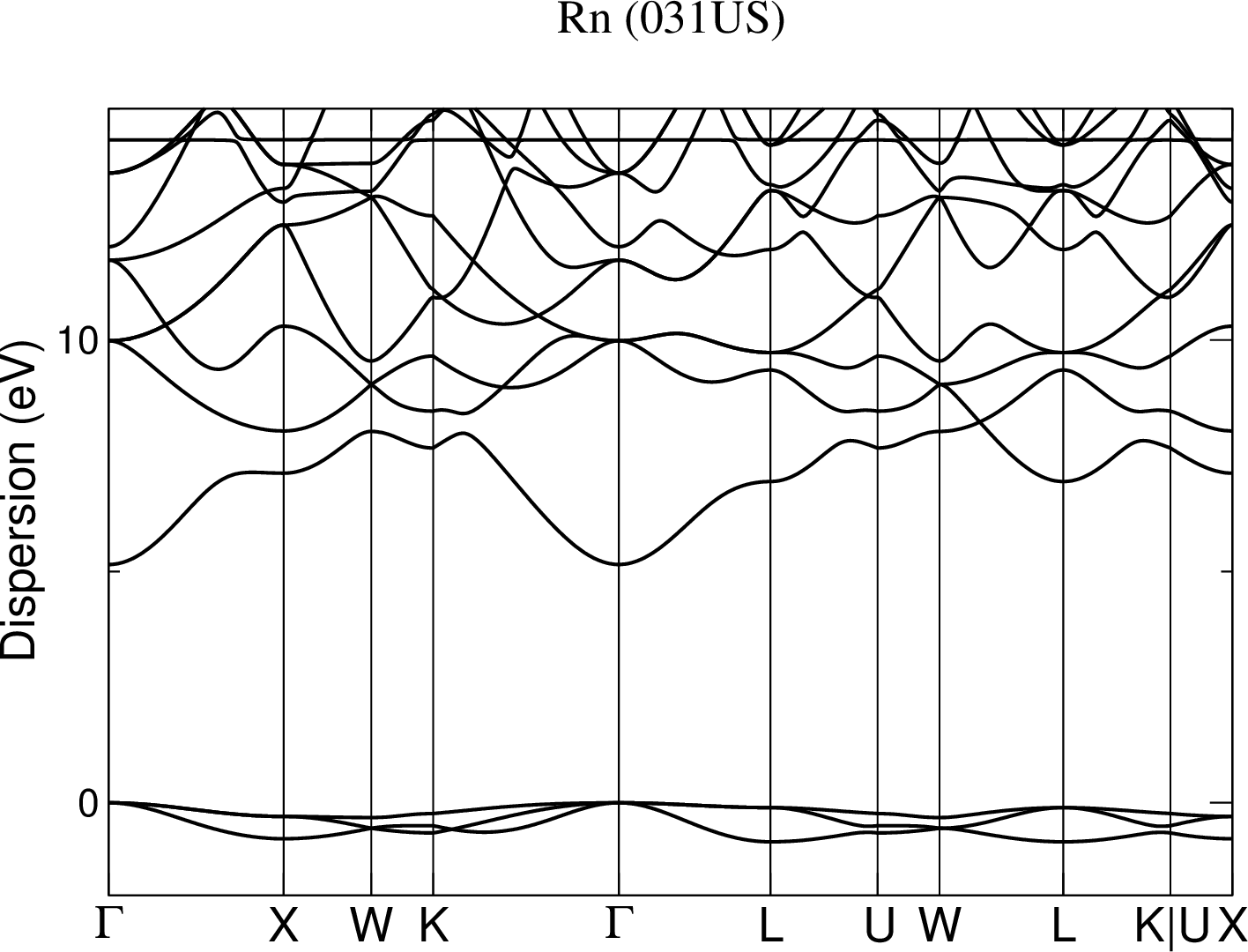

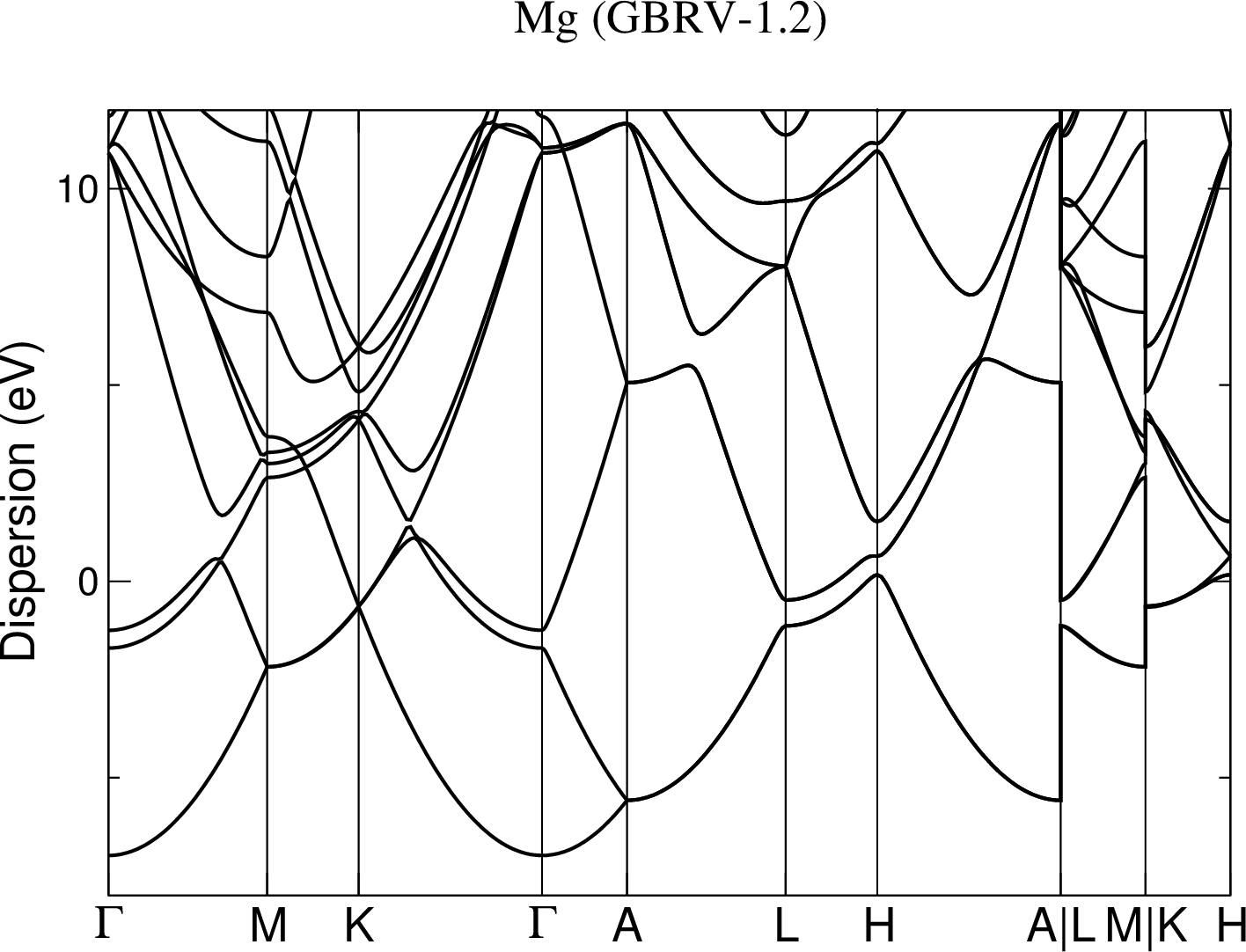

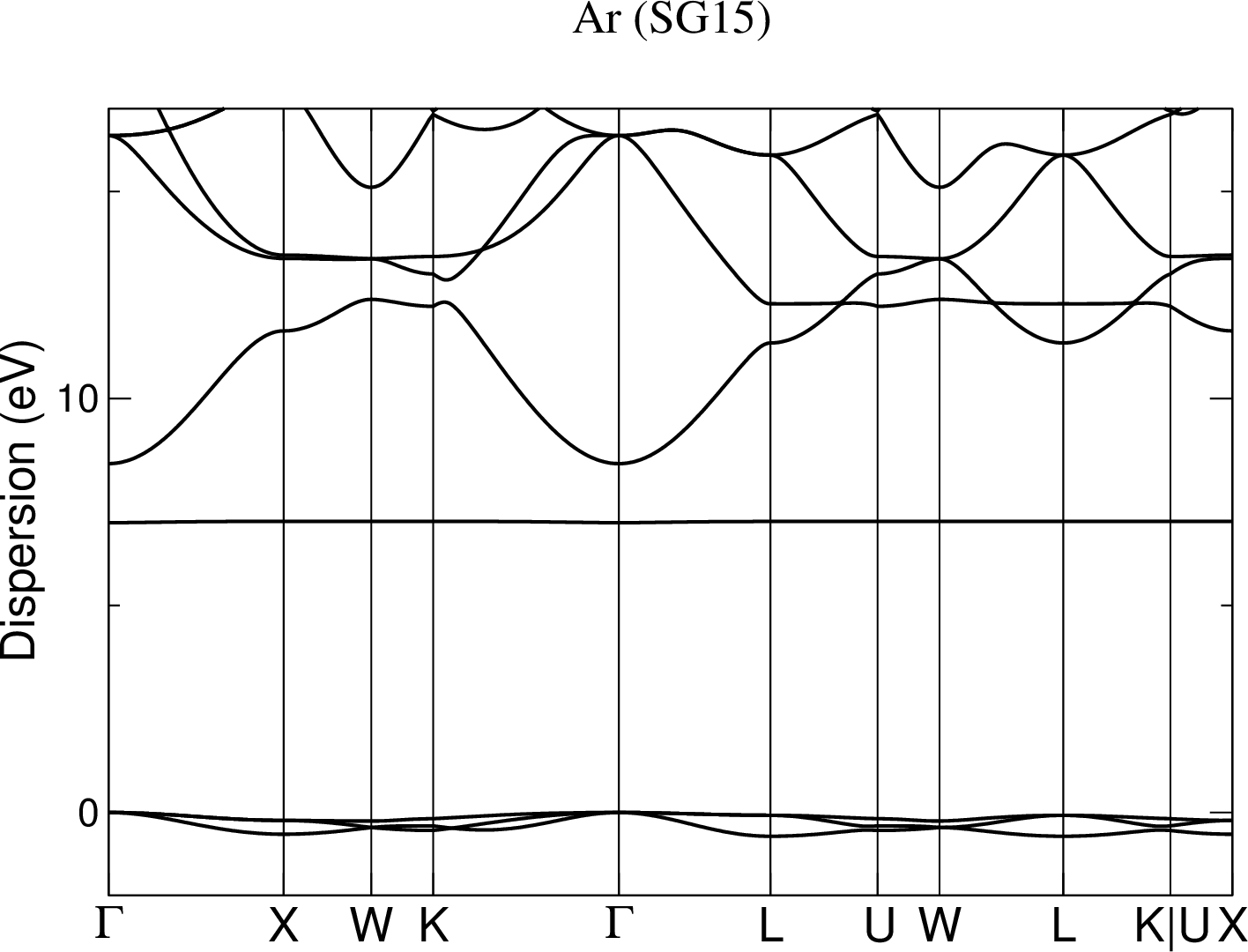

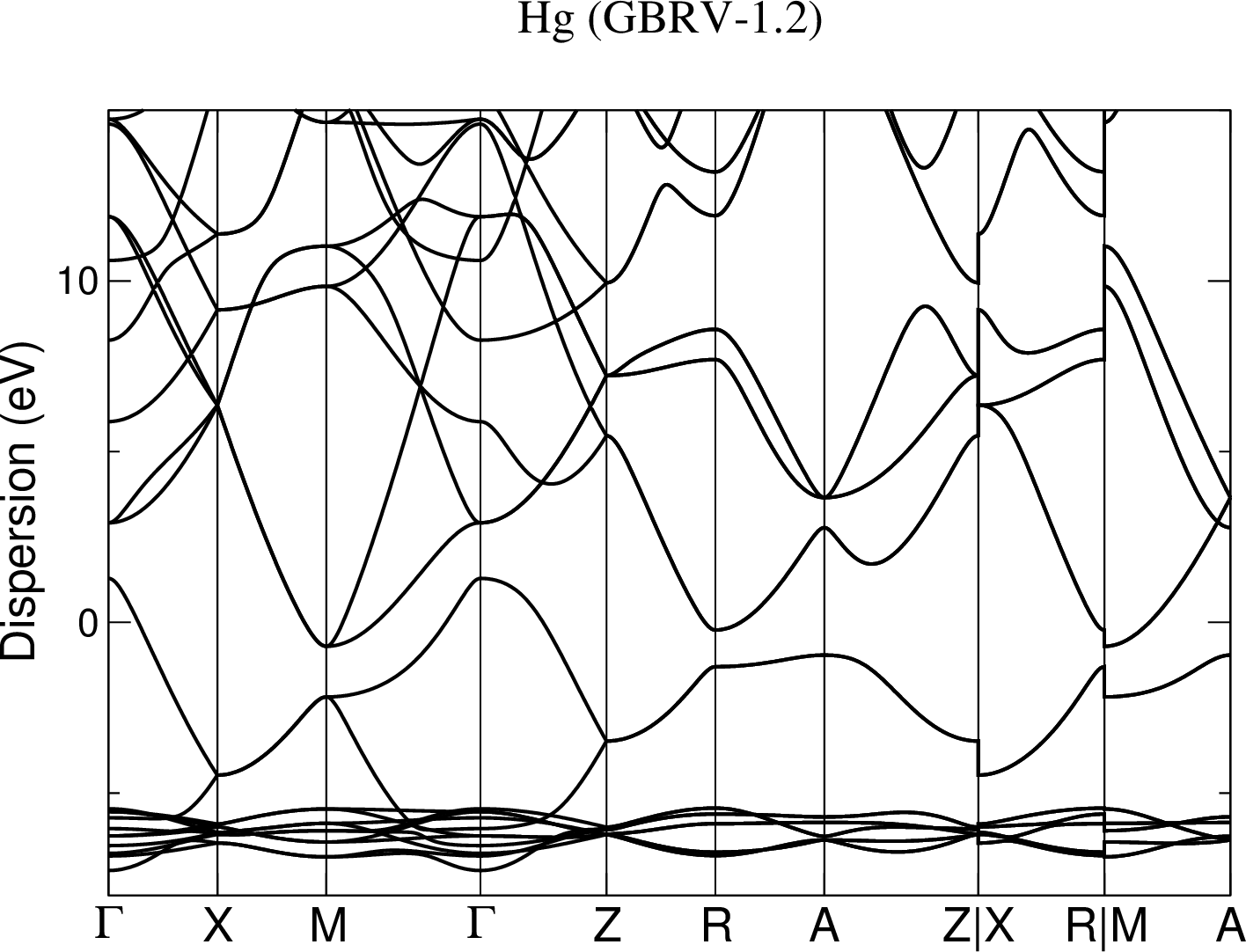

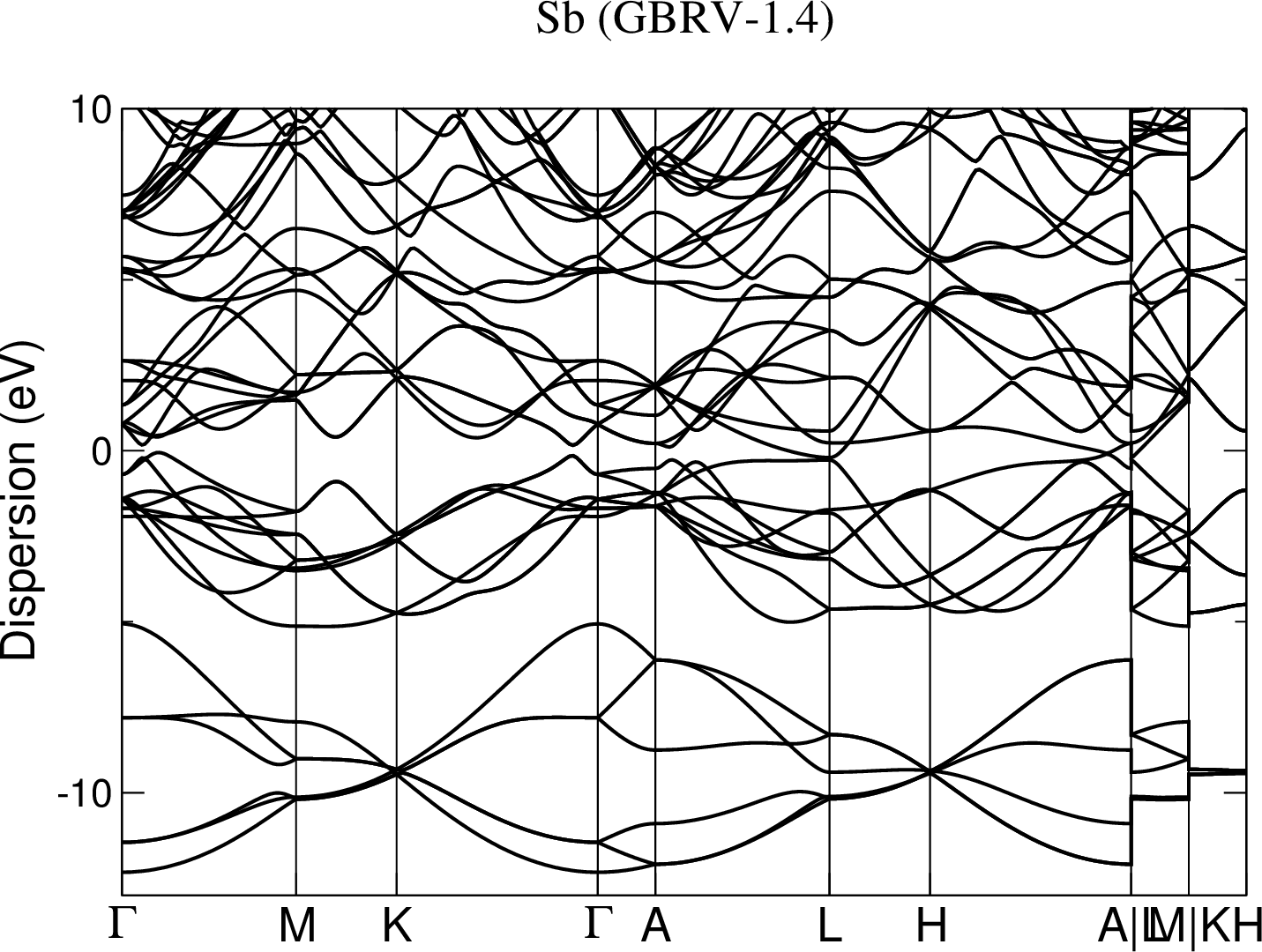

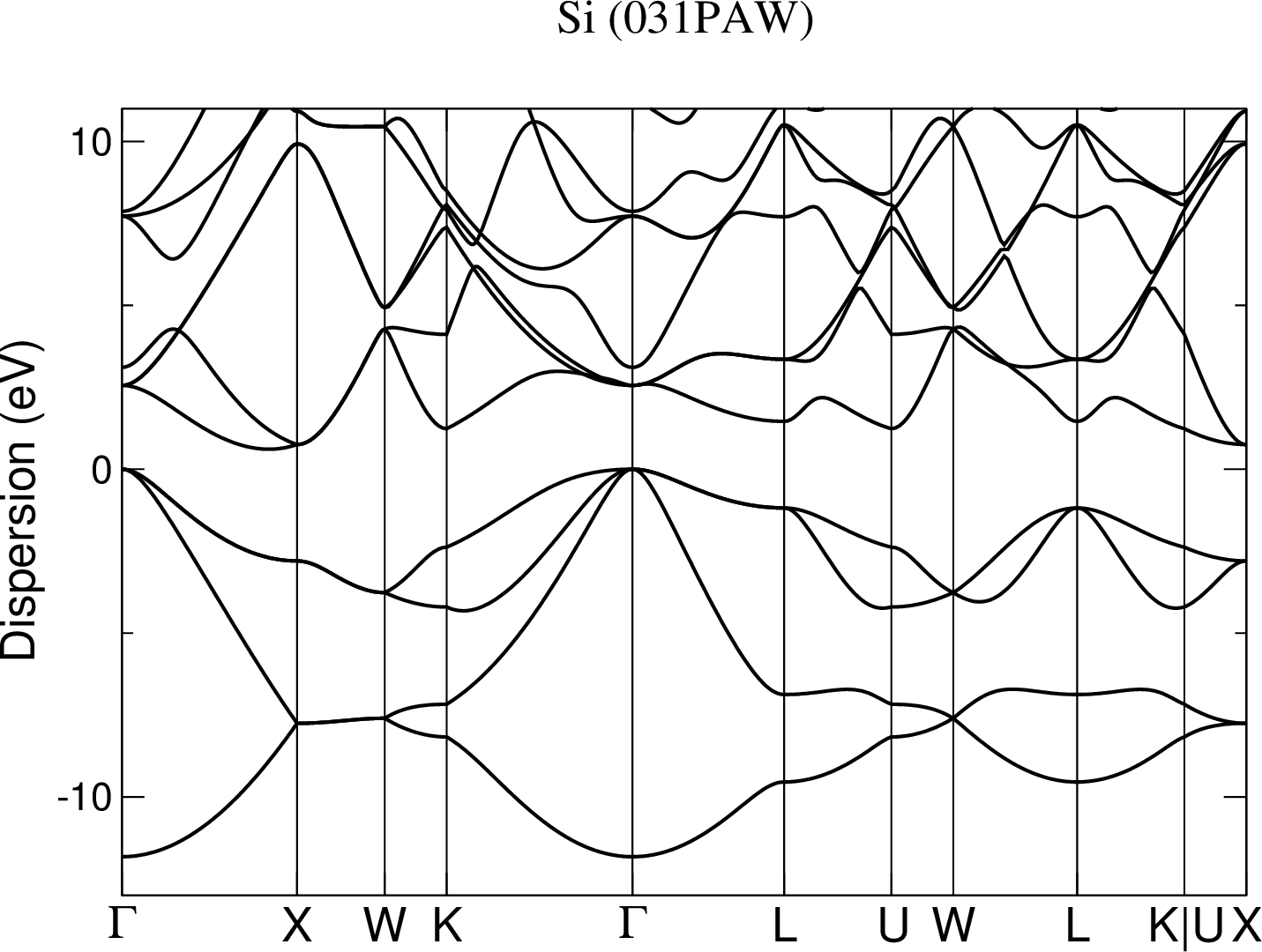

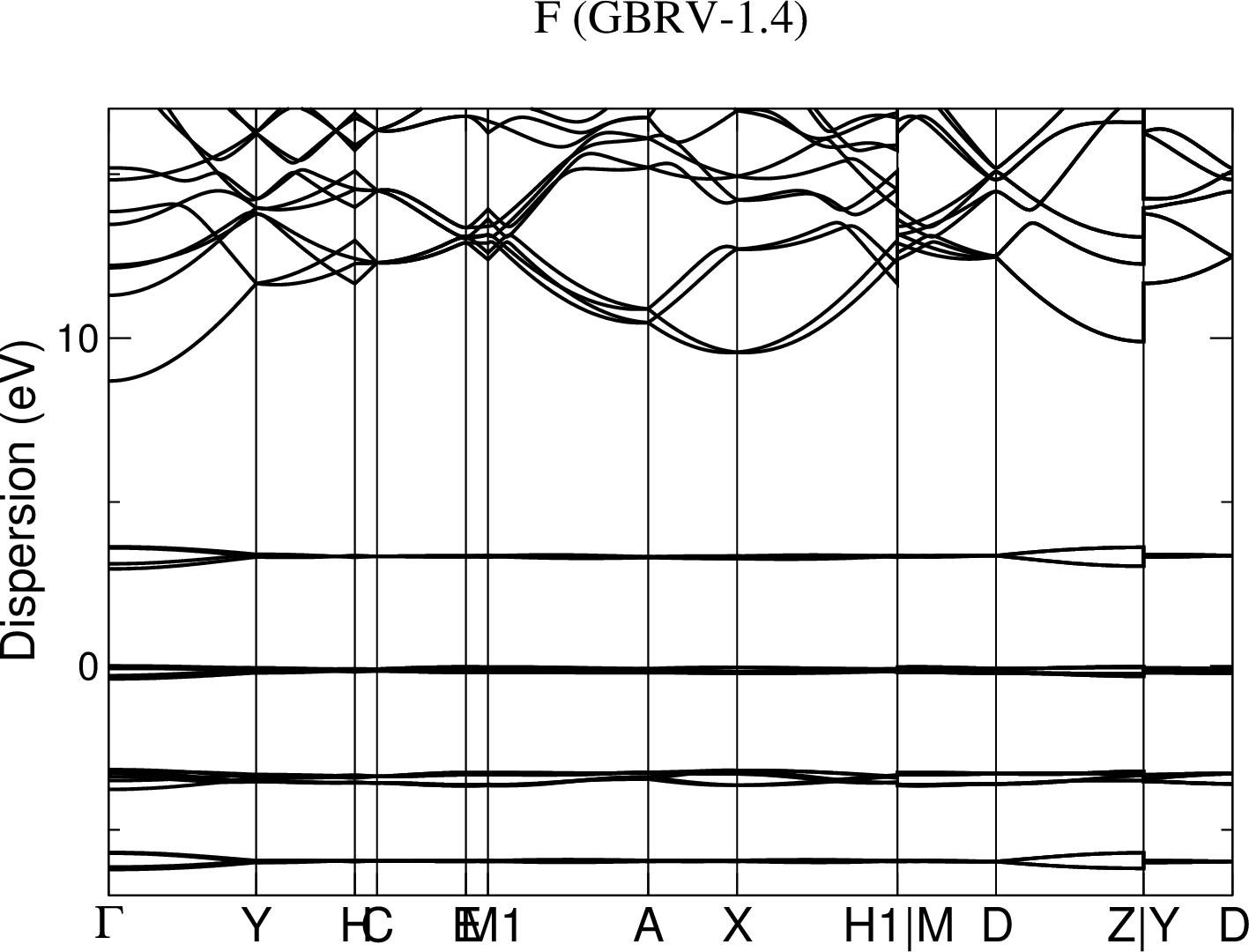

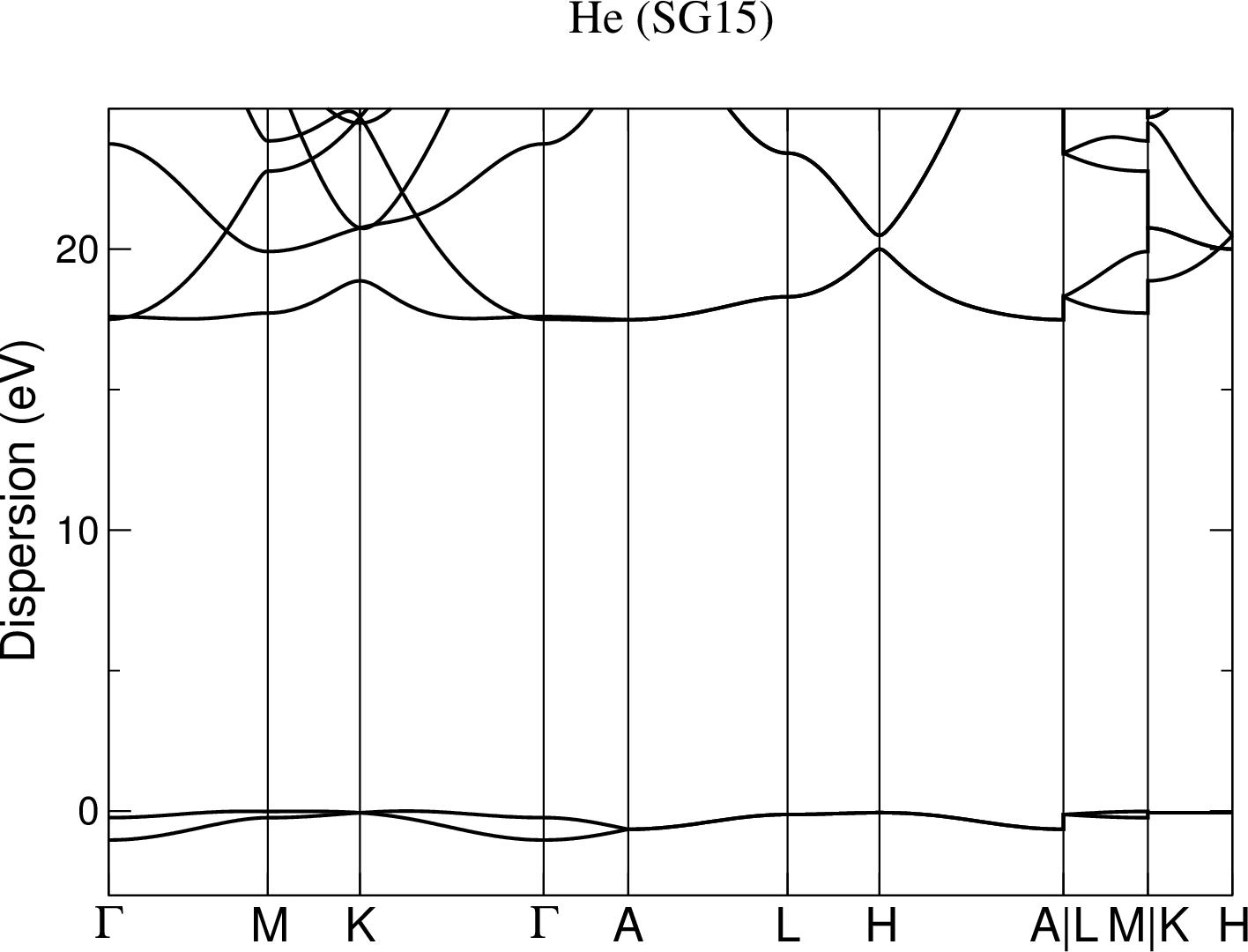

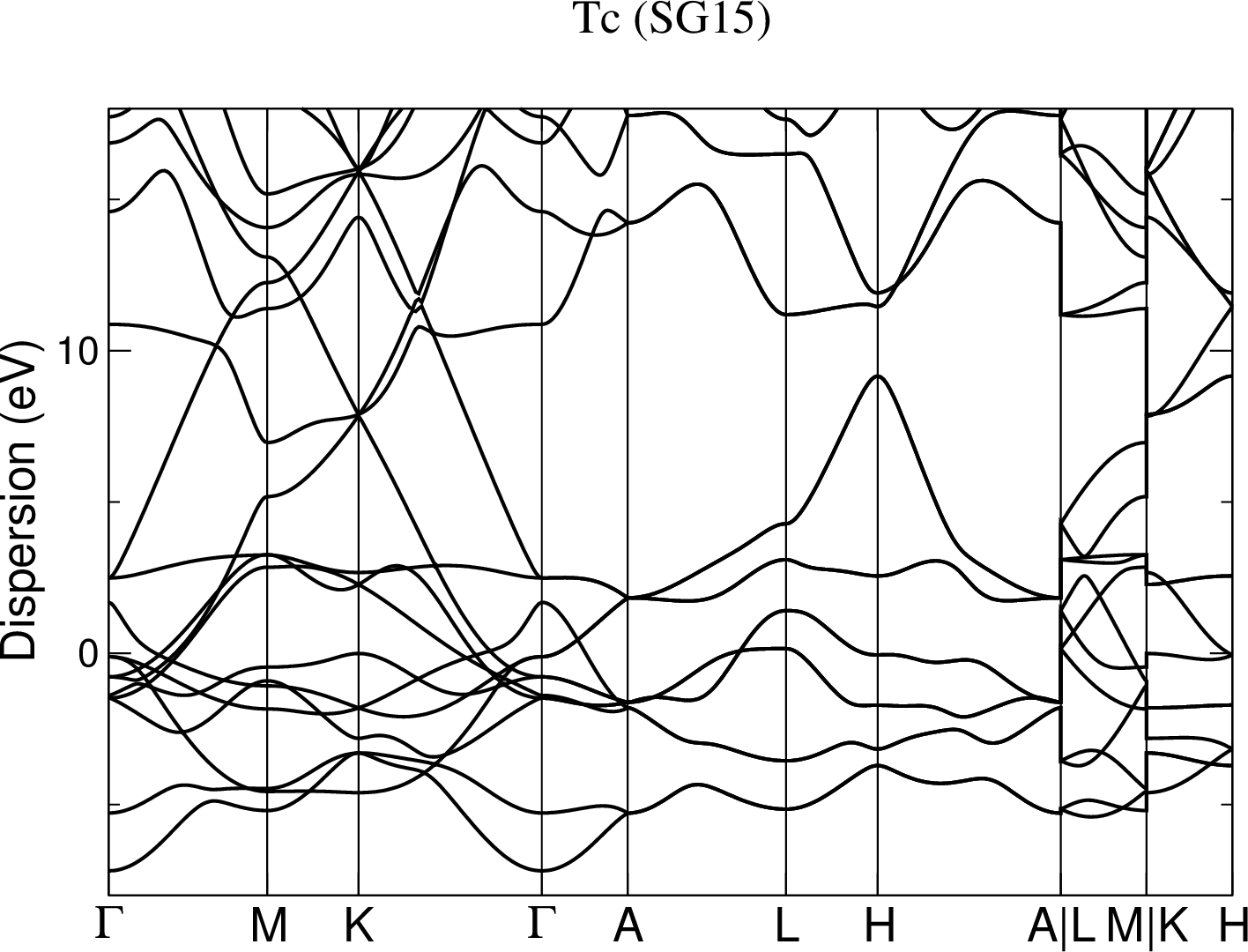

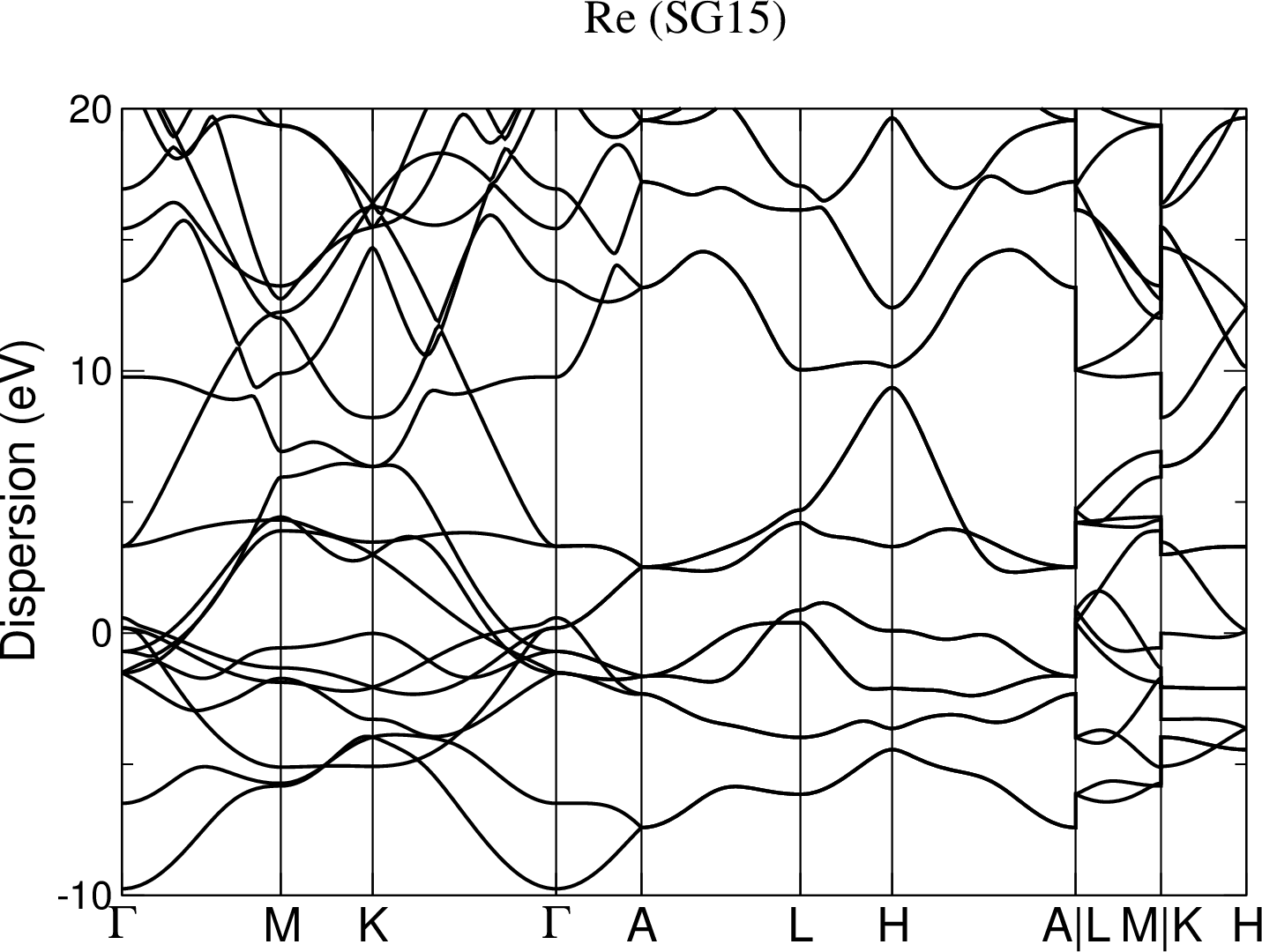

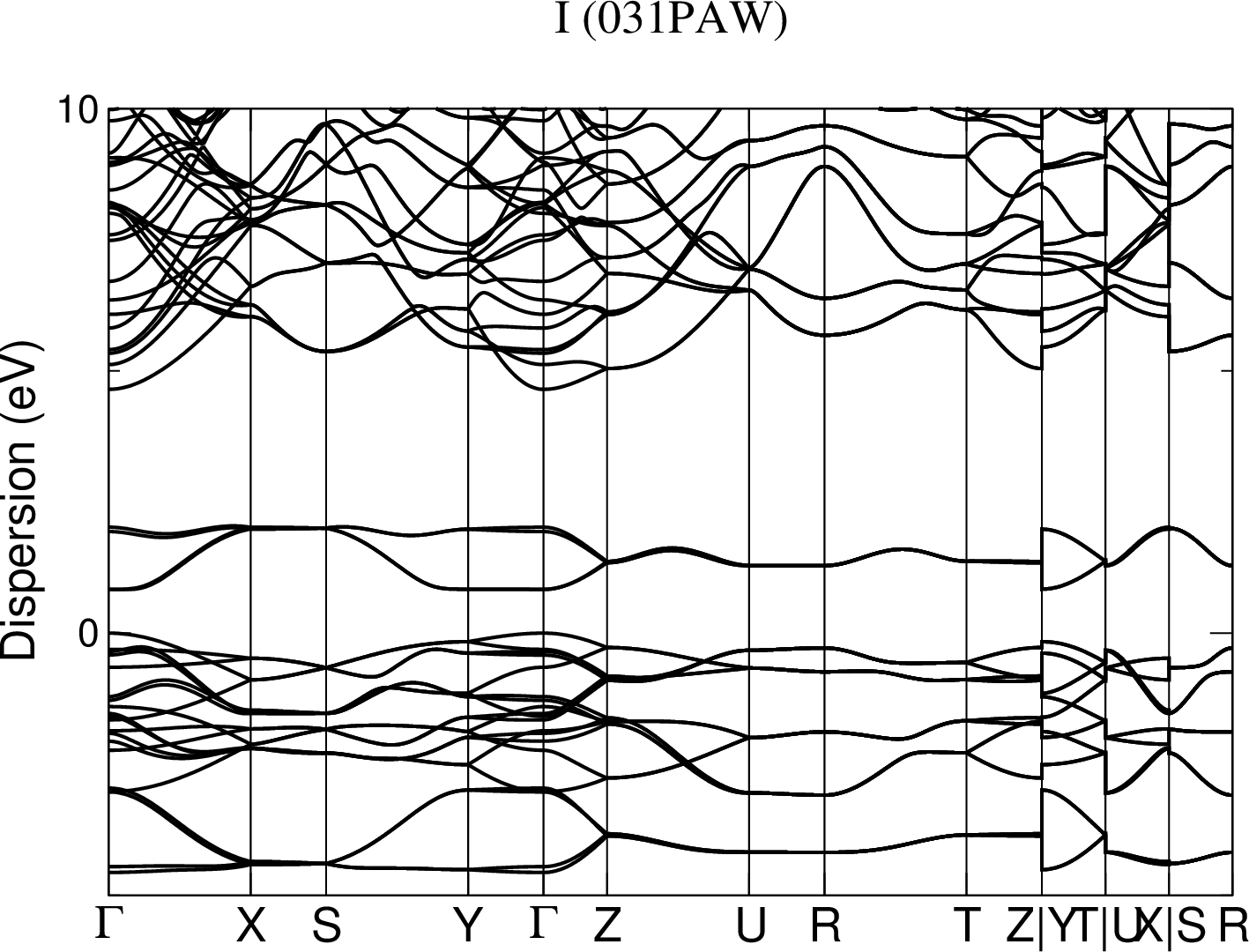

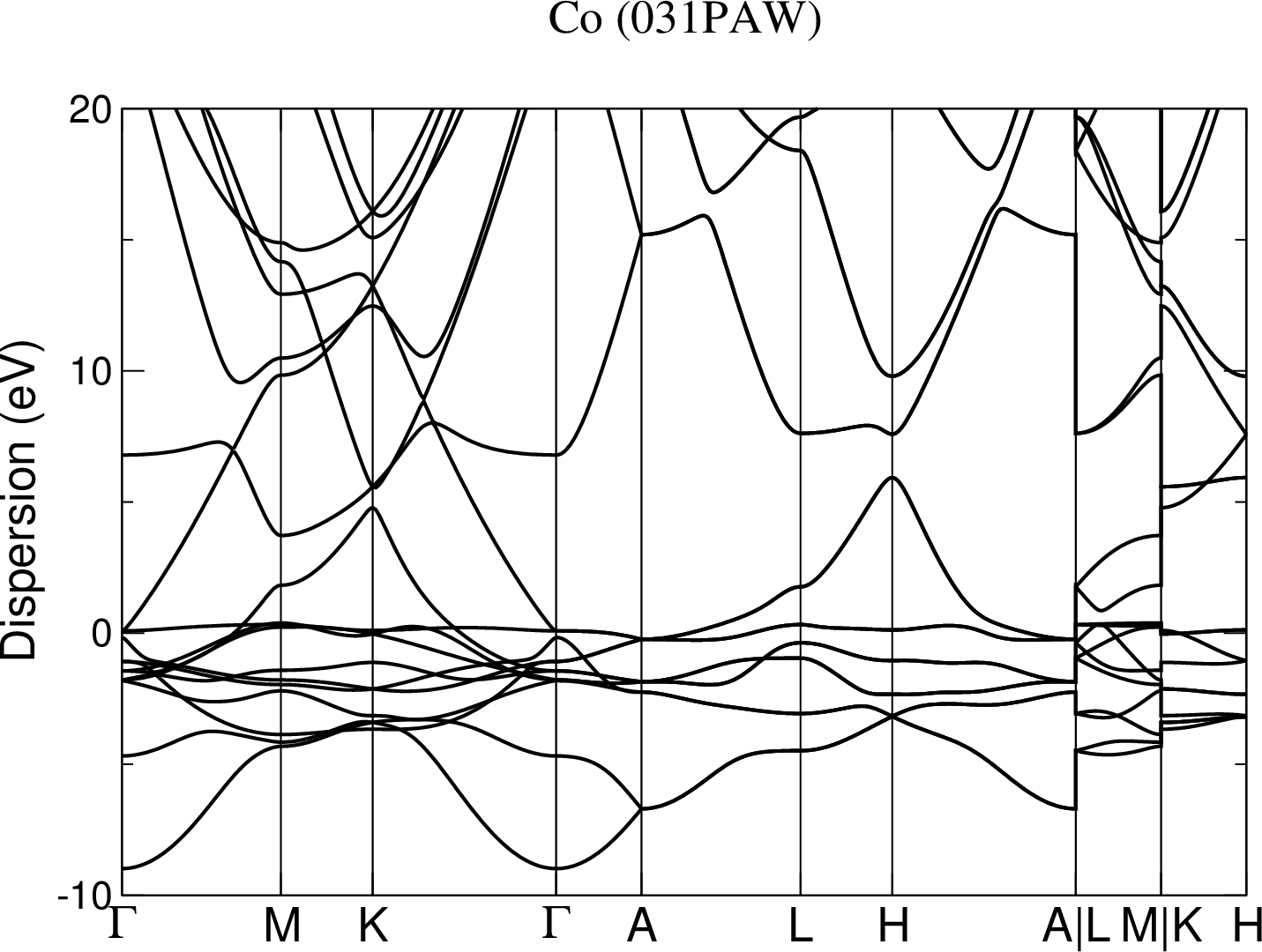

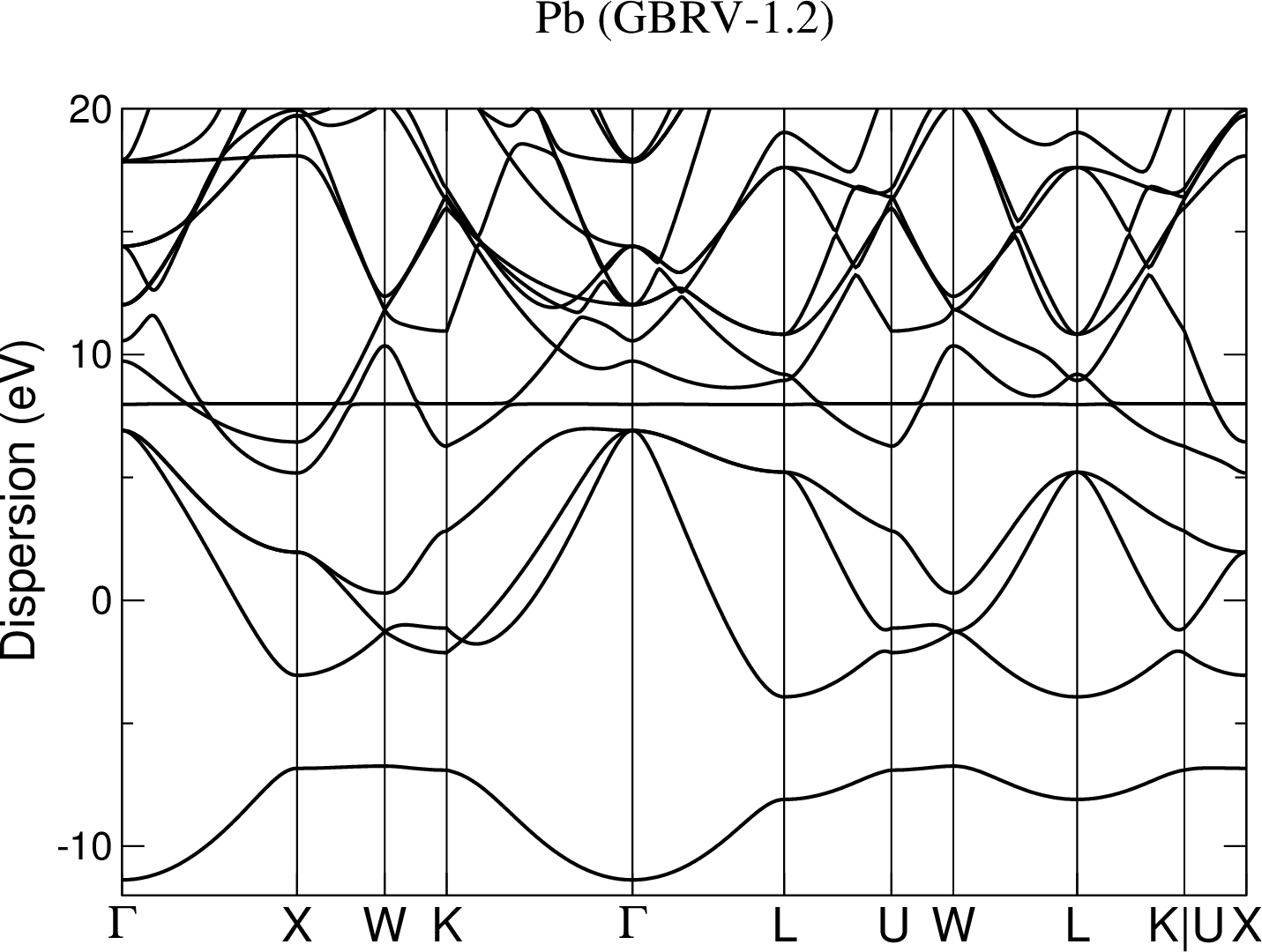

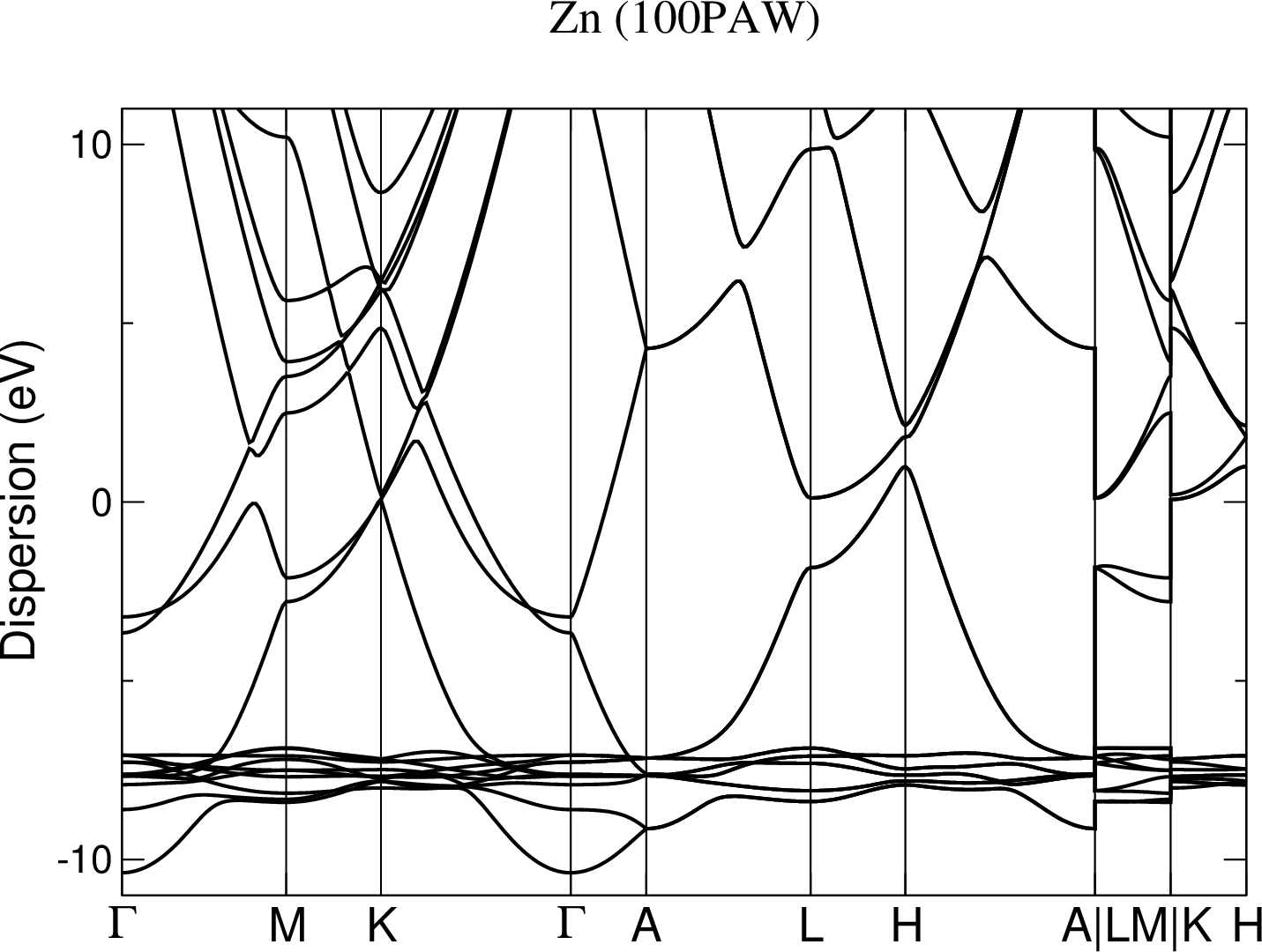

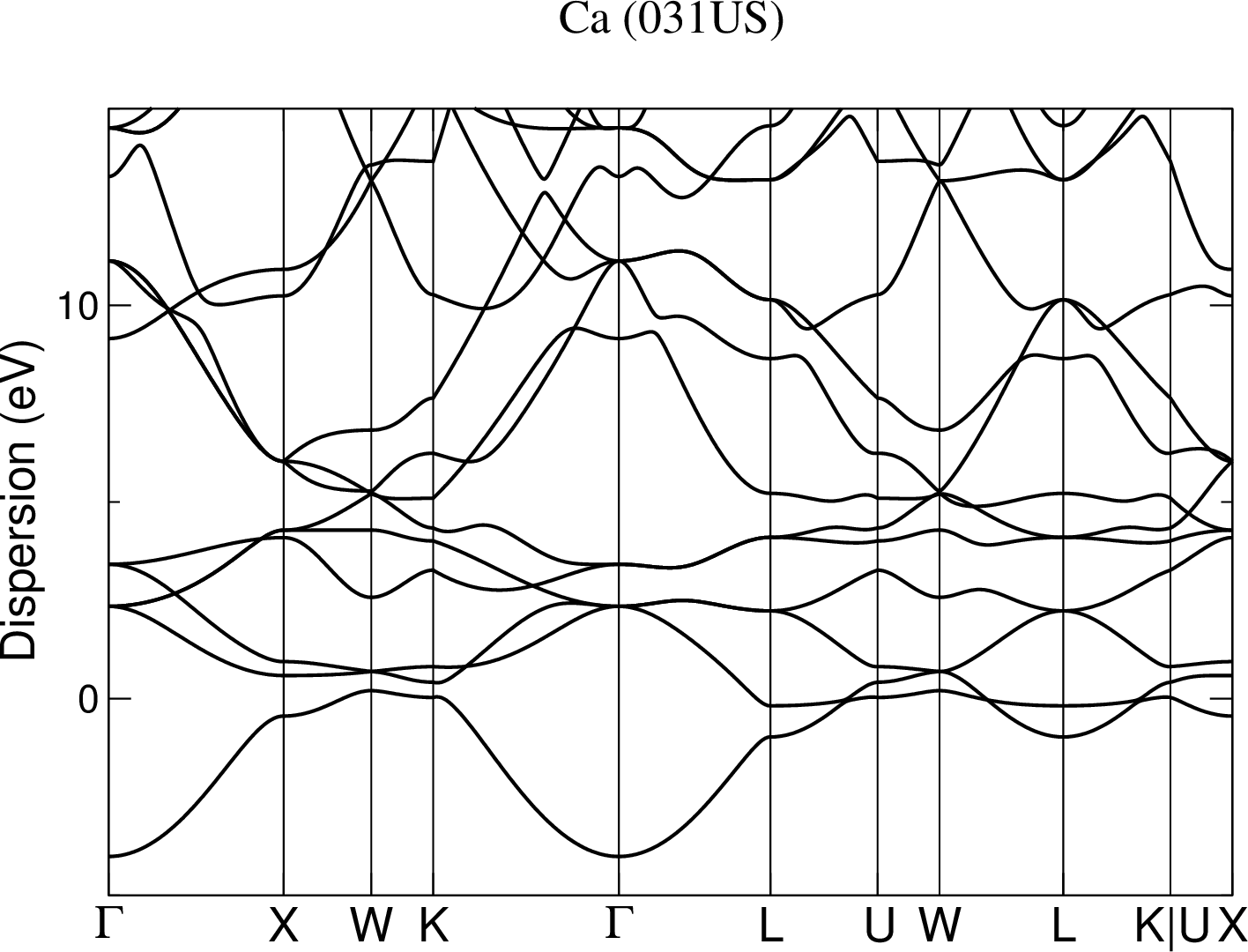

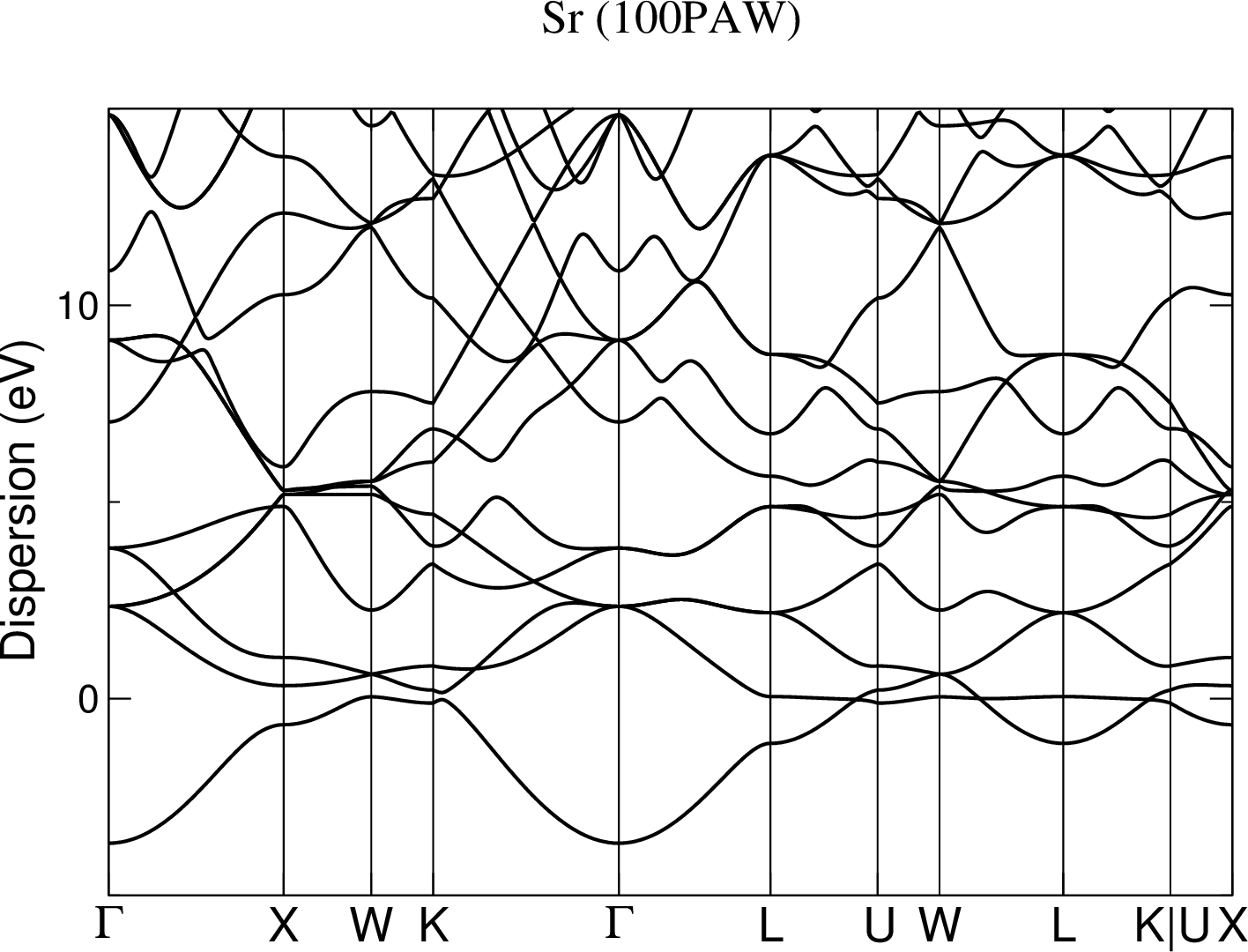

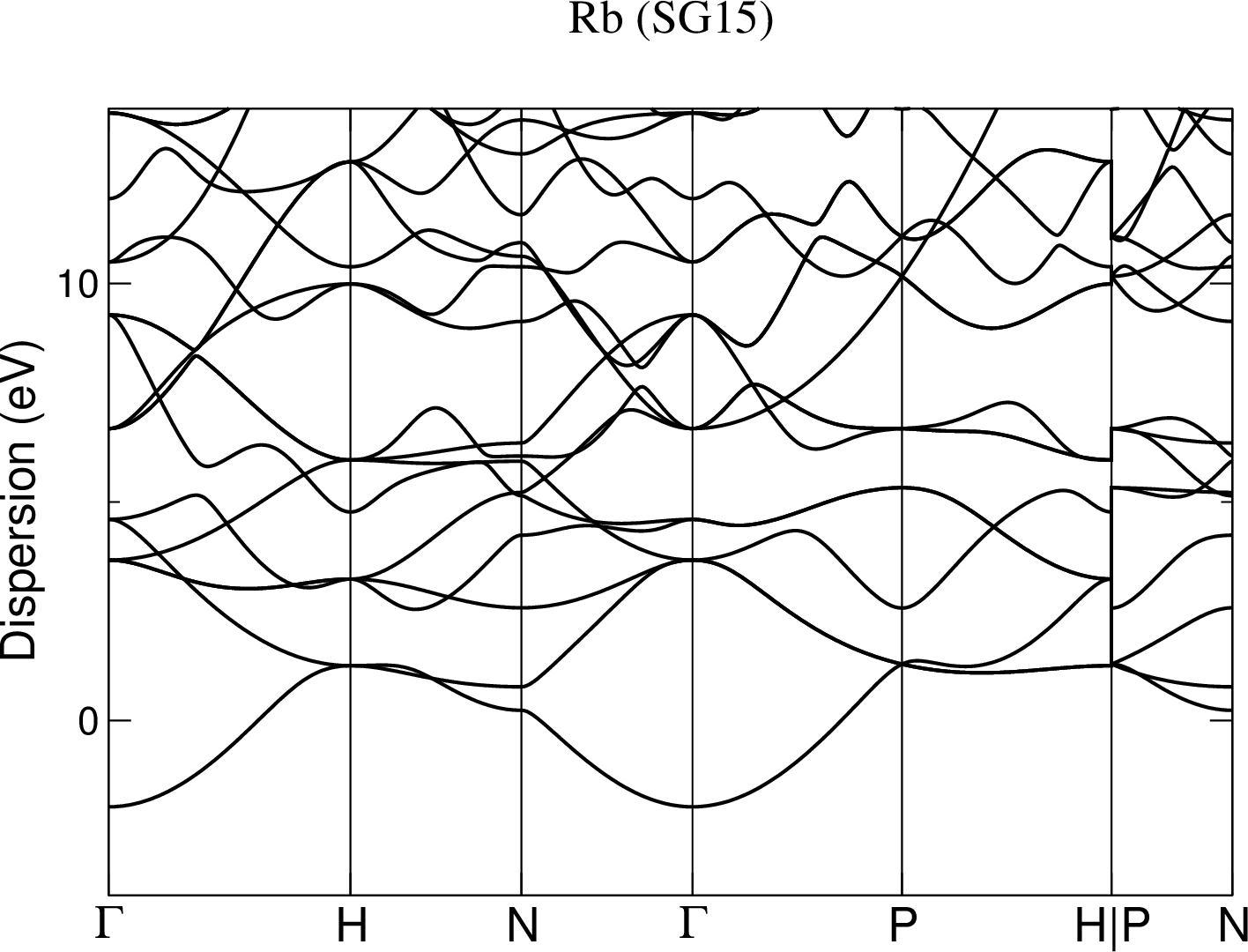

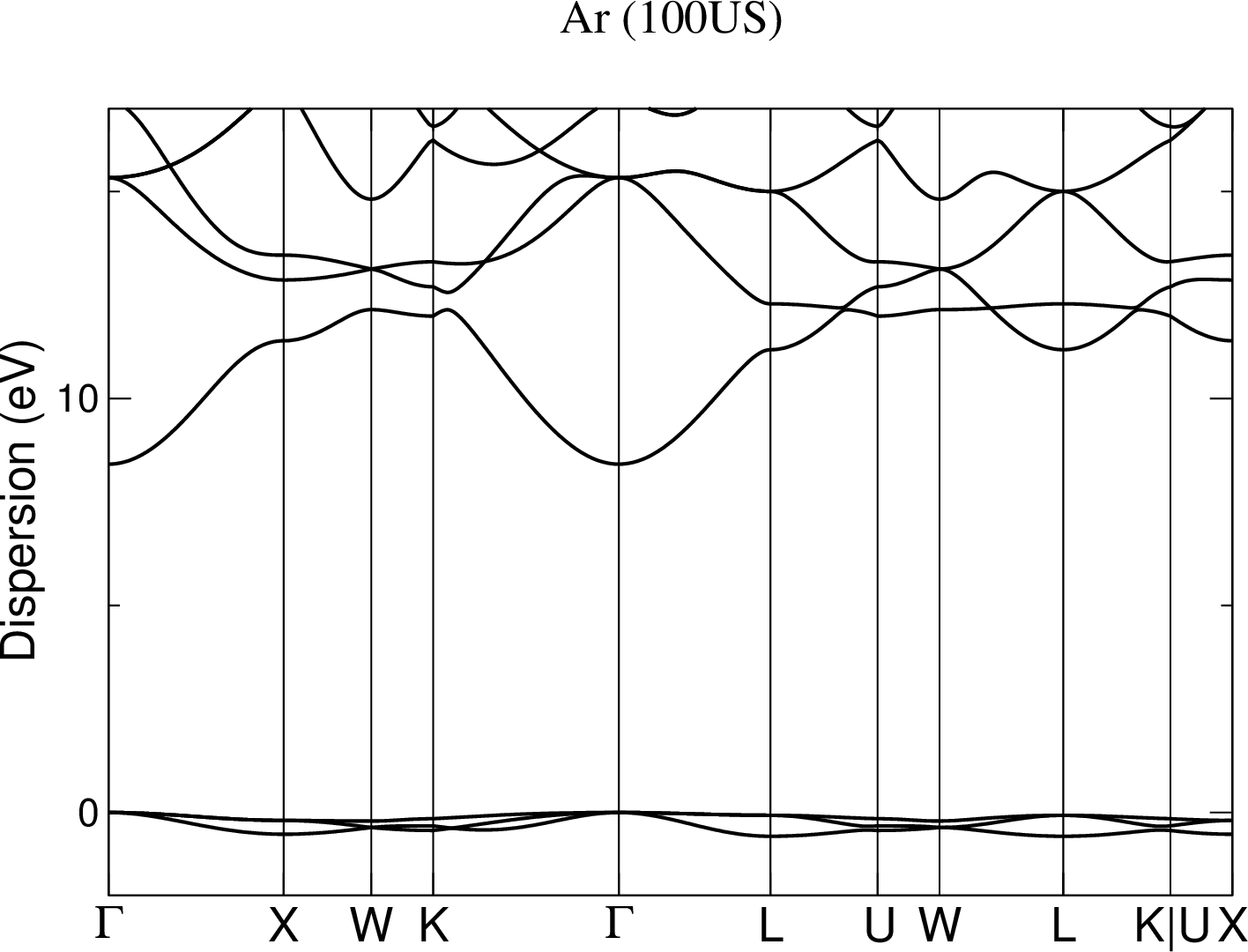

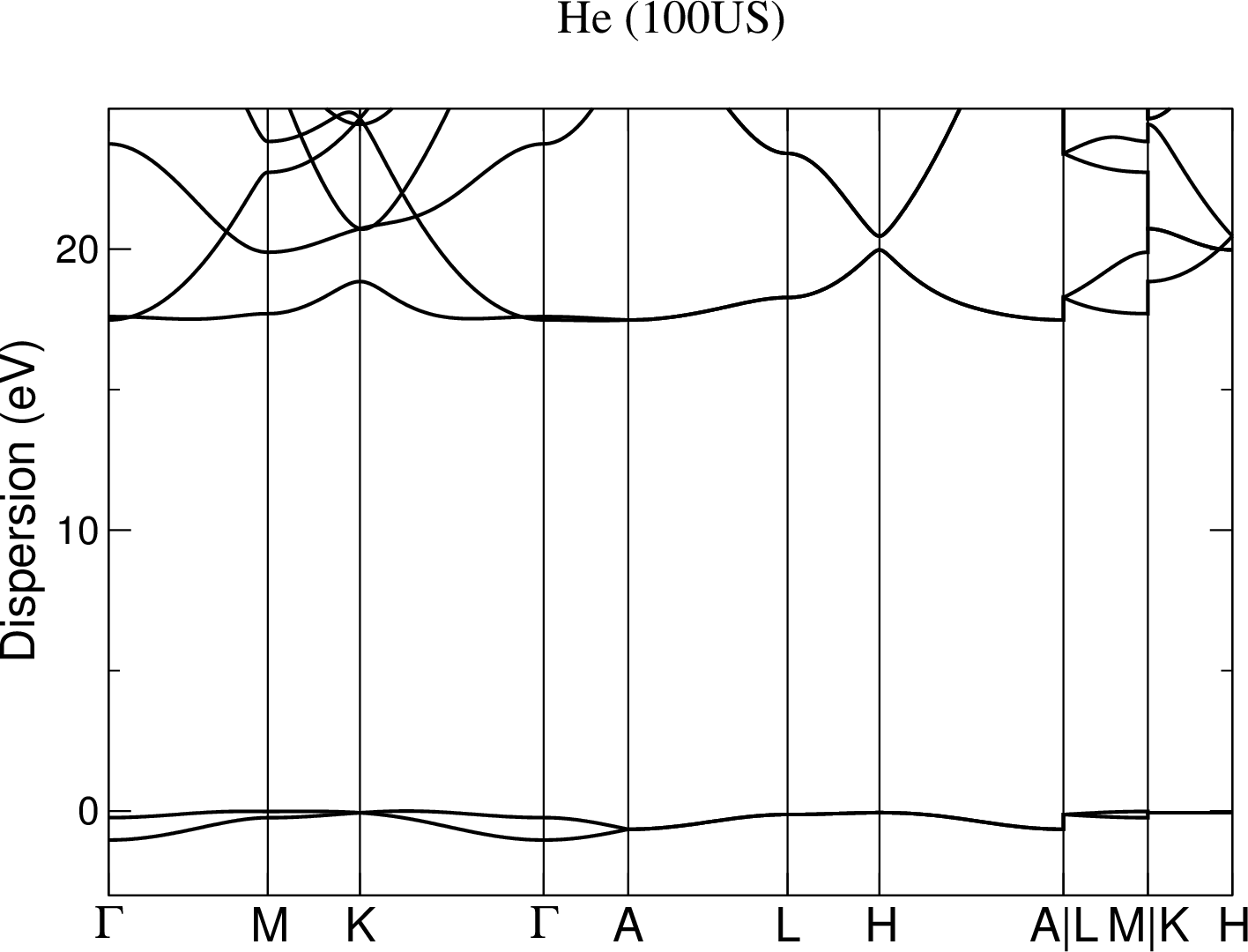

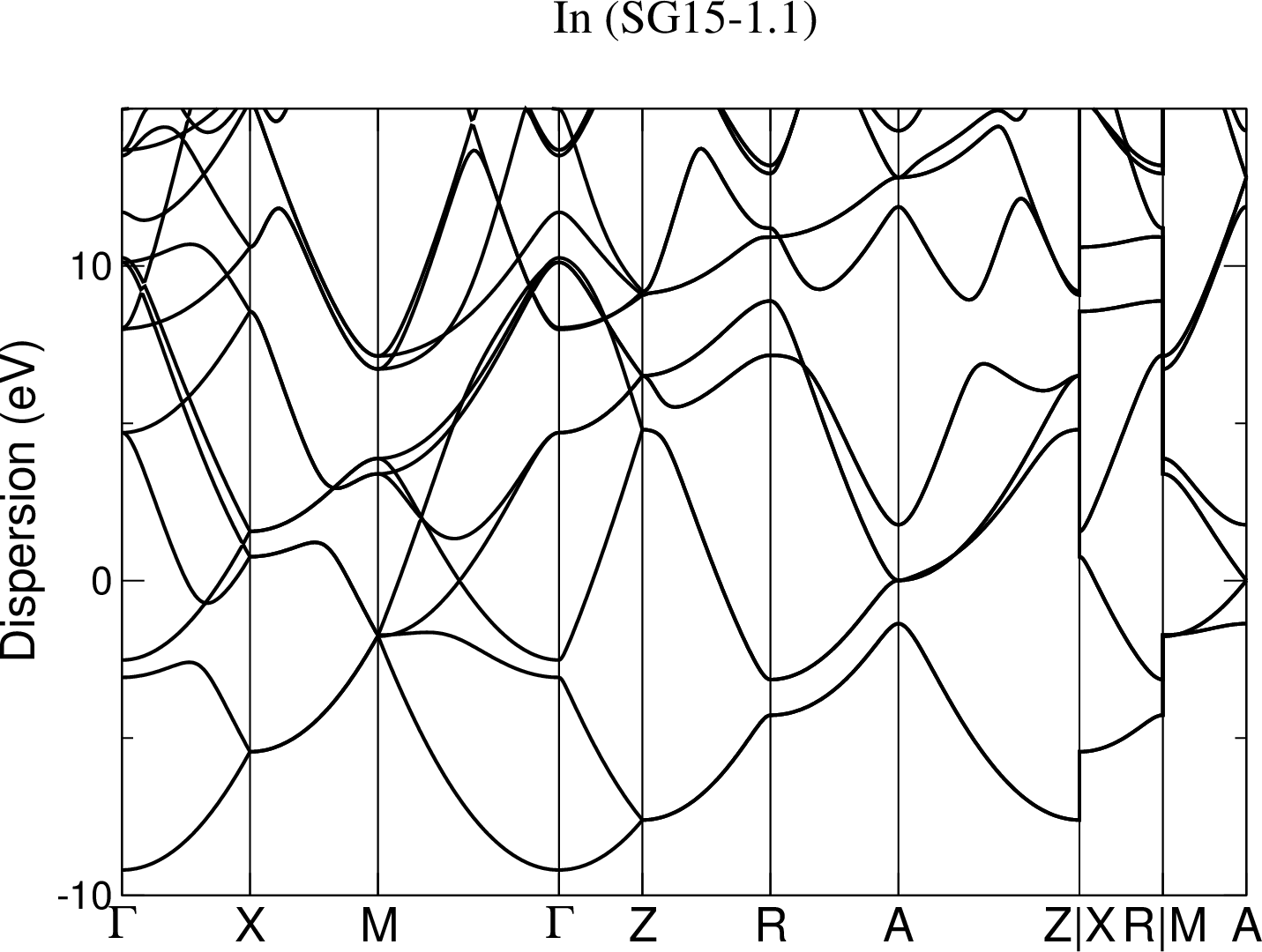

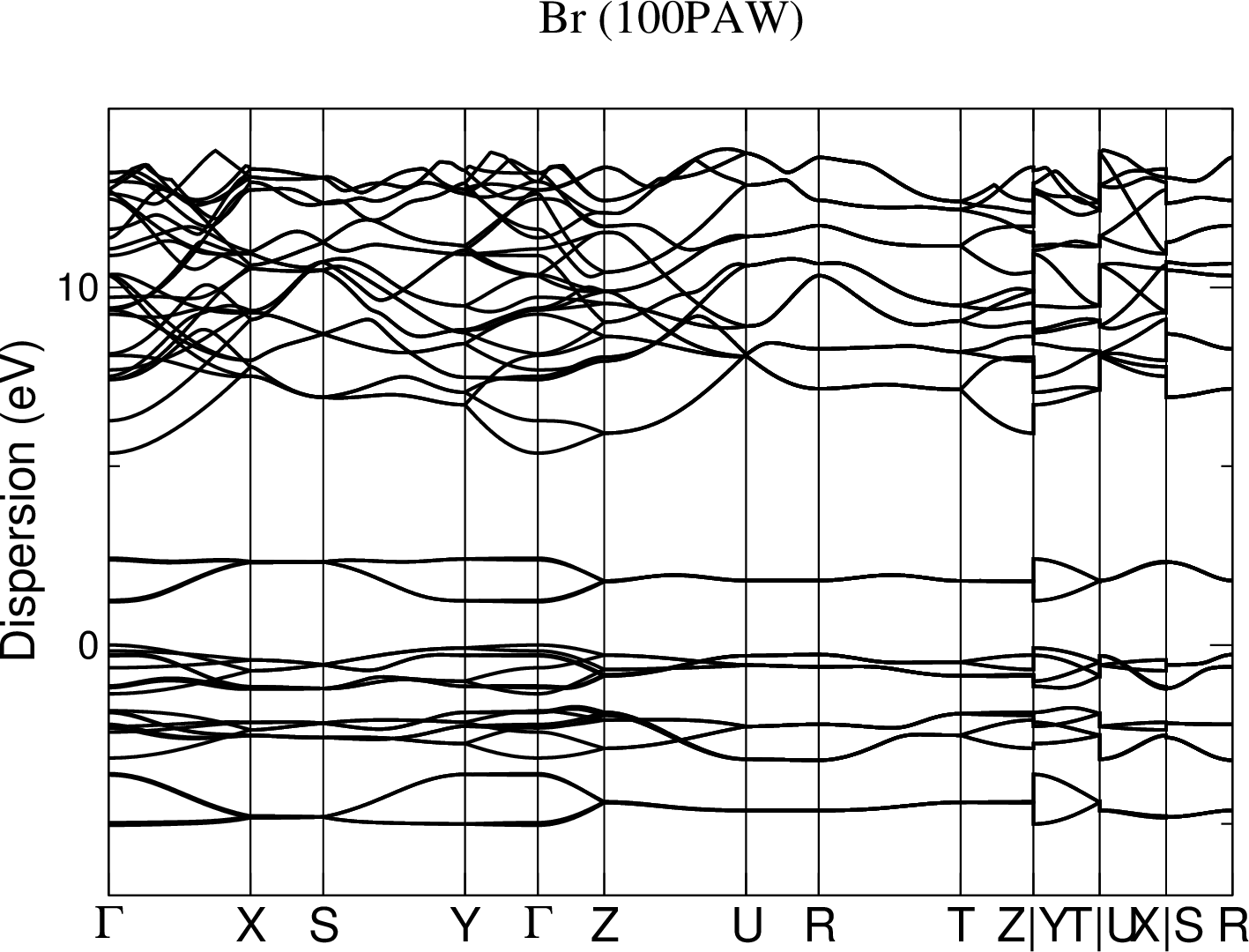

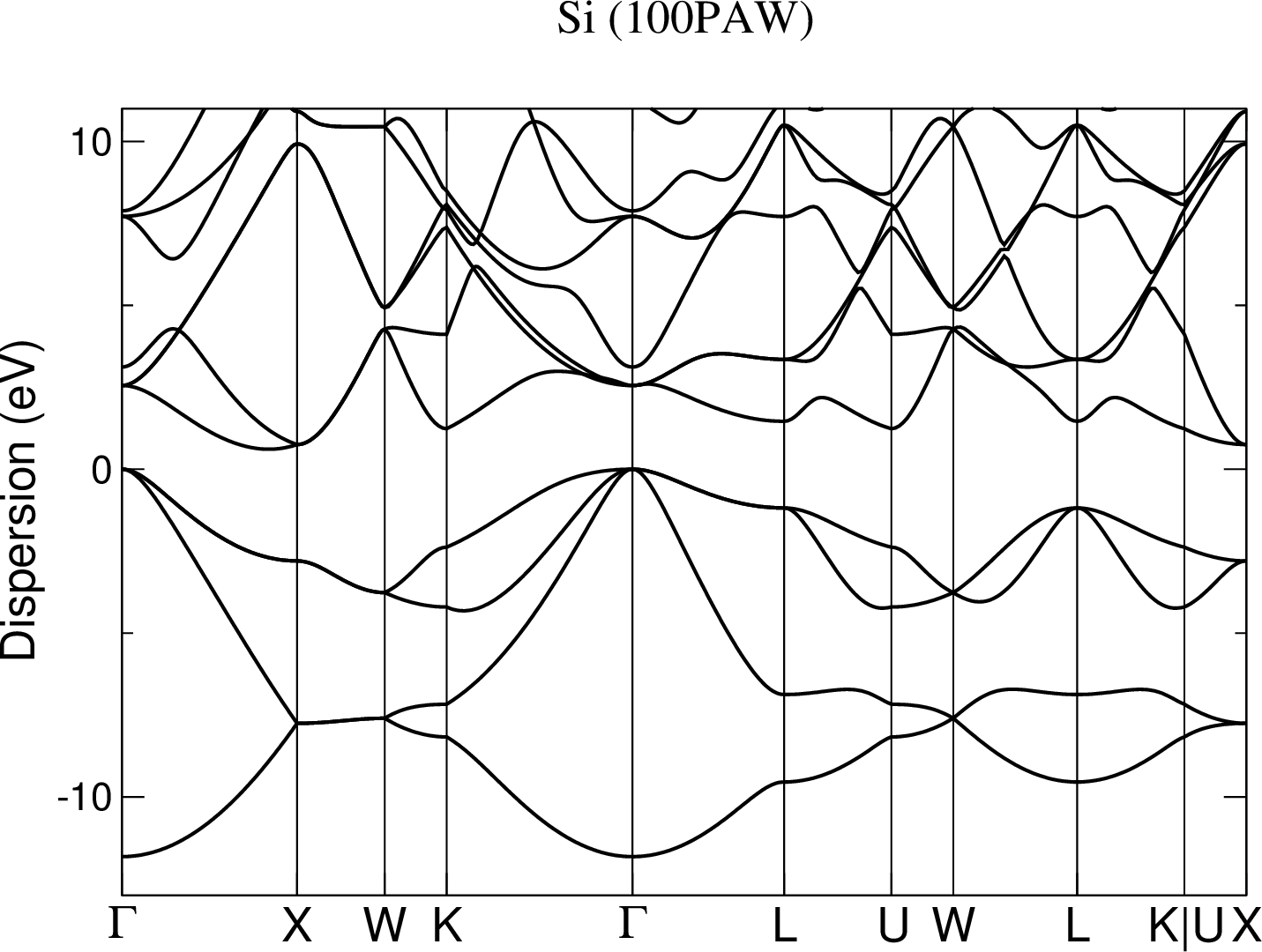

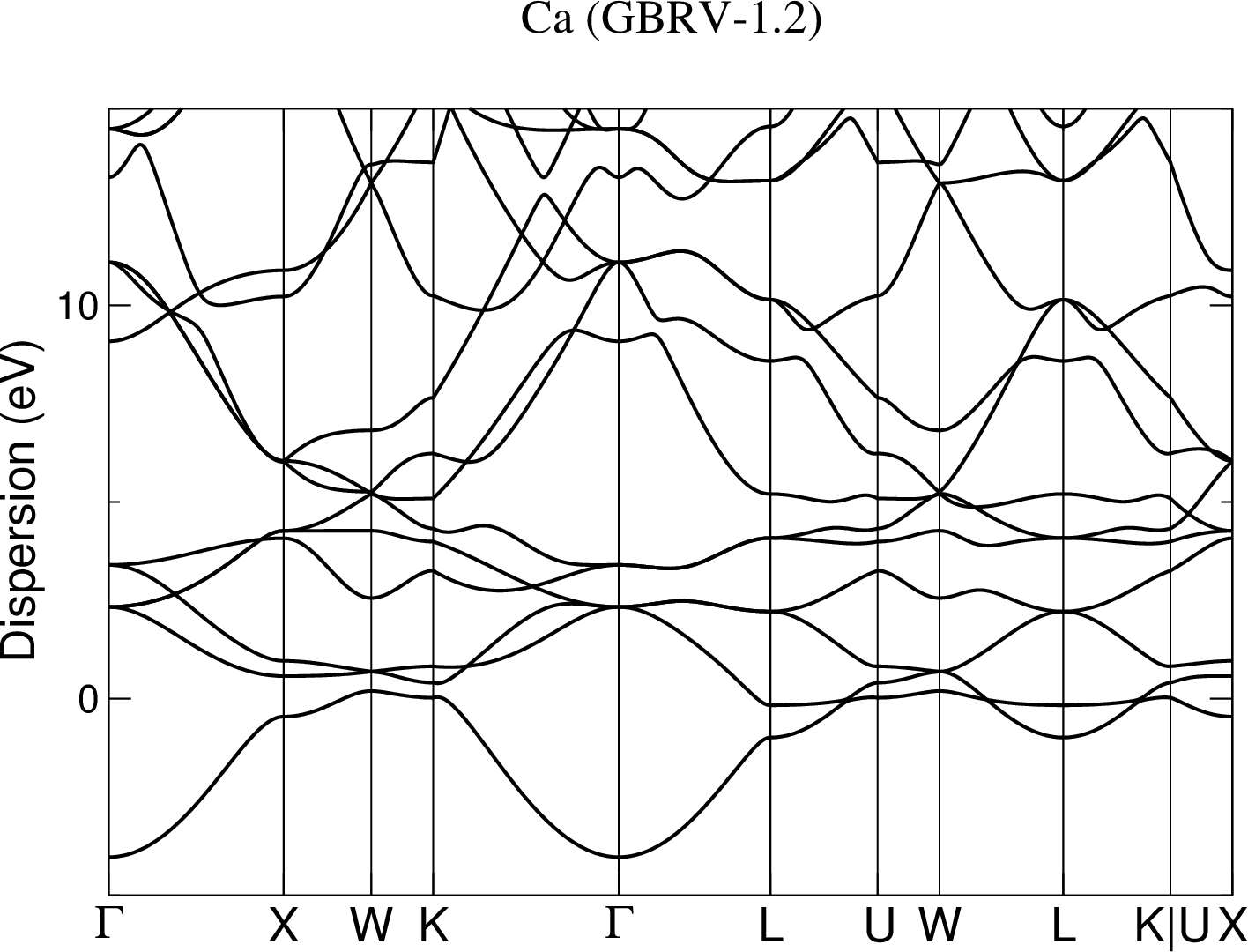

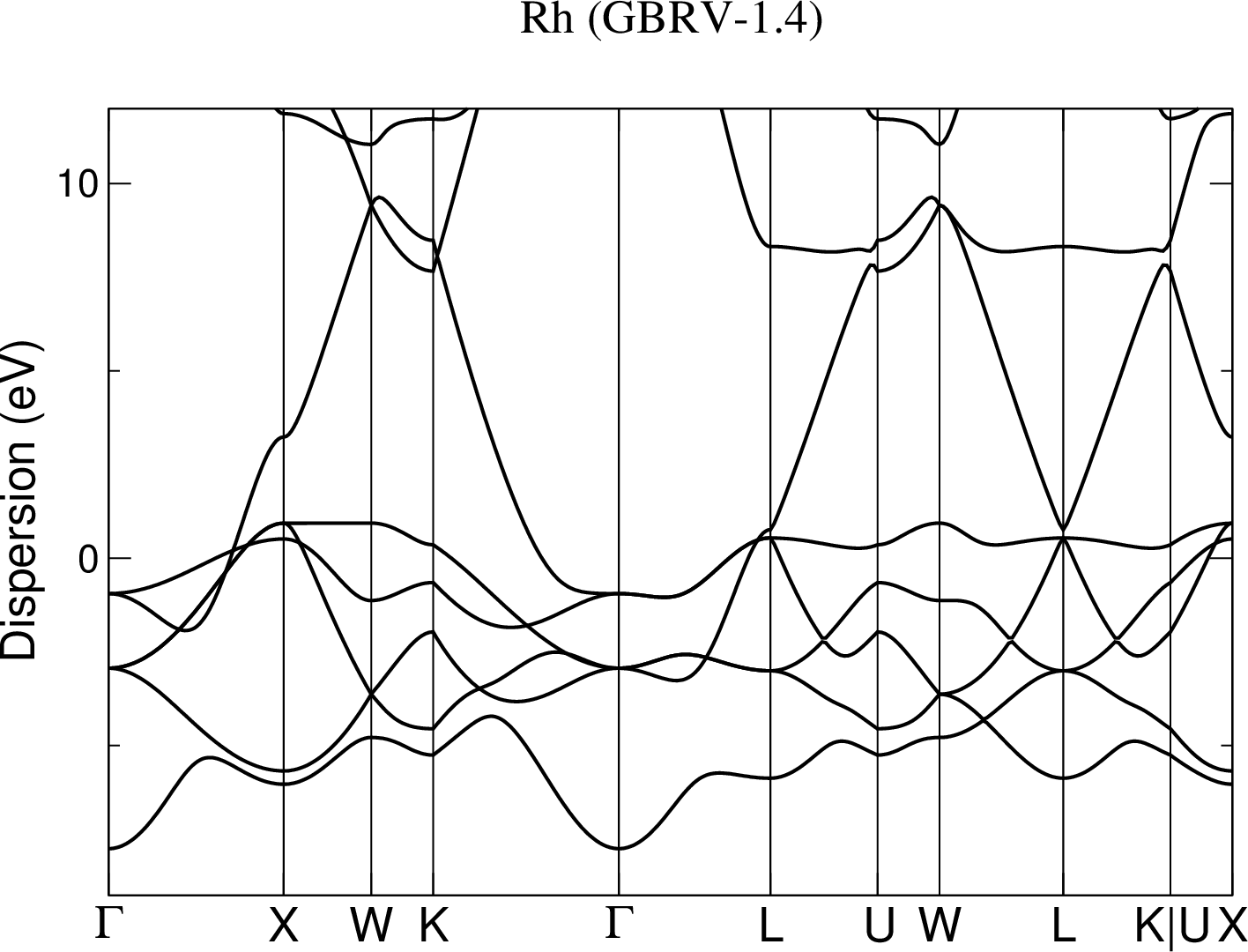

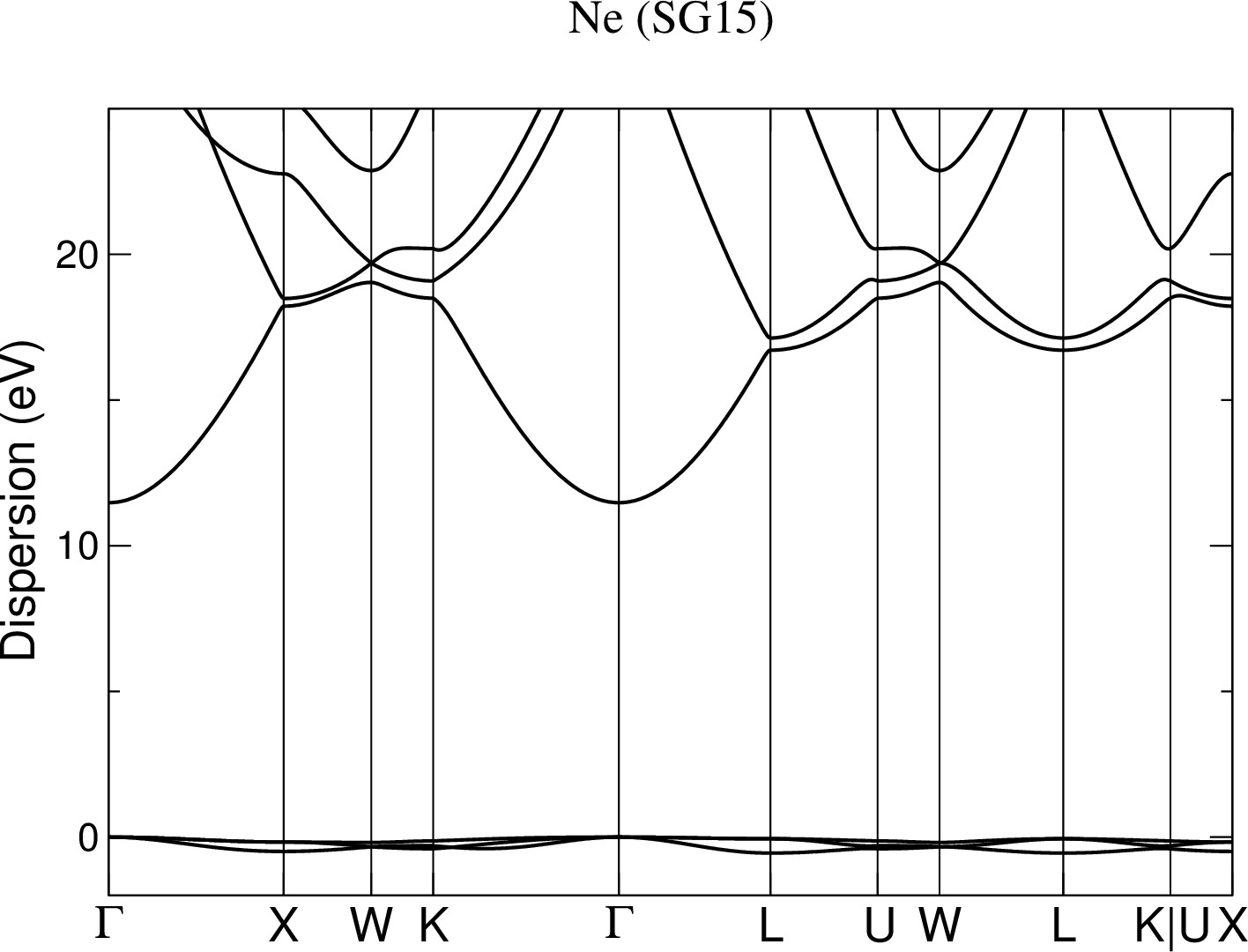

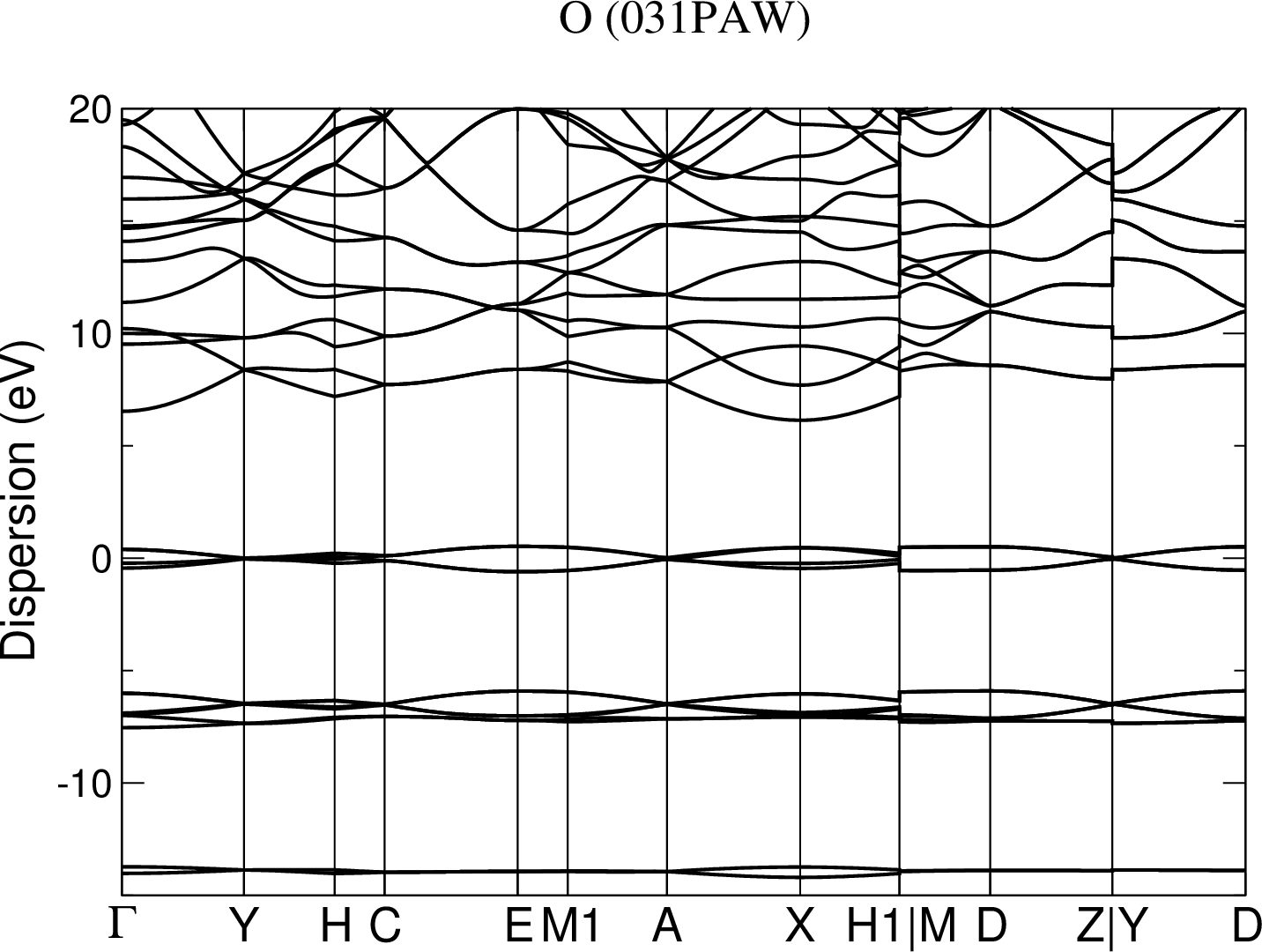

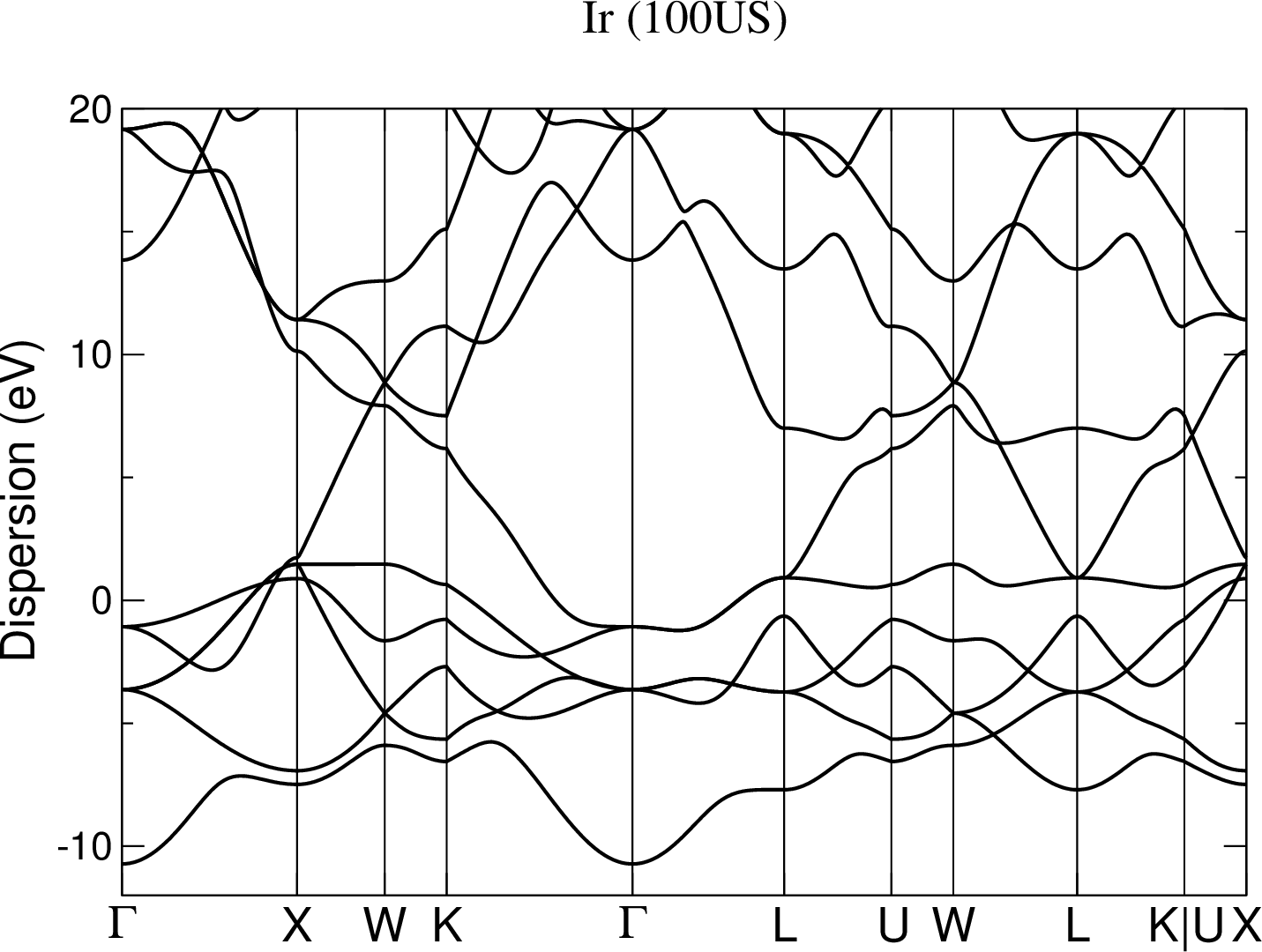

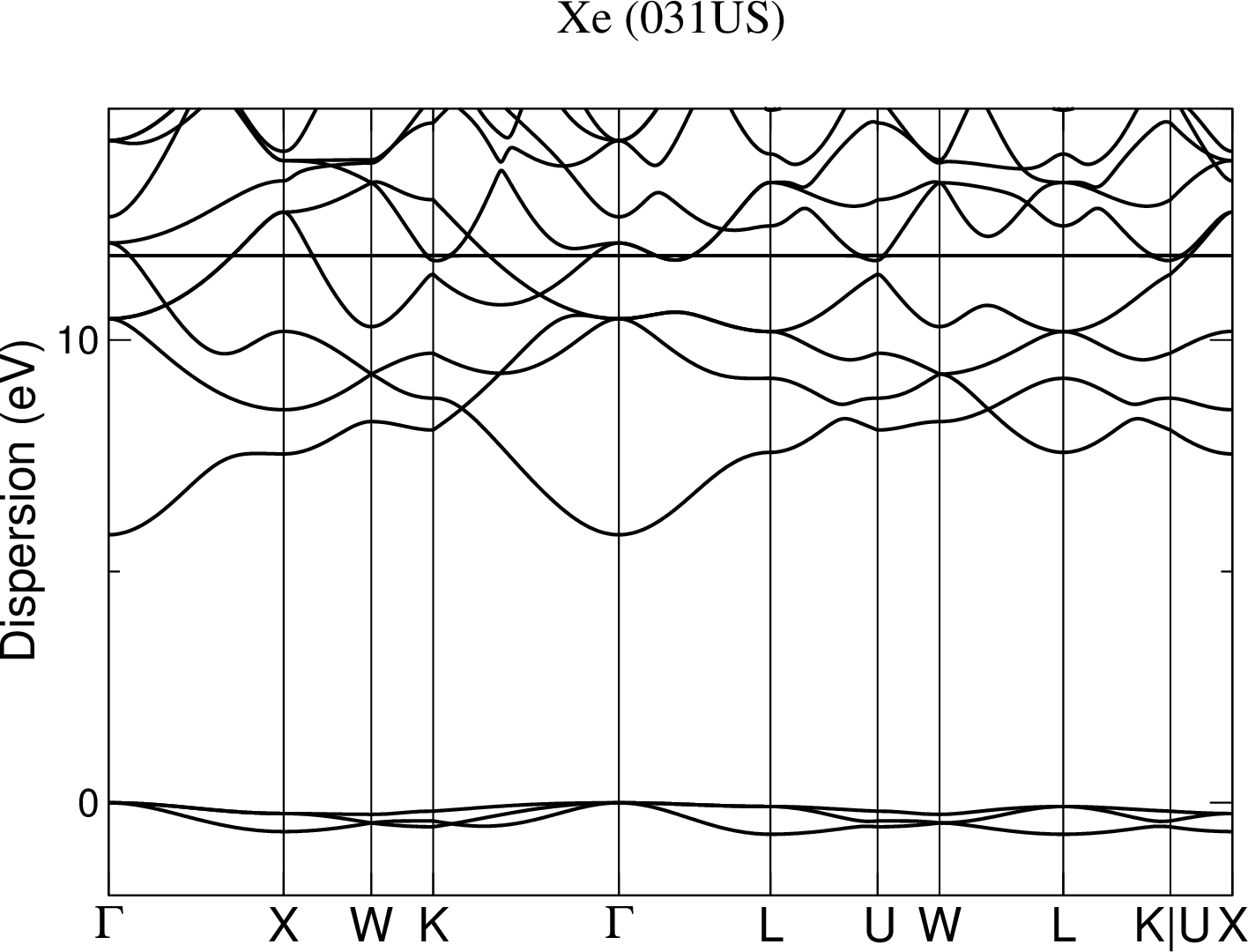

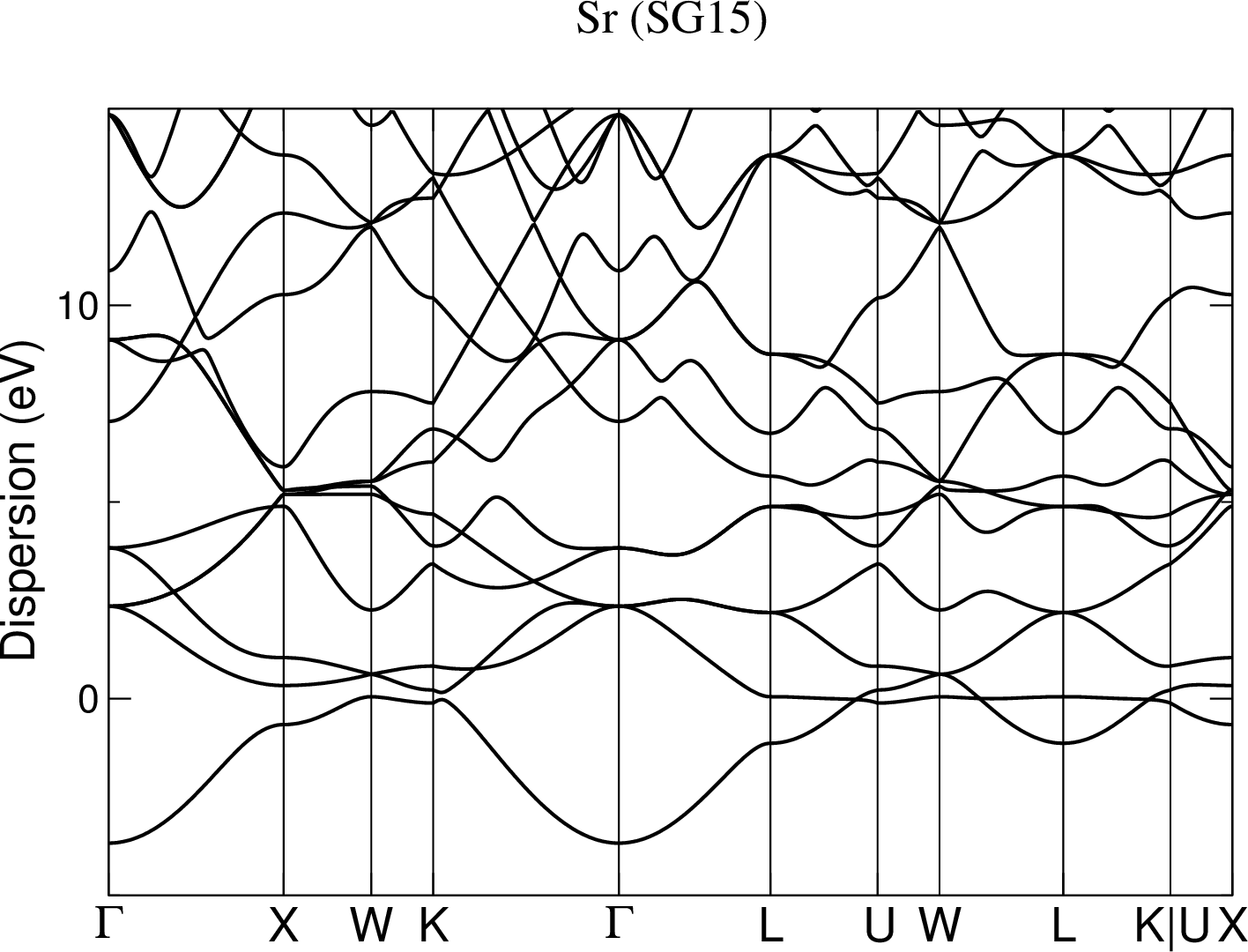

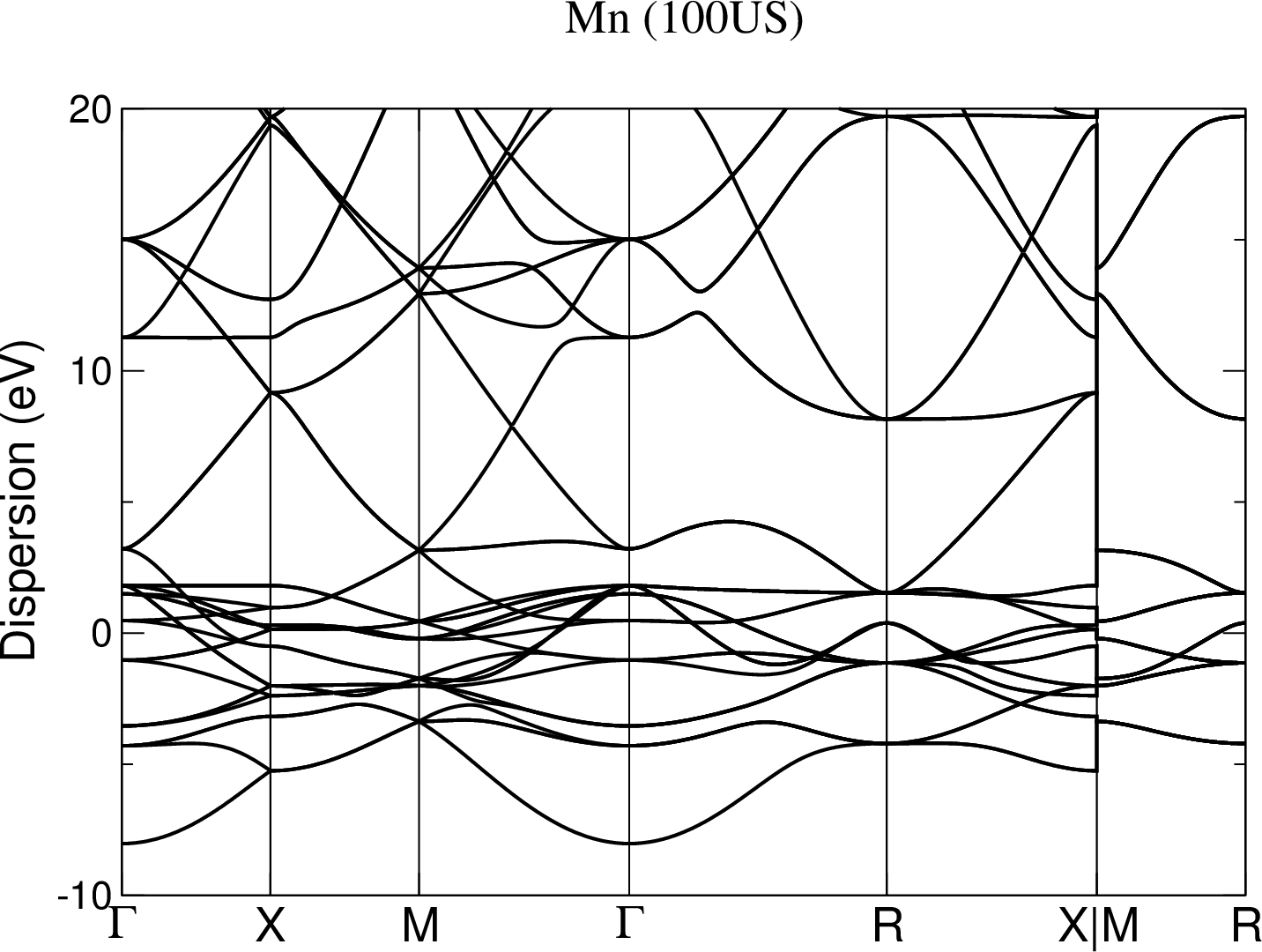

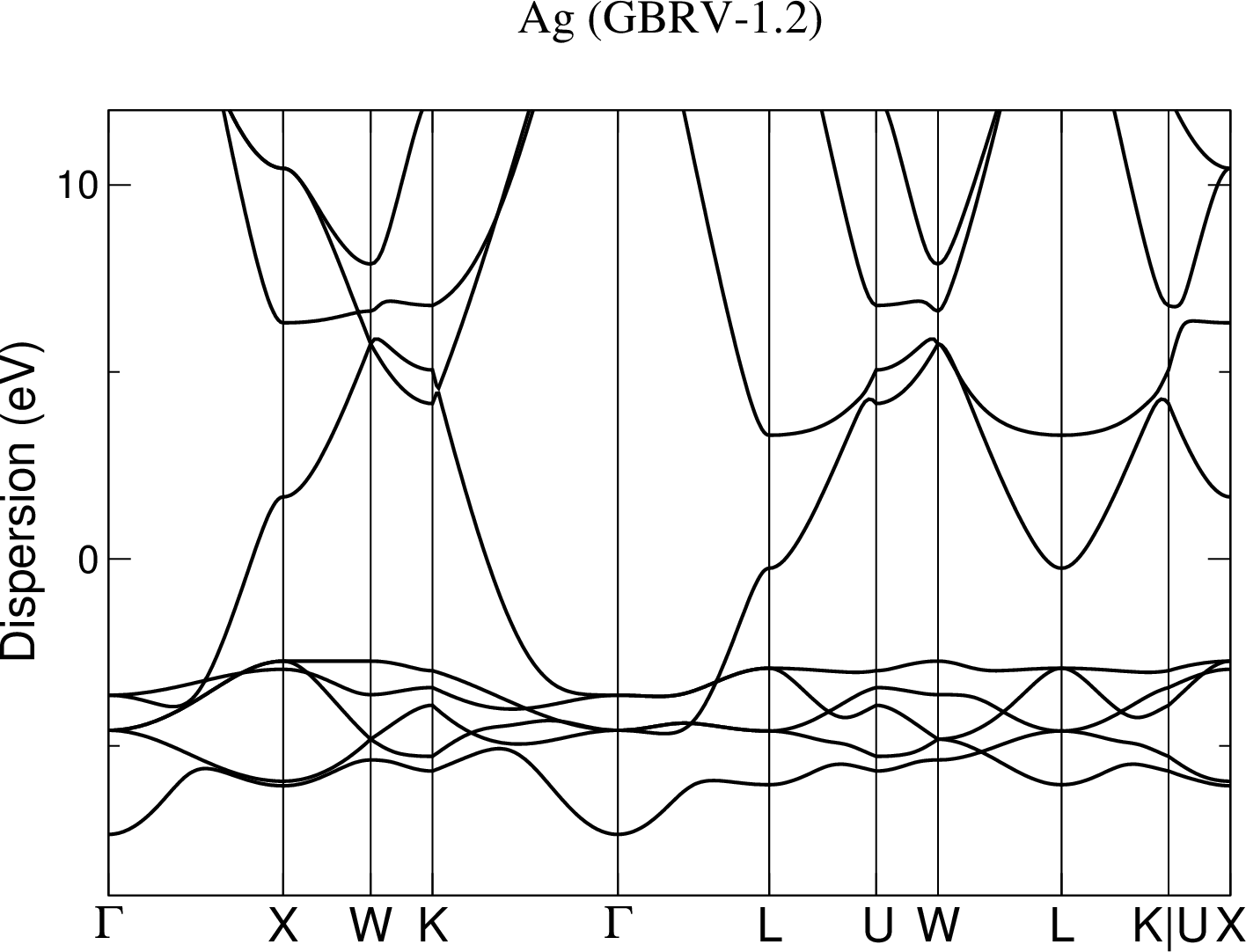

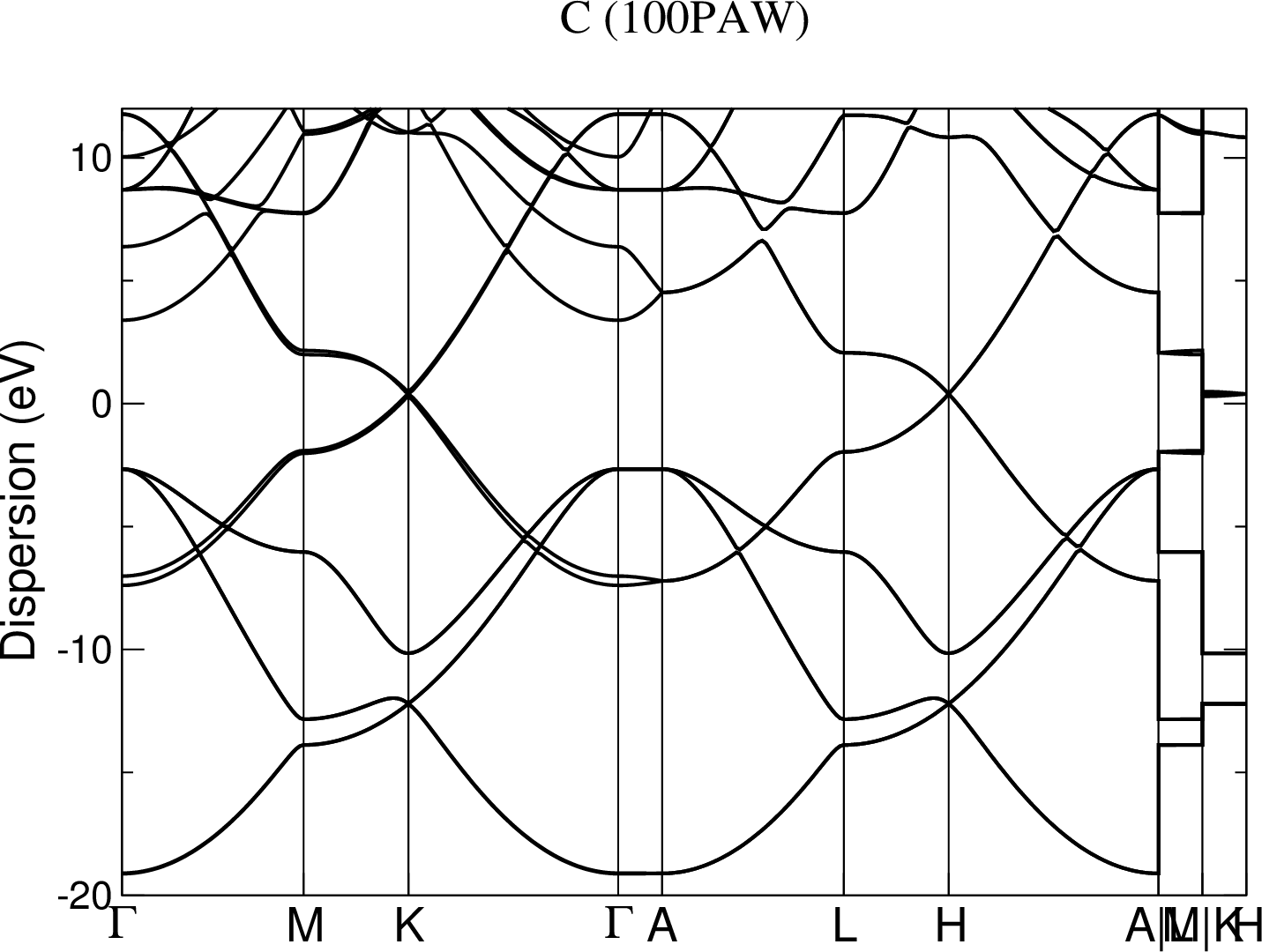

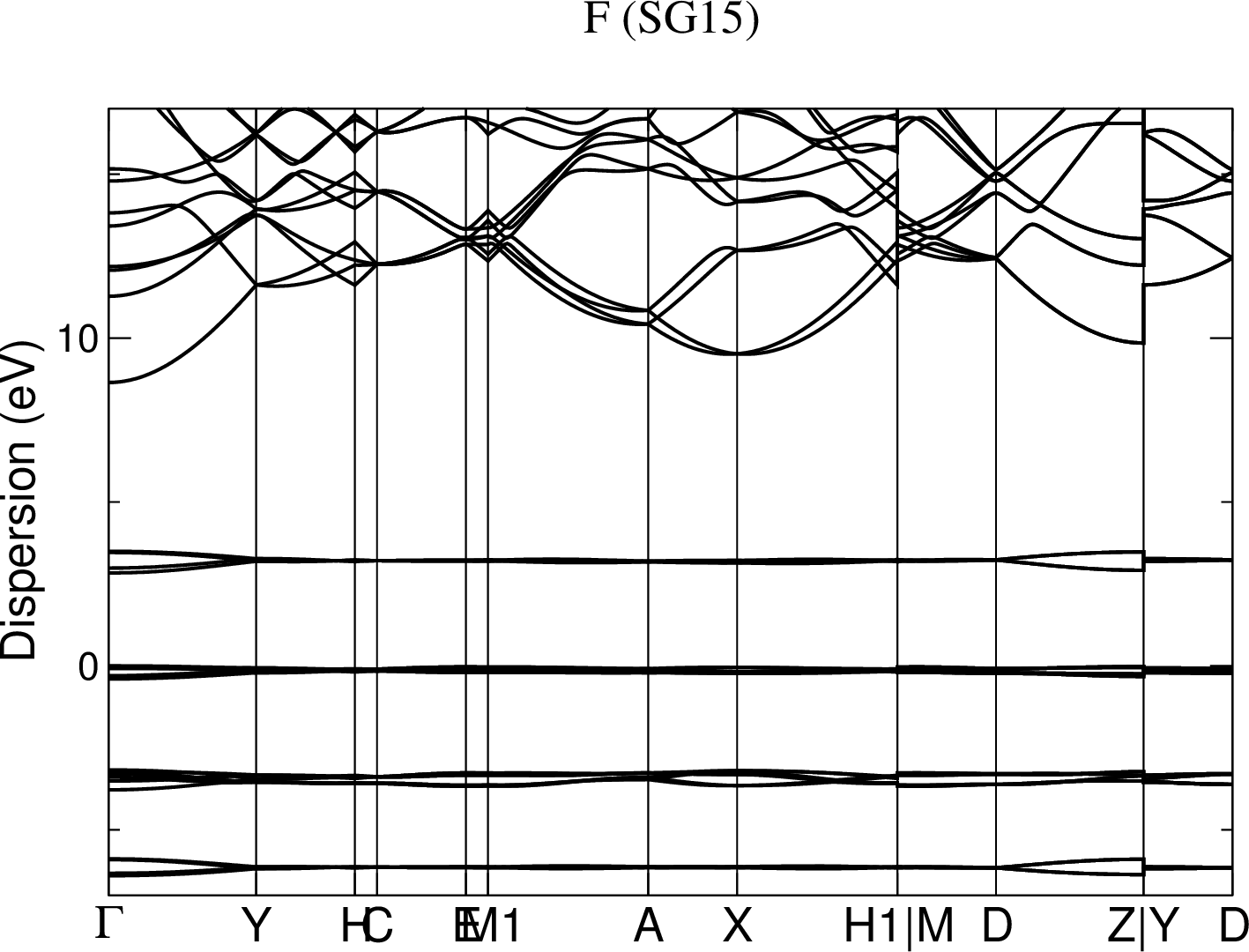

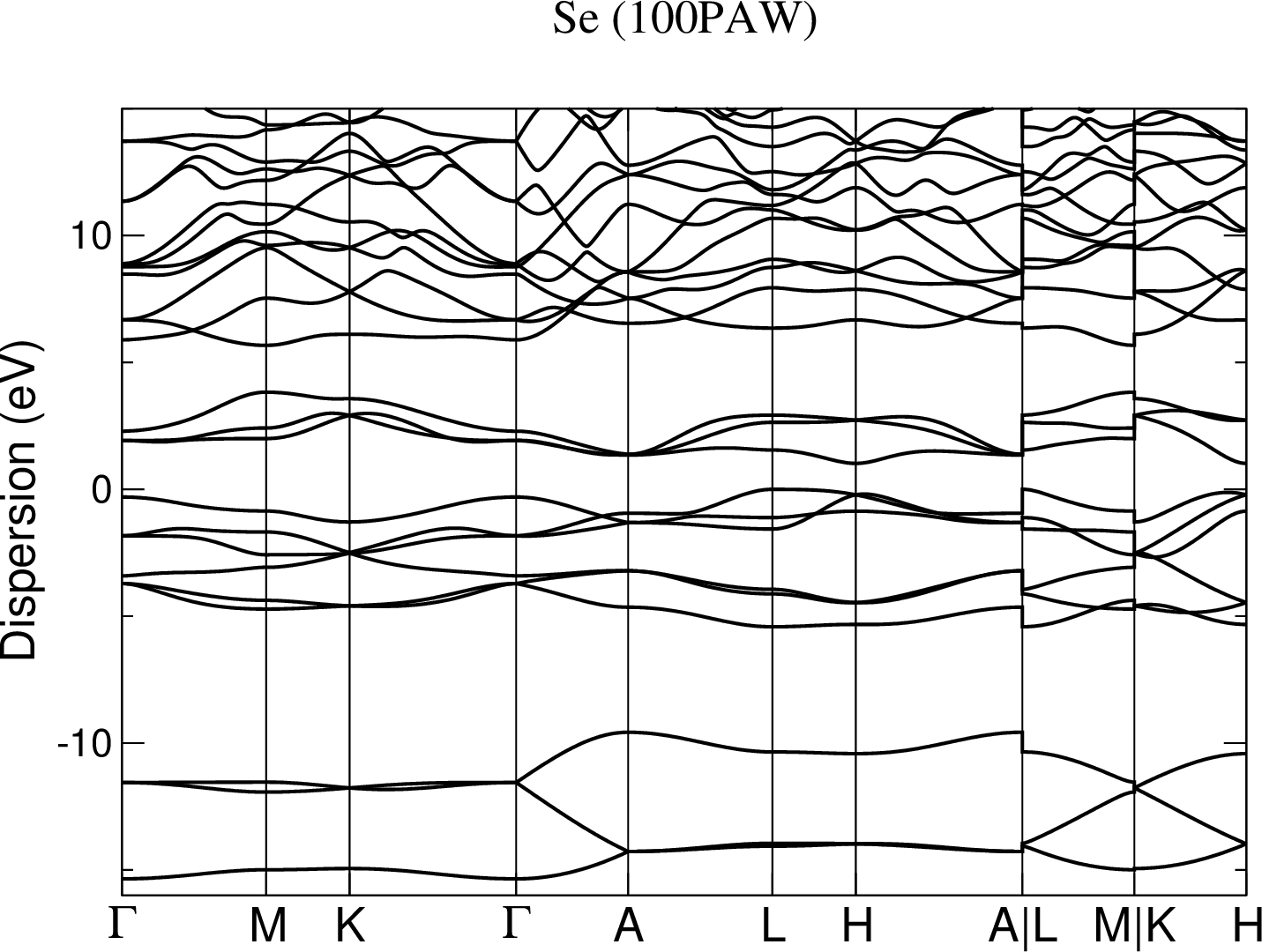

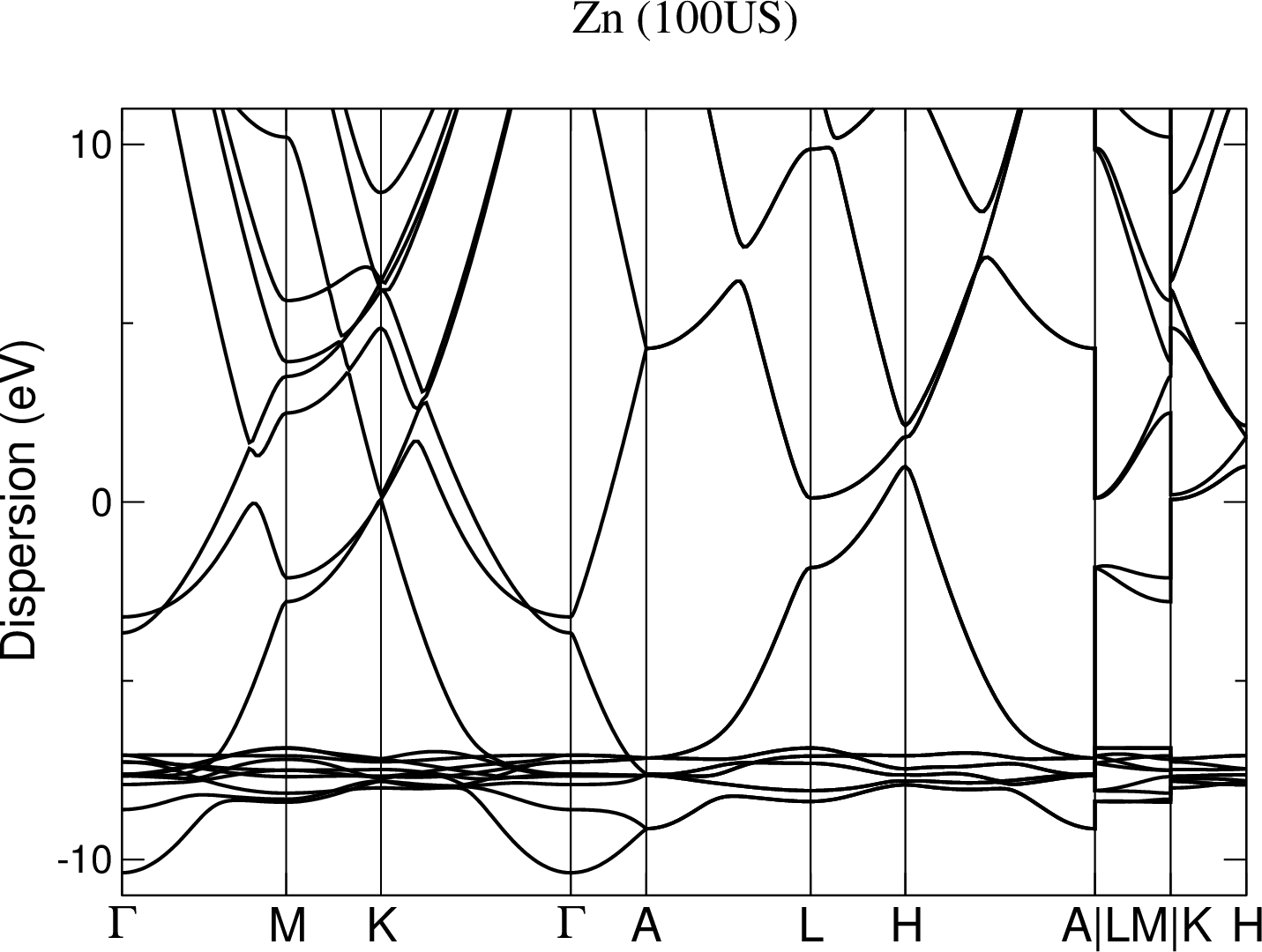

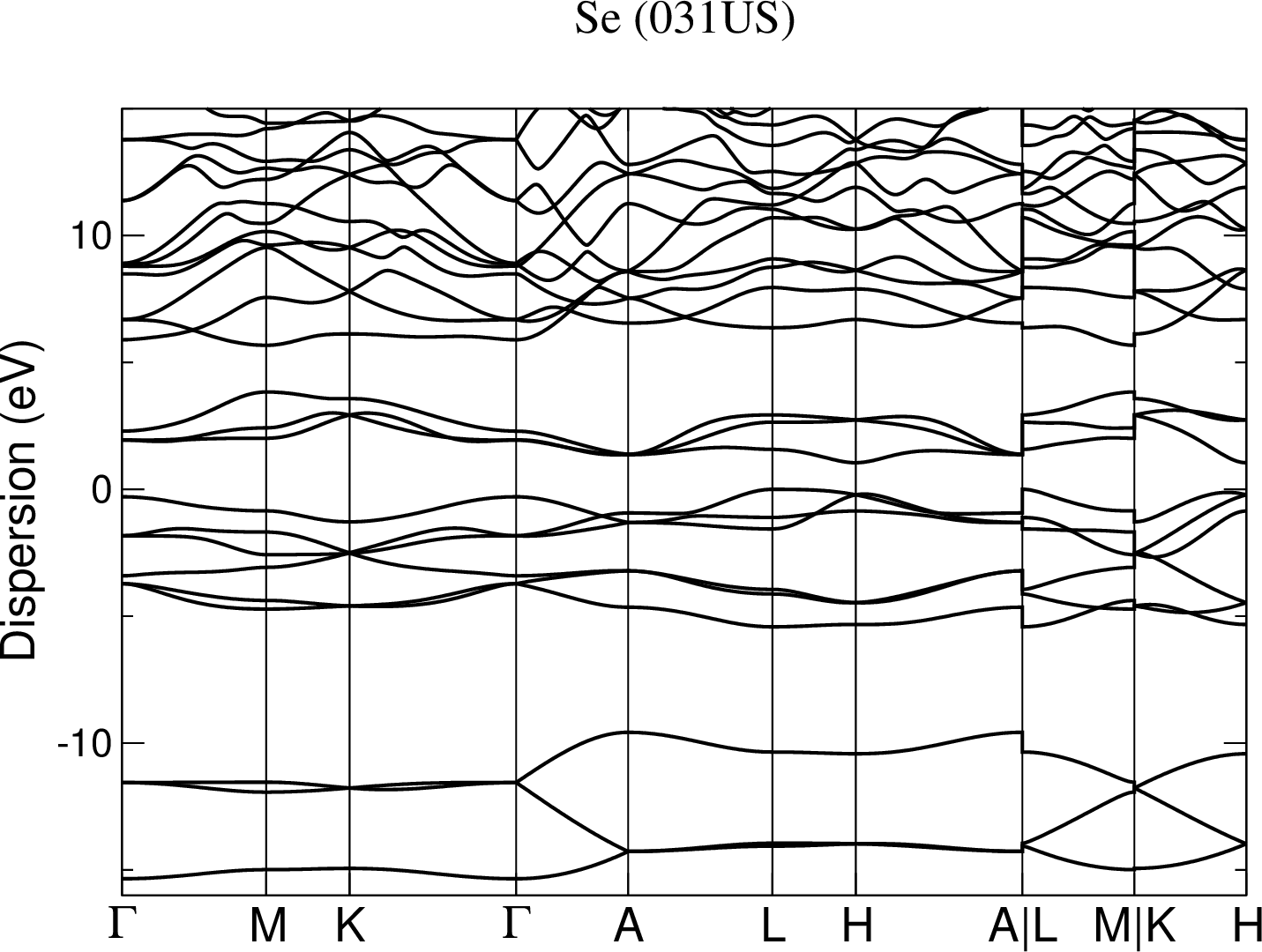

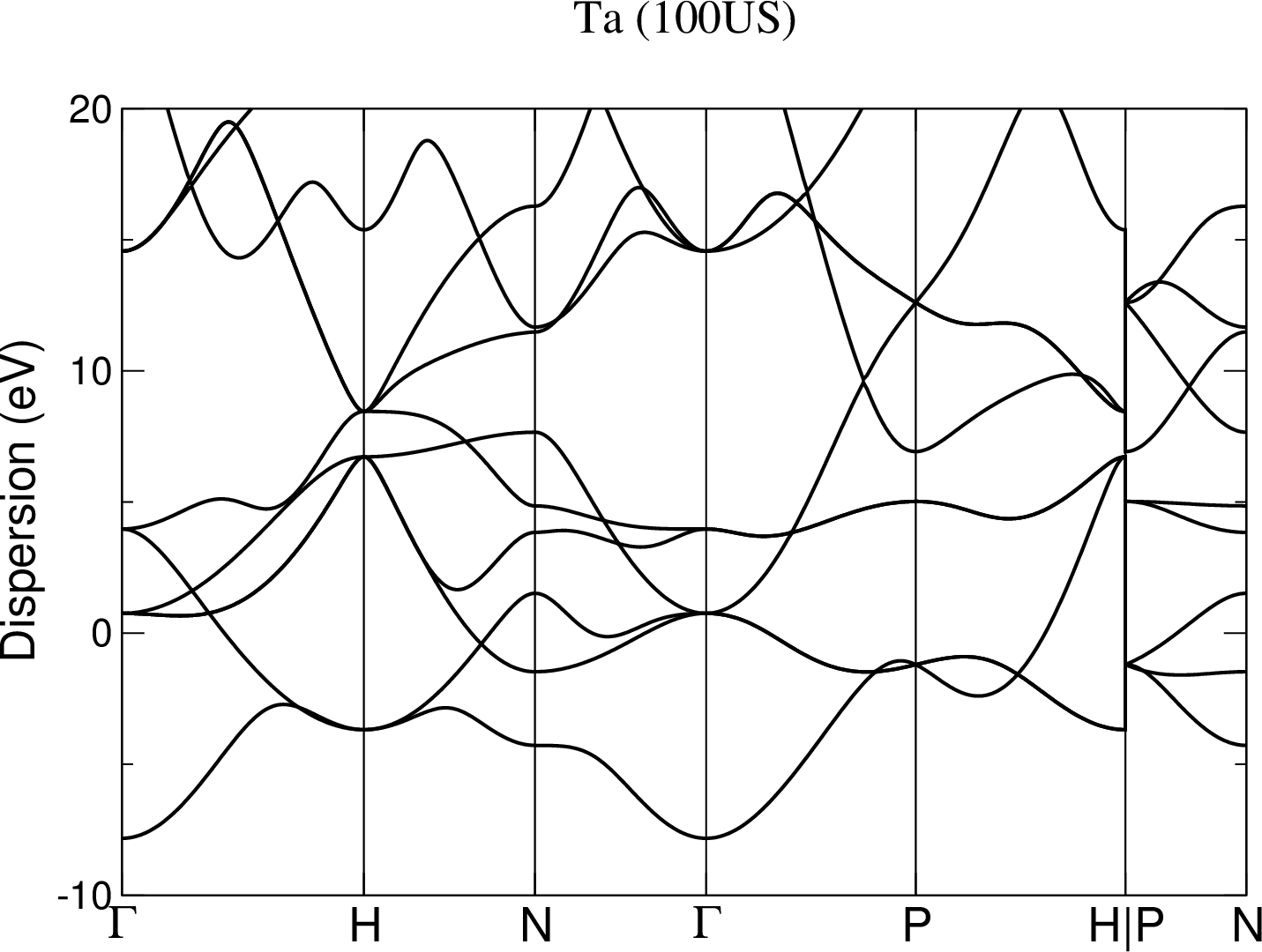

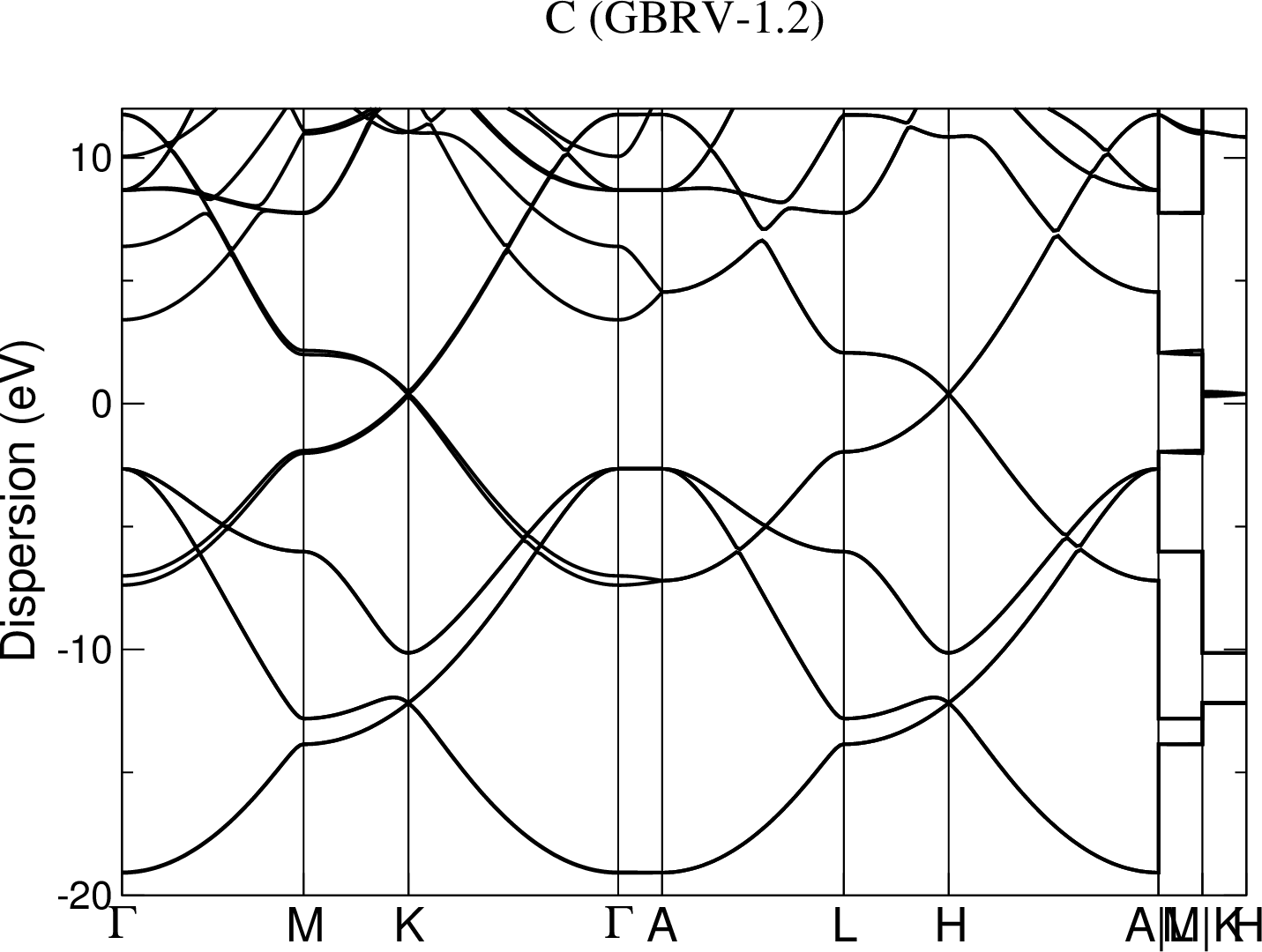

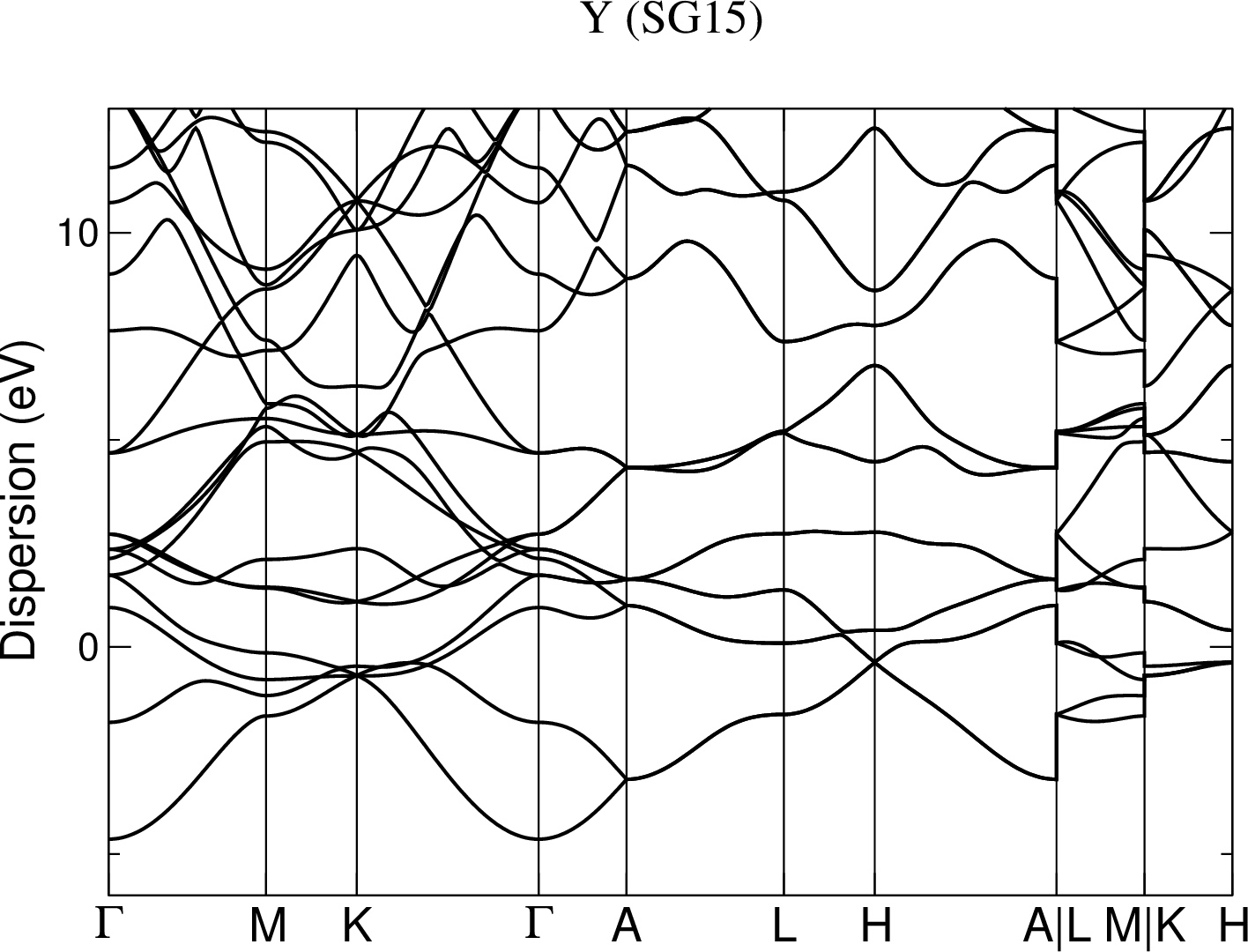

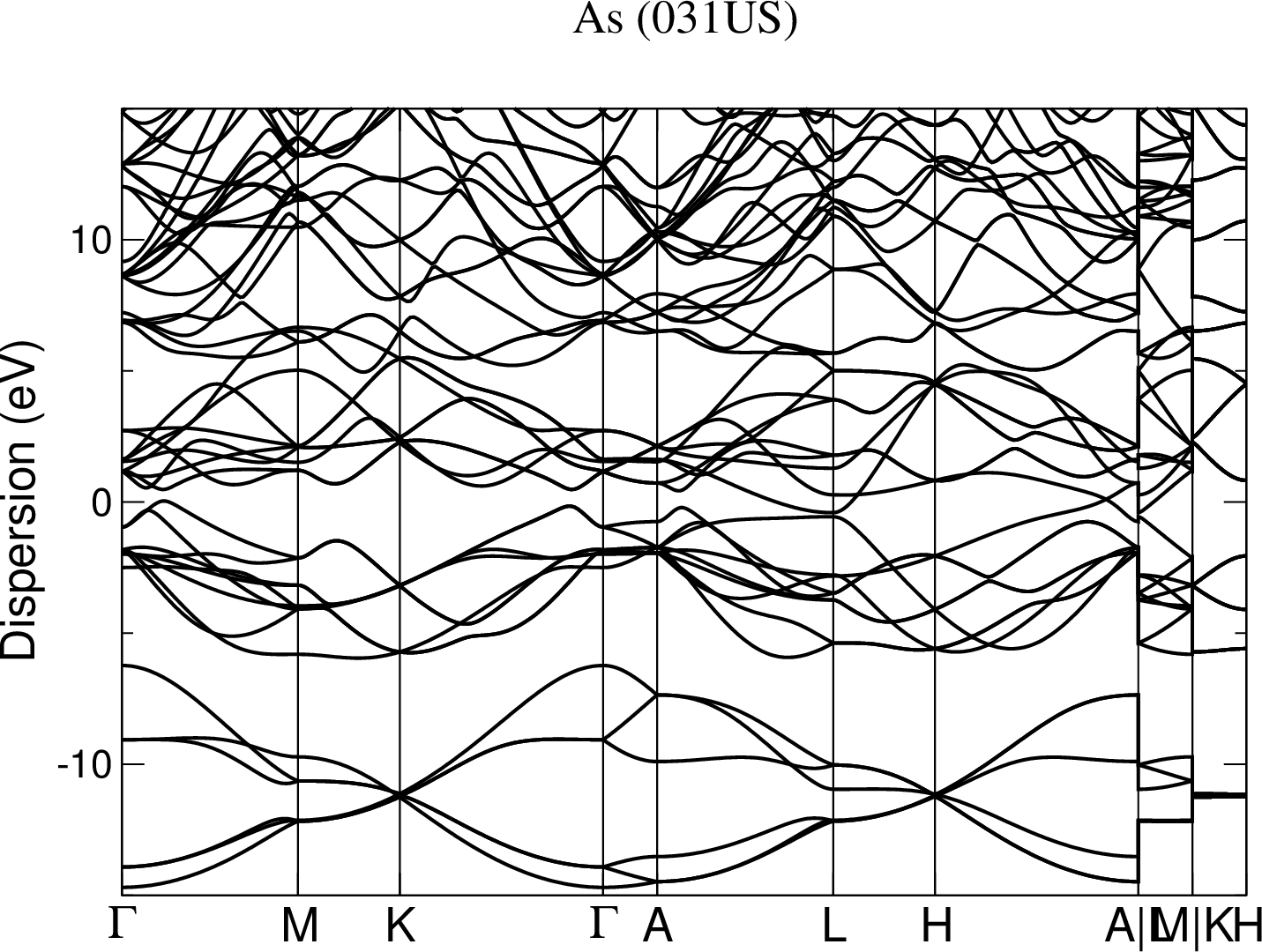

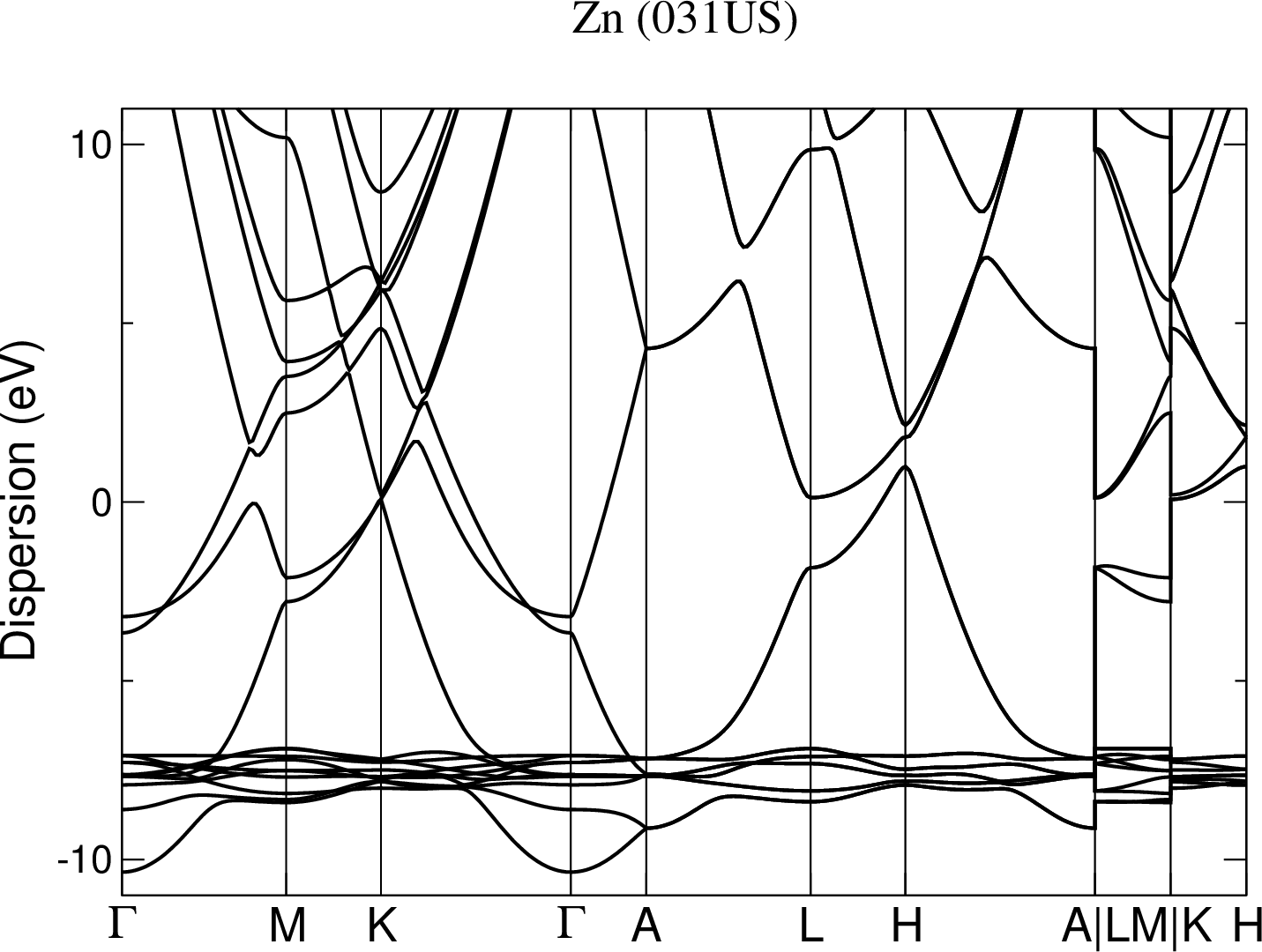

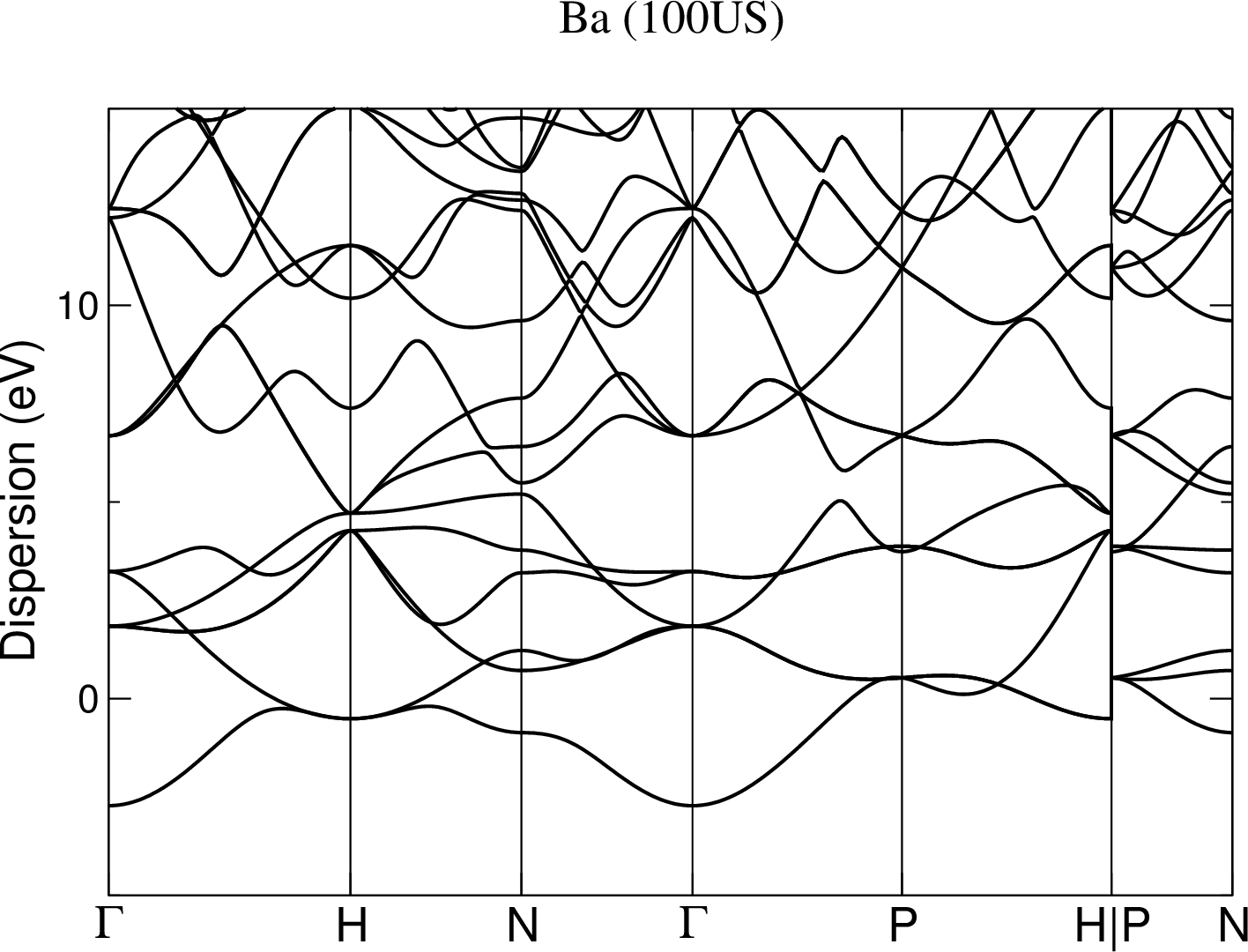

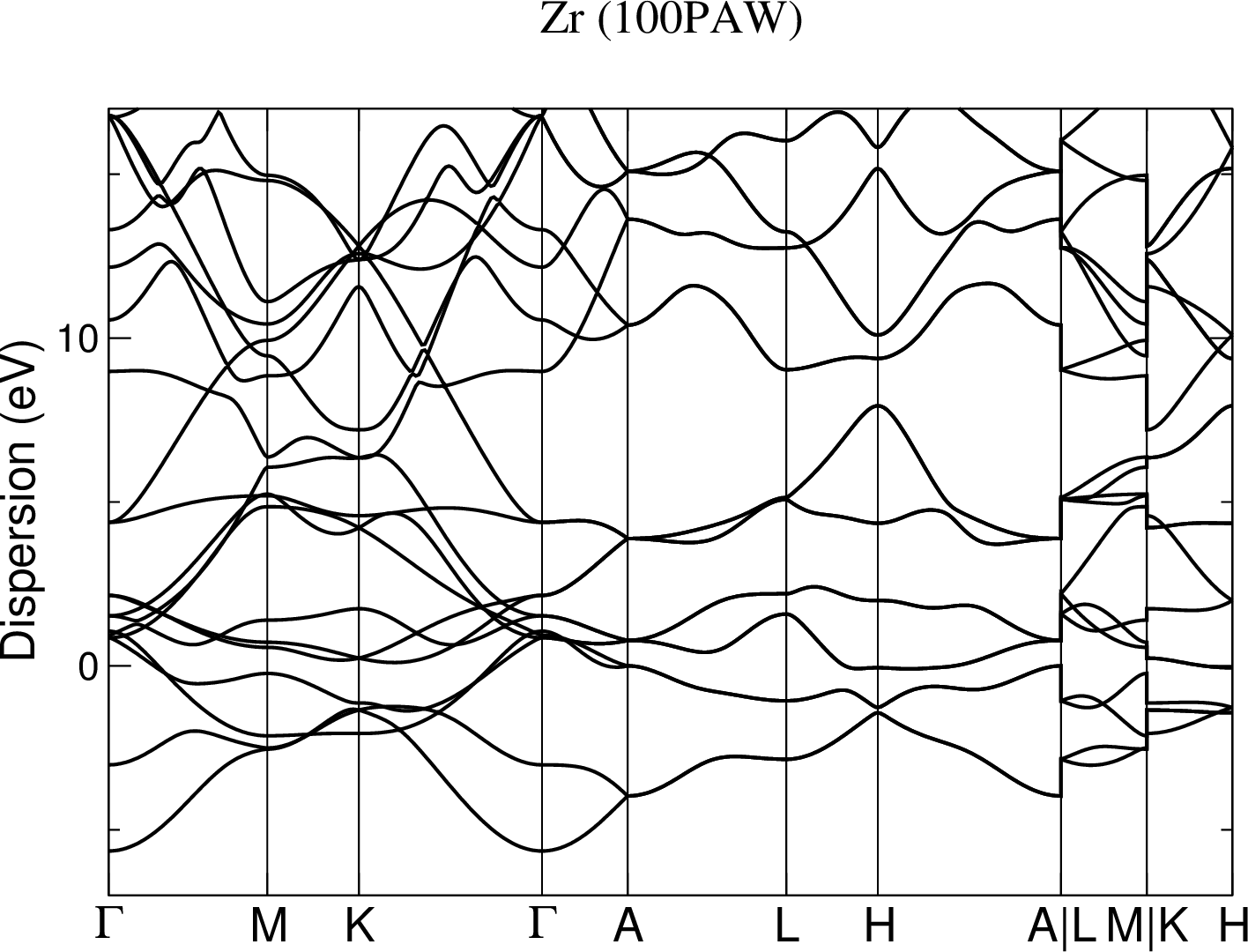

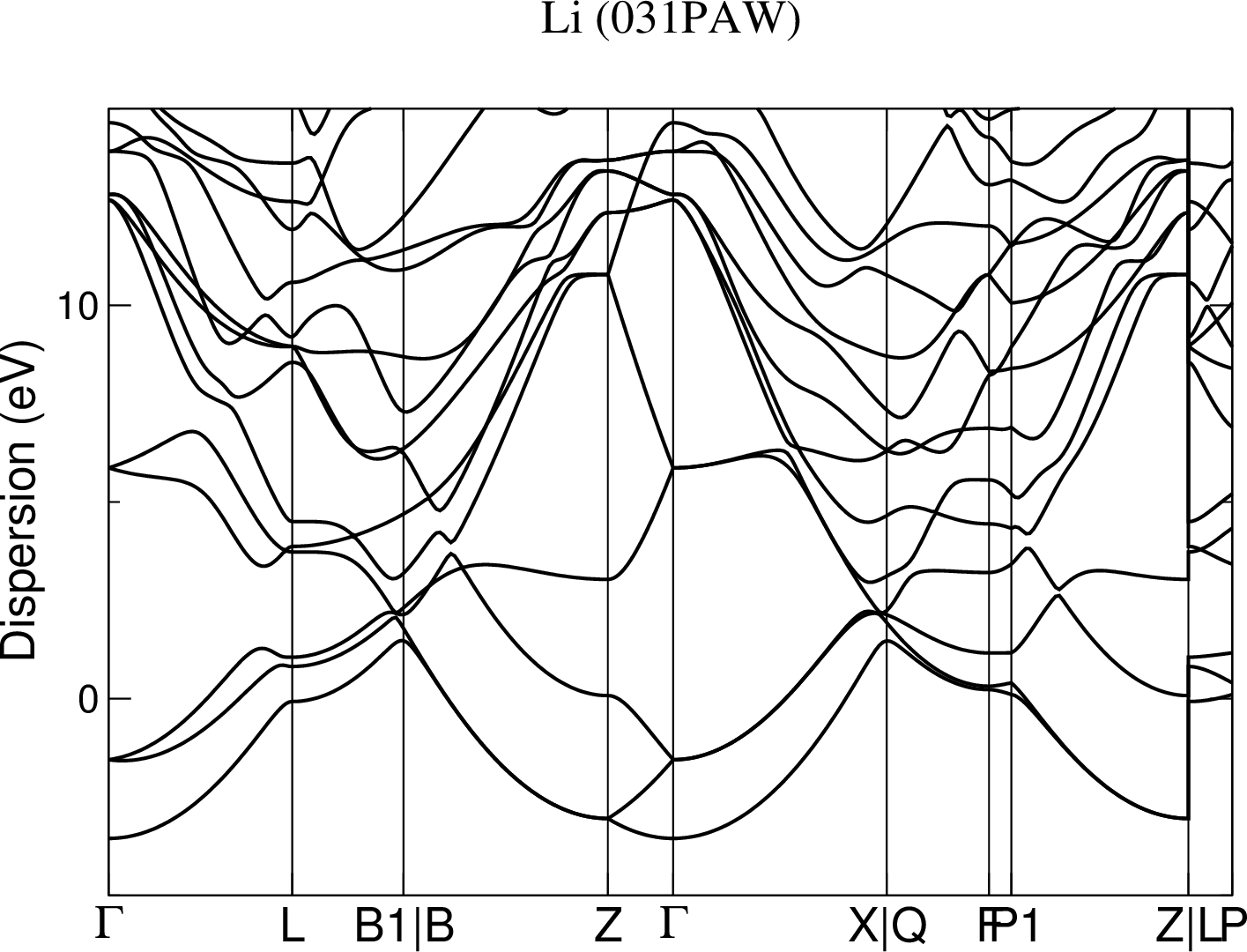

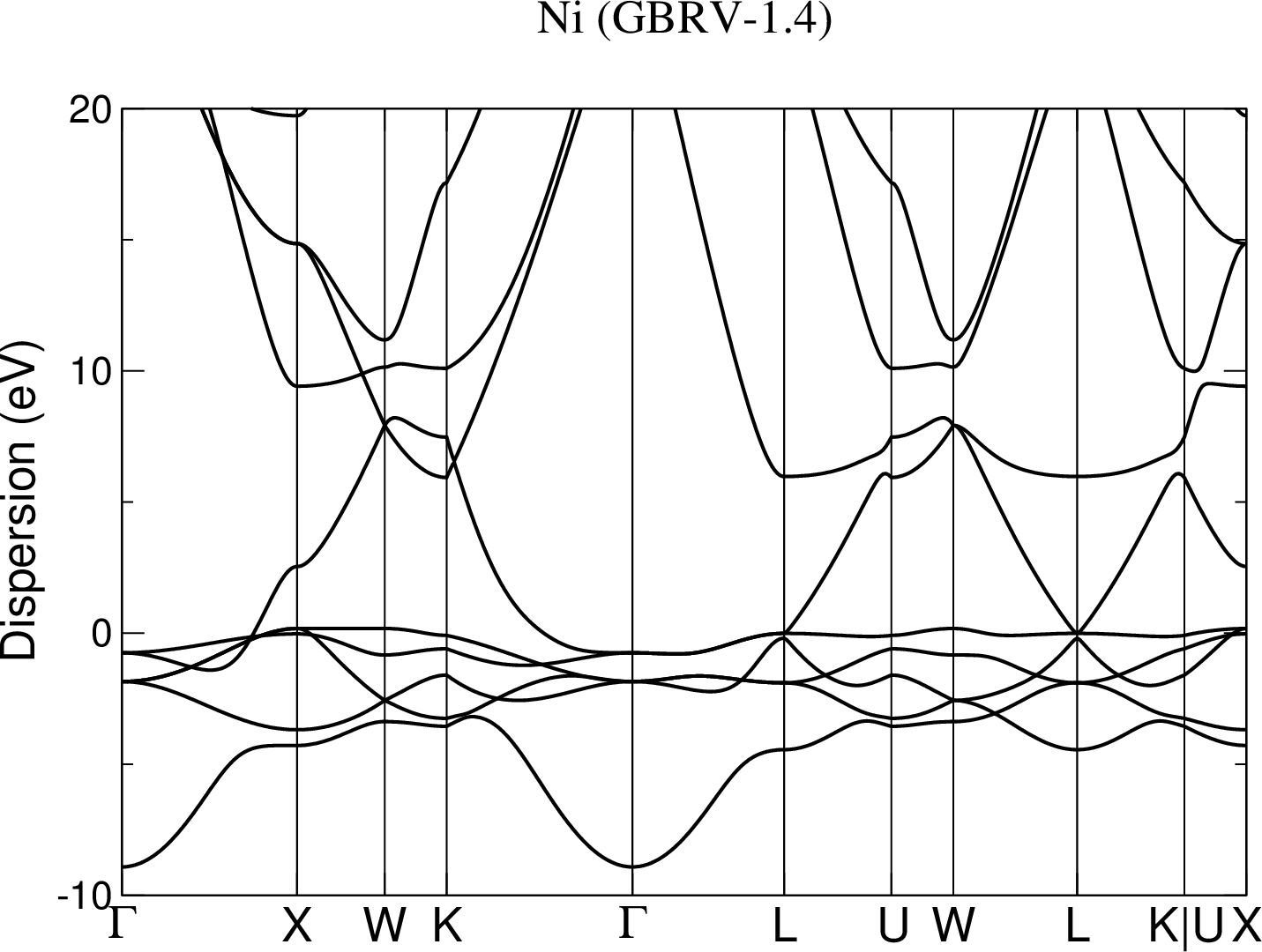

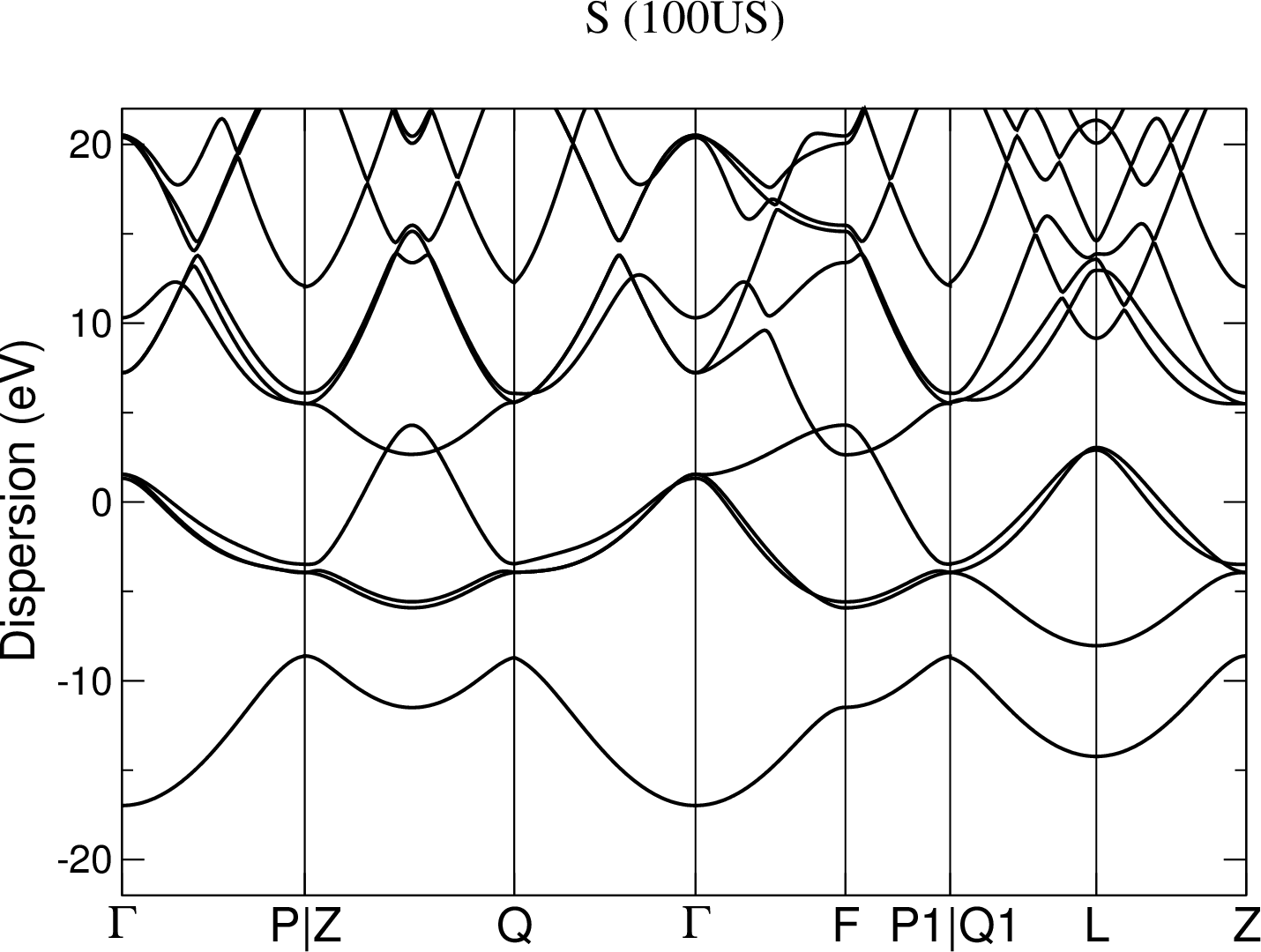

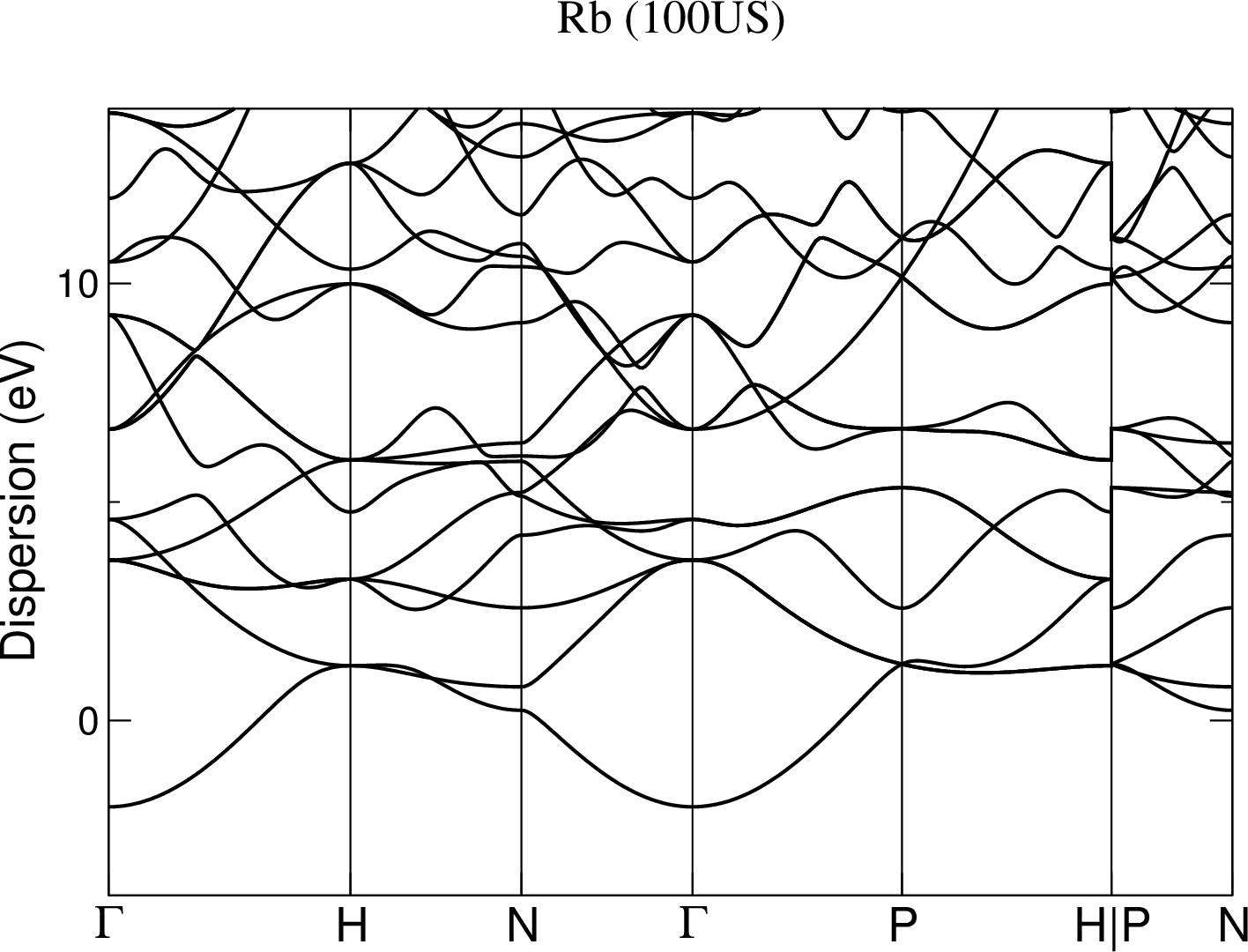

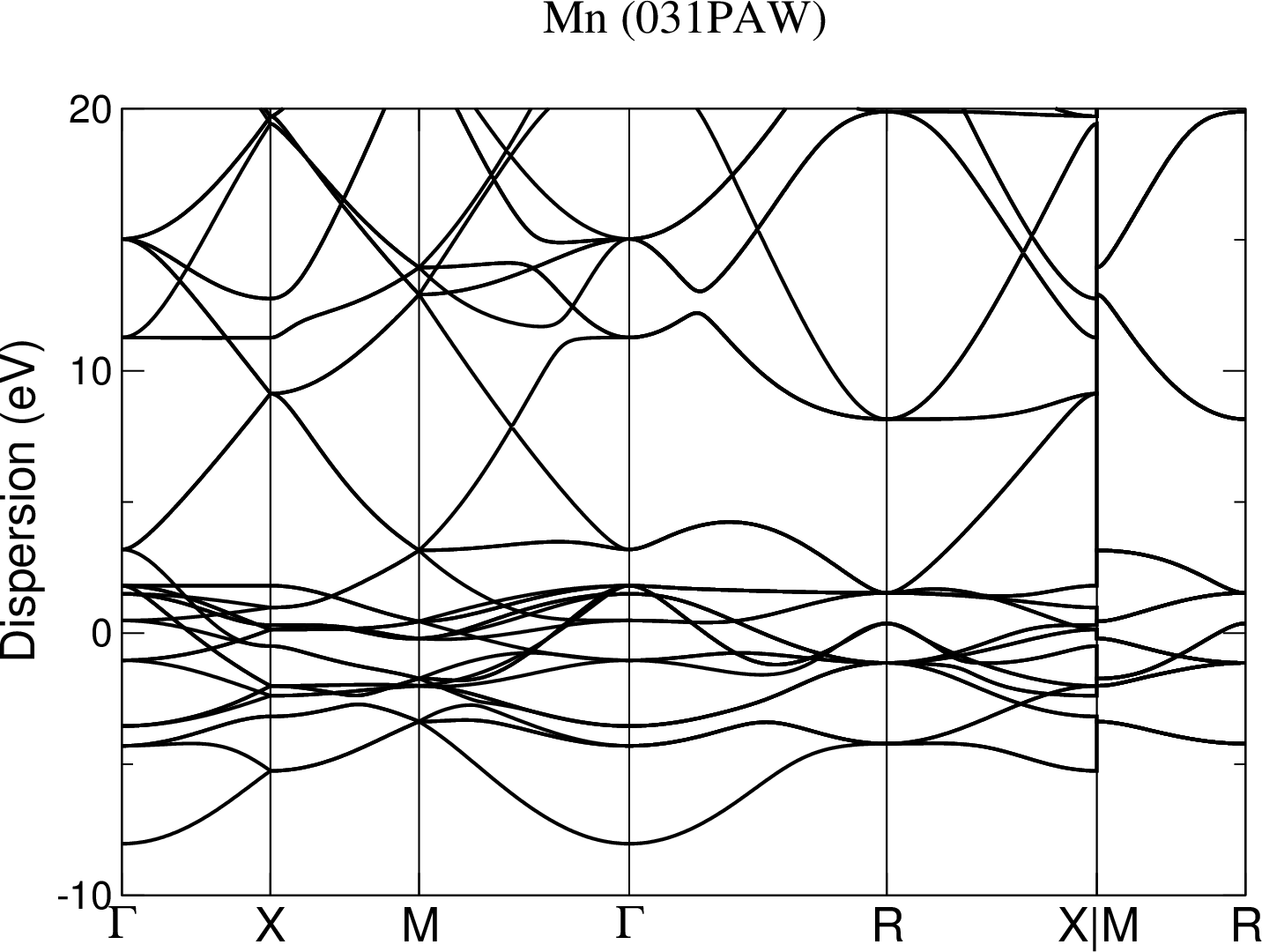

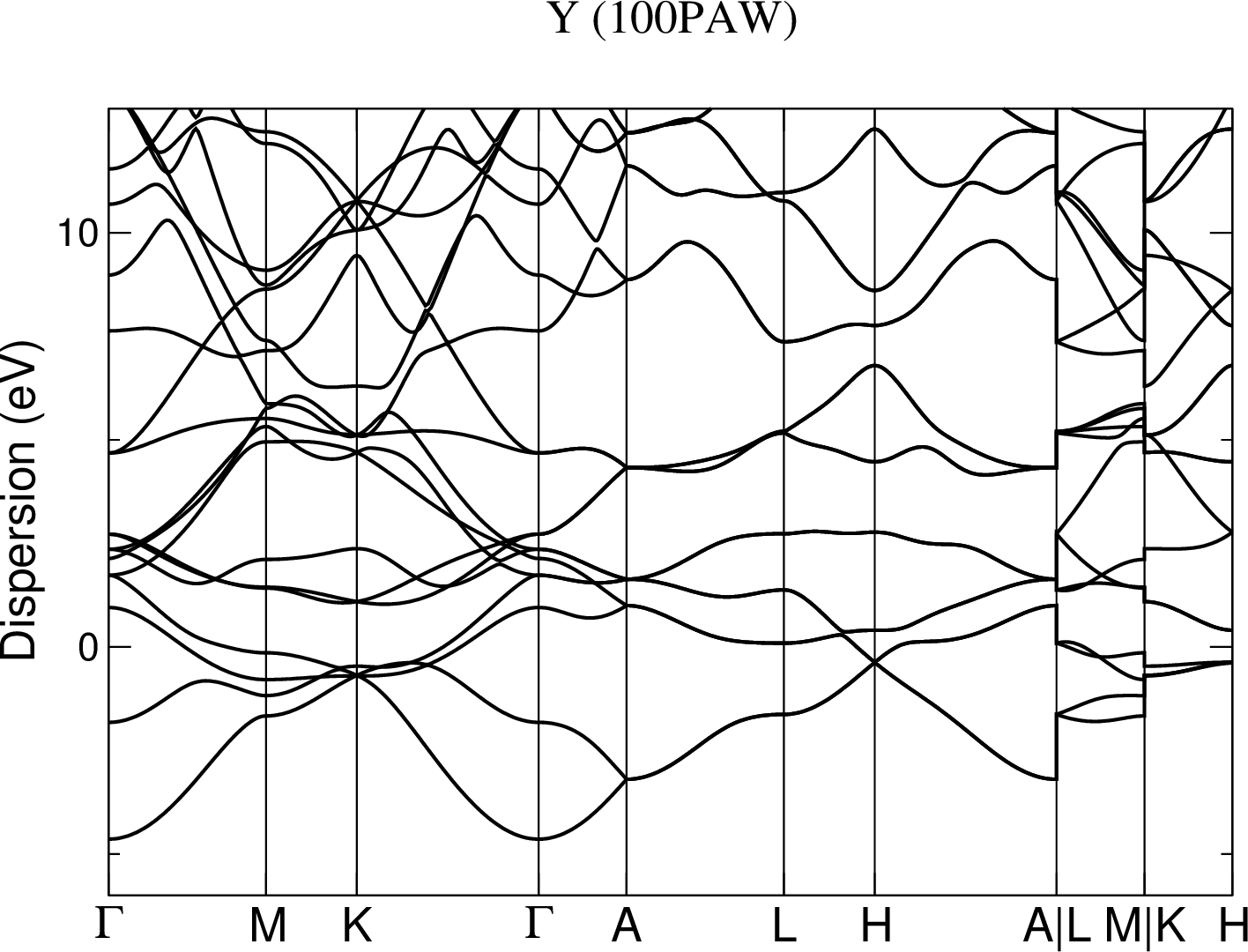

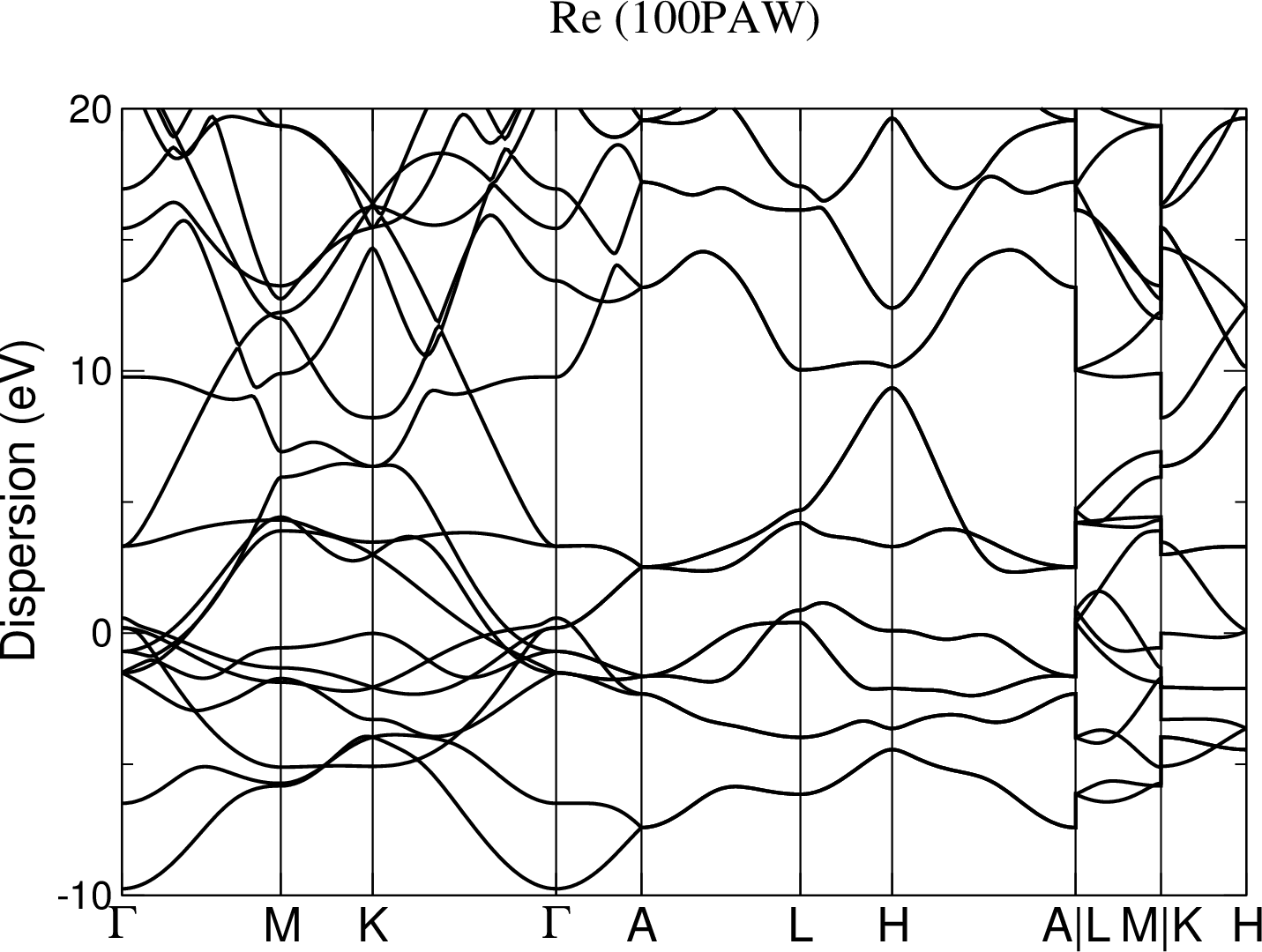

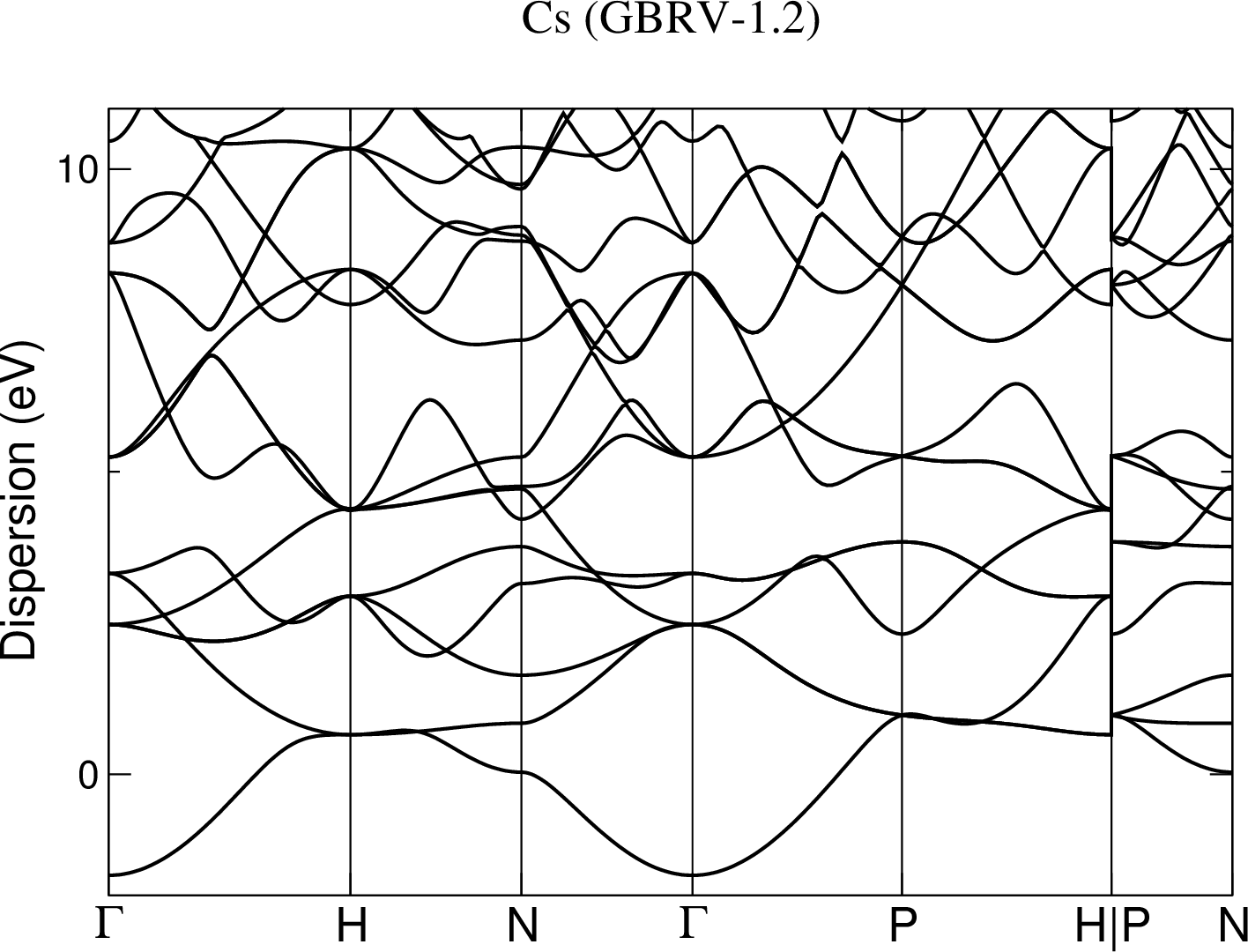

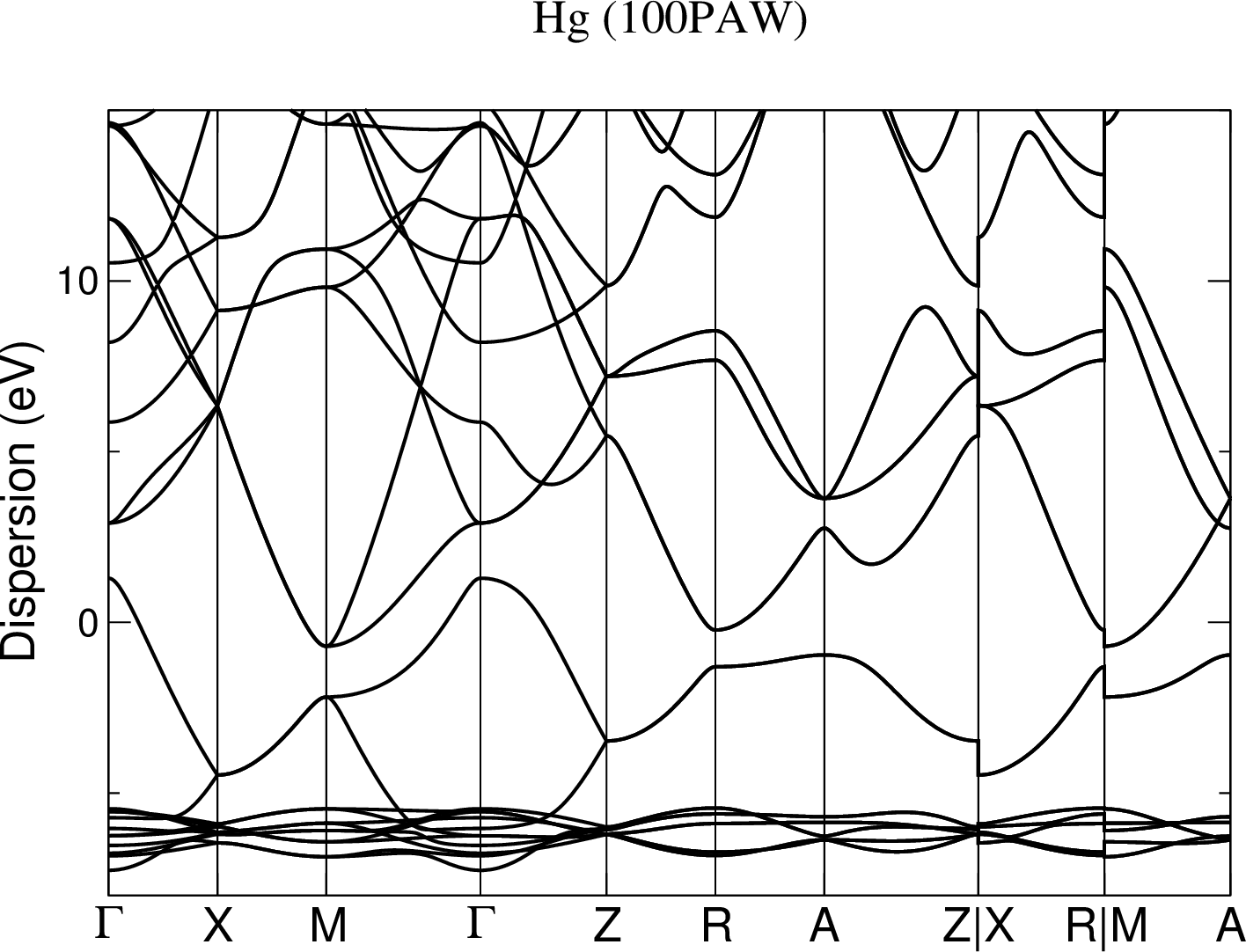

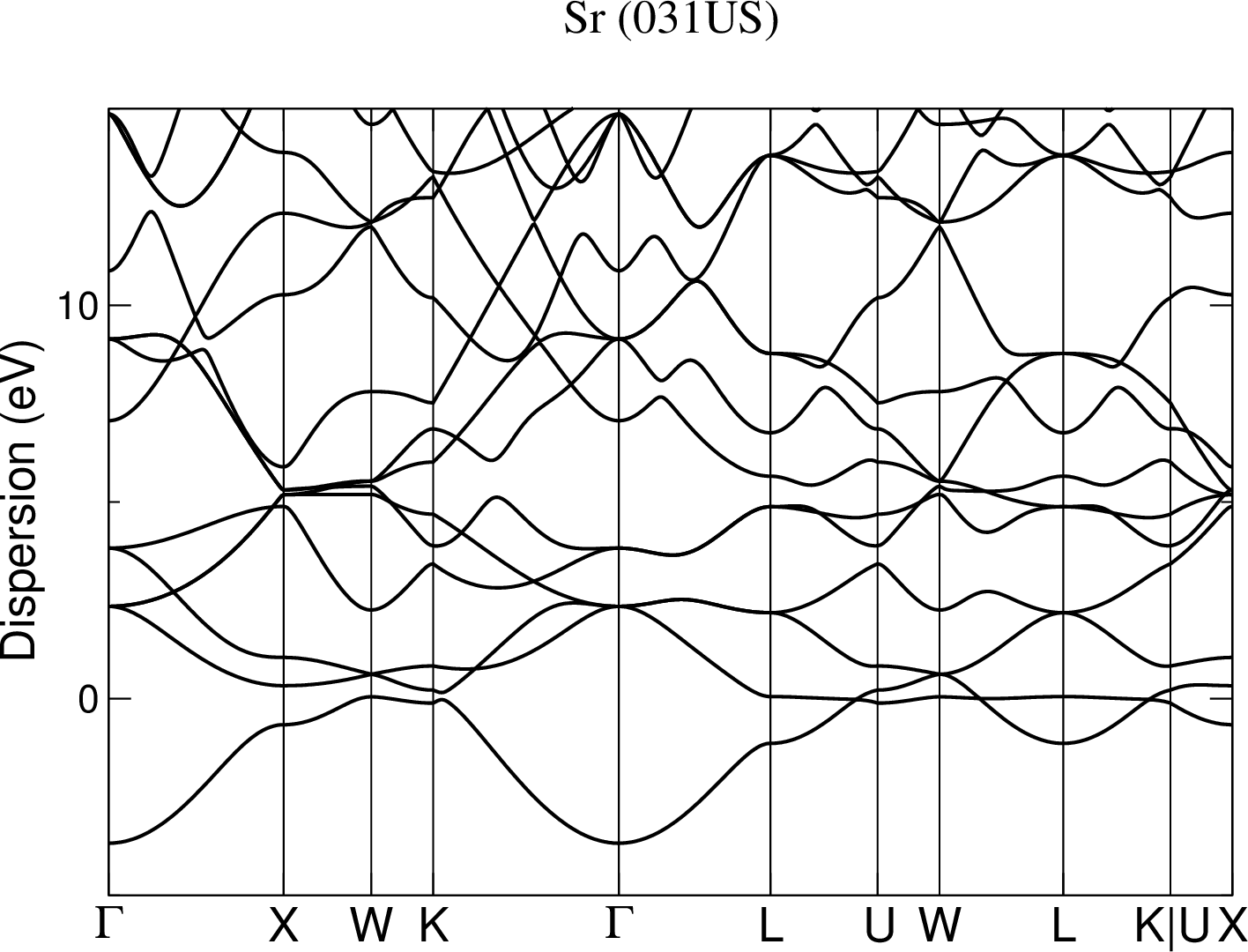

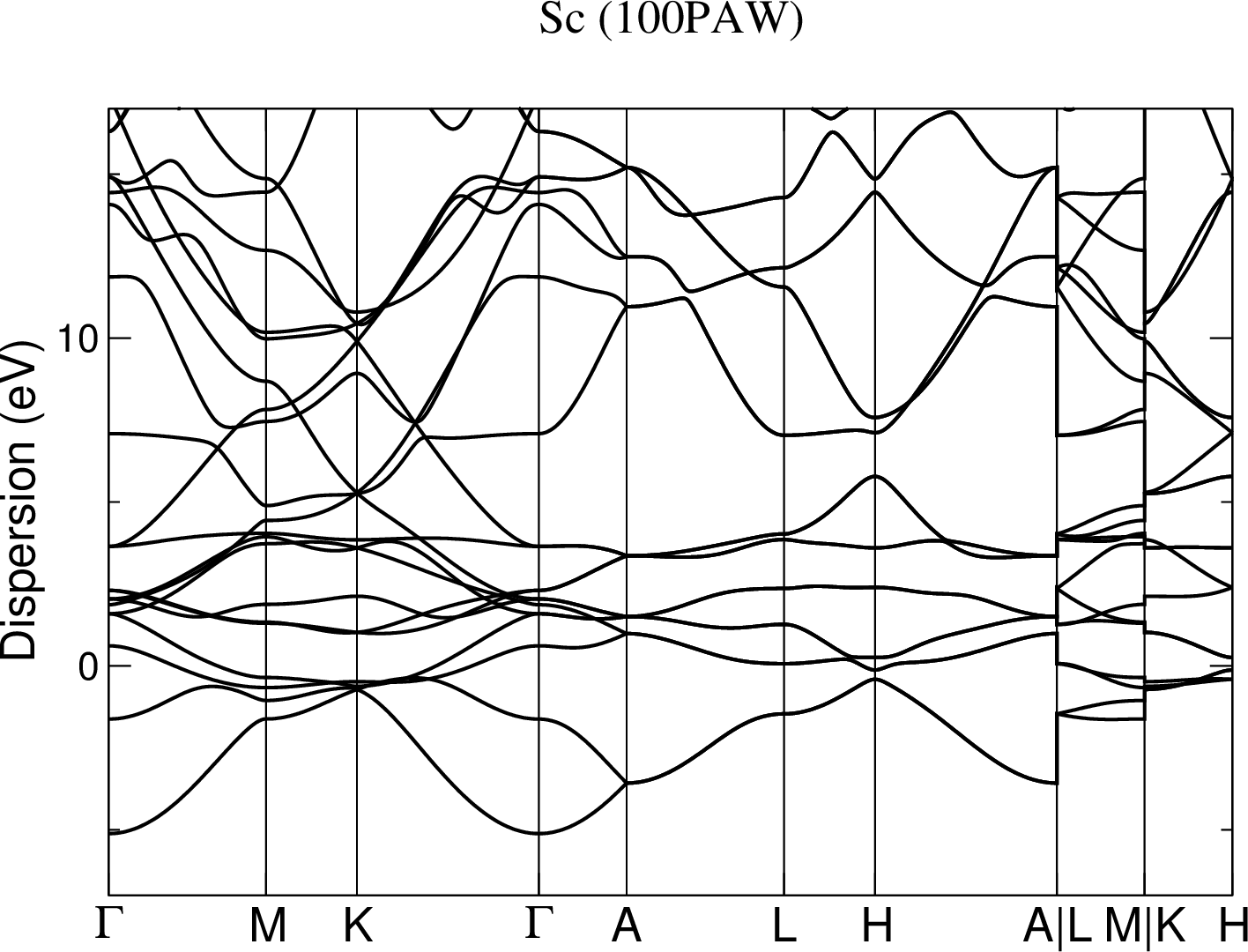

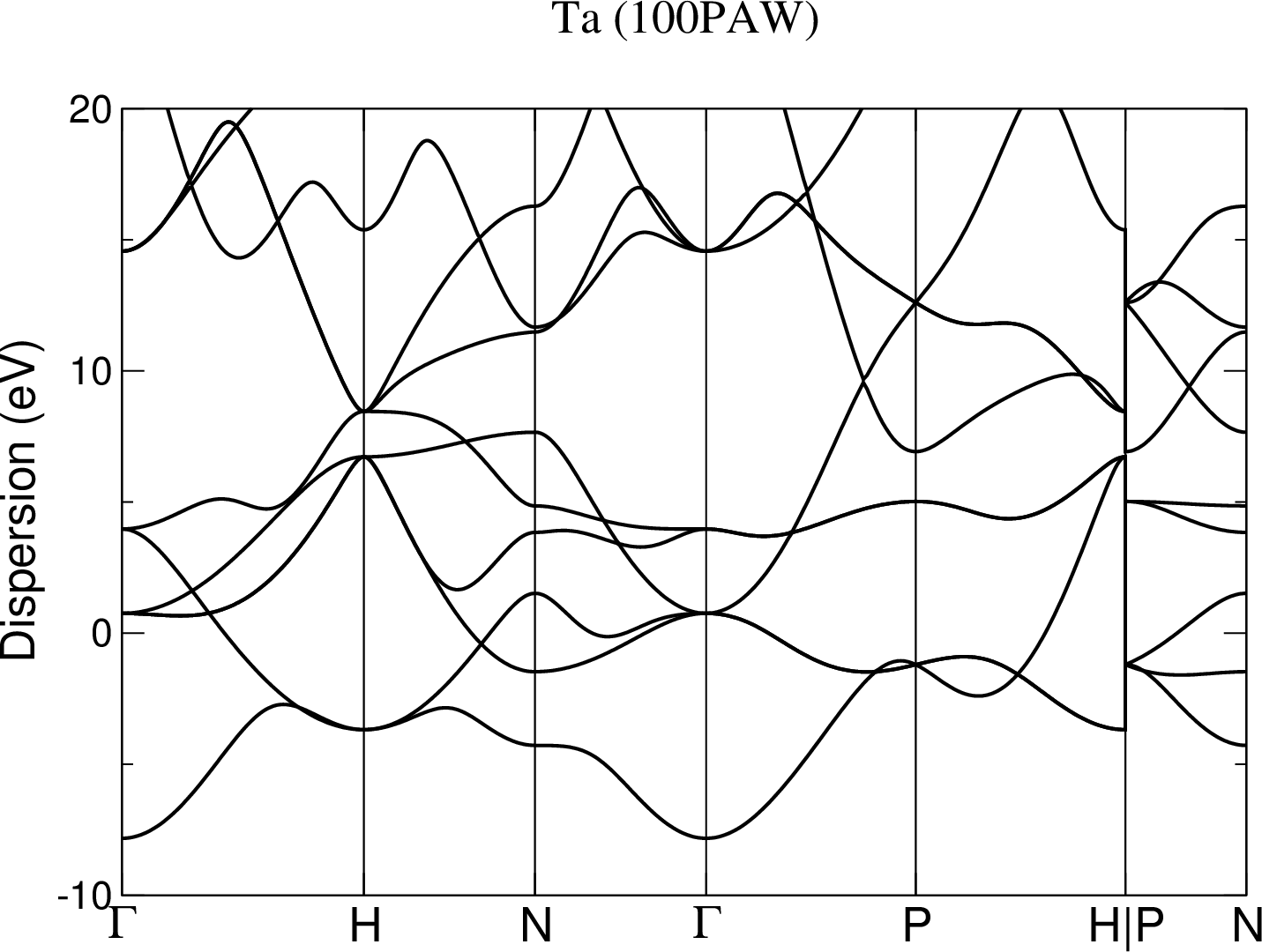

We investigate here the electronic band structures calculated using
different pseudopotentials at converged cutoffs with a k-point mesh of
20x20x20 and a Marzari-Vanderbilt smearing of 0.01 Ry. The Fermi level
is the reference energy (0 eV). All normconserving psp have a dual of
4 (i.e. ecutrho=4*ecutwfc); all ultrasoft/PAW have a dual of 8, with
the exception of Mn and Fe, that have duals of 12.
